RGBlink venus x2 User manual
X2 Quick Start
Support power module pluggable technology and power
1+1 redundancy function
Auto input formats detect and conversion
Support EDID edit for inputs and read EDID for outputs
Replaceable input and output optional modules
Support genlock and reference input
Support resolution real-time total adaptation
Support output layers 90°, 180° and 270° rotate
Support color uniformity compensation technology
Support isolated storage and frame rate conversion
Support preview all output images
Support dual pictures operation and DSK
Support input signals hot backup function
Used-defined resolution adjustments
Multiple cascade synchronization split
1
CONTENT
Product Introduction...................................................................................................................................................2
Packing Configuration................................................................................................................................................. 3
Hardware Orientation................................................................................................................................................. 4
Front Panel.......................................................................................................................................................... 4
Back Panel........................................................................................................................................................... 4
Software Operation.....................................................................................................................................................5
Software Installation........................................................................................................................................... 5
Software Operation.............................................................................................................................................7
Login to the Software..................................................................................................................................7
Connect the Device..................................................................................................................................... 8
Output Settings......................................................................................................................................... 10
Operation Mode........................................................................................................................................13
Input Settings............................................................................................................................................ 29
System Settings......................................................................................................................................... 32
Slave Unit...................................................................................................................................................37
Access Control........................................................................................................................................... 38
2
Product Introduction
X2 is a multiple outputs video processor, it offers nine card cages that accepts a wide variety of video signals,
including VGA, CVBS, S-HDMI, SDI, HDMI, H.264, 4K and USB (for media files play). It combines truly seamless,
fade in fade out, glitch-free switching with advanced scaling technologies to meet the requirements of high
quality, high resolution video presentations.
X2 supports EDID editing for VGA, HDMI input ports and read EDID for output ports, the EDID can be modified
by windows control program, users can edit the EDID of input port according to the resolution of outputs to
achieve the optimal input resolution.
X2 also supports resolution real-time total adaptation, color uniformity compensation technology and 90°,
180°and 270°rotate. In addition, it supports local front panel operation, remote widows based software control
by Ethernet, and WIFI control. In addition, X2 is based on replaceable input optional modules structure, with
different modules, you can reach more possibility and application range.

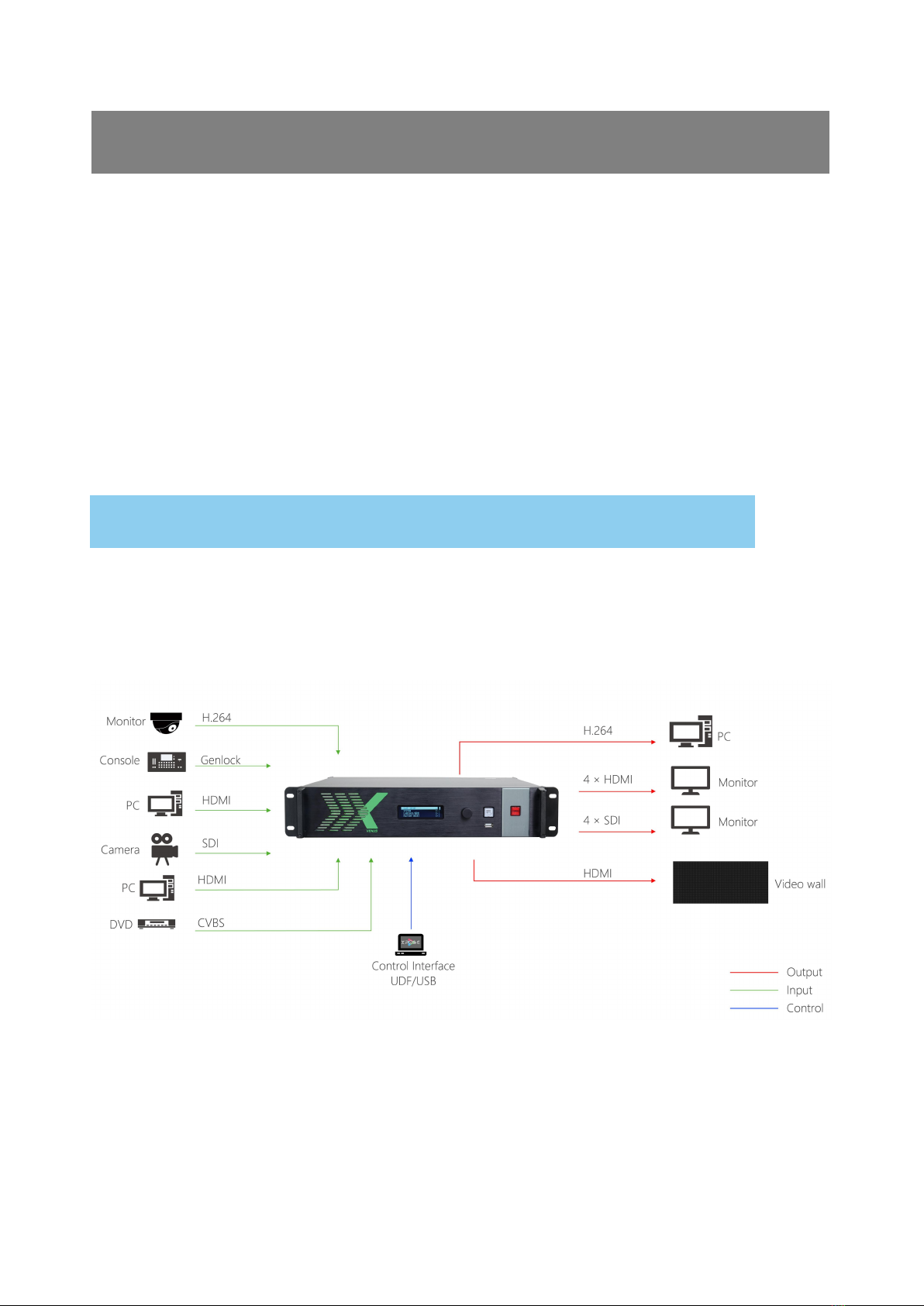

X2 System Connection Diagram
System Connection
We offer solutions to demanding technical problems. Any application questions, or required further
information, please contact with our customer Support Engineers.
3

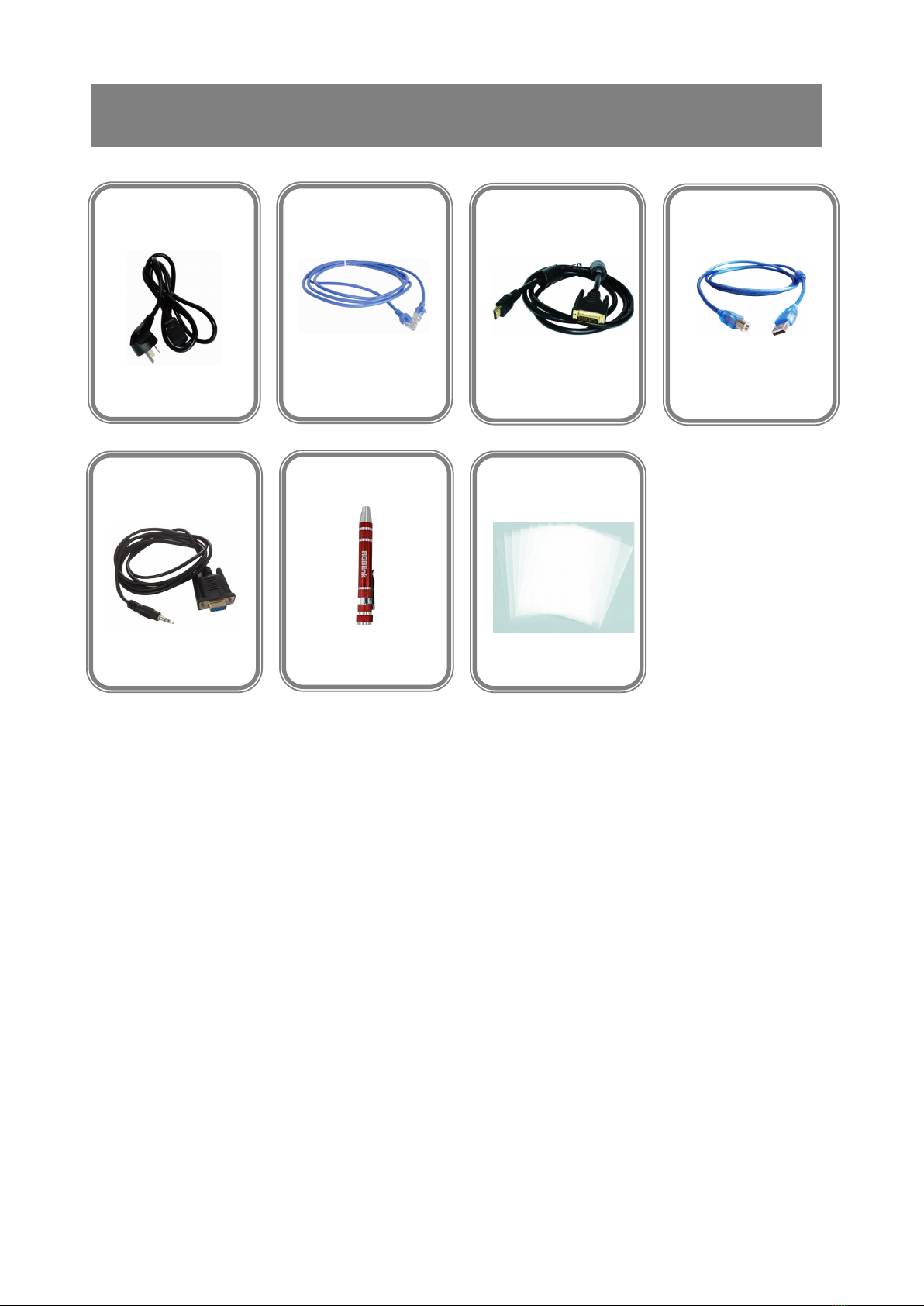

Packing Configuration
Note: AC Power Cable supplied as standard according to destination market.
AC Power Cord
Network Cable
HDMI to DVI
Cable
USB Cable
DB9 to Audio
Cable
Screw Driver
Antistatic Bag
4

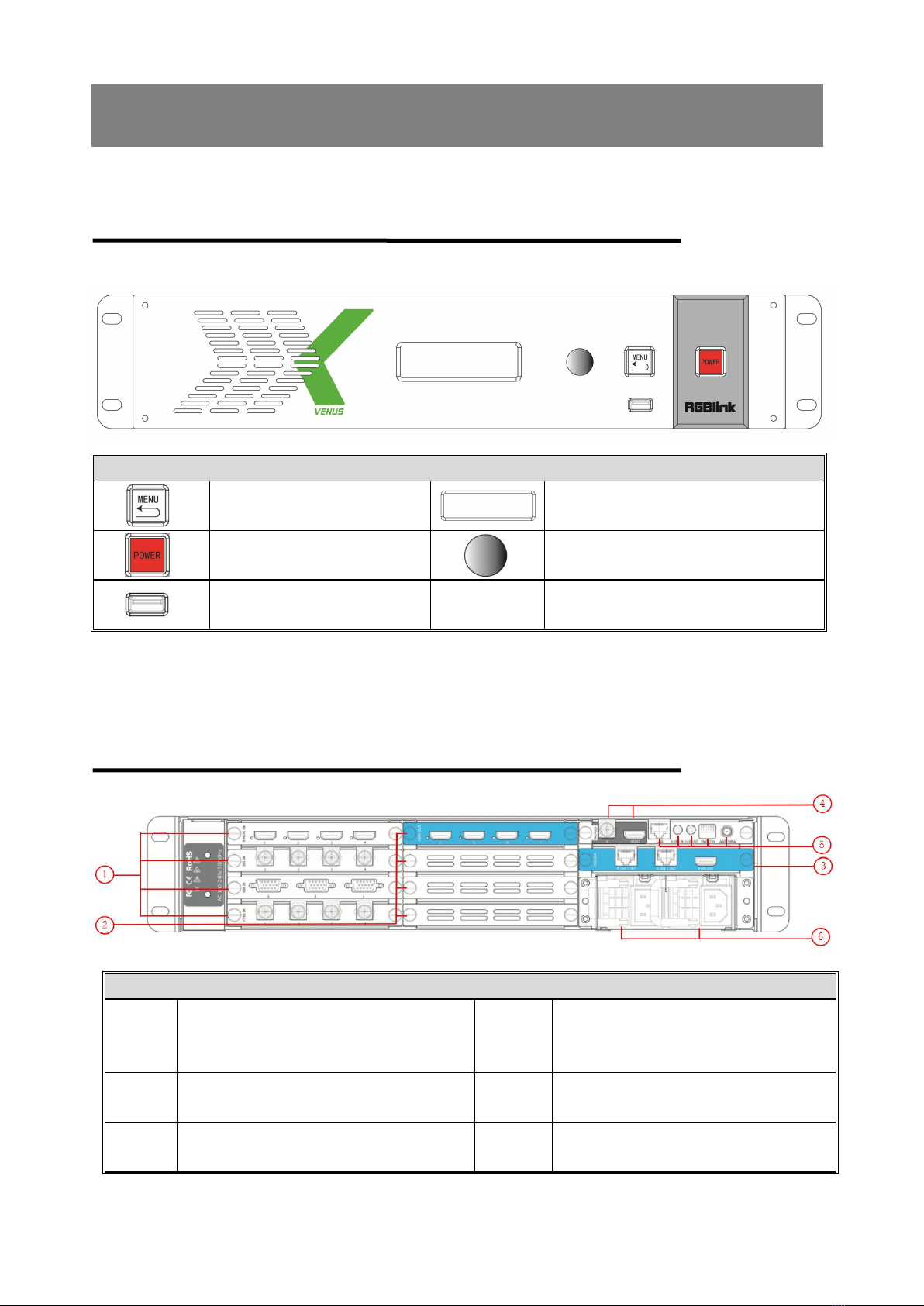

Hardware Orientation
Front Panel
Back Panel
Button Instruction
Menu and back button
OLED Panel Show operation menu
items
Power button
Knob-Confirm and adjust OLED menus
USB interface Used for device
upgrade
Chassis Module Structure
1
4 input module slots, support S-HDMI,
SDI, VGA, CVBS, USB, HDMI, H.264 and 4K
optional module
4
Genlock interface, including 1 BNC
connector and 1 HDMI-A connector
2
4 program output module slots, support
HDMI and SDI optional module
5
Control interface
3
1 preview output card slot, including
H.264 output and 1 HDMI output
6
Power module
5
Software Operation
Software Installation
Environment Requirements:
Processor: 1 GHz or above 32 bit or 64 bit processor
Memory: 2 GB or more
Graphics: Support DirectX 9 128M or above (open AERO effect)
Hard disk space: Above 16G (primary partitions, NTFS format)
Monitor: Resolution must be 1280 x720 pixel or above (it can not display normally if the resolution is lower than
1280 x720)
Operating system: Windows 7 or above (full version, not Ghost version or compact version)

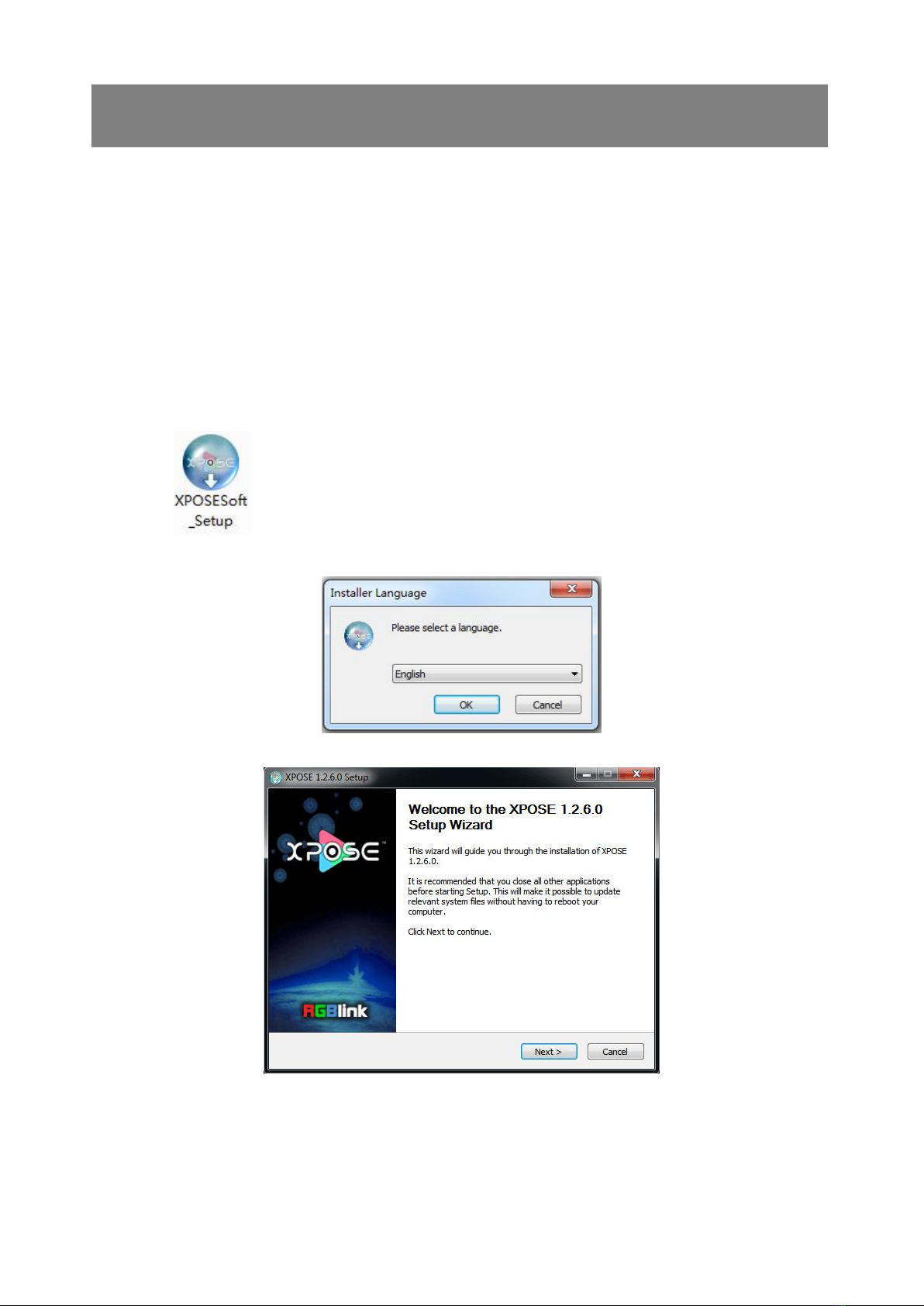

Double click icon, it will pop-up the installer language box, select the language, for example, select
“English”, and click “OK” to confirm.
Click “Next” to install:

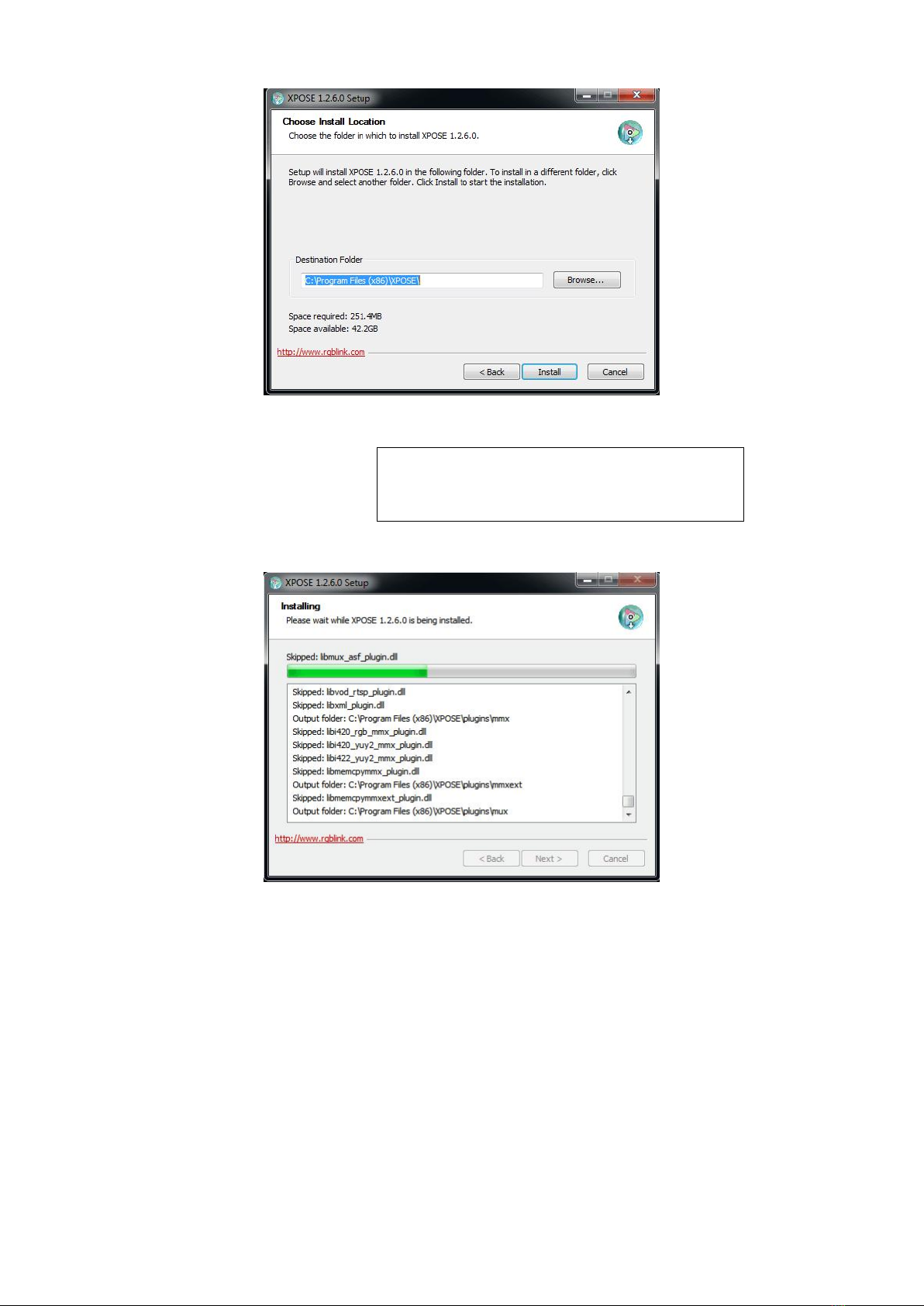

Select “Browse...” to select the XPOSE software install location:
6
Note
User should get the rights in “Roles Management”
when install the software to disk C if the system is
Windows 7 or above.
Click “Install”:

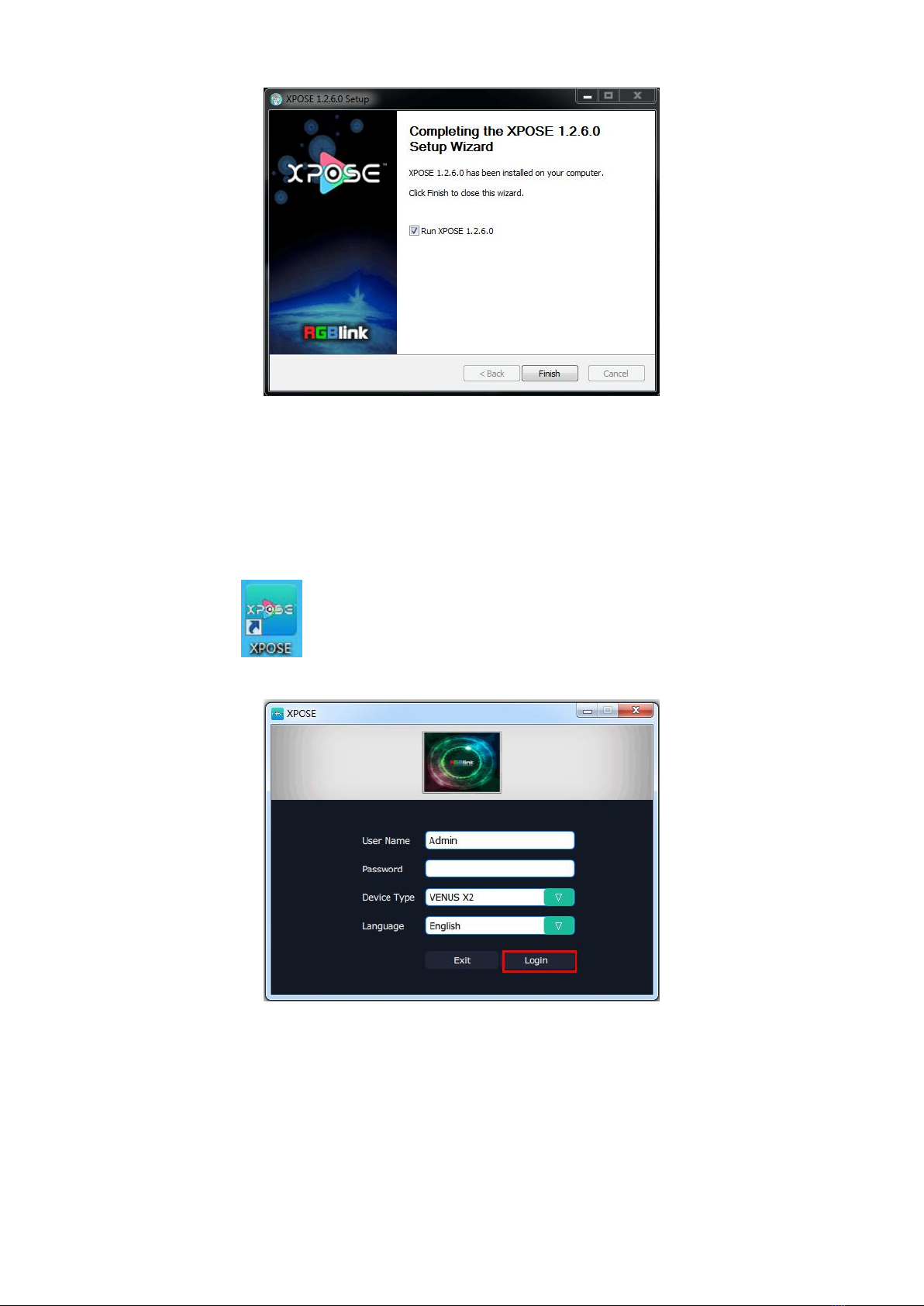

Click “Finish” and is ready to run the XPOSE management software:
7
Software Operation
Login to the Software
Double click the icon on the desktop. Log in interface will be enter after opening, the user name is
Admin, and there is no password, select “VENUS X2”, and enter into the software by clicking “Login”.

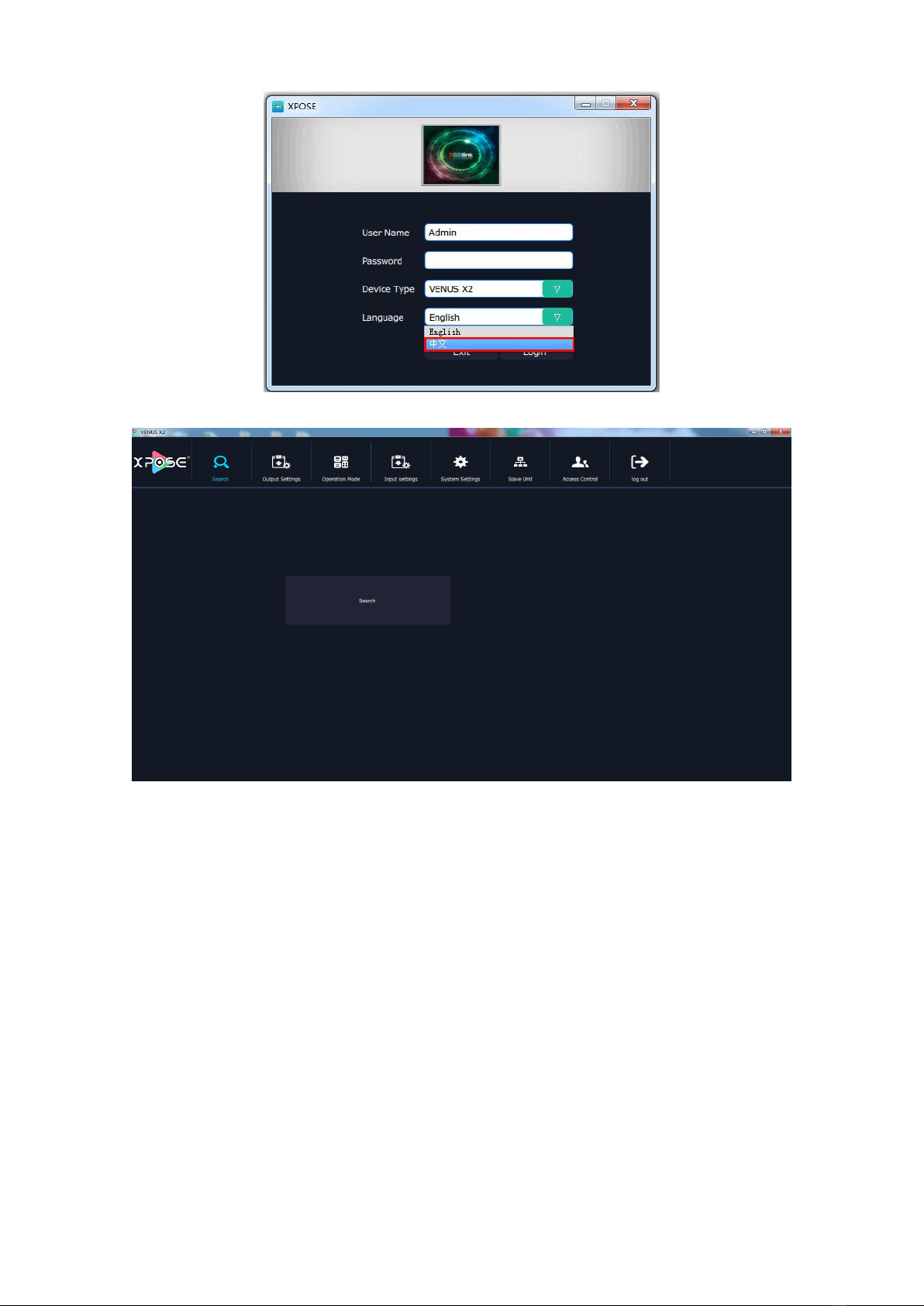

If user want to change the language to Chinese, click the drop down arrow after “Language” and select
“Chinese”, as shown in the figure below, then click “Login” to enter into the software.
8
XPOSE management software interface is shown as follows.
XPOSE management software contains the functions including: web links, search, output settings, operation
mode, input settings, access control and system settings. In the following parts, we will introduce these in
detail.
Connect the Device
First, set up the device IP, and ensure the IP of the computer and device is on the same network segment.
Connect the XPOSE management software to the computer with the network cable and power up the device.
Users can find the IP address of the device on its LCD screen after initializing.

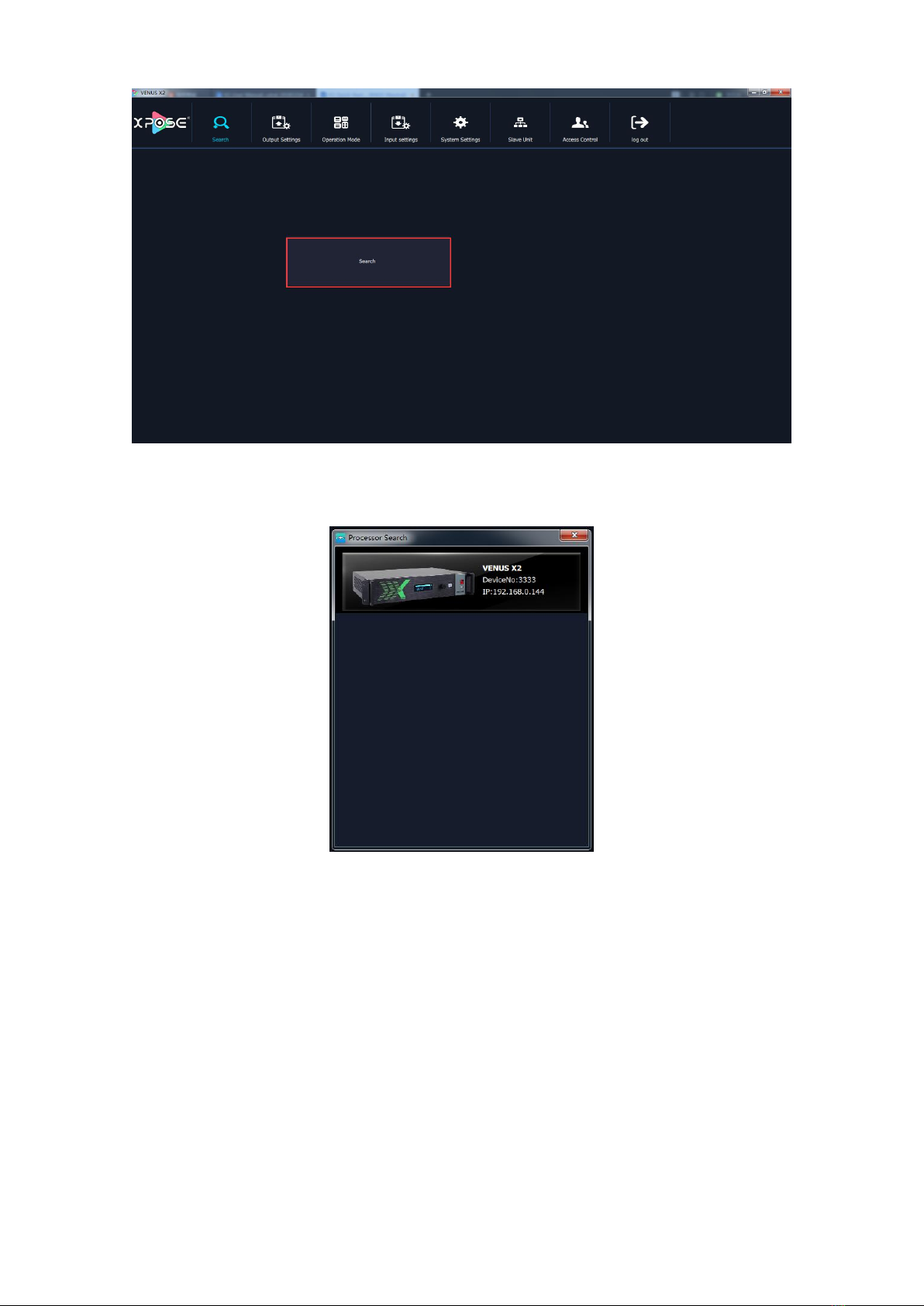

Then, click the shortcut “Search” on the operation interface.
9
Then it will search the device, and show the device name, device number and IP after search, as shown in the
figure below:
Finally, click the device to connect, as shown in the figure below:
