Revbox Sensor Set User manual
REVBOX
SINGLE SENSOR SET
INSTRUCTION
MANUAL
WELCOME
TO THE
REVBOX
COMMUNITY...
Congratulations on the purchase of your
new Revbox Sensor Set - This sensor set
will enable you to use all the functions
from our Revbox Power App, which can be
downloaded from Google Play or iTunes.
IN THE
BOX...
Your Revbox Sensor Set will come
with the following:
Revbox sensor (1 x for the trainer or 1 x for your bike)
Bluetooth and ANT+ capable.
Aluminum bracket (including 2 counter sunk bolts)
to mount one sensor to the Revbox
Round blank magnet to go on the Revbox
Pedal magnet to go on your cranks
Cable ties
Spoke magnet (for if you want to use the cadence
sensor as a speed sensor when outside)
CR2032 battery
Rubber pad to go underneath the sensor on the Revbox
U-shape rubber pad to be used with the
sensor on the chainstay of your bike
Warranty card
1
2
3
4
5
7
8
9
6
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
SETTING UP
THE SENSOR
Inserting/Replacing the battery:
Please make sure the o-ring sits
properly under the cover so no humidity
or water can get into the sensor.

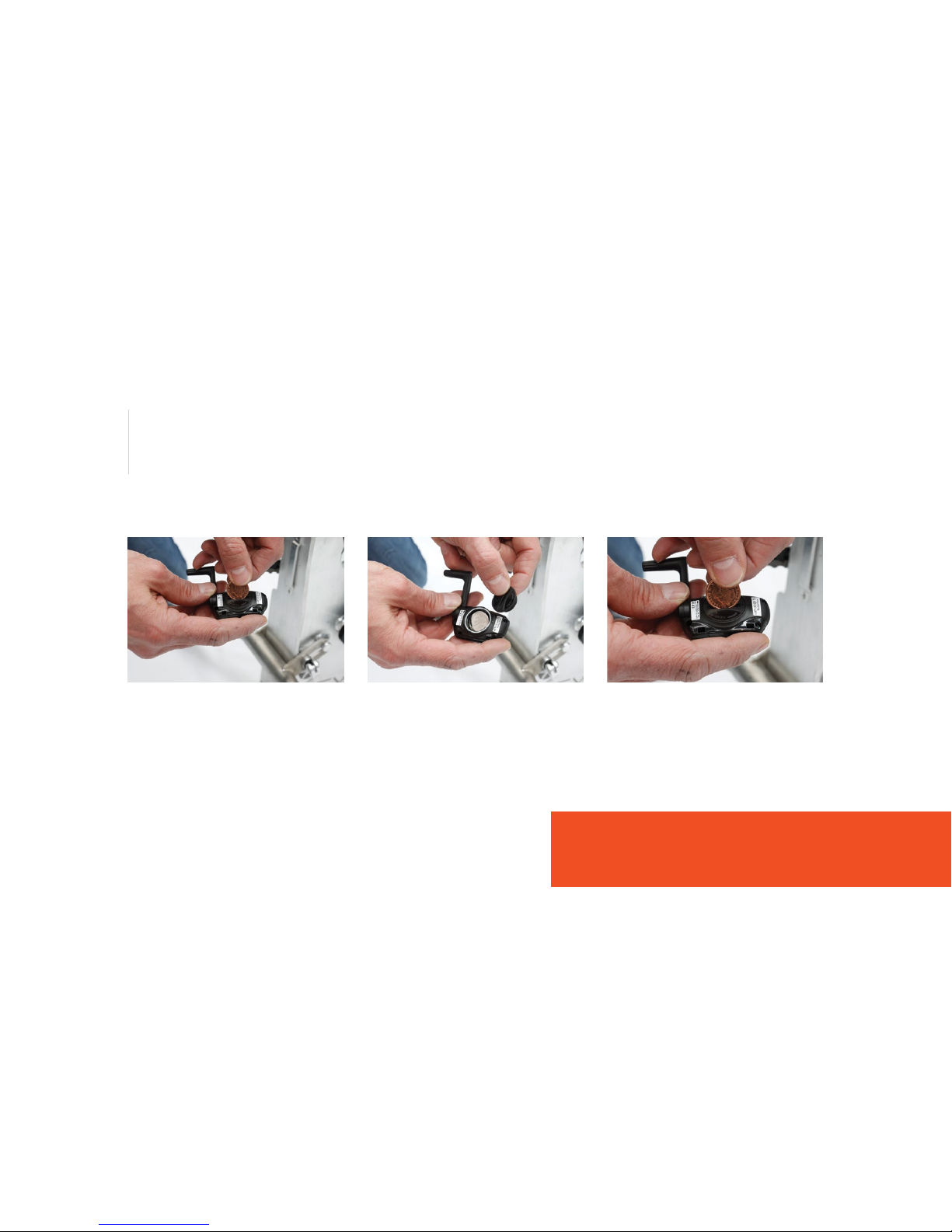

1. Remove the battery cover
using a coin, turning it gently
counter clockwise.
2. Insert/replace a
CR2032 battery into
the sensor with (+)
side facing up.
3. Place the battery cover
back on the sensor and turn
it clockwise with the coin
until it is fully closed.
!
4. Using a small amount of
glue, stick the round blank
magnet into the recess on
the chainring hub.

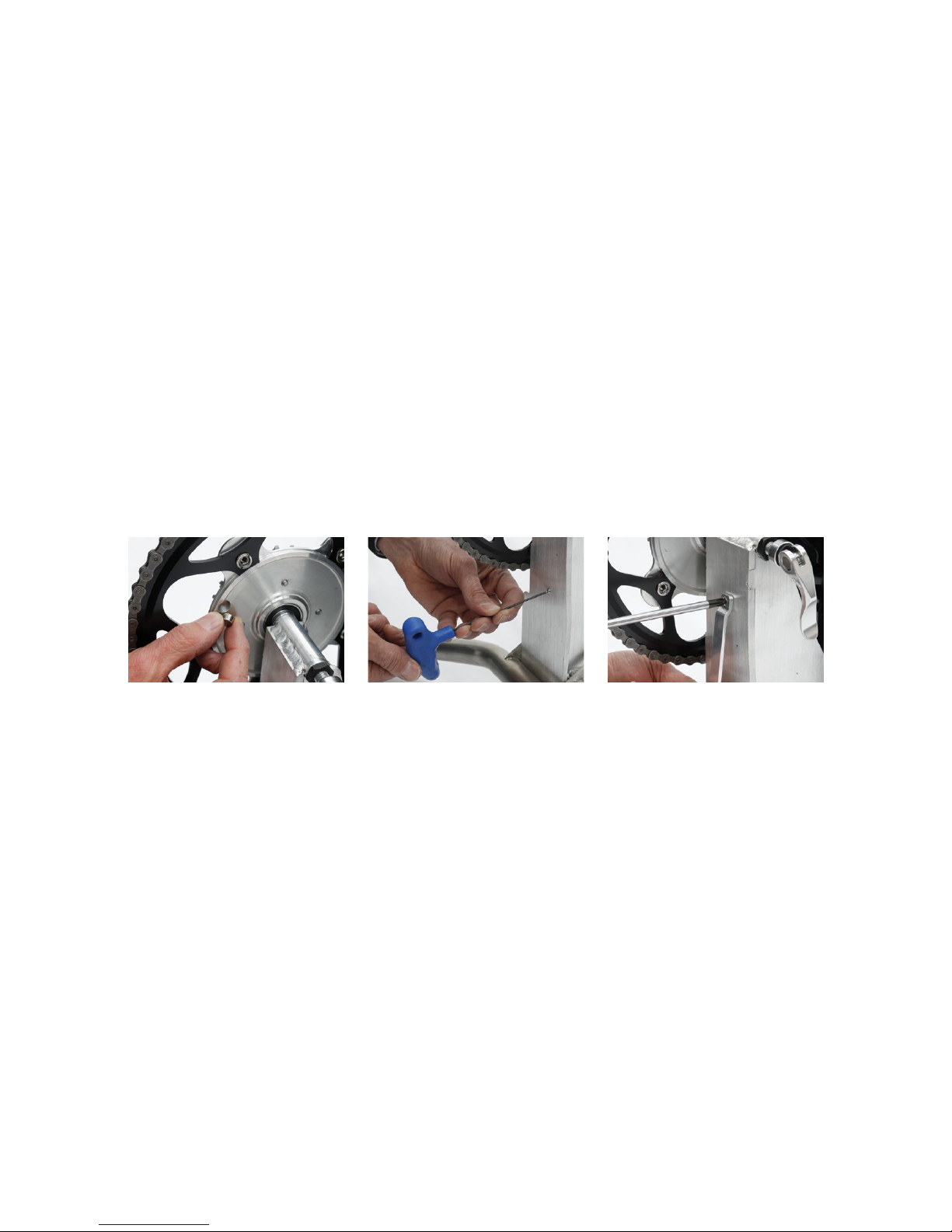

5. Remove the two button
head bolts from front plate
of the center stand.
6. Use the two counter sunk bolts
(supplied) to mount the aluminum
bracket onto the center stand.
Option one, attached to the Revbox:
7. Place the sensor on top of
the flat rubber pad and mount
it onto the aluminum bracket.
8. Secure it in place with
the 2 cable ties provided.
9. Use a suitable cross head/
Phillips screwdriver to adjust
the sensor arm to align with the
chairing hub magnet.
Make sure that the arm is aligned within
5-10mm of the magnet and that it can´t
interfere at any point with any rotating parts
Make sure the cadence sensor is aligned within
5-10mm of the pedal magnet and that it can´t
interfere at any point with your crank arms

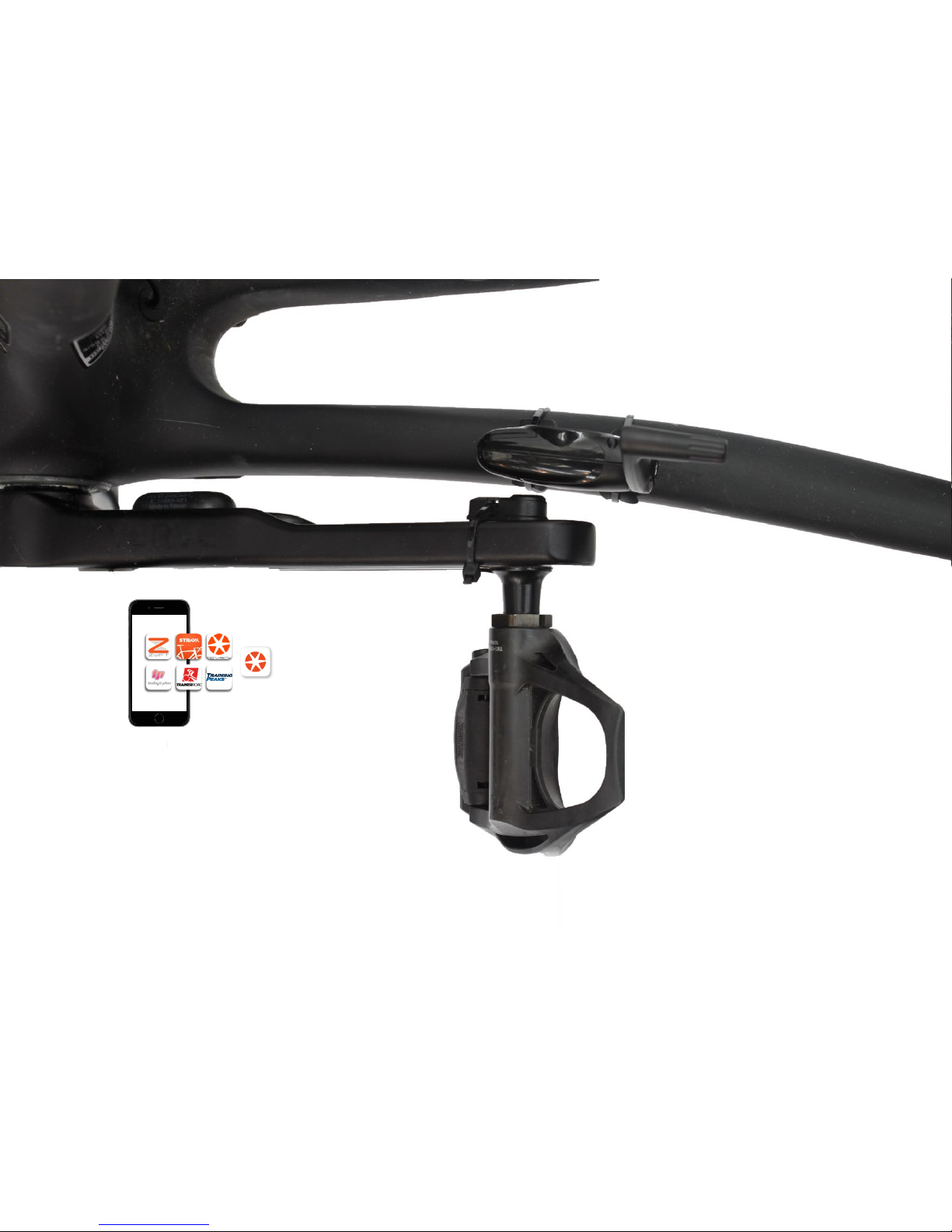

Option two, attached to your bike:

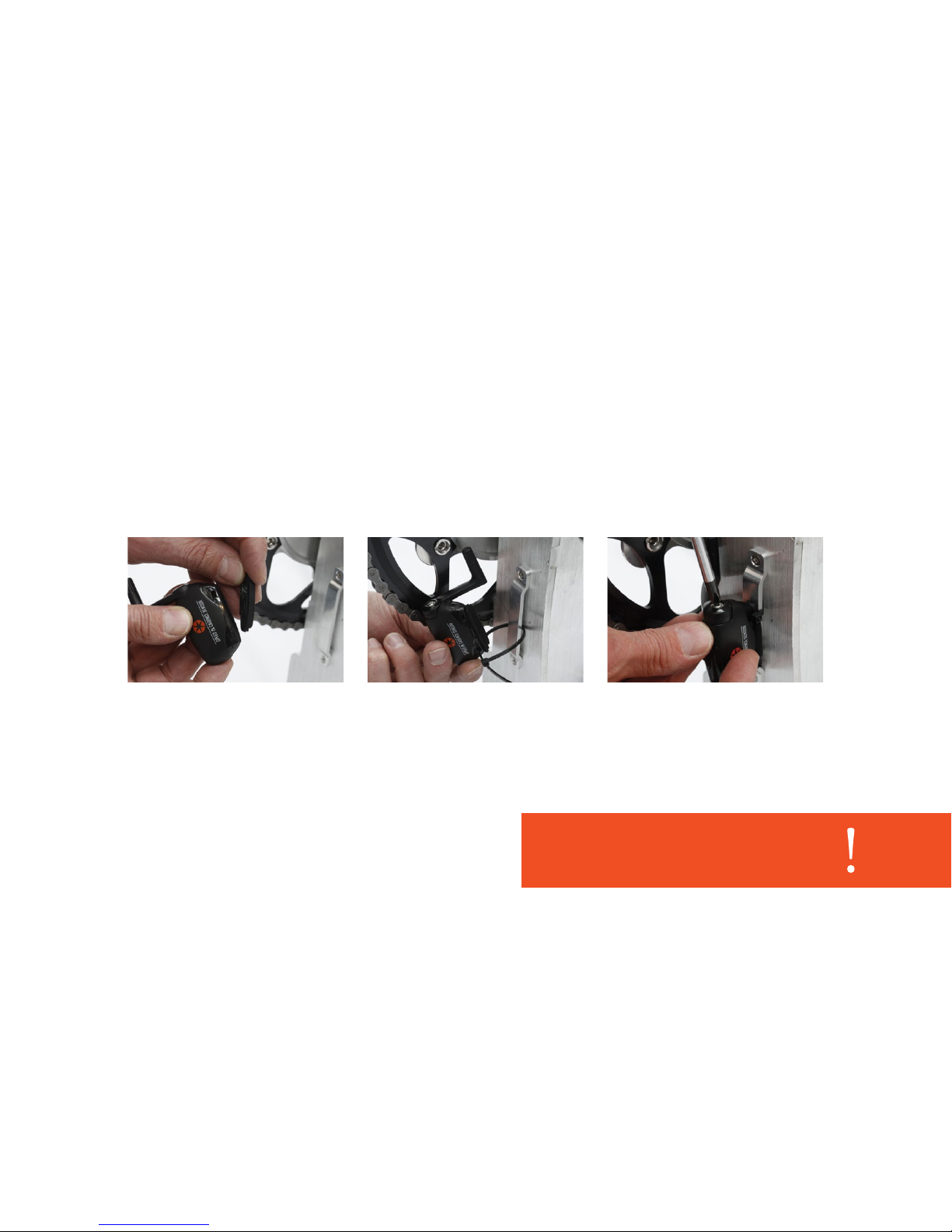

10. Place the magnet onto
the left crank arm, securing it
in pace with one cable tie.
11. With the u-shape rubber
pad underneath, place the
second sensor onto the left
side of your chainstay.
12. Once it is aligned with
the pedal magnet, secure
the sensor in place with the
2 cable ties provided.
After assembling the sensor according to
the manual, it can be connected to your
phone or tablet with the Revbox Power App.
Please follow the instructions from the
‘Revbox Power App Manual’.
www.revbox.training
share your training journey, follow us: @revbox
