Renesas M16C/29 User manual

Quick Start Renesas Starter Kit for M16C/29

1. Installation

Do not connect the E8a module until the software support has been installed.

1Insert the CD into your computer’s CD-ROM drive. The CD should automatically run the installation program. If the installer does not start, browse to

the RSK directory from the CD root folder and double click on ‘setup.exe’.

2The installer will ask you which language is to be used, please choose the appropriate one.

3On the first screen of the installer proper, click <Next>.

4The License Agreement will be shown, click <Yes>.

5The next screen asks you to pick the world region – please select and click <Next>.

6Select the RSK you wishto install and click <Next>.

7The destination folders are specified on the next screens. It is recommended to accept the default settings. Click <Next> to continue.

8Click <Next> on all screens until the Installation process commences.

9After the installation the machine’s site code will be shown, this is not important at this stage, click <Next> then <Finish>.

10 The Auto-update dialog box will be launched. Configure the Auto-update settings dialog to allow the installation to be checked for available updates.

D006174_11_S01_V04

2. Connection

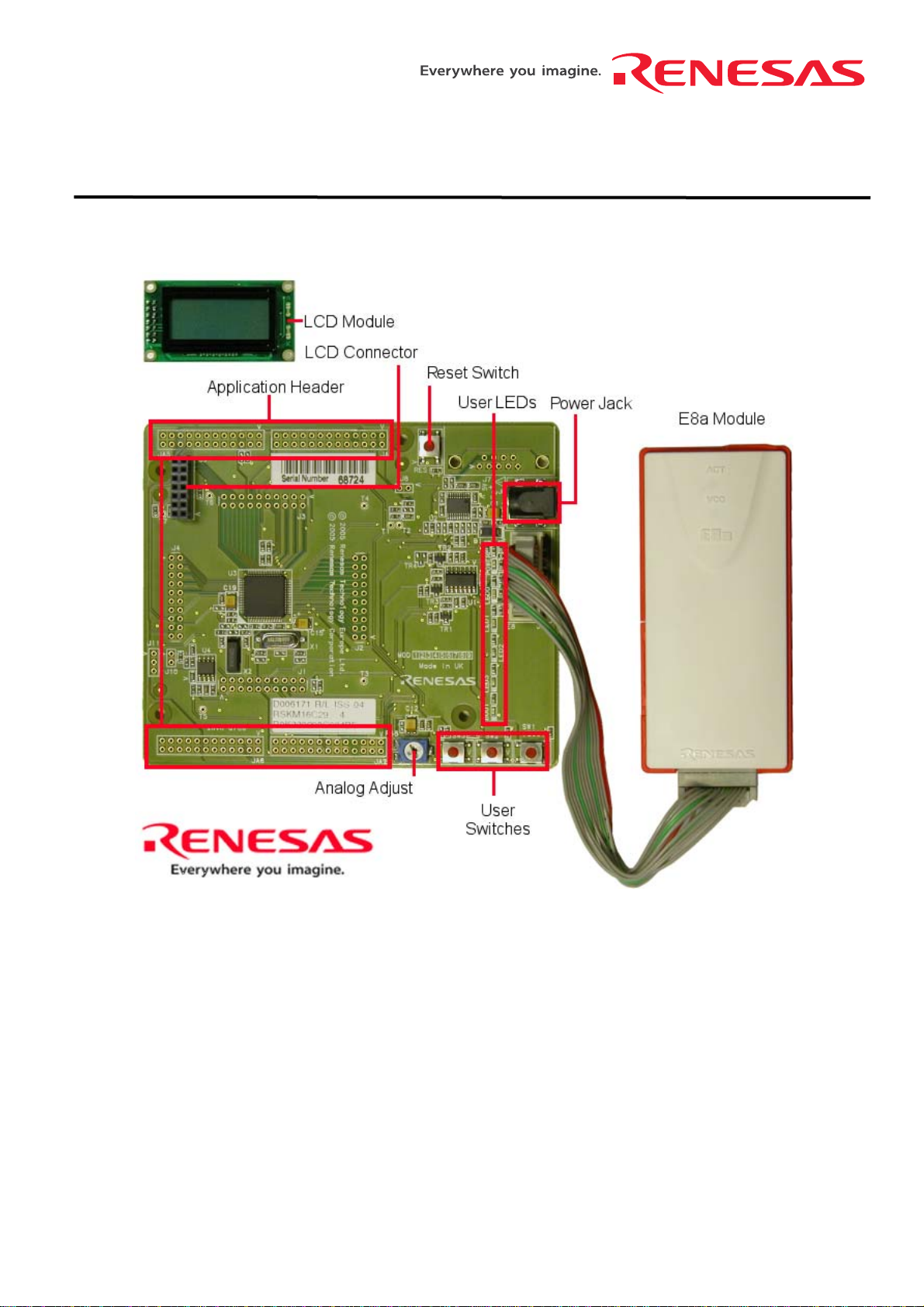

11 Now connect the E8a to J5/E8 on the RSK using the ribbon cable.

12 Connect the E8a module to a spare USB port.

The ‘Found New Hardware’ Wizard will appear. Please follow the steps below to install the drivers. Note that administrator privileges are

required for a Windows™ 2000/XP machine. Do not use the Windows Update to locate the driver.

13 Verify the “Recommended” option is selected and click <Next>.

14 If using Windows XP, skip to step 16; otherwise click <Next>.

15 Click <Next> to install the driver.

16 Click <Finish> to close the wizard.

Note: The Windows driver signing dialog may be displayed. Please accept the driver to continue.

3. HEW Workspace

HEW integrates various tools such as compiler, assembler, debugger and editor into a common graphical user interface. To learn more on how to use

HEW, open the HEW manual installed on your computer (Start Menu > All Programs > Renesas > High-performance Embedded Workshop > Manual

Navigator).

17 Launch HEW from the Start Menu. (Start Menu > All Programs > Renesas > Renesas High-performance Embedded Workshop).

18 In the “Welcome” dialog box: Verify “Create New Workspace” is selected. Click <OK>

19 In the “New Project Workspace” dialog box: Set the “CPU Family” to “M16C”, and verify the “Tool chain” is set to “Renesas M16C Standard” .Select

“E8A_RSKM16C29” from the left hand pane.

20 Enter a name for the workspace. The project name will be automatically completed with the Workspace name. You can change this name to

‘Tutorial’ if required. Click <OK>.

21 On the “E8A_RSKM16C29– Step 1” window: Select “Tutorial” and click <Next>.

22 On the “E8A_RSKM16C29– Step 2” window: Click <Finish>.

23 On the Project Generator Information window: Click <OK>.

The project that is created has two configurations. The Release configuration can be used for the final release code version. The Debug

configuration allows modifications to the configuration for debugging.

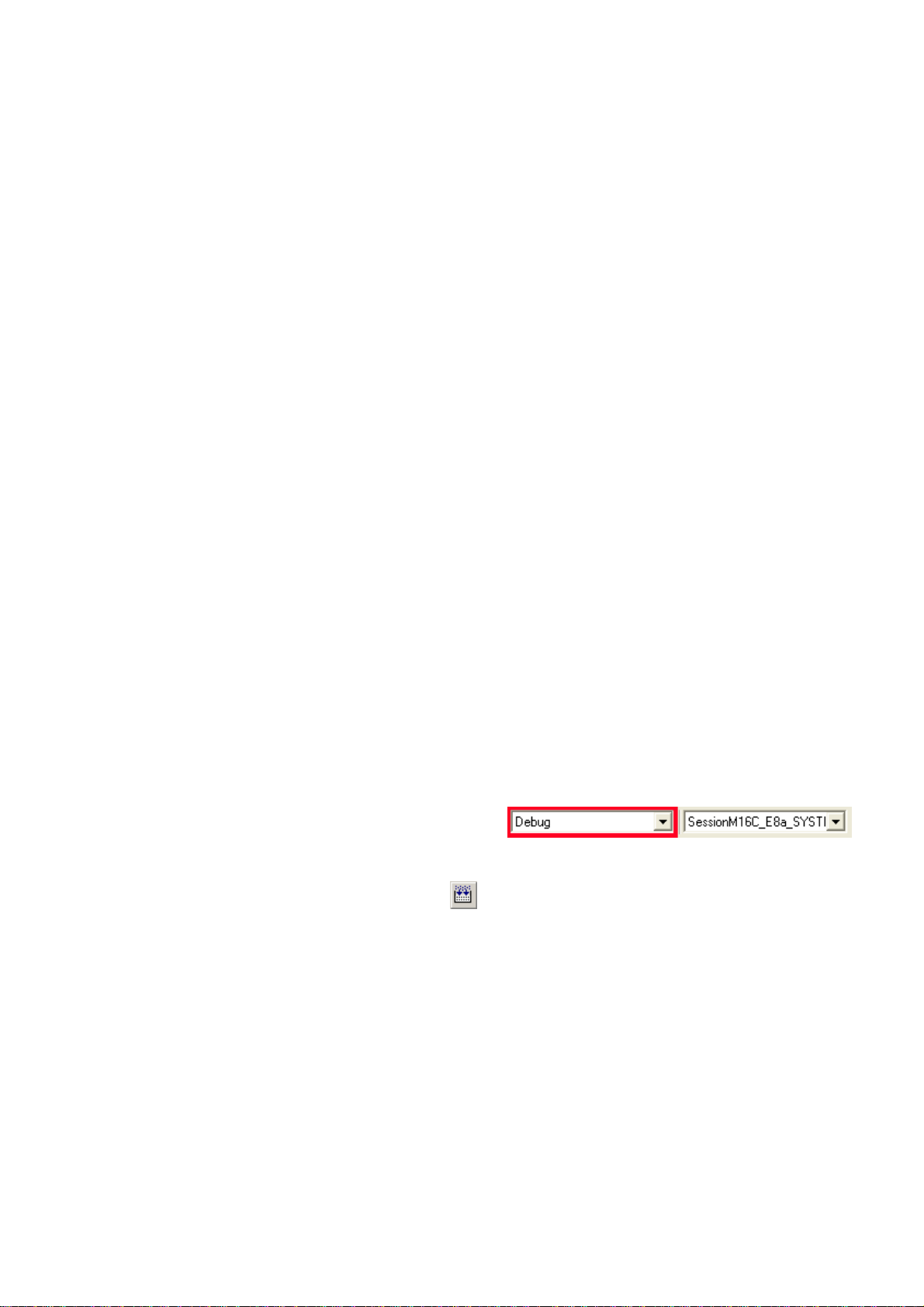

24 Select the Debug build configuration in the left hand drop down list on the

tool bar.

25 Click on the ‘Build’ icon to compile, assemble and link the

project.

D006174_11_S01_V04

4. Programming and Debug

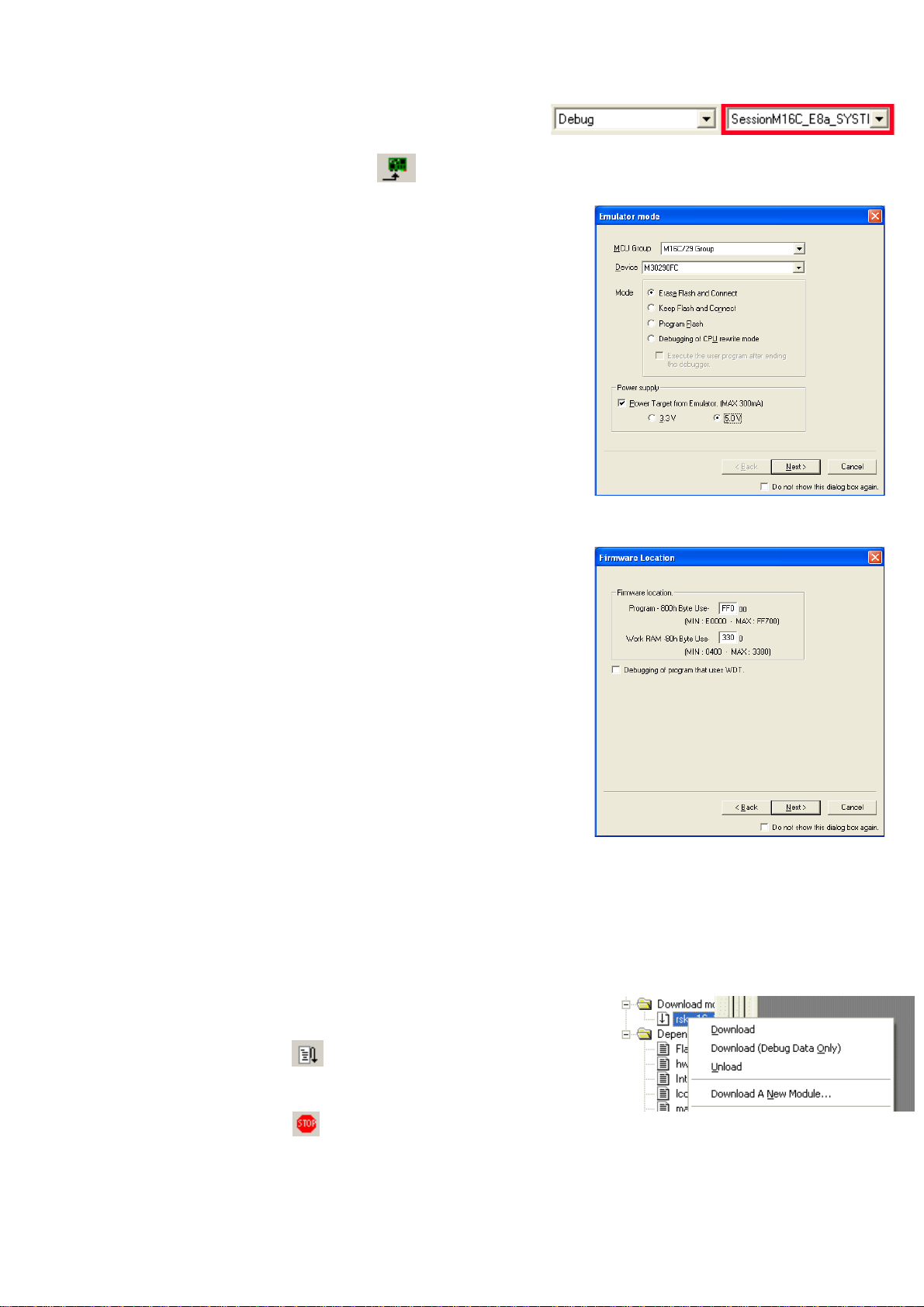

26 Ensure the “SessionM16C_E8a_SYSTEM” session in the right hand drop down list

on the tool bar is selected.

27 Click the <Connect> button on the debug toolbar

28 The “Emulator mode” wizard will be shown.

Select the correct MCU group (M16C/29) and device type

(e.g. M30290FC for RSKM16C29 )

Please note that the “Emulator mode” view shown here will only appear the FIRST time you

connect to the target within a project. On subsequent connections the “Emulator setting”

dialog will appear, please choose the same options to connect – refer to the RSKM16C29

Tutorial manual for details.

29 Select “Erase Flash and Connect”. If the E8a is to provide power to the CPU board, select

“Power Target from Emulator” and choose the “5.0V” option. Otherwise connect a 5V centre

positive supply.

30 Click <Next>

31 Enter FF000 for the firmware location. It is recommended that the E8a firmware location

is towards the top of the memory map.

32 Enter 3300 for the Work RAM location. It is recommended that the Work RAM is towards the

top of the memory map.

33 Ensure that the checkbox“Debugging of program that uses WDT” is not checked.

34 Click <Next>.

35 The “MCU Setting” view will be shown. Leave the default options as shown.

36 Click <Finish>.

Note: The first time the E8a is connected, you may be asked to choose a driver, select

“Renesas Communications”, after a few seconds the “Interface” and “Channel” numbers will be automatically displayed, click <Close>

on the dialog.

37 Accept any dialog warning that another version of E8a firmware is necessary to work with the application. Allow download of firmware to complete,

this may take several seconds.

38 Right click on the download module listed in the left hand pane and select ‘Download’. The code

will be downloaded to the microcontroller. This may take several seconds.

39 Click the <Reset – Go> button.

The code will run and you will see the LEDs flash on the board.

40 Click the <Stop> button.

The code will stop and the source code will be opened at the current program counter.

D006174_11_S01_V04

5. Next Step

After you have completed this quick start procedure, please review the tutorial code and sample code that came with the kit. You can add projects to the

current workspace by selecting (Project > Insert Project) from the main menu. The tutorials will help you understand the device and development process

using Renesas Development Tools.

The Hardware manual supplied with this RSK is current at the time of publication. Please check for any updates to the device manual from the Renesas

internet site at: www.renesas.com/renesas_starter_kits

6. Renesas M16C Compiler

The version of the compiler provided with this RSK is fully functional but time limited. You have 60 days to evaluate the full product before the compiler will

limit the code linker to 64k bytes. Full licensed M16C compiler versions are available from your Renesas supplier.

7. Support

Online technical support and information is available at: www.renesas.com/renesas_starter_kits

Technical Contact Details

America: techsupport.rta@renesas.com

Europe: tools.support.eu@renesas.com

Japan: [email protected]om

Note on Autoupdate: The Autoupdater is configured to automatically add itself to the Startup folder in the Windows Start Menu and use the registry

defaults for access to the web. After restarting the machine the Icon will appear in the System Tray next to the clock. To change the settings or access

Autoupdate simply right-click on the icon and use the menu that appears.
