Thank you for purchasing this user system interface cable (HS3937ECN61H) for the Renesas’s
original microcomputer H8/3937R, H8/3937 series.
The HS3937ECN61H is a user system interface cable that connects an H8/300L series E6000
emulator (HS388REPI60H; hereinafter referred to as the emulator) through the expansion board to
the IC socket for a TFP-100G package for the H8/3937R, H8/3937 series MCU on the user system.
ii
Contents
Section 1 Configuration....................................................................................1
Section 2 Connection Procedures......................................................................3
2.1 Connecting User System Interface Cable to Expansion Board.........................................3
2.2 Connecting User System Interface Cable to User System................................................5
2.2.1 Installing IC Socket .............................................................................................6
2.2.2 Soldering IC Socket.............................................................................................6
2.2.3 Inserting Cable Head ...........................................................................................7
2.2.4 Fastening Cable Head..........................................................................................7
2.2.5 Fastening Cable Body..........................................................................................9
2.3 Recommended Dimensions for User System Mount Pad.................................................10
2.4 Dimensions for User System Interface Cable Head..........................................................11
2.5 Resulting Dimensions after Connecting User System Interface Cable.............................12
Section 3 Installing the MCU to the User System.............................................13
Section 4 Verifying Operation...........................................................................15
Section 5 Notice ................................................................................................17
Section 1 Configuration
CAUTION
Use an NQPACK100SE socket (manufactured by
Tokyo Eletech Corporation) for the TFP-100G package
IC socket on the user system.
Figure 1 shows the configuration of the HS3937ECN61H user system interface cable for the
TFP-100G package.
Figure 1 HS3937ECN61H User System Interface Cable
1
2
Table 1 lists the HS3937ECN61H components. Please make sure you have all of these components
when unpacking.
Table 1 HS3937ECN61H Components
No. Component Quantity Remarks
1 Cable body 1 Flat cable
2 Cable head 1
3 IC socket 1 For the TFP-100G package
4 Socket cover 1 For installing an TFP-100G packaged MCU
5 Screws (M2.0 x 10 mm) 4 For fastening cable head
6 Screws (M2.0 x 6 mm) 4 For installing an TFP-100G packaged MCU
7 Guide pins (φ1 mm) 3 For determining the IC socket location
8 Screwdriver 1 For tightening screws
9 Documentation 1 User’s manual for HS3937ECN61H (this manual)
Section 2 Connection Procedures
2.1 Connecting User System Interface Cable to Expansion Board
WARNING
Observe the precautions listed below. Failure to do so
will result in a FIRE HAZARD and will damage the user
system and the emulator product or will result in
PERSONAL INJURY. The USER PROGRAM will be
LOST.
1. Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE CABLE
is connected to or removed from any part. Before
connecting, make sure that pin 1 on both sides are
correctly aligned.
2. The user system interface cable dedicated to the
emulator must be used.
To connect the cable body to the emulator station, follow the instructions below.
1. Make sure the user system and emulator station are turned off.
CAUTION
When connecting or removing the user system interface
cable, apply force only in the direction suitable for
connection or removal, while making sure not to bend or
twist the cable or connectors. Otherwise, the connectors
will be damaged. The user system interface cable must be
connected to an H8/300L Series E6000 emulator through the
H8/3937R, 3937 Series expansion board. Do not connect the
user system interface cable directly to the E6000
emulator.
3
2. [1] After making sure the direction of the expansion board connector labeled E6000
EMULATOR is correct, firmly insert the expansion board connector into the emulator
station connector ([1] in figure 2).
[2] Connect the expansion board labeled USER INTERFACE CABLE and the user system
interface cable body.
6000
USERI
N
T
ERFACECABLE
E6000 EMULATOR
E6000
[2]
160kHz
Emulator station
Expansion board
[1]
Subclock selection
E
Cable body connector
User system interface cable
Figure 2 Connecting User System Interface Cable to Expansion Board
4
2.2 Connecting User System Interface Cable to User System
WARNING
Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE CABLE
is connected to or removed from any part. Before
connecting, make sure that pin 1 on both sides are correctly
aligned. Failure to do so will result in a FIRE HAZARD and
will damage the user system, the emulator product, and the
expansion board or will result in PERSONAL
INJURY. The USER PROGRAM will be LOST.
To connect the cable head to the user system, follow the instructions below.
5
2.2.1 Installing IC Socket

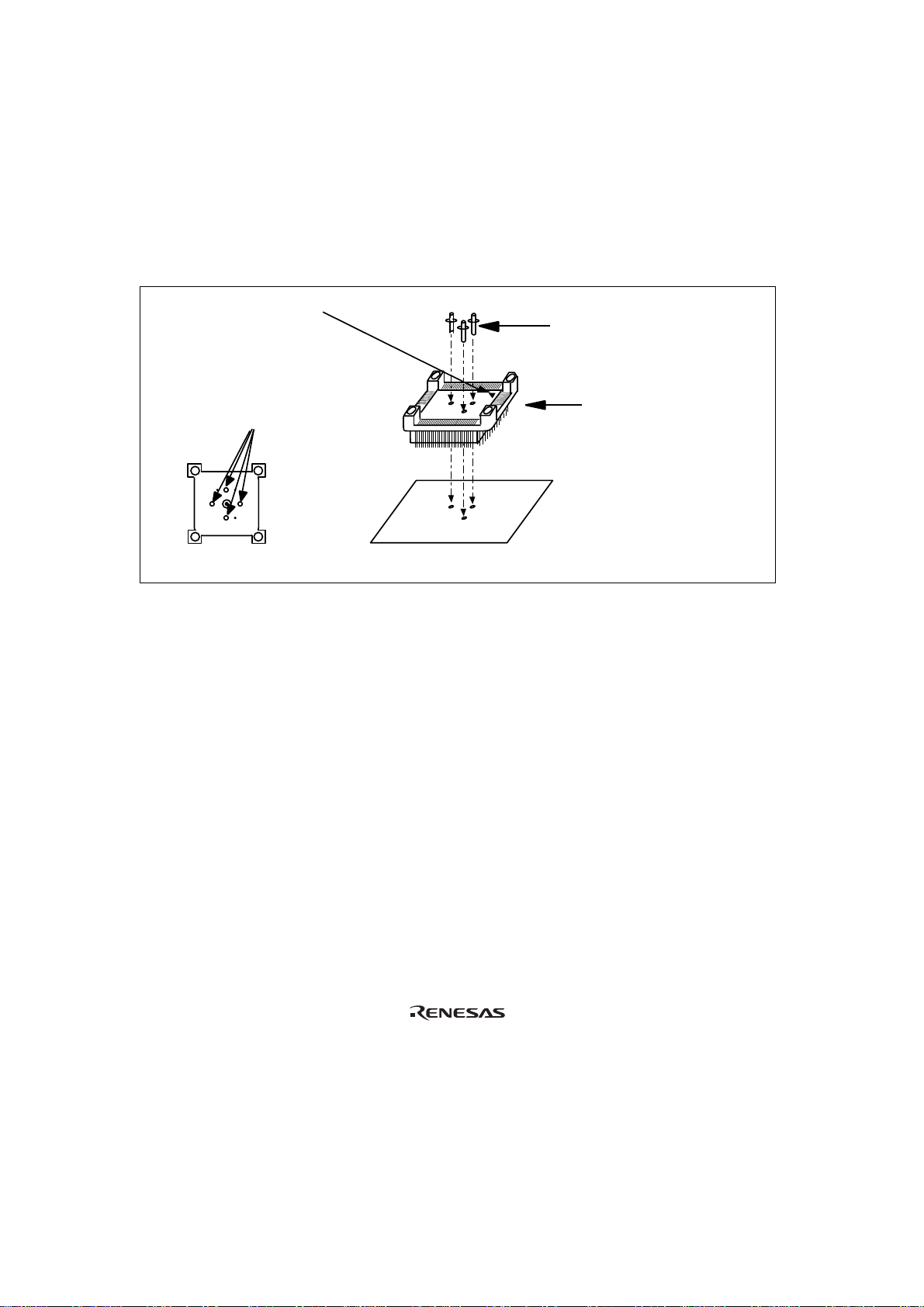

After checking the location of pin 1 on the IC socket, determine where to install the IC socket by
using the guide pins provided as shown in figure 3. Apply epoxy resin adhesive to the end of the
four projections at the bottom of the IC socket, and fasten it to the user system before soldering.
User system
IC socket
(NQPACK100SE
manufactured by
Tokyo Eletech Corporation)
Guide pins
4 projections to apply
epoxy resin adhesive to
Bottom view of IC socket
Pin 1
Figure 3 Location Setting of IC Socket
2.2.2 Soldering IC Socket
After fastening, solder the IC socket for an TFP-100G package to the user system. Be sure to
completely solder the leads so that the solder slops gently over the leads and forms solder fillets.
(Use slightly more solder than the MCU.)
6
