Remington MB340C User manual

MB340C

I remington-europe.com

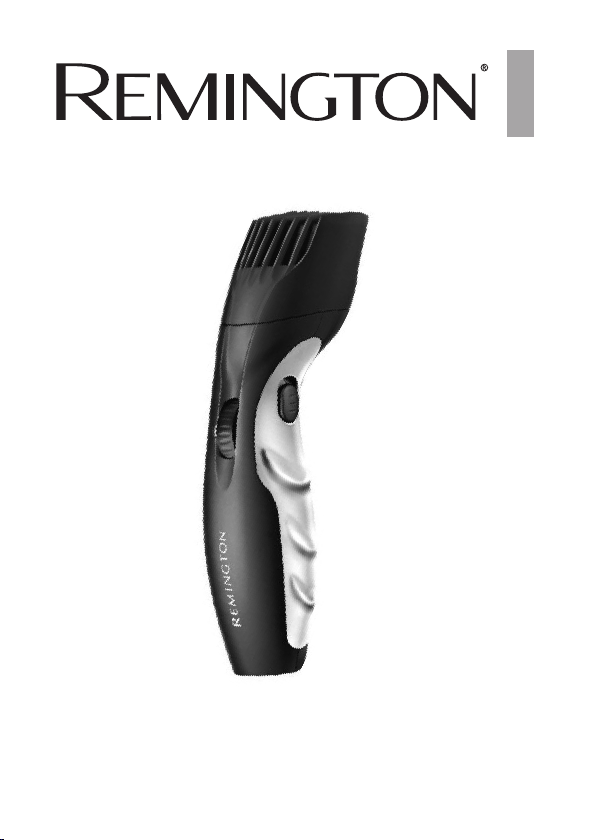

Cord/Cordless Beard Trimmer

Thank you for buying your new Remington® product. Please read these instructions carefully

and keep them safe. Remove all packaging before use.

IMPORTANT SAFEGUARDS

• This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been supervised/instructed and

understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children unless they are

older than 8 and supervised.

• Always check the appliance before you use it. Do not use the appliance if it is

damaged, as this may cause injury.

• The adaptor contains a transformer. Do not cut oﬀ the adaptor to replace it

with another plug, as this causes a hazardous situation.

• Check if the voltage indicated on the adapter corresponds to the local mains

voltage before you connect the appliance.

• Only use the adapter supplied to charge the appliance.

• Always replace a damaged adaptor with one of the original type.

• Keep the appliance and the adapter dry.

• This appliance should never be left unattended when plugged into a power outlet,

except when charging.

• Do not plug or unplug the appliance with wet hands.

• Do not use attachments other than those we supply.

• This appliance is not intended for commercial or salon use.

KEY FEATURES

1. On/o switch

2. 9 position zoom wheel

3. Length position indicator

4. Charging indicator

5. Adjustable trimmer comb

6. Trimmer assembly

7. Pop-up trimmer (not shown)

8. Charging adaptor (not shown)

ENGLISH

GETTING STARTED

• Before using your trimmer for the rst time, charge for 14-16 hours.

• Ensure the product is switched o.

• Connect the charging adaptor to the product and then to the mains.

•The charging indicator will illuminate.

•The charging indicator will remain illuminated once charge is complete.

• Your appliance cannot be overcharged. However, if the product is not going

to be used for an extended period of time (2-3 months), unplug it from the

mains and store.

• Fully recharge your appliance for 16 hours when you would like to use it

again.

• To preserve the life of your batteries, let them run out every 6 months then

recharge for 14-16 hours.

CORDED USE

•Connect the charging adaptor to the product then to the mains.

CAUTION

•Extended mains only use will result in the reduction of the battery life.

INSTRUCTIONS FOR USE

BEFORE YOU BEGIN

•Comb facial hair with a ne comb before you start trimming.

ADJUSTING THE TRIM LENGTH

•The trimmer comb can be adjusted to give you 9 dierent trim lengths

simply by turning the wheel to the desired setting.

•Turn the wheel clockwise for shorter length, anti-clockwise for longer length.

• The wheel will click into place as it reaches each setting and the setting

number will appear on the length position indicator.

SETTING HAIR DESCRIPTION HAIR LENGTH

1Stubble or Cropped look 1.5mm 0.06’’

2 2.5mm 0.1’’

3Short 4mm 0.16’’

4 5.5mm 0.22’’

5Medium 7mm 0.28’’

ENGLISH

69mm 0.35’’

711mm 0.43’’

814mm 0.55’’

9Long 18mm 0.71’’

• Note: trimmer comb must be attached to the product in order to use the

hair length selector.

• Note: use the beard trimmer without the adjustable comb for trimming hair

close to the skin. This will trim hair to 1mm, holding the blades perpendicular to the skin

will trim hair to 0.4mm.

ATTACHING AND REMOVING THE TRIMMER COMB

•Hold the trimmer in one hand with your thumb rmly on the zoom wheel to

keep it from turning. Ensure that the length position indicator is at 1.

• Slide the comb down the grooves until it clicks into place.

• The trimmer comb attachment can only be attached in one way.

•To remove the comb attachment slide the comb o the grooves and pull

away from the trimmer body.

TO THIN AND TAPER THE BEARD/MOUSTACHE

•Slide on the attachment comb to the main trimmer blade.

•Use the zoom wheel to set the trimmer comb to the desired length setting.

•The setting will appear on the length position indicator. If you are trimming

for the rst time start with the maximum trimming length setting.

• Turn the unit on.

• Place the at top of the trimmer comb against the skin.

•Slowlyslidethroughthehair.Repeatfromdierentdirectionsasnecessary.

•If hair builds up in the trimmer combduring thetrimming process, switch

the unit o, pull o the comb and brush the hair o.

TO DEFINE THE BEARD/MOUSTACHE LINE

•Remove the trimmer comb attachment.

• Start with edge of beard/moustache line and gently lower the trimmer

blade onto your skin.

• Use motions towards edge of beard/moustache line to trim to desired

locations in facial area and away from beard in neck area.

• For ner shaping, raise the pop-up trimmer. Shape as desired.

ENGLISH

TRIMMING EDGE OF SIDEBURNS

•Remove the trimmer comb attachment.

• Start with edge of sideburn and with the trimmer blades resting lightly

against your skin, use motions towards edge of sideburn line to trim the

desired locations in facial area.

• For ner shaping, raise the pop-up trimmer. Shape as desired.

• To raise the pop-up trimmer, remove the adjustable comb and then slide up

the pop-up trimmer release button which sits below the pop-up trimmer.

• To retract the pop-up trimmer, slide down the pop-up trimmer release

button.

TRIMMING THE NAPE OF YOUR NECK

Note: You will need a hand mirror for this operation if performing it alone.

• Remove the trimmer comb attachment.

• Use your ngers to lift the hair at the base of your head up o the neck. Your

index nger should be covering the roots of the hairs you are lifting to

prevent accidental removal by trimmer.

• Using your other hand, hold the trimmer to the base of your neck with the

cutting unit facing up and move the trimmer up the length of the neck until

it touches your nger, covering the hair roots at the base of your head.

• Be sure to move the unit slowly when performing this operation and to keep

the hair roots at the base of your head out of the way of the trimmer.

REMOVING THE CUTTING ASSEMBLY

• Remove the cutting assembly by rmly pushing up on the blade with your

thumb.

REPLACING THE CUTTER ASSEMBLY

•Hold the trimmer in one hand. With your other hand, insert the lower part of

the cutter assembly into the trimmer, push down the cutter until rmly

attached.

TIPS FOR BEST RESULTS

•Beard, moustache and sideburn hairs should be dry.

• Avoid using lotions before use.

• Comb your hair in the direction that it grows.

• Remove the trimmer comb attachment if you are; dening hairline edges

such as sideburns, trimming the nape of your neck or trimming your beard

line on front of neck.

ENGLISH

CARE FOR YOUR TRIMMER

• Care for your product to ensure a long lasting performance.

• Your trimmer is tted with high-quality, cutting blades that are permanently

lubricated.

• Cleaning should only be done with a soft brush.

AFTER EACH USE

•Turn the groomer o.

• Remove the trimmer comb attachment and cutter assembly.

• Gently brush the remaining hairs away from the trimmer comb and trimmer

blade.

• Please note, the main body of the trimmer is not washable and should be

kept away from water.

• After rinsing under a tap ensure the blades are dry.

POP-UP TRIMMER

•Remove the trimmer comb attachment.

• Slide up the pop-up trimmer into operating position.

• Brush hair from the trimmer blades and the surrounding area.

CLEANING CAUTIONS

•Only the adjustable trimmer comb and cutter assembly may be removed

from the trimmer for cleaning.

• Cleaning should only be done with a soft brush.

• Do not use harsh or corrosive cleaners on the units or their blades.

• This trimmer is not washable. Do not rinse under water.

• Do not submerge in water as damage will occur.

STORAGE

•Store this appliance and cord in a moisture-free area. Do not store it in

temperatures exceeding 140°F (60°C).

• Do not wrap the cord of the charging adaptor around the appliance.

TROUBLESHOOTING

The trimmer does not work when turned on:

• Trimmer must be charged for a full 14-16 hours. If this does not work,

contact Remington® Service Centre.

ENGLISH

Trimmer blades do not move:

•The cutting unit may be dirty and clogged.

• Clean and lubricate the unit.

BATTERY REMOVAL

• The battery must be removed from the appliance before it is scrapped.

• The appliance must be disconnected from the mains supply when removing

the battery.

• Turn the trimmer on and discharge all remaining power.

• Remove the comb and cutter assembly.

• Use a screwdriver to pry out the holder plate under the trimmer carefully.

• Use a screwdriver to pry the two side panels carefully.

• Remove the 4 screws from the housing.

• Using a screwdriver carefully pry apart the top and bottom housing.

• Unscrew the 2 screws on the circuit board.

• Remove the upper circuit board.

• Disconnect the battery from the low circuit board.

• The battery is to be disposed of safely.

RECYCLING

WTo avoid environmental and health problems due to hazardous

substances, appliances and rechargeable and non-

rechargeable batteries marked with one of these symbols must

not be disposed of with unsorted municipal waste. Always

dispose of electrical and electronic products and, where

applicable, rechargeable and non-rechargeable batteries, at an

appropriate ocial recycling/collection point.

ENGLISH

DEUTSCH

Vielen Dank, dass Sie sich für den Kauf dieses Remington® Produkts entschieden haben. Lesen

Sie diese Bedienungsanleitung aufmerksam durch und bewahren Sie sie auf. Entfernen Sie die

Verpackung vor dem Gebrauch vollständig.

WICHTIGE SICHERHEITSHINWEISE

• Dieses Gerät ist für die Nutzung von Kindern ab 8 Jahren sowie von Personen

mit eingeschränkten physischen, sensorischen oder geistigen Fähigkeiten oder

Mangel an Erfahrung und Wissen geeignet, wenn ihnen die Handhabung

erklärt wurde/ sie dabei beaufsichtigt werden und ihnen die damit

verbundenen Gefahren bewusst sind. Kinder dürfen nicht mit dem Gerät

spielen. Reinigung und Pﬂege dürfen nicht von Kindern durchgeführt

• werden, es sei denn sie sind älter als 8 Jahre und werden dabei beaufsichtigt.

• Überprüfen Sie das Gerät vor jedem Gebrauch. Benutzen Sie es nicht, wenn es

beschädigt ist, um Verletzungen zu vermeiden.

• Das Netzteil enthält einen Transformator. Bitte schneiden Sie den Netzstecker

nicht ab, um ihn durch einen anderen Netzstecker zu ersetzen, da dies

gefährlich sein kann.

• Überprüfen Sie vor dem ersten Gebrauch, ob die Spannungsangabe auf dem

Adapter mit der örtlichen Netzspannung übereinstimmt.

• Verwenden Sie zum Laden des Geräts ausschließlich den mitgelieferten

Adapter.

• Ersetzen Sie ein beschädigtes Netzteil immer durch ein Original-Ersatzteil.

• Gerät und Adapter dürfen nicht nass werden.

• Lassen Sie das an das Stromnetz angeschlossene Gerät auf keinen Fall

• unbeaufsichtigt, ausgenommen, wenn es gerade aufgeladen wird.

• Schließen Sie das Gerät nicht mit nassen Händen an das Stromnetz an.

• Verwenden Sie nur das von uns zur Verfügung gestellte Zubehör.

• Dieses Gerät ist nicht für die gewerbliche Nutzung geeignet.

DEUTSCH

HAUPTMERKMALE

1. Ein- / Ausschalter

2. 9-stuges Einstellrad

3. Schnittlängenanzeige

4. Ladekontrollanzeige

5. Verstellbarer Trimmerkamm

6. Trimmereinheit

7. Detail-/Langhaarschneider (Nicht

abgebildet)

8. Ladeadapter (Nicht abgebildet)

VORBEREITUNGEN

• Bevor Sie Ihr Gerät das erste Mal in Betrieb nehmen, laden Sie das Gerät 14-16

Stunden lang auf.

•Vergewissern Sie sich, dass das Gerät ausgeschaltet ist.

• Schließen Sie den Ladeadapter an das Produkt und anschließend an das

Stromnetz an.

•Die Ladekontrollanzeige leuchtet auf.

• Die Ladekontrollanzeige leuchtet auch dann noch, wenn das Gerät

vollständig aufgeladen ist.

• Das Gerät kann nicht überladen werden. Sollten Sie das Gerät jedoch über

einen längeren Zeitraum (2-3 Monate) nicht verwenden, ziehen Sie den

Netzstecker aus der Steckdose und verstauen Sie das Gerät.

• Wenn Sie Ihr Gerät wieder verwenden möchten, lassen Sie ihr Gerät für 16

Stunden vollständig auaden.

• Um die Lebensdauer Ihres Akkus zu verlängern, lassen Sie diesen alle sechs

Monate vollständig entladen, um ihn dann 14-16 Stunden wieder vollständig

aufzuladen.

NETZBETRIEB

•Schließen Sie den Ladeadapter an das Gerät und anschließend an das

Stromnetz an.

ACHTUNG

• Ein häuger Einsatz des Geräts im Netzbetrieb führt zu einer Verkürzung der

Akkulaufzeit.

BEDIENUNGSANLEITUNG

BEVOR SIE LOSLEGEN

•Kämmen Sie das Gesichtshaar mit einem feinen Kamm, bevor Sie zu

schneiden beginnen.

Table of contents

Other Remington Electric Shaver manuals

Remington

Remington F3700AU User manual

Remington

Remington MB4850 User manual

Remington

Remington B4 Style Series User manual

Remington

Remington wpg4035 User manual

Remington

Remington WETech BHT6250 User manual

Remington

Remington Ultimate Series User manual

Remington

Remington VERSO XR1400 User manual

Remington

Remington PR1250 User manual

Remington

Remington SMOOTH AND SILKY WDF-4840 User manual

Remington

Remington Hyperflex Verso User manual

Remington

Remington PG018AU User manual

Remington

Remington B5 Style Special Edition Series User manual

Remington

Remington PF7400 User manual

Remington

Remington MB6025AU User manual

Remington

Remington PG6855 User manual

Remington

Remington XR1750AU User manual

Remington

Remington WETech Active NE3850AU User manual

Remington

Remington MB4555 User manual

Remington

Remington Smart Edge User manual

Remington

Remington MB4122 User manual

Remington

Remington HC2000 Series User manual

Remington

Remington Titanium VacuumTrim MB-400 User manual

Remington

Remington F-3790 User manual

Remington

Remington PR1335 User manual

Popular Electric Shaver manuals by other brands

Philips

Philips MicroAction 4402LC Specifications

Philips

Philips HQ7740 user guide

Philips

Philips Norelco BG2022 Bodygroom Specifications

Norelco

Norelco Quadra 7610X owner's manual

Philips

Philips 7616X manual

Philips

Philips HQ802 Specifications

Philips

Philips HQ7363/17 user manual

Braun

Braun WaterFlex WF2s manual

Philips

Philips NORELCO S7371 manual

Daga

Daga MT-400 Directions for use

Philips

Philips RQ119x manual

Philips

Philips Bodygroom BG2000 brochure

Kompernass

Kompernass KH 5537 operating instructions

Philips

Philips qc5365 user manual

MIA

MIA Aqua Body manual

Philips

Philips NORELCO AT880 user manual

Matheo

Matheo MLR 15 manual

CTC Union

CTC Union Clatronic HSM 3441 NE instruction manual
