Regency Horizon HZ40E-NG Quick start guide

WARNING:

Iftheinformationintheseinstructionsarenotfollowedexactly,

a ﬁre or explosion may result causing property damage,

personal injury or loss of life.

FOR YOUR SAFETY

Do not store or use gasoline or other ﬂammable vapors and

liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁed

installer, service agency or the gas supplier.

FOR YOUR SAFETY

What to do if you smell gas:

Do not try to light any appliance

Do not touch any electrical switch:

do not use any phone in your

building.

Immediately call your gas supplier

from a neighbour's phone. Follow

the gas supplier's instructions.

If you cannot reach your gas

supplier, call the ﬁre department.

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

918-984

Regency Horizon™HZ40E

Gas Fireplace

09/27/11

Owners &

Installation Manual

Tested by:

Installer

: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

MODELS: HZ40E-NG Natural Gas

HZ40E-LP Propane

www.regency-ﬁre.com

2Regency Horizon™ HZ40E Gas Fireplace

This appliance can only be used with the type of gas indicated on the rating plate.

This appliance is not convertible for use with other gases.

This appliance may be installed as an OEM installation in a manufactured home (USA only) or mobile home and must be

installed in accordance with the manufacturer's instruction and the Manufactured Home Construction and Safety Standard,

Title 24 CFR, Part 3280, in the Untied States, or the Standard for Installation in Mobile Homes, CAN/CSA Z240 MH, in

Canada.

MANUFACTURED MOBILE HOME REQUIREMENTS

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency®product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following

standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2009 / CSA 2.33-2009 and GAS-FIRED APPLIANCES FOR

USE AT HIGH ALTITUDES CAN / CGA 2.17-M91.

This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home,

where not prohibited by local codes.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the

Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria

for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home

Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence

of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA

70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1

in Canada.

This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as

applicable to local codes.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

Ensure that structural members are not cut or weakened during installation.

Regency Horizon™ HZ40E Gas Fireplace 3

To the New Owner:

Congratulations!

You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The HZ40E has been

designed to provide you with all the warmth and charm of a ﬁreplace at the ﬂick of a switch.

ThemodelHZ40E hasbeenapproved byWarnockHersey/Intertekforbothsafetyandefﬁciency.

As it also bears our own mark, it promises to provide you with economy, comfort and security for

many trouble free years to follow. Please take a moment now to acquaint yourself with these

instructions and the many features of your Regency®Fireplace.

4Regency Horizon™ HZ40E Gas Fireplace

TABLE OF CONTENTS

SAFETY DECAL

Copy of Safety Decal.....................................................5

REQUIREMENTS

MA Code - CO Detector.................................................6

INSTALLATION

Important Message ......................................................8

Before You Start ............................................................8

General Safety Information............................................8

Installation Checklist......................................................9

Locating Your Gas Fireplace .........................................9

Heatwave Duct System.................................................9

Heat Release kit............................................................9

Clearances ..................................................................10

Mantel Clearances.......................................................11

Mantel Leg Clearances................................................11

Unit Assembly Prior To Installation..............................12

Nailing Strips........................................................12

Installation Access panel .....................................12

Framing Dimensions....................................................13

Non-Combustible Requirements .................................14

Non-combustible facing installation ............................14

Framing & Finishing.....................................................15

Framing & Finishing.....................................................16

Non-Combustible Requirements .................................16

Exterior Vent Termination Requirements.....................17

4” x 6-5/8” Rigid Pipe ..................................................18

Cross Reference Chart only........................................18

Vent Restrictor Position...............................................20

Venting Introduction.....................................................21

Venting Arrangement for Horizontal Terminations.......21

Horizontal Terminations...............................................22

Flex Vent 4" x 6-7/8"....................................................22

Horizontal terminations................................................23

Rigid Pipe 4" x 6-5/8"...................................................24

Vertical terminations....................................................27

Rigid Pipe 4" x 6-5/8"...................................................27

Venting Arrangement for Vertical Terminations............28

Vertical Termination with Co-Linear Flex System........29

Vertical Terminations ...................................................30

Rigid Pipe 4" x 6-5/8"...................................................30

Venting Arrangements - Vertical Terminations ............32

Unit Installation with Horizontal Termination ...............33

Unit Installation with Horizontal Termination ...............34

unit installation with Vertical Termination.....................35

4" x 6-5/8" venting .......................................................35

High Elevation Gas Line Installation............................36

Pilot Adjustment...........................................................36

Gas Pipe Pressure Testing..........................................36

880 S.I.T. Valve Description.........................................36

Aeration Adjustment ....................................................36

AC power adaptor installation (for sureﬁre systems)...37

Wiring Diagram............................................................38

Proﬂame system GT ...................................................39

Proﬂame system GTM ................................................39

Proﬂame system GTMF with optional fan....................40

Optional fan Wiring Diagram ......................................41

Without ProFlame GTMF system................................41

Optional Remote Control.............................................42

Wall mount On / Off Switch and battery compartment

Installation and/or receiver installation ........................43

GTMF remote installation............................................45

Optional fan Installation...............................................48

Optional fan Installation - into existing installations.....49

Inner Panel Installation................................................51

Glass Crystals or optional ceramic stones ..................52

Installation On Burner..................................................52

Optional Pebble / Crystal Installation...........................53

Glass door Installation.................................................54

Optional mesh glass guard..........................................55

4 piece faceplate installation .......................................56

Inner and outer door frame installation........................57

OPERATING INSTRUCTIONS

Operating Instructions .................................................58

First Fire ......................................................................58

Lighting Procedure ......................................................58

Shutdown Procedure...................................................58

Normal Operating Sounds of Gas Appliances.............58

Copy of Lighting Plate Instructions..............................59

Maintenance Instructions.............................................60

Glass Gasket...............................................................60

Glass Door...................................................................60

Glass Replacement .............................................60

General Vent

Maintenance................................................................60

Valve assembly Replacement .....................................61

PARTS LIST

Main Assembly ............................................................62

Accessories.................................................................63

WARRANTY

The Warranty: Limited Lifetime ...................................67

Regency Horizon™ HZ40E Gas Fireplace 5

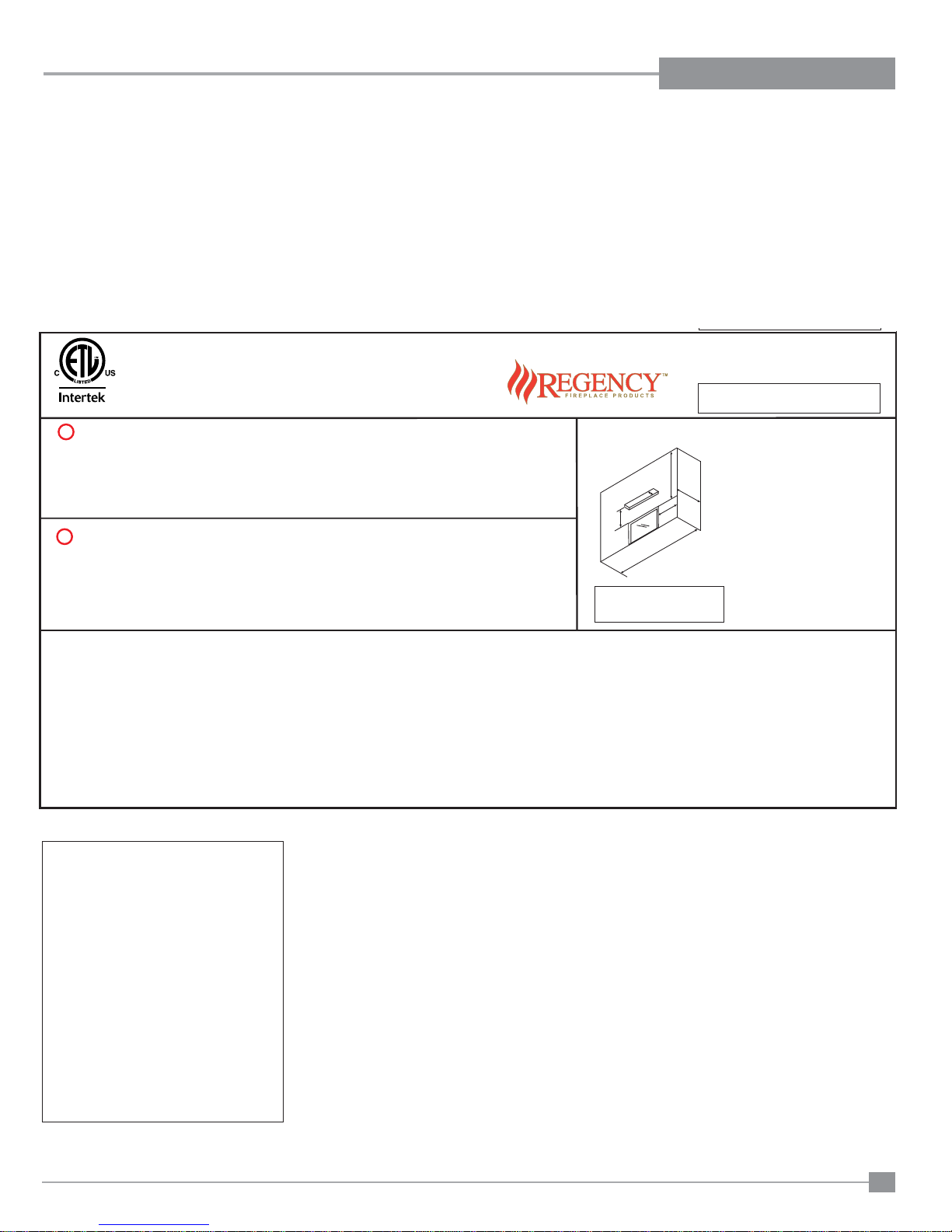

SAFETY LABEL

This is a copy of the label that accompanies

each HZ40E-NG and HZ40E-LP Direct Vent

Gas Fireplace. We have printed a copy of the

contents here for your review.

NOTE: Regency®units are constantly being

improved. Check the label on the unit and if

there is a difference, the label on the unit is the

correct one.

COPY OF SAFETY DECAL

FortheState of Massachusetts, installation

and repair must be done by a plumber or

gasﬁtter licensed in the Commonwealth of

Massachusetts.

FortheStateofMassachusetts,ﬂexiblecon-

nectorsshallnotexceed36inchesinlength.

For the State of Massachusetts, the appli-

ances individual manual shut-off must be a

t-handle type valve.

The State of Massachusetts requires the

installation of a carbon monoxide alarm in

accordancewith NFPA720andaCOalarm

withbatterybackupinthesameroomwhere

the gas appliance is installed.

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE

380

DOOR SEAL: Please

check that the door is

properly sealed

FPI Fireplace Products International Ltd. Delta, BC, Canada

Minimum Clearances to Combustibles /

Degagement Minimum De Materiaux Combustibles

Serial No./ No de serie

918-983

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.

Listed:

Certified for/Certifi e pour:

Tested to:

VENTED GAS FIREPLACE HEATER /

CANADA and U.S.A.

FOYER AU GAZ À ÉVACUATION

CAN/CGA-2.17-M91,ANSI Z21.88-2009/CSA 2.33-2009

Fan (Part # 256-917)

Electrical supply / Électrique 115VAC, 1.13 A, 60Hz.

NOT FOR USE WITH SOLID FUELS. /

NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.

Made in Canada/ Fabrique au Canada

(See Instruction Manual for

detailed instructions)

ÉÉ

QUIP A L'UISINE POUR GAZ PROPANE

CONCU POUR ETRE POELE: Mod le HZ40E-LP

PROPANE GAS: Model HZ40E-LP

Minimum supply pressure

Manifold pressure

Orifice size

Maximum input

Altitude

Minimum input

NATURAL GAS: Model HZ40E-NG

APPAREIL FONCTIONNANT AU NATURAL GAS

CONCU POUR ETRE POELE: Mod le HZ40E-NG

Pression d'allimentation minimum

Pression à la tubulure d' chappement lev e

Grandeur de l'injecteur

D bit maximum selon

l'altitude

Calorifique

ééé

5.0" (1.25 kPa)

3.5" (0.87 kPa)

#40 DMS

0-4500 ft/pi (0-1372 m)

WC/C.E.

26,000 Btu/h (7.61 kW)

18,000 Btu/h (5.28 kW)

Pression d'allimentation minimum

Pression à la tubulure d' chappement lev e

Grandeur de l'injecteur

D bit maximum selon

l'altitude

Calorifique

ééé

11“ WC (2.73 kpa)

WC/C.E.

25,500 Btu/h (7.47kW)

10" (2..49 kPa)

#53 DMS

0-4500 ft/pi (0-1372 m)

21,000 Btu/h (6.15 kW)

Minimum supply pressure

Manifold pressure

Orifice size

Maximum input

Altitude

Minimum input

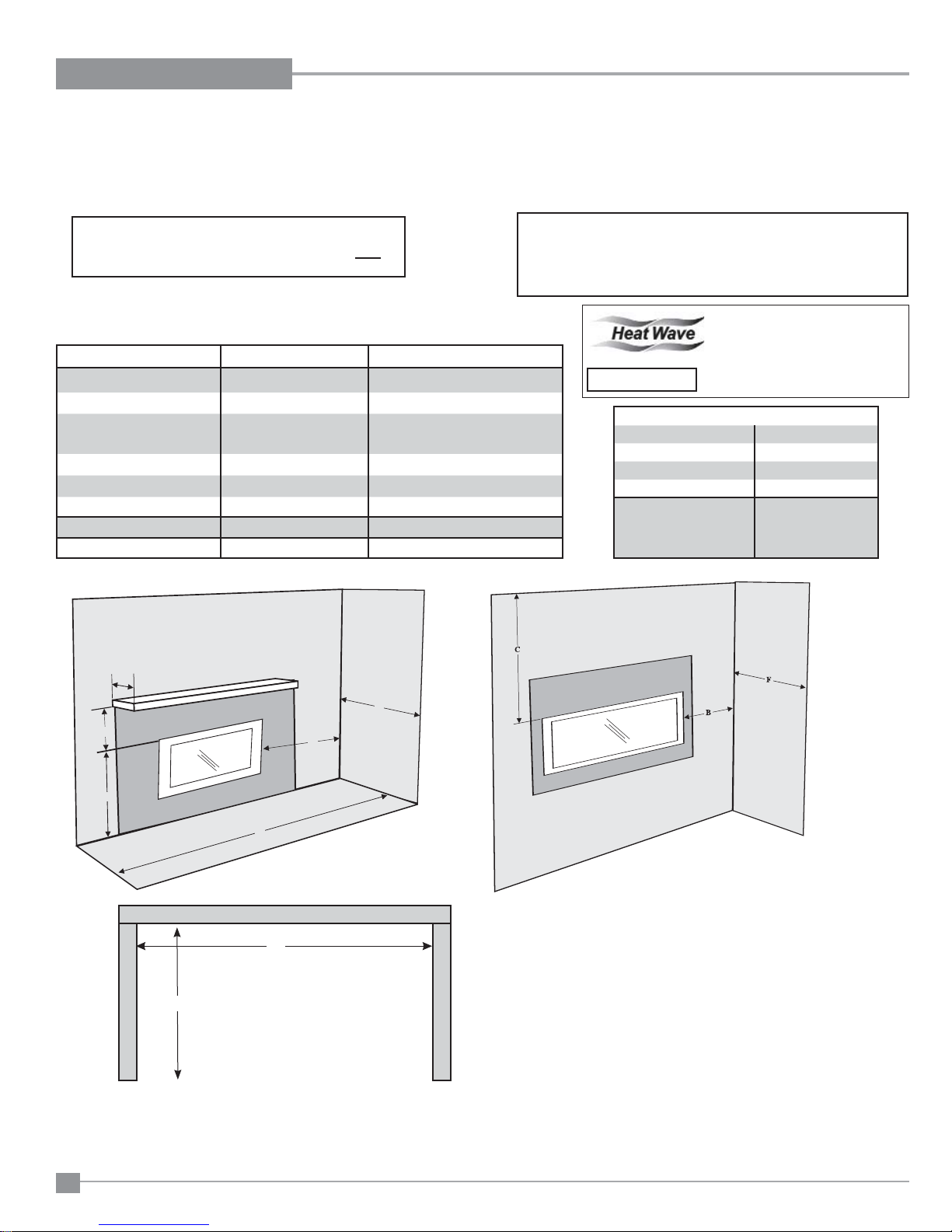

Side Walls

A 8” (203mm)

B 22” (559mm)

C 17" (432mm)

D 13” (330mm)

E 84" (1524mm)

F 36" (2134mm)

Ceiling

Min. Mantel Height

Max. Mantel Depth

Alcove Width

Alcove Depth

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.

This appliance must be installed in accordance with the Standard CAN/CSAZ240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in

the United States, or when such a standard is not applicable,ANSI/NCSBCSA225.1/NFPA501A, Manufactured Home Installations Standard orANSIA119.2 ou NFPA 501C Standard for Recreational Vehicles

This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See

owner's manual for details. This appliance is not convertible for use with other gases, unless a certified kit is used.

Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installationANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.

Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety

Standard. Si ces normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational

Vehicles.

This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.

FOR USE WITH GLASS DOORS CERTIFIED WITH THE APPLIANCE ONLY

Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si

les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil n'est pas convertible pour une utilisation avec d'autres gaz, sauf si une trousse certifié est utilisé.

POUR UTILISATION UNIQUEMENTAVEC LES PORTES EN VERRE CERTIFIÉES AVEC L'APPAREIL

4001172

6Regency Horizon™ HZ40E Gas Fireplace

REQUIREMENTS

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for

residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than

seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall

be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled

equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is

installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery

operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure

served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of

qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon

monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of

thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon

monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions

shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight

(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The

sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation

unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by

the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or

structure used in whole or in part for residential purposes.

Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the

instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a

Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies

"special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and

detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,

all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of

the installation.

MA Code - CO Detector

(for the State of Massachusetts only)

Regency Horizon™ HZ40E Gas Fireplace 7

DIMENSIONS

31"

49-5/16"

45-5/8"

36 4

39-13/16"

13 1

42"

16-7/8"

18-5/16"

16-1/2"1-7/16"

33-3/16"

10"

(1092mm)

(972mm)

(522mm)

(902mm)

(318mm)

(388mm)

1514

(600mm)

(1238mm)

(914mm)

(327mm)

8Regency Horizon™ HZ40E Gas Fireplace

INSTALLATION

11) Under no circumstance should this

appliance be modified. Parts that have

to be removed for servicing should be

replaced prior to operating this appliance.

12) Installation and any repairs to this appliance

should be done by a qualiﬁed service person.

A professional service person should be called

to inspect this appliance annually. Make it a

practice to have all of your gas appliances

checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid fuels

(wood, paper, cardboard, coal, etc.) be used in

this appliance.

15) The appliance area must be kept clear and free

of combustible materials, (gases and other ﬂam-

mable vapours and liquids).

Emissions from burning wood or gas could

contain chemicals known to the State of

California to cause cancer, birth defects or

other reproductive harm.

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The Gas Fireplace must be installed in accordance

with these instructions. Carefully read all the

instructions in this manual ﬁrst.Consult the "authority

having jurisdiction" to determine the need for a permit

prior to starting the installation.It is the responsibility

of the installer to ensure this ﬁreplace is installed

in compliance with manufacturers instructions and

all applicable codes.

BEFORE YOU START

Safe installation and operation of this appliance

requires common sense, however, we are required

by the Canadian Safety Standards and ANSI

Standards to make you aware of the following:

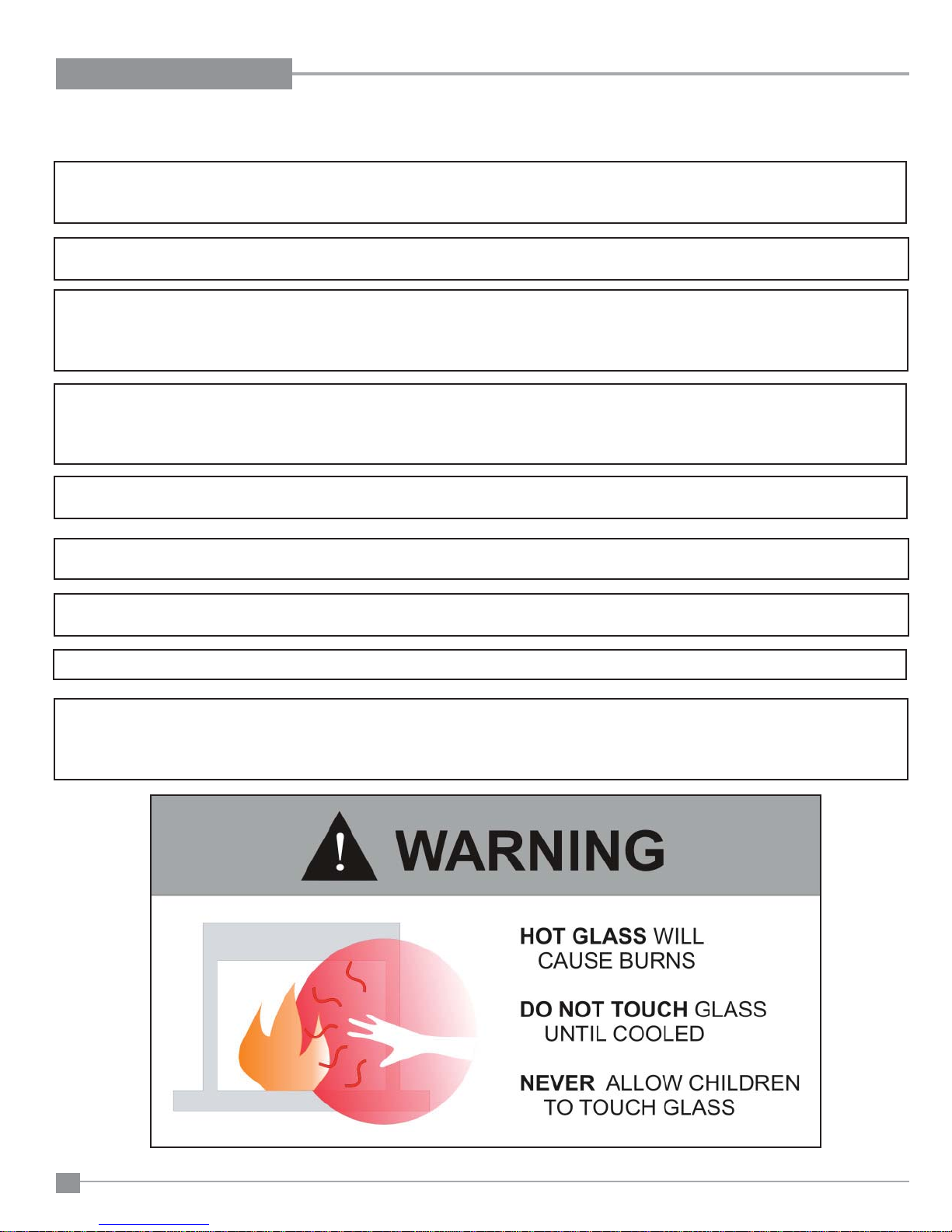

CLOTHING OR OTHER FLAMMABLE

MATERIAL SHOULD NOT BE PLACED

ON OR NEAR THE APPLIANCE.

CHILDREN AND ADULTS SHOULD BE

ALERTED TO THE HAZARDS OF HIGH

SURFACE TEMPERATURES, ESPE-

CIALLY THE FIREPLACE GLASS, AND

SHOULD STAY AWAYTO AVOID BURNS

OR CLOTHING IGNITION.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform with

local codes or, in the absence of local codes, with

the current Canadian or National Gas Codes,

CAN1-B149 or ANSI Z223.1 Installation Codes.

2) The appliance when installed, must be

electrically grounded in accordance with local

codes, or in the absence of local codes with the

current National Electrical Code, ANSI/NFPA 70

or CSA C22.1 Canadian Electrical Code.

3) See general construction and assembly

instructions. The appliance and vent should be

enclosed.

4) This appliance must be connected to the

speciﬁed vent and termination cap to the outside

of the building envelope. Never vent to another

room or inside a building. Make sure that the

vent is ﬁtted as per Venting instructions.

5) Inspect the venting system annually for blockage

and any signs of deterioration.

6) Venting terminals shall not be recessed into a

wall or siding.

7) Any safety glass removed for servicing must be

replaced prior to operating the appliance.

8) To prevent injury, do not allow anyone who is

unfamiliar with the operation to use the ﬁreplace.

9) Wear gloves and safety glasses for protection

while doing required maintenance.

10) Be aware of electrical wiring locations in walls

and ceilings when cutting holes for termination.

INSTALLATION AND REPAIR SHOULD

BE DONE BY AN AUTHORIZED

SERVICE PERSON. THE APPLIANCE

SHOULD BE INSPECTED BEFORE

USE AND AT LEAST ANNUALLY BY A

PROFESSIONAL SERVICE PERSON.

MORE FREQUENT CLEANING MAY

BE REQUIRED DUE TO EXCESSIVE

LINT FROM CARPETING, BEDDING

MATERIAL, ETC.IT IS IMPERATIVETHAT

CONTROL COMPARTMENTS,BURNERS

AND CIRCULATING AIR PASSAGEWAYS

OF THE APPLIANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE

APPLIANCE SHOULD BE LOCATED

OUT OF TRAFFIC AND AWAY FROM

FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS

APPLIANCE CORRECTLY WILL VOID

YOUR WARRANTY AND MAY CAUSE A

SERIOUS HOUSE FIRE.

YOUNG CHILDREN SHOULD BE CARE-

FULLY SUPERVISED WHEN THEY ARE

IN THE SAME AREA AS THE APPLI-

ANCE. TODDLERS,YOUNG CHILDREN

AND OTHERS MAY BE SUSCEPTIBLE

TO ACCIDENTAL CONTACT BURNS. A

PHYSICAL BARRIERS IS RECOMMEND-

ED IFTHERE ARE AT RISK INDIVIDUAL

INTHE HOUSE. TO RESTRICT ACCESS

TO A FIREPLACE OR STOVE, INSTALL

AN ADJUSTABLE SAFETY GATE TO

KEEP TODDLERS, YOUNG CHILDREN

AND OTHER AT RISK INDIVIDUALS OUT

OF THE ROOM AND AWAY FROM HOT

SURFACES.

Regency Horizon™ HZ40E Gas Fireplace 9

INSTALLATION

This includes:

1) Clocking the appliance to ensure the correct

ﬁring rate (rate noted on label 26,000 Btu/h

(NG),25,500Btu/h(LP)afterburningappliance

for 15 minutes.

2) If required, adjusting the primary air to ensure

that the ﬂame does not carbon. First allow the

unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that

causessootingorcarboningthatresultsindam-

ageisnottheresponsibilityofthemanufacturer.

INSTALLATION

CHECKLIST

1) Locate appliance

a) Roomlocation(Referto"LocatingYourGas

ﬁreplace" section)

b) Clearances to Combustibles (Refer to

"Clearances" section)

c) Mantle Clearances (Refer to "Mantel

Clearances" section)

d) Framing & Finishing Requirements (Refer

to "Framing & Finishing" section)

e) Venting Requirements (Refer to "Venting"

section)

2) Position nailing strips (Refer to "UnitAssembly

Prior to Installation).

3) Slide unit into place.

4) Remove installation access panel.

5) Install vent (Refer to "Venting Arrangement"

sections).

6) Make gas connections (Refer to "Gas Line

Installation section).

7) Make electrical connections to receptacle

supplied with unit (recommended).

8) Wall Mounted ON/OFF Switch:

Use the toggle wall switch supplied with the

manualpackage.Useofa“decor”switchcauses

higher resistance which is a problem on gas

ﬁreplaces.

9) Install 4AAbatteries into wall mounted battery

box receptacle on wall.

10) Test the pilot (Refer to "Pilot Adjustment"

section).

11) TestGasPressure(Referto"GasPipePressure

Testing" section).

12) Installstandardandoptionalfeatures. Referto

the following sections:

a) Glass Crystals/ Optional Ceramic

Stones

b) Optional Firebox Base Pebbles

c) Optional Reﬂective Panels

d) Optional Fan

e) Faceplate

f) Remote Control or Wall Thermostat

and 10ft. wire harness.

13) Reinstall installation access panel.

14) Final check.

Before leaving this unit with the customer, the

installer must ensure that the appliance is ﬁring

correctly and operation fully explained to

customer.

LOCATING YOUR

GAS FIREPLACE

1) When selecting a location for your ﬁreplace,

ensure that the clearances are met.

2) Theappliancemustbeinstalledona ﬂat,solid,

continuoussurfaceForexampleawood,metal

orconcrete ﬂoor orin a raised (onthe wall) ap-

plication. The appliance must be installed on

a metal or wood panel extending the full width

and depth of the appliance.

3) The HZ40E Direct Vent Gas Fireplace can be

installed in a recessed position or framed out

into the room as in A, B, C and D.

See Diagram 1.

Diagram 1

A) Flat on Wall

B) Flat on Wall Corner

C) Recessed into Wall/Alcove

D) Corner

4) This appliance is Listed for bedroom

installations using the standard Remote

(thermostat system). Some areas may have

furtherrequirements,checklocalcodesbefore

installation.

5) The HZ40E Direct Vent Gas Fireplace

is approved for alcove installations, see

"Clearances" section for details.

6) We recommendthatyouplanyourinstallation

on paper using exact measurements for

clearancesandﬂoorprotectionbeforeactually

installing this appliance. Have an authorized

inspector,dealer,orinstallerreviewyourplans

before installation.

Note: For vent terminations refer to "Exterior

Vent Termination Locations" section.

HEATWAVE

DUCT SYSTEM

OPTIONAL KIT #946-556

The HeatWave Air Duct Kit increases the

effectiveness of your ﬁreplace by dispersing warm

airfromtheﬁreplacetoremotelocationsinthesame

room or other rooms in your home.

Up to two kits may be installed on the ﬁreplace.

Please Note: Only 1 HeatWave kit may be oper-

ated at one time. This includes the internal blower

option as well.

OPTIONAL

HEAT RELEASE KIT

#946-570

The Heat Release Kit expels warm air from the

ﬁreplace to the outside of the building, allowing

the ﬁreplace to be operated with less heat entering

the room. The kit may be used on either the left

or right side.

The HeatWave Duct Kit has different

clearanceandframingrequirements,check

the HeatWave manual for details.

10 Regency Horizon™ HZ40E Gas Fireplace

INSTALLATION

Caution Requirements

The top, back and sides of the ﬁreplace are deﬁned by

standoffs. The metal ends of the standoff may NOT be

recessed into combustible construction.

WARNING

Fire hazard is an extreme risk

if these clearances (air space) to combustible materials are not

adhered to. It is of greatest importance that this ﬁreplace and vent

system be installed only in accordance with these instructions.

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:

Amajorcause of chimney related ﬁres is failure to maintain required clearances(airspace) to combustible materials. It is of the greatest importance

that this ﬁreplace and vent system be installed only in accordance with these instructions.

Clearance: Dimension Measured From:

A: Mantel Height (min.) 17" (330mm) Top of Fireplace Opening

B: Sidewall (on one side) 8" (203mm) Side of Fireplace Opening

C: Ceiling

(room and/or alcove) 22" (559mm) Top of Fireplace Opening

D: Mantel Depth (max.) 13" (330mm) 22" Above Fireplace Opening

E: Alcove Width 84" (2134mm) Sidewall to Sidewall (Minimum)

F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)

G: From Floor 27" (686mm) Top of Fireplace Opening

Note: 0" No hearth required

Installed close

to ceiling.

Flue Clearances to Combustibles

Horizontal - Top 3"

Horiztonal - Side 2"

Horiztonal - Bottom 2"

Vertical 2"

Passing through wall/

floor/ceiling - when

ﬁrestop is used. 1-1/2"

Alcove

Installed Close

to Floor

TheHeatWave DuctKitand theHeat

Release Kit have different clearance

and framing requirements, check the

HeatWaveandHeatReleasemanual

for details.

Heat Release Kit

This manual suits for next models

Table of contents

Other Regency Indoor Fireplace manuals

Regency

Regency B36XT-NG User manual
