Reely STADIUM-BUGGY LEOPARD User manual

SERVICE MANUAL Version 07/07

KONSTRUKTIONSANLEITUNG Version 07/07

NOTICE DE CONSTRUCTION Version 07/07

BOUWHANDLEIDING Versie 07/07

STADIUM-BUGGY “LEOPARD”

Service manual for 1:8 REELY GP STADIUM BUGGY “LEOPARD” RTR

Item-No: / Best.-Nr.: / N° de commande : / Bestnr.:23 40 40

1A -- O-Ring 3x1 mm --12

1B -- Pin 2.5x12.8 mm --6

1C -- Pin 4x26.6 mm -- 6

MV11721

1G 1E

MV22811

MV22873

Silicone Oil

for Differential

Silicone Oil

for Differential

MV11711

1G 1E

MV22833

MV22873

MV22873 MV22873

MV22873

<1-1>

MV22873

<1-1>

MV22873

1F 1B

MV22873

1H 1A

MV11721 MV11711

1D -- Grub Screw 4x3 mm -- 3

1E -- F/H Tapping Screw 3x16 mm -- 12

1F -- Shim 6.1x9.8x0.1 mm -- 3

1G -- Shim 8x12x0.2 mm -- 3

1H -- Ball Bearing 8x16x5 mm -- 6

For Front and Rear x2 For Center x1

For Front and Rear x2

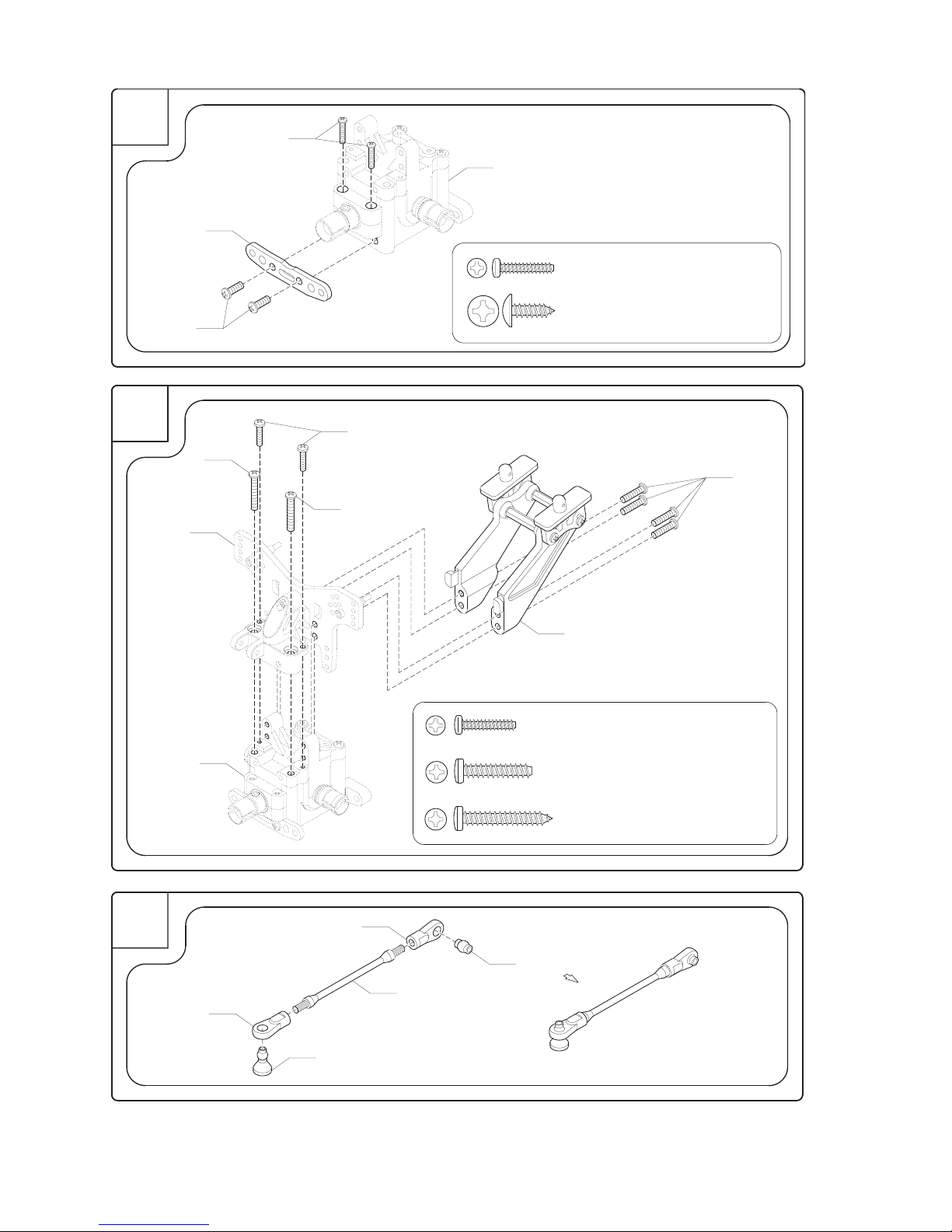

2A -- Grub Screw w/Glue 5x5 mm --2

2B -- Shim 8x12x0.2 mm -- 4

2C -- Ball Bearing 8x16x5 mm -- 4

MV22821

2 mm

Finished

For Front x1

3A -- Tapping Screw 4x12 mm -- 6

3B -- Tapping Screw 4x20 mm -- 2

3C -- Cap Screw 3x25 mm -- 2

MV162

Step1

MV22873FR1

Step2

MV162

MV162D2Ti

MV110

MV1328Ti

MV110

Finished

4A -- Tapping Screw 3x15 mm -- 4

4B -- F/H Tapping Screw 4x16 mm -- 2

4A 4A

4A MV162U1

MV162D1

Step3

For Left Side

5A -- Grub Screw 4x3 mm -- 4

5B -- Grub Screw w/Glue 5x5 mm -- 2

5C -- Pin 2.5x13.8 mm -- 2

5D -- Pin 2.5x16.8 mm -- 2

5E -- Ball Bearing 8x16.x5 mm -- 4

5F -- Cap Screw w/Glue 4x12 mm -- 4

MV3574

MV107Ti

MV134

MV3531

MV3572

MV3481

MV3531

MV3481

For Right Side

For Right Side and Left Side x2

MV349F2

6A -- Turnbuckle 5x25 mm -- 2

10.5 mm

For Left Side

Finished

For Right Side

Step 5

Step 6

7A 7B

MV347F2

7A -- Lock Nut 3 mm -- 4

7B -- Grub Screw 4x10 mm -- 2

7C -- Hub Stud 3x37.5 mm -- 4

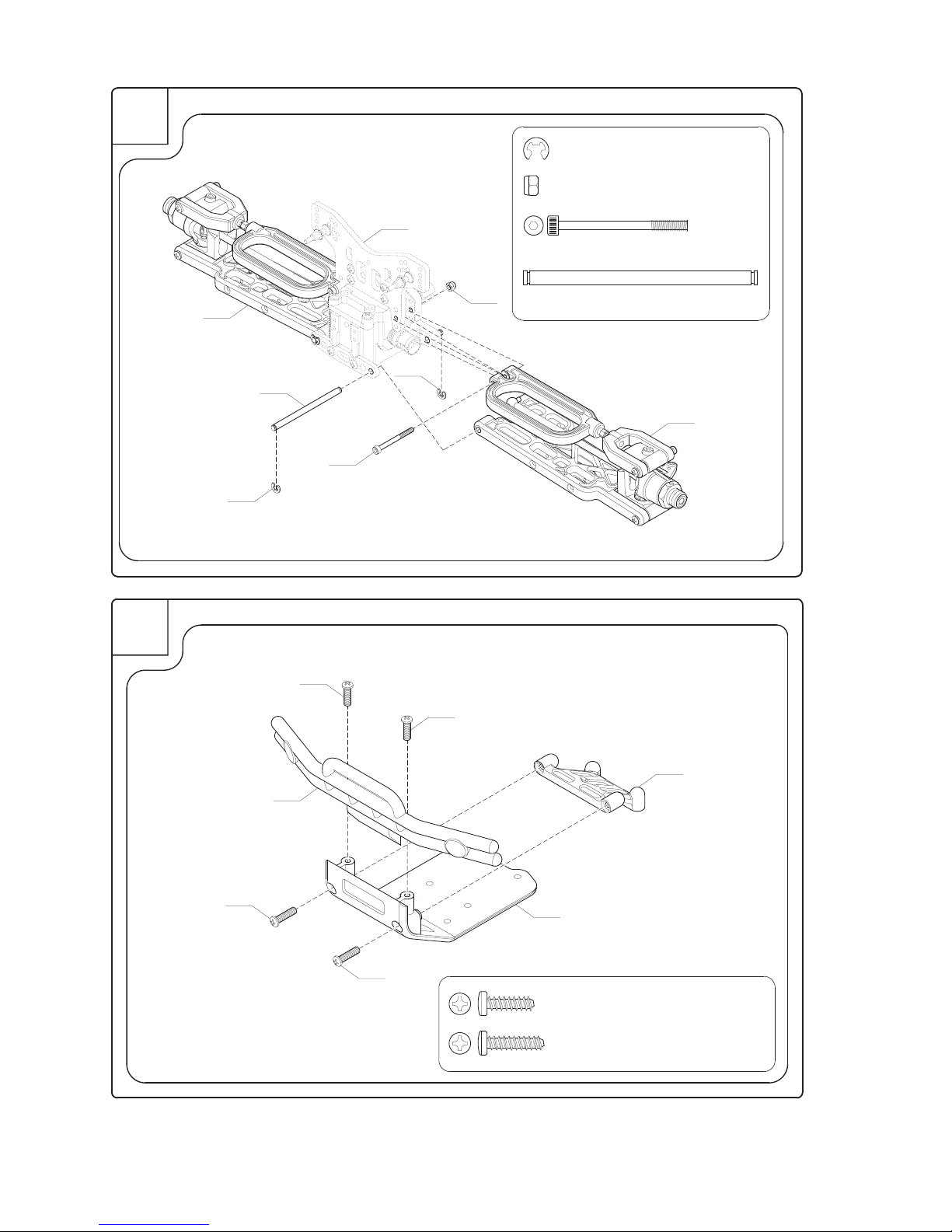

8A -- E-Ring 3 mm -- 4

8B -- Lock Nut 3 mm -- 2

8C -- Cap Screw 3x33 mm -- 2

8D -- Hinge Pin 4x63.9 mm -- 2

Step 4

Step 7

9A -- Tapping Screw 4x14 mm -- 2

9B -- Tapping Screw 4x18 mm -- 2

XV1402

For Front x1

10A -- F/H Tapping Screw 4x16 mm -- 2

10B -- Tapping Screw 4x18 mm -- 2

10B MV162

Step 1

MV22873FR1

Step 2

MV162D1

MV162

10A

MV162U3

MV162U2

11A

11A -- Tapping Screw 3x18 mm -- 1

Option Parts: MV141-Wing Mount

(Not Included)

12A -- Lock Nut 3 mm -- 1

12B -- Button Head Screw 3x15 mm -- 1

12C -- Cap Screw 3x25 mm -- 2

MV1328Ti MV110

12C

12A

12B

MV110

12C

Step 11

12D MV141

MV141

12D

12D -- Button Head Screw 3x15 mm -- 4

(B/N 223294-EQ)

13A

MV162D3Ti

13B

Step 10

13A -- Tapping Screw 3x15 mm -- 2

13B -- Tapping Screw 4x12 mm -- 2

14 14A

14C

Step 12

Step 13

14B

MV141

Option Parts

(Not included)

14A -- Tapping Screw 3x15 mm -- 2

14B -- Tapping Screw 4x20 mm -- 4

14C -- Tapping Screw 4x25 mm -- 2

Finished

MV1621

V221524

MV1621

MV113

MV1621

V221524

MV1621

16A -- Lock Nut 3 mm -- 1

16B -- Tapping Screw 3x10 mm -- 4

16C -- Cap Screw 3x25 mm -- 1

MV1653

16B

16C

Step 15

Step 14

16A

For Right Side and Left Side x2

17A -- Turnbuckle 5x36 mm -- 2

16.7 mm

MV349R2

17A MV349R2

MV113

For Right Side

For Left Side

18A -- Grub Screw w/Glue 5x5 mm -- 2

18B -- Pin 2.5x16.8 mm -- 2

18C -- Ball Bearing 8x16x5 mm -- 4

18A

18B

MV107Ti

18C

MV3461

18C

MV105

For Left Side For Right Side

Finished

19A -- Lock Nut 3 mm -- 4

19B -- Grub Screw 4x10 mm -- 2

19C -- Button Head Screw 3x25 mm -- 2

19D -- Hub Stud 3x43.5 mm -- 2

19A

19C

Step 17

Step 18

MV3461

19D

19B

19A

MV347R2

20 20A -- E-Ring 3 mm -- 4

20B -- Lock Nut 3 mm -- 2

20C -- Cap Screw 3x25 mm -- 2

Step 16

Step 19

20A

20D

20A

20B

20C

Step 19

MV3554

20D -- Hinge Pin 4x63.9 mm -- 2

21 21A -- Grub Screw 3x10 mm -- 2

MV3617

V22151

21A

MV3617

V22151

22 22A -- Grub Screw 3x3 mm -- 2

22B -- F/H Tapping Screw 3x12 mm -- 4

22C -- F/H Screw 3x15 mm -- 2

22B

MV3617

MV3611

Step 20

22A

Step 21

22C

MV1653

MV1653 MV1653

MV1653

23A -- Tapping Screw 3x10 mm -- 4

23B -- F/H Tapping Screw 4x12 mm -- 2

23C -- F/H Tapping Screw 4x19 mm -- 4

23A

Step 9

23B 23C

XV3012Ti

Step 8
