Reebok RBEL68080 User manual

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. RBEL68080

Serial No. __

Serial

Number

Decal

QUESTIONS?

If you have questions, or if there

are missing or damaged parts,

please call direct to our toll-free

Customer Hot Line. The trained

technicians on our Customer Hot

Line will provide immediate

assistance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.ÐFri., 6 a.m.Ð6 p.m. MST

USERÕS MANUAL

U.S. Patent No. 5,573,480

Other patents pending

TABLE OF CONTENTS

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICONÕs obligation under this warranty is lim-

ited to replacing or repairing, at ICONÕs option, the product at one of its authorized service centers. All

products for which warranty claim is made must be received by ICON at one of its authorized service cen-

ters with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase.

All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to

a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or

repairs not provided by an ICON authorized service center, to products used for commercial or rental pur-

poses, or to products used as store display models. No other warranty beyond that specifically set forth

above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above

limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON Health & Fitness, Inc. 1500 S. 1000 W., Logan, UT 84321-9813

REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is

manufactured and distributed under license from Reebok International.

1. Read all instructions in this manual before

using the elliptical crosstrainer.

2. It is the responsibility of the owner to

ensure that all users of the elliptical

crosstrainer are adequately informed of all

precautions.

3. Place the elliptical crosstrainer on a level

surface, with a mat beneath it to protect the

floor or carpet. Keep the elliptical crosstrain-

er indoors, away from moisture and dust.

4. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

5. Keep children under the age of 12 and pets

away from the elliptical crosstrainer at all

times.

6. The elliptical crosstrainer should not be

used by persons weighing more than 250

pounds.

7. Wear appropriate exercise clothing when

using the elliptical crosstrainer. Always wear

athletic shoes for foot protection.

8. Always hold the handlebars when mounting,

dismounting, or using the elliptical

crosstrainer. Make sure to step onto and off

the pedal that is in the lowest position when

mounting and dismounting.

9. Each time you stop exercising, allow the

pedals to slowly come to a stop.

10. Keep your back straight when using the

elliptical crosstrainer. Do not arch your

back.

11. If you feel pain or dizziness while exercis-

ing, stop immediately and begin cooling

down.

12. The elliptical crosstrainer is intended for

in-home use only; do not use it in any

commercial, rental, or institutional setting.

13. The decal shown below is found on the ellip-

tical crosstrainer. If the decal is missing, or

if it is not legible, call toll-free 1-800-999-

3756 to order a free replacement decal.

Apply the decal in the location shown.

WARNING: Before beginning this or any exercise program, consult your physician. This is espe-

cially important for persons over the age of 35 or persons with pre-existing health problems. Read

all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precautions before

using the REEBOK elliptical crosstrainer.

(Decal is not shown actual size)

BEFORE YOU BEGIN

Congratulations for selecting the REEBOK¨

elliptical crosstrainer. The REEBOK¨elliptical

crosstrainer is an incredibly smooth exerciser that

moves your feet in a natural elliptical path, minimizing

the impact on your knees and ankles. And the

REEBOK¨elliptical crosstrainer features both upper-

body and lower-body exercise, adjustable resistance,

and motivational electronics to help you get the most

from each workout. Welcome to a whole new world of

natural, elliptical-motion exercise.

For your benefit, read this manual carefully before

you use the REEBOK¨elliptical crosstrainer. If you

have additional questions, please call our Customer

Service Department toll-free at 1-800-999-3756,

Monday through Friday, 6 a.m. until 6 p.m. Mountain

Time (excluding holidays). To help us assist you,

please note the product model number and serial

number before calling. The model number is

RBEL68080. The serial number can be found on a

decal attached to the elliptical crosstrainer (see the

front cover of this manual for the location of the decal).

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

Upright

Resistance Knob

Water Bottle Holder

(Bottle not included)

FRONT

BACK

RIGHT SIDE

Pedal

Handlebar

Hood

Pedal Wheel Frame

Console

Book Holder

PART IDENTIFICATION CHART

Use the chart below to identify the small parts used in

assembly. The number in parenthesis below each part

is the key number of the part, from the PART LIST on

page 14. The number after the dash indicates the

quantity needed for assembly. Note: Some small

parts may have been pre-attached. If a part is not

in the parts bag, check to see if it has been pre-

attached.

3/8" Button Head

Screw (65)Ñ5

3/8" x 1 3/4" Bolt (84)Ð2

5/16" x 1 3/4" Carriage

Bolt (61)Ð2

3/8" Lock Washer (66)Ñ3

3/8" Nylon Locknut (85)Ð2

5/16" Nylon Jam Nut (62)Ð2

#8 x 1/2" Screw (64)Ð6

(packaged with console)

5/8" Washer (59)Ñ2

3/4" Spacer (58)Ñ2

5/8" Push Nut (60)Ñ2*

*Extra 5/8Ó Push Nuts may be included

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included allen wrench and push nut tool , and your own phillips

screwdriver and two adjustable wrenches .

2. Hold the Upright (6) in the position shown. Carefully

pull the Resistance Control Wire (48) and the Reed

Switch Wire (52) up through the Upright until there is

no slack between the Upright and the Frame (1).

Slide the Upright (6) onto the Frame (1). Be careful

to avoid pinching the Resistance Control Wire

(48) and the Reed Switch Wire (52). Tighten a 3/8Ó

Button Head Screw (65) and a 3/8Ó Lock Washer

(66) into the front of the Upright and the Frame.

Next, tighten two 3/8Ó Button Head Screws and 3/8Ó

Lock Washers into the sides of the Upright and the

Frame. Note: It may be necessary to loosen the front

Button Head Screw slightly in order to attach the

other two Button Head Screws. Firmly tighten all

three Button Head Screws.

1. Attach a Wheel Bracket (82) to the front of the

Frame (1) with a 3/8Ó Button Head Screw (65).

Attach a Wheel (83) to the Wheel Bracket with a 3/8Ó

x 1 3/4Ó Bolt (84) and a 3/8Ó Nylon Locknut (85).

Make sure that the Wheel still turns after you have

tightened these parts. Attach the other Wheel

Bracket and Wheel to the Frame in the same way.

Press two 2Ó x 3Ó Caps (38) onto the front of the

Frame (1). Press the other two 2Ó x 3Ó Caps onto the

back of the Frame (not shown).

66 66

83 65

3. The Console (43) requires two ÒAAÓ batteries (not

included). Alkaline batteries are recommended.

To install batteries, turn over the Console (43) (see

the inset drawing). Insert two batteries into the bat-

tery clip. Make sure that the negative ends of the

batteries (marked ÒÐÓ) are touching the springs

in the battery clip.

Batteries

Battery Clip

7. Make sure that all parts of the elliptical crosstrainer are properly tightened. To protect the floor or carpet

from damage, place a mat under the elliptical crosstrainer.

5. Slide a 3/4Ó Spacer (58) onto the left side of the

Upright (6). Make sure that the open side of the

Spacer is facing the Upright. Next, press a Plastic

Washer (55) into a Large Pivot Cover (54). Make

sure that the Plastic Washer is turned so it is flush

with the Large Pivot Cover. Slide the Plastic Washer

and the Large Pivot Cover onto the Upright.

Make sure that there are two Bushings (22) in the

Left Handlebar (5). Slide the Left Handlebar onto the

Upright (6).

Slide a Small Pivot Cover (56) and a 5/8Ó Washer

(59) onto the Upright (6). Using the included push

nut tool, tap a Push Nut (60) onto the Upright (see

the inset drawing). Press a Pivot Cap (57) into the

Small Pivot Cover.

Repeat this step to attach the Right Handlebar (not

shown).

6. Make sure that there are two 3/4Ó Bushings (18) in

the front end of the Right Outer Leg (2). Attach the

Right Handlebar (4) to the Right Outer Leg with a

5/16Ó x 1 3/4Ó Carriage Bolt (61) and a 5/16Ó Nylon

Jam Nut (62). Make sure that the head of the

Carriage Bolt is in the square hole in the Right

Handlebar.

Attach the Left Handlebar (5) to the Left Outer Leg

(3) in the same way.

Hole

4. Refer to the inset drawing. Detach the Reed Switch

Wire (52) from the Resistance Control Wire (48).

Plug the Reed Switch Wire into the back of the

Console (43). Next, route the Resistance Control

Wire (48) on top of the Upright (6) so that it will fit

beneath the Console (43). Make sure that the

Resistance Control Wire is not kinked and that it

does not block the indicated hole.

Place the Console (43) on top of the Upright (6).

Attach the Console with six #8 x 1/2Ó Screws (64).

Press the Resistance Knob (63) firmly onto the

Resistance Control (48).

60 6

Push Nut

Tool

DESCRIPTION OF THE CONSOLE

The innovative console offers a manual mode and

three pacer programs. The pacer programs are

designed to help you achieve your exercise goals by

pacing your exercise. The console also features six

monitor modes that provide continuous exercise

feedback.

HOW THE PACER PROGRAMS OPERATE

When you use a

pacer program,

two columns of

bars will appear

in the display.

The left column

will show a target

pace, which is

determined by

the program you

have selected;

the right column will show your actual pace. The target

pace will change periodically during the program; as

the target pace changes, simply adjust your pace to

keep both columns at the same height. Important:

The target pace is a goal pace. Your actual pace

may be slower than the target pace, especially

during the first few months of your exercise pro-

gram. Be sure to exercise at a pace that is com-

fortable for you.

The three graphs on the console show how the target

pace will change during the pacer programs (see the

drawing at the left). Each graph is divided into ten

columns, and each column represents a two-minute

time period. The bars in each column show what the

target pace will be during that two-minute period. For

example, in the first column of graph 1, there is one

bar. This shows that during the first two minutes of

program 1, the target pace will be about 1.5 miles per

hour (see the scale at the left end of the graph). In the

second column, there are five bars. This shows that

during the second two-minute period, the target pace

will be almost 4.5 mph. Each pacer program is twenty

minutes long.

DESCRIPTION OF THE MONITOR MODES

The six monitor modes provide continuous exercise

feedback. The modes are described below.

¥ SpeedÑThis mode shows your pace, in miles per

hour.

¥ TimeÑIf you select one of the three pacer programs,

this mode will count down the time remaining in the

program. If you select the manual mode, this mode

will count up the length of time you have exercised.

Note: If you stop exercising for ten seconds or

longer, the time mode will pause.

¥ DistanceÑThis mode shows the distance you have

completed, in miles.

¥ Fat calories (FAT CALS)ÑThis mode shows the

approximate number of fat calories you have

burned. (See BURNING FAT on page 12 for an

explanation of fat calories.)

¥ Calories (CALS)ÑThis mode shows the approxi-

mate number of calories you have burned. (This

number includes both fat calories and carbohydrate

calories.)

¥ ScanÑThis mode displays the calories, fat calories,

speed, time, and distance modes, for five seconds

each, in a repeating cycle.

Note: If there is a thin sheet of clear plastic on

the face of the console, remove it.

HOW TO USE THE ELLIPTICAL CROSSTRAINER

Target Pace

Actual Pace

STEP-BY-STEP CONSOLE OPERATION

Before the console can be operated, two ÒAAÓ bat-

teries must be installed. (See assembly step 3 on

page 6 for installation instructions.) Follow the steps

below to operate the console.

Turn on the power

To turn on the

power, press

the on/reset

button or sim-

ply begin

exercising on

the elliptical crosstrainer. When the power is

turned on, the entire display will appear for two

seconds. The console will then be ready for use.

Note: If batteries were just installed, the power will

already be on.

Select one of the three pacer programs or the

manual mode

To select one

of the pacer

programs,

repeatedly

press the

program

button. The

program

indicator will

show which program you have selected. To select

the manual mode, press the program button until

the program indicator disappears. The programs

will be selected in the following order: program 1,

program 2 , program 3, manual mode.

Begin your workout

If you select-

ed the manu-

al mode, go

to step 4. If

you selected

one of the

pacer pro-

grams, two

columns of

bars will

appear in the display. The left column will show

one bar, showing that the target pace is about

1.5 miles per hour. The right column will show

your actual pace. Adjust your pace until only one

bar appears in the right column. As the program

progresses, the target pace will change periodical-

ly; as the target pace changes, adjust your pace

to keep both columns at the same height.

Remember, the target pace is a goal pace.

Your actual pace may be slower than the tar-

get pace, especially during the first few

months of your exercise program. Be sure to

exercise at a pace that is comfortable for you.

Follow your progress with the monitor modes

When the

power is

turned on,

the scan

mode will

automatically

be selected.

One mode

indicator will

show that

the scan mode is selected, and a flashing mode

indicator will show which mode is currently dis-

played. Note: If you select a different mode, you

can select the scan mode again by repeatedly

pressing the mode button.

If desired, you can select the speed, time, dis-

tance, fat calories, or calories mode for full-time

display. To select one of these modes, repeatedly

press the mode button. The mode indicators will

show which mode is selected. (Make sure that the

scan mode is not selected.)

If desired, the display can be reset by pressing

the on/reset button.

Turn off the power

To turn off the power, simply wait for about six

minutes. If the pedals are not moved and the

console buttons are not pressed for six

minutes, the power will turn off automatically.

Program Indicator

Target Pace Actual Pace

Mode Indicators

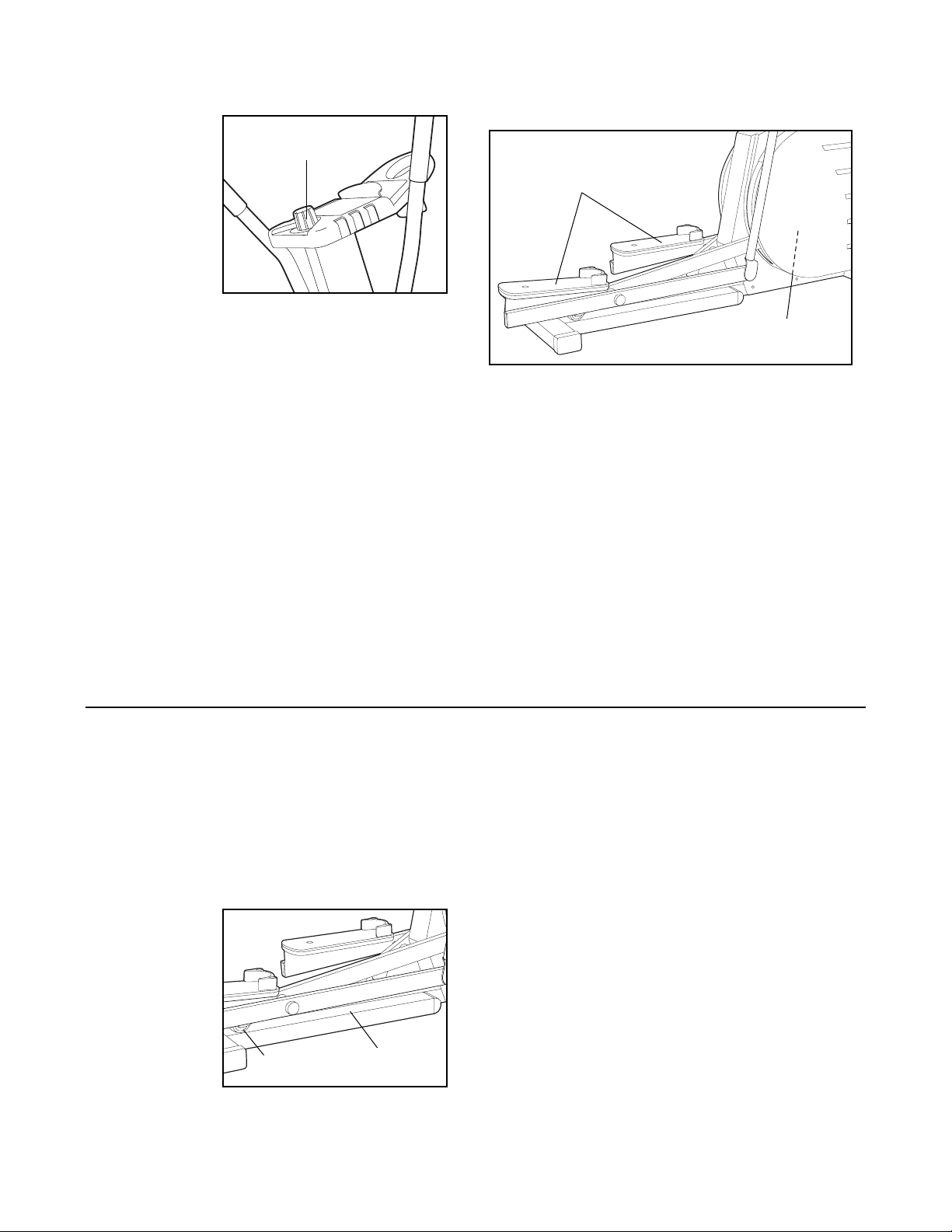

HOW TO ADJUST THE RESISTANCE OF THE

PEDALS

To adjust the

intensity of your

exercise, the

resistance of

the pedals can

be adjusted. To

increase the

resistance, turn

the resistance

knob clockwise;

to decrease the

resistance, turn the knob counterclockwise.

HOW TO EXERCISE ON THE ELLIPTICAL

CROSSTRAINER

To mount the elliptical crosstrainer, hold the handle-

bars and step onto the pedal that is in the lowest

position (see the drawing at the right). Next, step onto

the other pedal. Center your feet on the pedals. Push

the pedals until they begin to move with a continuous

motion. Note: The crank arms beneath the hood

can turn in either direction; turn the crank arms in

the direction that is the most comfortable for you.

To dismount the elliptical crosstrainer, allow the ped-

als to slowly come to a stop. CAUTION: The ellipti-

cal crosstrainer does not have a freewheel; the

pedals will continue to move until the flywheel

stops. When the pedals are stationary, step off the

highest pedal first. Then, step off the lowest pedal.

Inspect and tighten all parts of the elliptical crosstrain-

er regularly. Replace any worn parts immediately. To

prevent damage to the console, keep liquid away from

the console, keep the console out of direct sunlight,

and remove the batteries when storing the elliptical

crosstrainer.

The elliptical

crosstrainer can

be cleaned with

a soft, damp

cloth. Be sure

to keep the

frame clean

where the

pedal wheels

move.

BATTERY REPLACEMENT

If the console does not function properly, the batteries

should be replaced. Refer to assembly steps 3 and 4

on pages 6 and 7. Remove the resistance knob,

remove the six screws attaching the console, and turn

the console over. Insert two new batteries into the

battery compartment. Make sure that the reed switch

wire is connected to the console. Reattach the con-

sole and the resistance knob.

Pedals

Crank Arm

MAINTENANCE AND TROUBLE-SHOOTING

Resistance Knob

Frame

Pedal Wheel

Table of contents

Other Reebok Elliptical Trainer manuals

Reebok

Reebok R 6.90 Treadmill User manual

Reebok

Reebok i-Trainer.SE User manual

Reebok

Reebok 1000 ZX RBEL9906.3 User manual

Reebok

Reebok Elliptical Exerciser/rel2i Operating and maintenance manual

Reebok

Reebok RL545 User manual

Reebok

Reebok RL 725 User manual

Reebok

Reebok RBEL68083 User manual

Reebok

Reebok Rl 1500 Elliptical User manual

Reebok

Reebok One GX50 User manual

Reebok

Reebok Rl 1500 Elliptical User manual

Reebok

Reebok R 5.10 Elliptical User manual

Reebok

Reebok Elliptical Exerciser REL2i User manual

Reebok

Reebok Elliptical Exerciser/rel2i User guide

Reebok

Reebok RBEL68082 User manual

Reebok

Reebok RL 645 RBEL79740 User manual

Reebok

Reebok RL 725 elliptical exerciser RBCCEL79022 User manual

Reebok

Reebok T7.90 Elliptical User manual

Reebok

Reebok Elliptical Exerciser/rel2i User manual

Reebok

Reebok 910 Elliptical User manual

Reebok

Reebok Crosstrainer C 5.8e User manual

Reebok

Reebok GX60 User manual

Reebok

Reebok RL 525 RBCCEL79021 User manual

Reebok

Reebok T7.90 Elliptical User manual

Reebok

Reebok R 5.10 Elliptical User manual

Popular Elliptical Trainer manuals by other brands

Weslo

Weslo Momentum 4.0 Elliptical Manuale d'istruzioni

Progear Fitness

Progear Fitness Air elliptical pro 1307 owner's manual

Torque Fitness

Torque Fitness XPLLP owner's manual

Octane Fitness

Octane Fitness PRO3700C Operation manual

Xterra

Xterra FS5.8e owner's manual

Bodyguard

Bodyguard E-40 user manual

Bonn Germany

Bonn Germany Concept 2.2 user manual

Precor

Precor Resolute RSL 620 Assembly guide

NordicTrack

NordicTrack E 9.2 Elliptical HASZNALATI UTASITAS

Vision Fitness

Vision Fitness X6600iNetTV Assembly guide

Matrix

Matrix MX-A5x owner's manual

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 owner's manual

Sears

Sears FREE SPIRIT C249 30737 0 owner's manual

True

True FS-64 Assembly manual

Sport-thieme

Sport-thieme ST 310 manual

VIRTUFIT

VIRTUFIT CTR 1.1 user manual

Kettler

Kettler GIRO C 1 manual

CIRCLE FITNESS

CIRCLE FITNESS E7 owner's manual
