Razer RZ04-0193 User manual
| For gamers by gamers™
DTD :30/5/2016
User Manual for RZ04-0193
| razer
PACKAGE CONTENTS / HARDWARE REQUIREMENTS
PACKAGE CONTENTS
•Wireless Gamin headset RZ04-0193
•4 interchan eable ear-tips in varyin sizes
•Audio/mic splitter adapter cable
•Char in cable
•Carryin pouch
•Important Product Information Guide
HARDWARE REQUIREMENTS
•Device with Bluetooth Low Ener y (BT 4.0 or hi her) capability
| For gamers by gamers™
REGISTRATION / TECHNICAL SUPPORT
REGISTRATION
Visit www.razerzone.com/razer-id to si n up for a Razer ID now to et a wide ran e of
Razer benefits. For example, et real-time information on your product’s warranty
status via Razer Synapse. To learn more about Razer Synapse and all its features, visit
www.razerzone.com/synapse.
If you already have a Razer ID, re ister your product by clickin on your email address
within the Razer Synapse application and select Warranty Status from the dropdown
list.
To re ister your product online, visit www.razerzone.com/re istration. Please note
that you will not be able to view your warranty status if you re ister via the website.
TECHNICAL SUPPORT
What you’ll et:
• 6 months limited manufacturer’s warranty,
• Free online technical support at www.razersupport.com.
Your product’s serial
number can be found here.
| razer

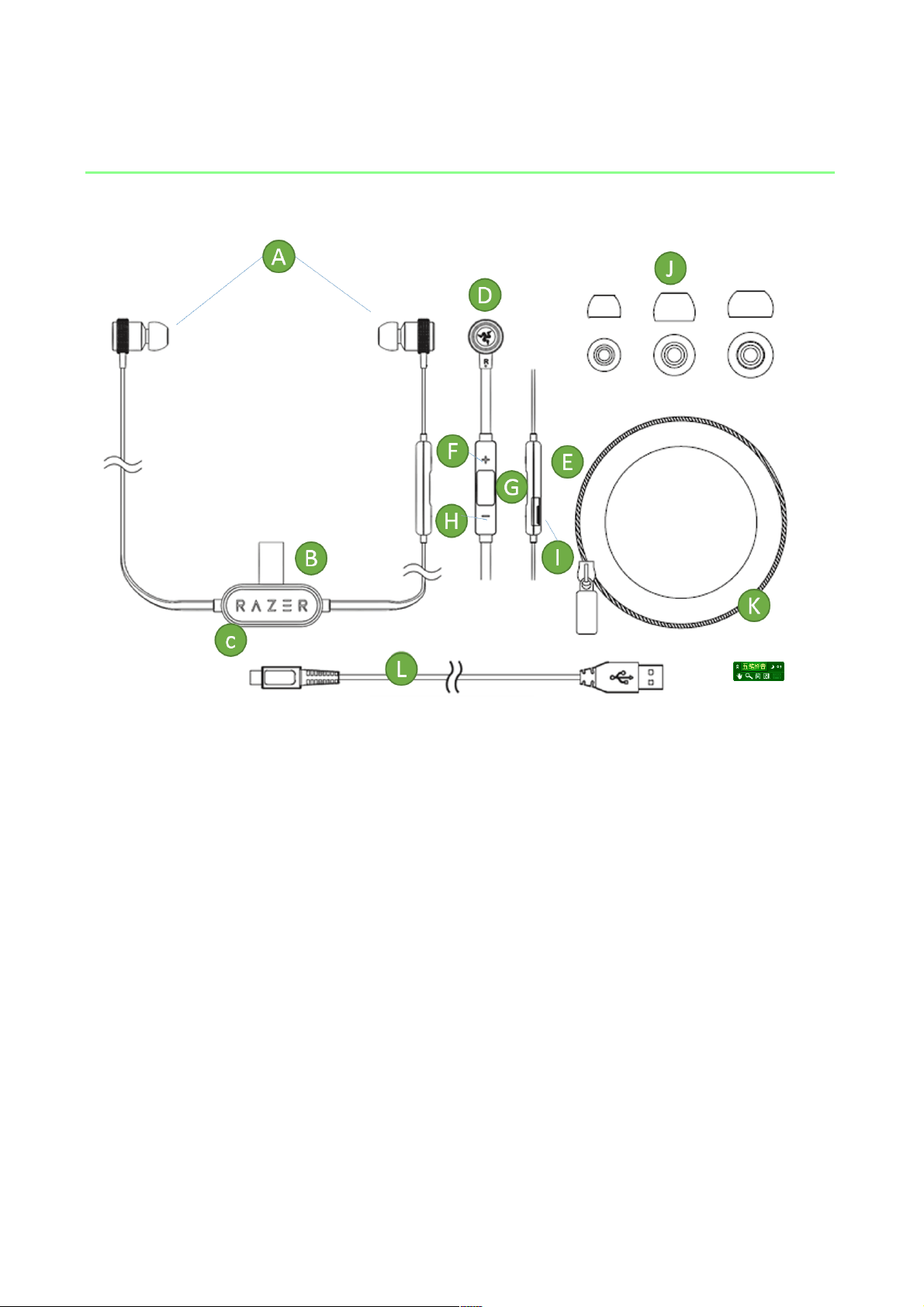

DEVICE LAYOUT
[PLACEHOLDER IMAGE]
A.Earphones with removable bi-flan es
B. Ma netic shirt clip
C. Bluetooth and battery module
D. LED indicator
E. In-line microphone and remote
F. Volume up button
G. Multi-function button
H. Volume down button
I. Char in port
J. 3 interchan eable ear-tips in varyin sizes
K. Carryin pouch
L. Char in cable
| For gamers by gamers™
SETTING UP YOUR RAZER HAMMERHEAD PRO V2 WIRELESS
CHARGING YOUR RAZER HAMMERHEAD PRO V2 WIRELESS
Connect your earphones to an appropriate power source usin the char in cable.
[PLACEHOLDER IMAGE]
Wait until your Razer Hammerhead Pro V2 Wireless is fully char ed.
LED indicator
Status
Static red
Char in
Static reen
Fully char ed
[PLACEHOLDER IMAGE]
For best results, please char e the battery completely before usin your Razer
Hammerhead Pro V2 Wireless for the first time. A depleted battery will fully char e in
about 2 hours.
WARNING: For safety reasons, please do not use the device while it is charging.
| razer
POWERING ON / OFF
To power on your Razer Hammerhead Pro V2 Wireless, hold the multi-function button
until you hear the power on tone. To power off your earphones, hold the multi-
function button until you hear the power off tone. Upon powerin your earphones on
or off, the LED indicator will notify you of the current battery status, as shown here.
LED indicator
Status
Power On
Fade-in reen
Char ed
Fade-in red
Low power
Power Off
Fade-out reen
Char ed
Fade-out red
Low power
[PLACEHOLDER IMAGE]
| For gamers by gamers™
CONNECTING TO AN AUDIO SOURCE
If this is the first time you are connectin to a Bluetooth device, your Razer
Hammerhead Pro V2 Wireless will automatically enter search mode when powered on.
If you have previously connected to a Bluetooth device, power on your earphones and
hold the multi-function button for at least 3 seconds until you hear the search mode
tone.
1. Set your earphones to search mode. While your Razer Hammerhead Pro V2
Wireless is in search mode, the LED indicator will alternately blink reen and red.
[PLACEHOLDER IMAGE]
2. Enable Bluetooth on your device and select “Razer Hammerhead Pro V2
Wireless” from the list of devices found.
[PLACEHOLDER IMAGE]
3. Wait for pairin to complete. The LED indicator will chan e to static for 5 seconds
when successfully paired.
[PLACEHOLDER IMAGE]
If the earphones fail to connect to the device, LED indicator will alternately blink reen
and red for a few seconds then power off after 5 minutes. If this happens, simply
repeat steps 1 to 3 to try a ain.
[PLACEHOLDER IMAGE]
Once your earphones have paired with a Bluetooth device it will automatically try to
pair to that device every time your Razer Hammerhead Pro V2 Wireless is powered on.
| razer
USING YOUR RAZER HAMMERHEAD PRO V2 WIRELESS
ACHIEVING A PROPER SEAL
To enjoy the full-bodied bass of the Razer Hammerhead Pro V2 Wireless as it is
intended, please ensure that the earphones are properly fitted into your ears and that
a proper seal is achieved to block out ambient noise. Due to the different ear canal
sizes of individuals, the default ear-tips may not achieve a proper seal, if so, chan e the
ear-tips to a lar er or smaller size.
CAUTION: o not yank out earphones from your ears as the sudden release of air pressure might cause
potential discomfort.
Remov ng The Ear-T ps
1. Firmly hold the neck of the earphone.
2. Grip the openin of the ear-tip firmly with the other hand.
3. Pull ear-tip downwards ently until it is released from tip of the earphones.
Replac ng The Ear-T ps
1. Firmly hold the neck of the earphone.
2. Push mouth of the ear-tip onto tip of the earphone.
3. As you apply pressure, use a entle twistin motion until ear-tip is secured and in
place.
| For gamers by gamers™
USING THE MEDIA BUTTONS
The followin in-line remote functions are available when connected to your mobile
device.
Note: Some functions listed below may not work with certain Android devices.
VOLUME UP BUTTON
Sin le Press
Increase audio volume
VOLUME DOWN BUTTON
Sin le press Decrease audio volume
MULTI
-
FUNCTION
BUTTO
N
Sin le press
Plays/Pause audio playback
Accept incomin call or end current call
Double press
Next track
Hold call and accepts a 2
nd
incomin call.
Press the button a ain to return to the
previous call.
Triple press
Previous track
Press and
hold
Decline an incomin call
Double press and hold
on 2
nd
press Fast forwards the current track
Triple press and hold
on 3
rd
press Rewinds the current track
| razer
UNDERSTANDING THE EARPHONE NOTIFICATIONS
While in use, the Razer Hammerhead Pro V2 Wireless will display an LED indicator
and/or send an audio notification to show its current status, as shown here.
LED indicator
Audio notification
Status
Breathin
No
Battery char ed
Blinkin
Yes
Battery low
Blinkin
Yes Incomin call
Static for 2
seconds
Yes Call answered
None
Yes Call rejected
[PLACEHOLDER IMAGE]
Please refer to the Online Master Guide at razersupport.com for in-depth instructions
on how to use your Razer Hammerhead Pro V2 Wireless.
