Raymarine Raystar 112 User manual

Distributed by

Any reference to Raytheon or

RTN in this manual should be

interpreted as Raymarine.

The names Raytheon and RTN

are owned by the

Raytheon Company.

GPS SENSOR

OPERATION MANUAL

RAYSTAR112InstallationandOperationHandbook

RAYSTAR112GPSSENSOR

Owner/Installation Manual

PURPOSE

This manual contains very important information on the installation,

operation,andmaintenanceofyournewequipment.Inordertogetthe

bestresultsinoperationandperformance,pleasetakethetimetoread

thismanualthoroughly.

IMPORTANT NOTICE

This device is only an aid to navigation. Its accuracy can be

affected by many factors, including equipment failure or defects,

environmental conditions and improper handling or use.

It is the user’s responsibility to exercise common prudence and

navigational judgement, and this device should not be relied upon

as a substitute for such prudence and judgement.

RAYTHEON ELECTRONICS products are supported by a network of

Authorized Service Representatives. For information on Raytheon

products and services, contact any of the following:

UNITED STATES Raytheon Marine Company

676IslandPondRoad

Manchester,N.H.03109–5420

Telephone:(603)647–7530

Facsimillie: (603)634–4756

EUROPE RaytheonMarineEuropeLimited

AnchoragePark

Portsmouth

HampshirePO35TD

UnitedKingdom.

Telephone:44–1705 693611

Facsimillie: 44 – 1705 694642

ãã

ã CopyrightRaytheonElectronics1997

Thetechnicalandgraphicalinformationcontainedinthishandbook,tothebestofour

knowledge,wascorrectasitwenttopress.However, theRaytheon policy ofcontinuous

improvementandupdatingmaychangeproductspecificationswithoutpriornotice.Therefore,

unavoidabledifferencesbetweentheproductandhandbookmayoccurfromtimetotime,for

whichliabilitycannotbeacceptedbyRaytheon.

RAYSTAR112InstallationandOperationHandbook

EMC Installation

&ServiceGuidelines

IMPORTANT NOTE

All Raytheon equipment and accessories are designed to the best

industry standards for use in the leisure marine environment.

TheirdesignandmanufactureconformstotheElectromagnetic

Compatibility(EMC)Regulations, butgoodinstallationisrequiredto

ensurethatperformanceisnot compromised. Although every effort has

beentakentoensurethat they will performunderallconditions,itis

importanttounderstandwhatfactorscouldaffecttheoperationof the

product.

Installation

To avoid the risk of operating problems, all Raytheon equipment and

cables connected to it should be;

• Atleast1m(3ft) from any equipment transmitting or cables carrying

radiosignalse.g.VHF radios, cablesandantennas.Inthecaseof

SSBradios,thedistanceshouldbeincreased to 2m (7ft).

• More than 2m (7ft) from the path of a radar beam. A radar beam can

normallybeassumedtospread 20 degrees aboveandbelowthe

radiatingelement.

• Theequipmentshouldbesuppliedfromadifferentbatterythanthe

oneusedforengine start. Voltagedropsbelow10vinthepower

supplytoourproductscan cause the equipmenttoreset. Thiswillnot

damagetheequipment,butwill cause the lossofsomeinformation

andcanchangetheoperating mode.

• Genuine Raytheon cables should be used at all times. Cutting and

rejoining these cables can compromise EMC performance and so

should be avoided unless doing so is detailed in the installation

manual.

RAYSTAR112InstallationandOperationHandbook

Check Before Going to Sea

• Alwayschecktheinstallation before goingtoseatomakesurethat it

isnotaffectedbyradiotransmissions,enginestartingetc..

• In some installations, it may not be possible to prevent the equipment

frombeingaffectedbyexternal influences. In generalthiswillnot

damagetheequipmentbutcanleadtoitresetting,or momentarily

mayresultinfaultyoperation.

Servicing and Safety

• Raytheon equipment should be serviced only by authorised

Raytheon service engineers. They will ensure that service

procedures and replacement parts used will not affect performance.

There are no user serviceable parts in any Raytheon product.

• Some products generate high voltages, and so never handle the

cables/connectorswhenpoweris beingsuppliedtotheequipment.

• Always report any EMC related problem to your nearest Raytheon

dealer. We will use any such information to improve our quality

standards.

Please keep these notes for future reference.

Contents

Chapter1: Introduction .........................................................1

1.1 General Information .......................................................... 1

1.2 Basic GPS Information...................................................... 1

Chapter 2: Installation...........................................................5

2.1 Installing the Sensor Unit................................................... 5

2.1.1 Tips on Locating the Sensor ...................................... 5

2.1.2 Items Supplied .......................................................... 6

2.1.3 Mounting the Sensor ................................................. 6

2.2 Sensor Connections ......................................................... 7

DC Power..................................................................... 7

NMEA 0183 Data Output............................................... 7

Data Input to Sensor ..................................................... 8

2.2.1 Connection to Raytheon Units ................................... 8

2.2.2 Connections to DGPS Receiver ................................ 8

2.2.3 Connection to External Navigation Equipments .......... 9

2.2.4 Connection Diagram ............................................... 10

Chapter 3: Operation ..........................................................11

3.1 COLD Start (Initial Start-up) ............................................. 11

3.2 Geodetic Datum ............................................................. 11

Chapter 4: Maintenance......................................................13

4.1 General.......................................................................... 13

4.2 Replacing the Battery...................................................... 13

4.3 Trouble Shooting ............................................................ 14

4.4 Electrical Specifications:.................................................. 15

General:.......................................................................... 15

Mechanical Specifications:............................................... 15

RAYSTAR112 InstallationandOperationHandbook

Appendix A .........................................................................17

Additional Local Geodetic Systems .................................. 17

1Chapter1:Introduction

Chapter1: Introduction

1.1GeneralInformation

Congratulationsonyourpurchase of Raytheon’sRaystar112GPS

sensorunit.Wethinkyou will appreciate theaccuracyofGPS,the

quality,long-termreliability,andadditionalspacesavingconvenienceof

havingGPSnavigationdata availableatyournavigationconsolefrom

yournewRaystar112.

Builtintotheenvironmentallyrugged, compact housing isournewest

12channelGPSreceiver/processor combinedwiththeADPantenna.

Thepositionoutputdatafrom the Raystar 112canbedisplayedon

radars,plotters,fishfinders,lorans,andothernavigationequipment

capableofacceptingNMEA0183formatteddata.

1.2BasicGPSInformation

GPS is a satellite-based radionavigation system developed and

operatedbytheU.S.DepartmentofDefense(DOD).GPSpermits land,

seaandairborneuserstodeterminetheir three-dimensional position,

velocity,andtime24 hours aday,inallweather,anywherein the world

withaprecisionandaccuracy far better thanotherradionavigation

systems available today or in the forseeable future.

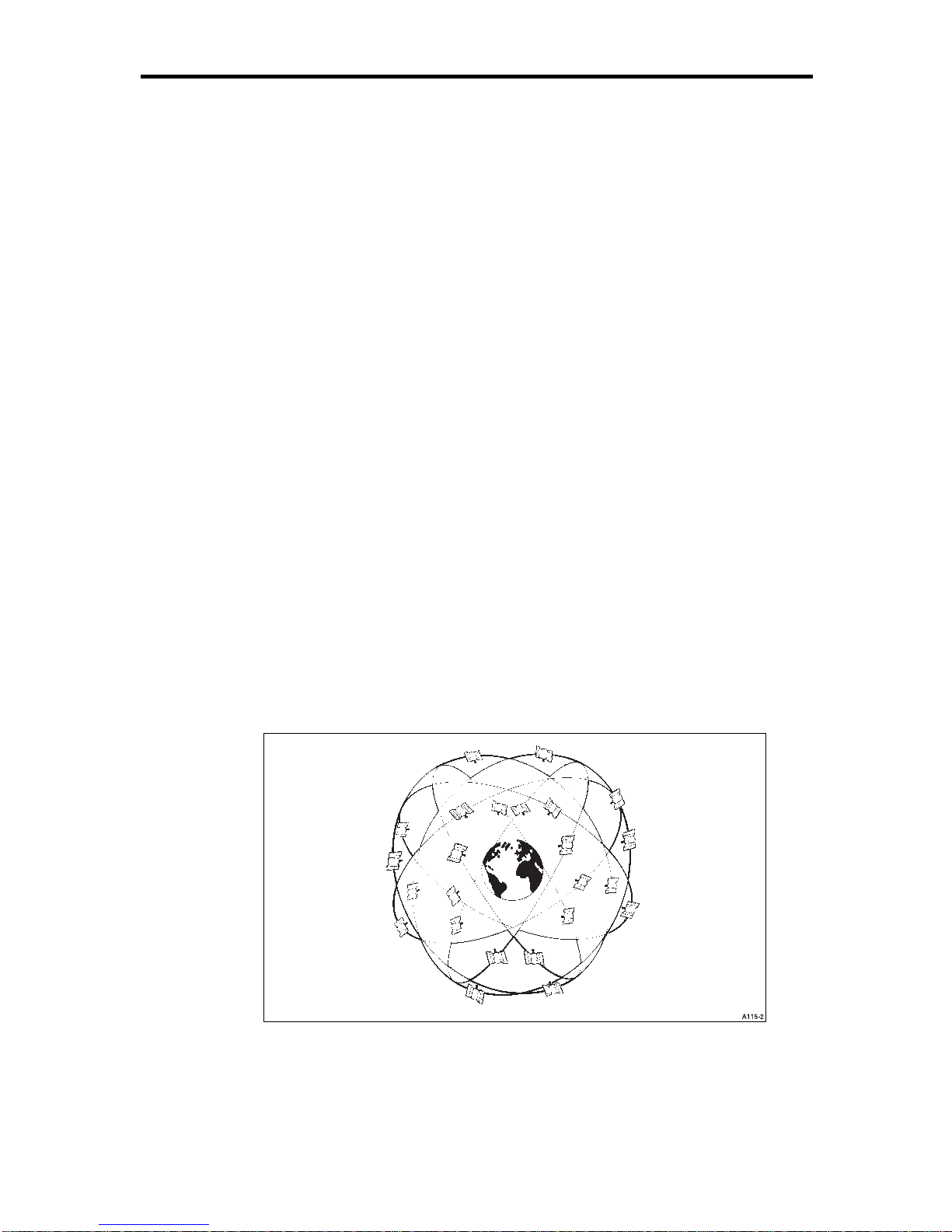

GPS consists of three segments: space, control and user.

The Space Segment, consists of 24 operational satellites in six circular

orbits 20,200 km (10,900 nm) above the earth at an inclination angle of

55 degrees with a 12 hour period. The satellites are spaced in orbit so
