Raymarine GPS 11 User manual

Distributed by

Any reference to Raytheon or

RTN in this manual should be

interpreted as Raymarine.

The names Raytheon and RTN

are owned by the

Raytheon Company.

Apelco GPS11 Installation and Operation Handbook

The technical and graphical information contained in this handbook, to the best of our knowledge, was

correct as it went to press. However, the Raytheon policy of continuous improvement and updating may

change product specifications without prior notice. Therefore, unavoidable differences between the

product and handbook may occur from time to time, for which liability

cannot be accepted by Raytheon.

Apelco GPS11 Installation and Operation Handbook

Package Contents

CheckingyourGPS11Package

The GPS11 package contains the following standard items:

1. Display unit with an internal antenna

2. Lanyard

3. Velcro fixing

4. Mounting bracket (GPS11plusonly)

5. PowerandDataconnector (GPS11plusonly)

6. Installation & Operation Guide

7. Warranty document

ItemsMissing?

Ifanyofthe aboveitemsaremissingordamaged,pleasecontact

yourApelco dealeror our ProductSupportDepartmentto obtain

replacementparts.Pleasenotethatmissingordamageditems

cannotbereplacedwithoutproofofpurchase.

Registeringthis Product

Once you have checked that you have all of the listed components,

pleasetakethetimetocompletethe warranty document and return

ittoyournational distributor.

Byreturningthisdocumentyouwillreceivepromptandexpert

attentionshouldyoueverexperience any difficulties with this

product.Also,yourdetailsareaddedtoourcustomerdatabaseso

thatyouautomatically receive new product brochures as and when

theyarereleased.

Apelco GPS11 Installation and Operation Handbook

PackageContents

PAGE

ENTER

MARK

PWR

D4127-1

PAGE

ENTER

MARK

PWR

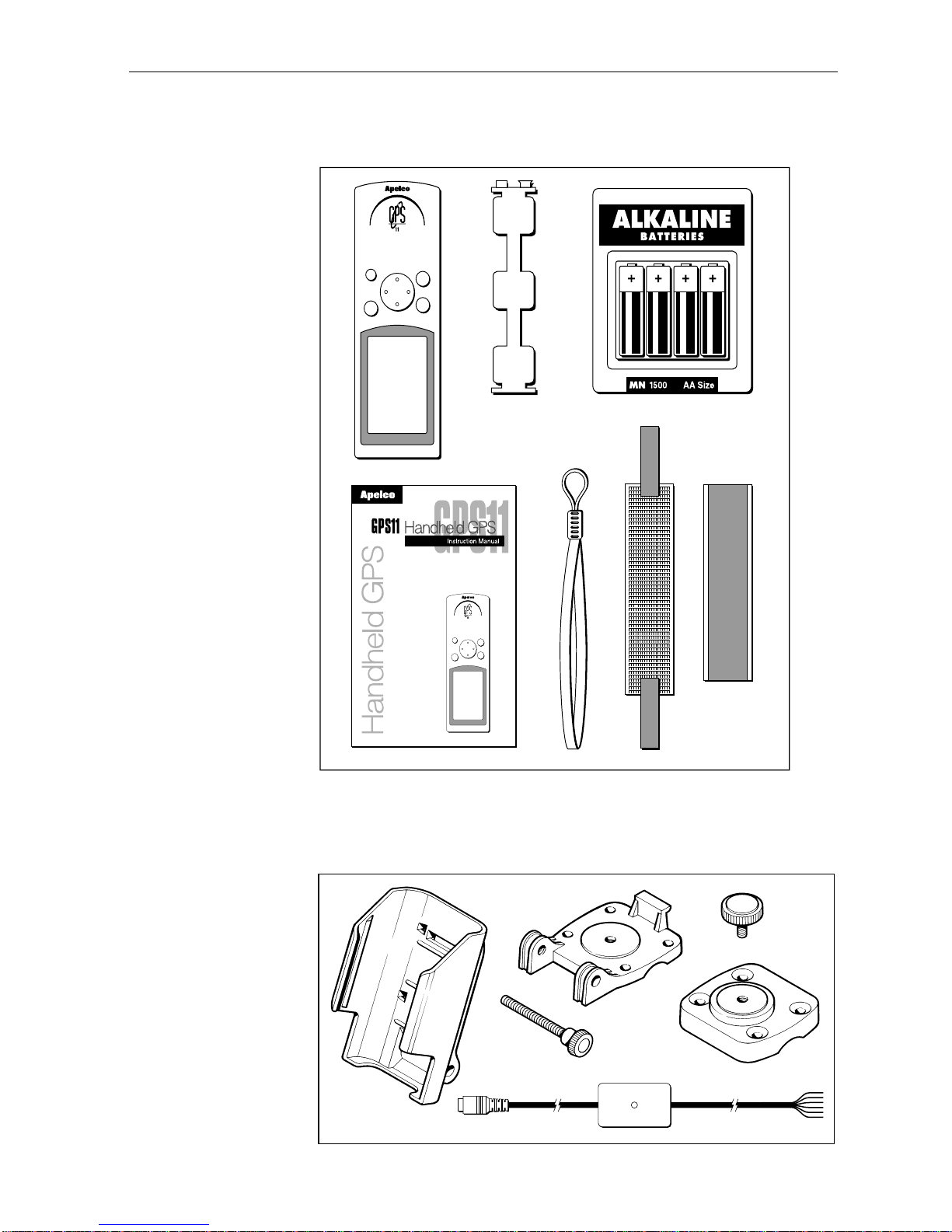

Standard GPS11 package

D4128-1

GPSpluspackage(seepage12foraccessorypatnumbers)

Apelco GPS11 Installation and Operation Handbook

Contents

Checking your GPS11 Package 2

Chapter 1: Introduction 7

Chapter 2: Installation 9

2.1“Velcro” Strap mounting 9

2.2 Bracket Mounting ( GPS11 plus only) 9

2.3 Accessories 12

2.4 External Power connection 14

2.5 External Data Connection 14

Chapter 3: Getting Started 15

3.1 Inserting the batteries 15

3.2 Switching the unit ON and OFF 16

3.3 Light and Contrast 17

3.4 Selecting different pages 18

3.5 Status indicator 18

3.6 Setup 19

3.7 Marking Events 25

3.8 Man Over Board (MOB) 26

Chapter 4: Operation 27

4.1 Satellites Page 27

4.2 Position Page 29

4.3 Waypoint Data Page 29

4.4 Route Data Page 38

4.5 Plotter Page 48

ApelcoGPS11 InstallationandOperationHandbook

Chapter 5: Fault Finding & Maintenance 49

5.1 Fault Finding 49

5.2 How to Contact Apelco 49

5.3 Maintenance 52

Chapter 6: Specification 53

Appendix A : Chart Datums 57

Appendix B : NMEA Output Specifications 67

Chapter 1: Introduction 7

Chapter1:Introduction

Congratulations on the purchase of your Apelco GPS11.

Thisunitisa navigational systemconsistingofaradio-positioning

receivermakinguse of signalsfromtheNAVSTAR GPS (Global

PositioningSystem).The systemofferssimultaneously,high

accuracy, continuous cover and worldwide availability.

Thisunitmaybeoperatedasa purely standalone system supplied

byitsowninternalbatteriesormay be connected to an external

12vsupplyandintegratedwithfurtherinstumentationviaa

NMEAdatalink.

Forfixedinstallationa bracket is providedtoallowsecurefixingin

awidevariatyof positions.
