Installation Instructions:
3315-ALM-RS485
INSTALL INSTRUCTIONS 3315-ALM-RS485
www.raycap.com
©Raycap • All rights reserved
320-1261 Rev.C
Page 3 of 24
INSTALL INSTRUCTIONS 3315-ALM-RS485
Contents
1 Copyright 3
1.1 Disclaimer 3
1.2 Warnings 4
2 Introduction 4
3.1 Prerequisites 4
3.2 Required Tools 4
3.3 Kit Contents 4
4.1 Pre-wiring Preperation Procedure 5
6.1 Removing Strikesorb Modules 7
7.1 Removal of Touch Guard 8
8.1 Removal of Existing Alarm Wiring 9
9.1 Removal of Stand-Offs & Alarm Board 10
10.1 Installation of 3315-ALM-RS485 11
11.1 Installing Alarm Wiring 14
13.1 Installing Complete 21
14. Supported Congurations 22
1.0 Copyright
©Raycap, Inc. 2018 - All Rights Reserved
1.1 Disclaimer
The information in this document is subject to change without notice and describes only the product
dened in the introduction of this documentation. This documentation is intended for the use of
Raycap customers only for the purposes of the agreement under which the document is submitted,
and no part may be used, reproduced, modied or transmitted in any form or means without the prior
written permission of Raycap. The documentation has been prepared to be used by professional
and properly trained personnel, and the customer assumes full responsibility when using it. Raycap
welcomes customer comments as part of the process of continuous development and improvement
of the documentation.
This product is suitable for OSP.
Raycap has made all reasonable efforts to ensure that the instructions contained in this document
are adequate and free of material errors and omissions. Raycap will, if deemed necessary, explain
issues which may not be covered by this document.
The contents of this document are subject to revision without notice due to continued progress in
methodology, design and manufacturing. Raycap shall have no liability for any error damage of any
kind resulting from the use of this document.
www.raycap.com
©Raycap • All rights reserved
320-1261 Rev.C
Page 4 of 24
3315-ALM-RS485 INSTALL INSTRUCTIONS
1.2 Warnings
Before using the product, read all instructions and cautionary markings on the product and on
any equipment connected to the product.
CAUTION – Unless otherwise noted, product usage that is not recommended or sold by the
product manufacturer can result in risk of re, electric shock, or injury to persons.
CAUTION – Do not operate the product if it has been damaged in any way. Return damaged
products to their manufacturer for repair or replacement.
ATTENTION – Electrostatic sensitive devices. ESD mitigative procedures, such as wearing
wriststraps are to be used during installation and maintenance.
2. Introduction
In a split Radio Base Station (RBS) architecture the typical RBS consists of a Base Band Unit
(BBU) and Remote Radio Heads (RRH) connected by cabling. Power to the RRH is provided
through copper cables traveling from the base station to the top of the tower or roof top. This
creates a conductive path, making the active equipment at the top and the base of the site
vulnerable to damage by direct lightning strikes. Protection systems installed in front of both
the BBU and the RRH must be able to withstand direct lightning currents in order to protect
the sensitive equipment. Raycap’s RRH solutions featuring Strikesorb® SPD technology
signicantly enhance the reliability & availability of the RRH site by providing superior
electrical protection at the RRH and BBU, and also enable exible ber optic and power cable
management solutions.
The 3315-ALM-RS485 is suitable for installation for Network Telecommunications Facilities,
(Central Ofce), Outside Plant (Remote Termainal Facilities), and locations where the NEC
applies (Customer Prem Locations).
3.1 Prerequisites
Installers of Raycap’s RRH surge protective and ber/power management solutions must be
industry professionals who have attended training on the proper installation of the equipment
by Raycap and/or the mobile operator. Installers are required to read this installation guide
thoroughly prior to installation of the Raycap RRH protection equipment.
Installers shall obey all general and regional installation and safety regulations related to
work on high voltage installations, as well as regulations covering correct use of tools and
personal protective equipment. Use this equipment only for the purpose specied by the
manufacturer. Do not carry out any modications or t any parts that are not recommended by
the manufacturer. This could cause electric shock or other injuries.
3.2 Required Tools
#2 Phillips head screwdriver
ESD Strap
Torque wrench
¼” Nut Driver
3.3 Kit Contents
Alarm/Voltmeter PCB Assembly
Anti-Static Wrist Strap
Installation Instructions
For conditions other than those described above, please contact a Raycap Account
Representative at +1 (208) 777-1166, (800) 890-2569, info@raycap.com, or www.raycap.com
www.raycap.com
©Raycap • All rights reserved
320-1261 Rev.C
Page 5 of 24
INSTALL INSTRUCTIONS 3315-ALM-RS485
Pre-wiring Preparation Procedure
4.1 Ensure the lanyard from enclosure lid to
enclosure base is secure.
Note: Use metal mounting frame to
secure hoist when lifting to tower top.
Warning: Holes in lid for lanyard and
padlock must NOT be used as hoist
locations.
4.2 WARNING – Disconnect or disable the
DC power source to the product prior to
beginning this installation.
(Installed cables and wires not shown for clarity)
4.3 Open up clamps on all sides of the
enclosure cabinet by lifting the hinged
clamp tabs.
4.4 Carefully slide the copper dome over the top
of the assembly and set aside.
4.5 To access power, ber and alarm wire
connections, unclasp 1/4 turn latches,
then fold down ber tray.
www.raycap.com
©Raycap • All rights reserved
320-1261 Rev.C
Page 6 of 24
3315-ALM-RS485 INSTALL INSTRUCTIONS
Return
Connection
Fiber Connection
Panel
Fiber
Management
Fiber Panel
Label
Alarm
Board
Alarm
Connector
Voltage Monitor
Connections
Voltage Monitor
Pass-Thru
Connections
Moisture
Sensor
Intrusion
Sensor
Strikesorb
Module
-48V
Connection
Voltage
Monitor
Return
Connection
-48V
Connection
Identifying generation of 3315
5.1.
Generation 1
NOT Compatible with
3315-ALM-RS485
Generation 2
Compatible with
3315-ALM-RS485.
Requires steps starting on
page 18.
Generation 3
Compatible with
3315-ALM-RS485.
Proceed to Step 6.1
Does NOT have
Voltage Monitor
Connections
Voltage Monitor
Connections
www.raycap.com
©Raycap • All rights reserved
320-1261 Rev.C
Page 7 of 24
INSTALL INSTRUCTIONS 3315-ALM-RS485
Removing Strikesorb Modules
6.1 Remove the 3 Strikesorb Modules
located on the right side of the main
PCB.
6.2 Release and remove Velcro strap
from Strikesorb module.
6.3 Grab the Strikesorb module by ends
and depress lever on both sides.
6.4 Rock the Strikesorb module
side to side, and pull it out.
Note: You have to overcome a strong
spring contact to remove module.
www.raycap.com
©Raycap • All rights reserved
320-1261 Rev.C
Page 8 of 24
3315-ALM-RS485 INSTALL INSTRUCTIONS
Procedure
Removal of Touch Guard
7.1 Using a #2 Phillips-head
screwdriver, Remove 7 screws
securing the touch guard.
Remove touch guard and set aside.
Touch guard will not be used
for 3315-ALM-RS485 kit installation.
7.2 Remove the 2 labels from the frame as indicated. Remove
Labels
www.raycap.com
©Raycap • All rights reserved
320-1261 Rev.C
Page 9 of 24
INSTALL INSTRUCTIONS 3315-ALM-RS485
Procedure
Removal of Existing Alarm Wiring
8.1 NOTE – Label each alarming wire to ensure proper
connection when reinstalling to 3315-ALM-RS485 PCB.
8.2 Depress the release tabs on the
Intrusion and Power Connectors
before pulling on the connector,
Remove all wires connected to
the alarm board pictured below.
Alarm Inputs 1
Intrusion Alarm
Alarm Inputs 2
Alarm Inputs 3
Power
Alarm Outputs
Water Ingress Alarm
www.raycap.com
©Raycap • All rights reserved
320-1261 Rev.C
Page 10 of 24
3315-ALM-RS485 INSTALL INSTRUCTIONS
Procedure
Removal of Stand-Offs and Alarm Board
9.1 NOTE – Label each alarming wire to ensure proper
connection when reinstalling to 3315-ALM-RS485 PCB.

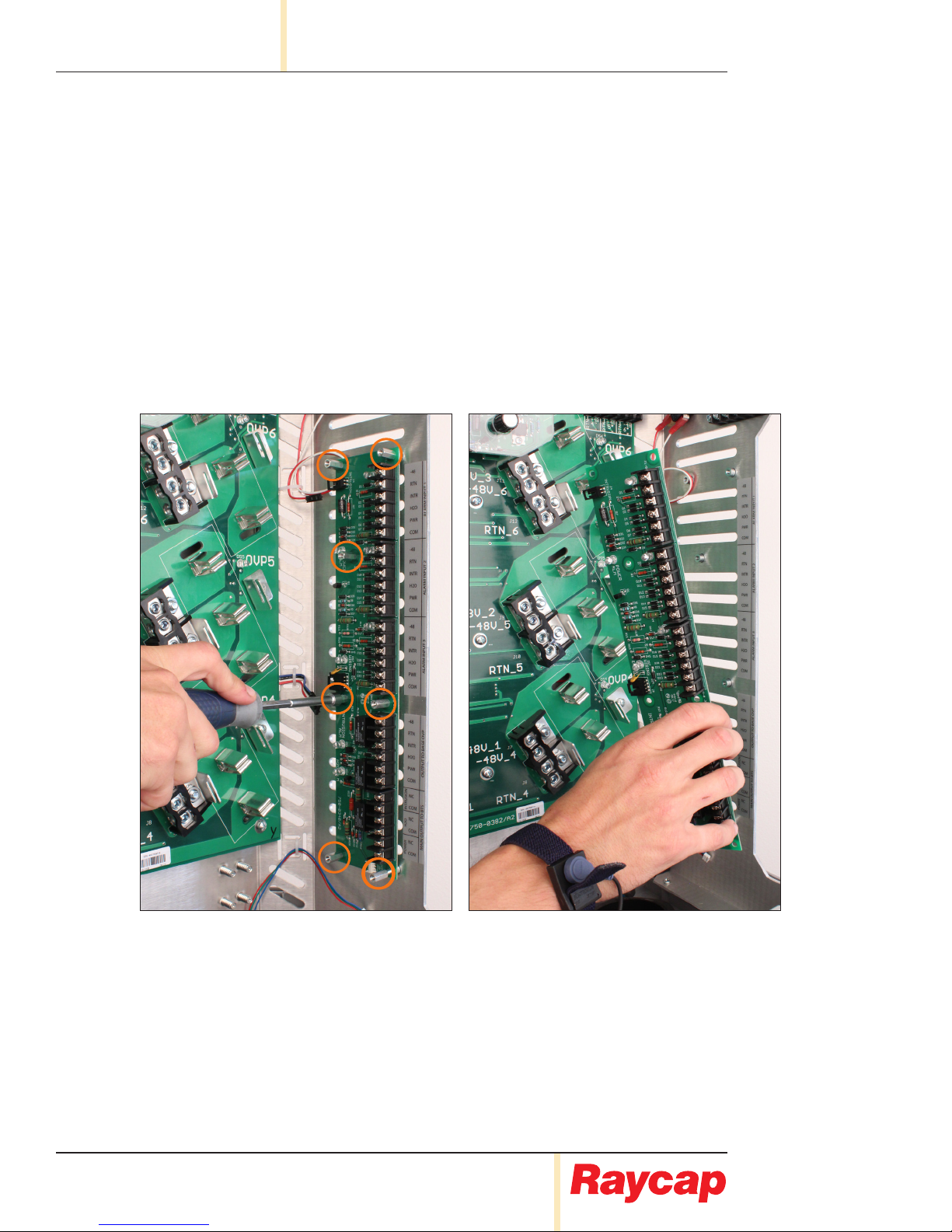

9.2 Using a ¼” nut-driver, Remove 7 stand-offs
securing the PCB to the frame.
Remove PCB and set aside.
The stand-offs and this PCB will not be used
for 3315-ALM-RS485 kit installation.
