Queclink GT500 User manual

GSM/GPRS/WIFI/GPS Tracker

GT500

User Manual

TRACGT500UM001

Revision: 1.00

http://www.queclink.com

sales@queclink.com

GT500 User Manual

TRACGT500UM001- 1 -

Document Title GT500 User Manual

Ve rs ion 1.00

Date 2012-6-18

Status Release

Document Control ID TRACGT500UM001

General Notes

Queclink offers this information as a service to its customers, to support application and

engineering efforts that use the products designed by Queclink. The information provided is

based upon requirements specifically provided to Queclink by the customers. Queclink has

not undertaken any independent search for additional relevant information, including any

information that may be in the customer’s possession. Furthermore, system validation of this

product designed by Queclink within a larger electronic system remains the responsibility of

the customer or the customer’s system integrator. All specifications supplied herein are

subject to change.

This document contains proprietary technical information which is the property of Queclink

Limited., copying of this document and giving it to others and the using or communication of

the contents thereof, are forbidden without express authority. Offenders are liable to the

a utility model or design. All specification supplied herein are subject to change without

notice atany time.

Queclink

Confidential

GT500 User Manual

TRACGT500UM001- 2 -

Contents

Contents ...........................................................................................................................2

0. Revision history.............................................................................................................3

1. Introduction...................................................................................................................4

2. Specifications ................................................................................................................5

3. Product Overview...........................................................................................................6

3.1. Appearance...........................................................................................................6

3.2. Buttons/Mini USB/SIM-Card Interface Description ...................................................6

3.3. Lights Description .................................................................................................7

4. Getting Started...............................................................................................................8

4.1. Parts List..............................................................................................................8

4.2. Battery Charging ...................................................................................................8

4.3. Install SIM Card....................................................................................................8

4.4.Turn on/Turn off....................................................................................................9

5. Troubleshooting and Safety info..................................................................................... 10

5.1.Troubleshooting................................................................................................... 10

5.2. Safety info.......................................................................................................... 10

Queclink

Confidential

GT500 User Manual

TRACGT500UM001- 3 -

0. Revision history

Revision Date Author Description of change

1.00 2012-6-18 Johnson Jiang Initial

Queclink

Confidential

GT500 User Manual

TRACGT500UM001- 4 -

1. Introduction

GT500 is a powerful GSM/GPS/Wifi Multi-purpose tracker for personal tracking. With

superior receiving sensitivity, fast TTFF and Quad-Band GSM frequencies 850 / 900 / 1800 /

1900MHz, its loc ation can be monitored in real time or periodically reported by a backend server

or other device. Based on the embedded @Track protocol the GT500 can communicate with the

backend server through the GPRS / GSM / WIFI network to transfer reports of emergency / SOS,

Geo-fence boundarycrossings , low battery or scheduled GPS position, GSM Cell ID or Wifi

access point Mac address among other advanced features. Users can easily to dial preset phone

number by using user define button or the SOS button. System Integrators can easily communicate

with the GT500 by using the @Track protocol. The Wifi access point Mac address reporting will

help of accurate in-door location fix with Wifi access.

This device complies with part 22, part 24, part 15.247 of the FCC rules. Operation is subject

to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference, including interference that may cause undesired

operation.

Changes or modifications to this unit not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

Queclink

Confidential

GT500 User Manual

TRACGT500UM001- 5 -

2. Specifications

GSM/GPS/WIFI Specifications

GSM Frequency Quad-Band: 850/900/1800/1900MHz

GPS Chipset uBlox All-In-One GPS Receiver Sensitive, Fast and

Accurate

GPS Sens itivity Cold start: -148dBm

Reacquisition : -160dBm

Tracking: -162dBm

Position Accuracy Autonomous: < 2.5 m

SBAS: 2.0 m

TTFF (Open Sky) Cold start 30s

Warm start <30s

Hot start <1s

WIFI Chipset MTK MAC/BB WLAN Chip.

WIFI Frequency 2.4G – 2.497GHz.

WIFI Compatible IEEE 802.11g/b Compliant.

General Specifications

Dimension 94mm * 48.5mm * 18mm

Weight 90g

Battery Li-ion 1000mAh , 3.7V

Standby Time Without reporting : 250 to 280 Hours

5 minutes reporting : 50 to 60 Hours

10 minutes reporting : 70 to 80 Hours

Charge Voltage 5V DC

Operation Temperature -20℃~+55℃

Queclink

Confidential

GT500 User Manual

TRACGT500UM001- 6 -

3. Product Overview

3.1. Appearance

3.2. Buttons/Mini USB/SIM-Card Interface Description

Button /Mini USB Interface Description

Power Button Turn on/off GT500.

Volume Button 

Two sides buttons to increase / decrease

volume.

Dial / Reject Button Dial or Reject incoming call.

SOS Button SOS / Emergence.

GEO Button For GEO Fence function.

User Define Button For User-define function.

SIM-Card Interface Insert 1.8V/3V SIM-Card.

Mini USB Interface Connect a 3.7V Li-ion or Li-Polymer

battery.

Connect 5V DC adapter can charge

internal battery.

Only Backend server developer or

administrator can use the Data_Cable_M

to configure GT500.

Queclink

Confidential

GT500 User Manual

TRACGT500UM001- 7 -

3.3. Lights Description

There are four light s in GT500, the description as following.

3.4. Vibration Feedback Indication

light Eve nt State

Battery light

Battery voltage is lower than 30% Light flash slow ly

Charging Light Solid

Charging finished Light Dark

Charging Exception Light flash quickly

GPS light GPS fixing Light flash quickly

GPS fixed Light Solid for a while

GSM light

Searching GSM network

Light flash quickly

GSM network state ok Light flash slowly

Wifi light

Wifi Searching AP host

Light flash quickly

Wifi connection established

Light flash slowly

Category Key Mode & Event Vibration Feedback

SOS button

Disable SOS function status short - 1

Make SOS call short - 2

GPS fix + Make SOScall long - 1

USER button

GPS fix long - 1

Make User call short - 2

GPS fix + Make User call long - 1

GEO button

Ignore the Geo-Fence key operation short - 1

Switch off the Geo-Fence ID 1 short - 1

Switch on the Geo-Fenc e ID 1 short - 2

Switch on the Geo-Fence ID 1 in current position

long - 1

Volume button

Volume Down long press to enable incoming call

vibration, disable ring

short - 1

Volume Up long press to disable incoming call

vibration enable ring

short - 2

Power button

Power On indication

short - 2

Power Off indication

short - 1

Sensor

Fall detected

short repeat for 5s

Queclink

Confidential

GT500 User Manual

TRACGT500UM001- 8 -

4. Getting Started

4.1. Parts List

Name Picture Remark

GT500 Locator

The GSM/GPRS/WIFI/GPS locator.

AC-DC Power Adapter

(Standard accessory)

It is used to charge the internal

battery of GT500.

GT500 Data Cable

(Optional accessory)

It is the USB data cable which can

be used for firmware upgrading and

configuration.(Please note , it only

for backend server developer or

administrator ,It is not in delivery

list of GT500)

4.2. Battery Charging

Please connect AC-DC power adapter with GT500.

Insert the AC-DC power adapter into the power socket.

During charging, the battery light is flashing fast. When the battery is full charged, the battery

lights will be dark.

You can also charge the battery by USB cable which connects GT500with the PC.

Charging time is about 4-5 hours.

Note: Before the first time using GT500, please full charge the battery.

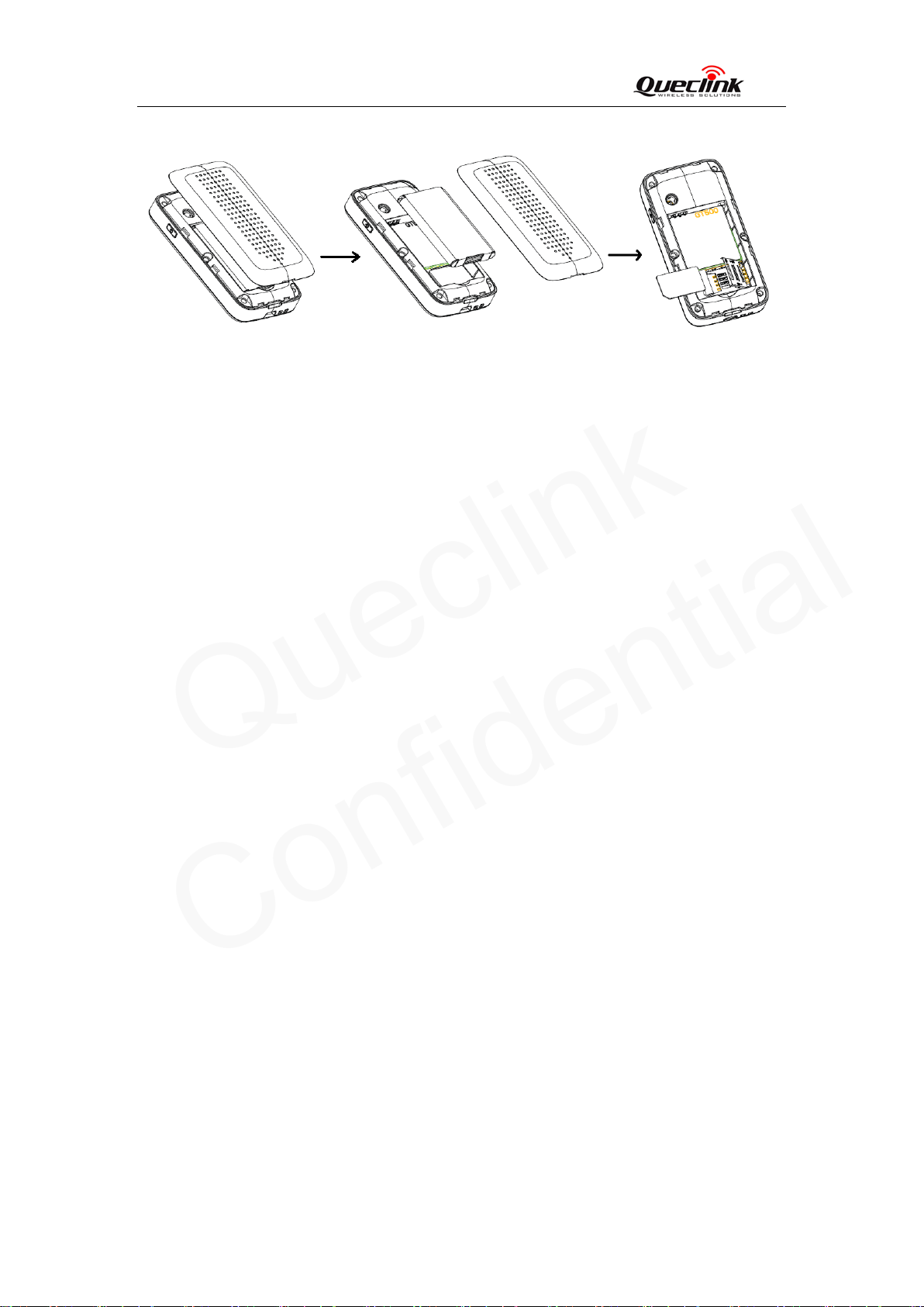

4.3. Install SIM Card

First, open the cover of SIM-card..

Then insert the SIM card into the slot of SIMcard according to the direction shown.

Fina lly, cover the slot.

Queclink

Confidential

GT500 User Manual

TRACGT500UM001- 9 -

4.4. Turn on/Turn off

Turn on:

Press the Power button until the vibrator is shaking (at least 3 seconds) and release it to

turn on GT500. At the same time, GSM light will flash.

Turn off:

Press the Power button until the vibrator is shaking (at least 3 seconds) and release it to

turn off GT500when GT500 is working. At the same time, all light s will be dark.

Queclink

Confidential
