Qlight QWSL150 User manual



Thank you for purchasing QLight product. Please read this manual

carefully before installing the product for safe and long use.

▪As taking the source of SMD type LED light, the product has a low

power consumption and economical cost of maintenance.

▪Aluminum die casting product is strong against the vibration, impact

and has excellent heat-resistant effect.

▪Direct Mounting or bracket mounting types are available.

▪The product has a protection class IP67 and perform stably under

the hazardous environment where exits cutting oil, dust and shaving

chip.

▪Material: Body-AL, Bracket-SUS430, Lens-Tempered glass

▪Protection class: IP67

▪

General Specification

Model

Voltage

Current

Weight

Brightness

(Lux)

Color

QWSL150,

QWSL150-

QBK03

DC24V

0.550A

0.90Kg

450 Lux

White-

QWSL250,

QWSL250-

QBK03

DC24V

1.150A

1.00Kg

950 Lux

(The weight information above is only for QWSL150/QWSL250.)

1)

QWSL150



2)

QWSL150-QBK03



3)

QWSL250



4)

QWSL250-QBK03



OPERATING MANUAL

LED Work Light

Product Specification

External View Drawing

QWSL150(QBK)/QWSL250(QBK)

www.microlectra bv. [email protected]

The product has a power line, LAPP KABEL CLASSIC 400P 0.75sq X

2C 400mm, coming out from the product.

▪In case of using DC voltage, the product has a bridge circuit inside,

therefore lines can be connected regardless of the polarity(Ref. wire

color).

▪The structure of the product is manufactured for indoor use. Installation

in any direction is okay for indoor use.

▪Mount at a place where exists low vibration, impact, moisture and dust

as long as possible.

▪Refer to below information and drill the hole in a suitable part of the

product. (Make sure the PCD from the external view drawing.)

▪QWSL150/QWSL250: Fix the product by using extra mounting bolt

(M4-4EA).

QWSL150

QWSL250

▪QWSL150-QBK03 / QWSL250-QBK03: Fix the product by using the

attached mounting bolt(M6-3EA).

QWSL150-QBK03 / QWSL250-QBK03

▪For left/right side angle adjustment, loose the fixing bolt ①on the

bracket and adjust the angle. (Refer to the product structure drawing)

▪For up/down side angle adjustment, loose the fixing bolt ②on the

bracket and adjust the angle. (Refer to the product structure drawing)

▪The product is designed for an explosion proof, water proof and dust

proof product. When disassembling and assembling the product, please

make sure all the parts are well connected and check the bolts are

completely airtight.

▪If voltage goes seriously higher or lower than the rated voltage, it can

cause the reduction of the life span of the product or cause an operating

problem. Make sure the voltage does not exceed +/-5% of the rated

voltage.

▪Please keep the product from chemical substance such as thinner or

benzene. Lens or body of the product can be damaged, discolored or

deformed by chemicals.

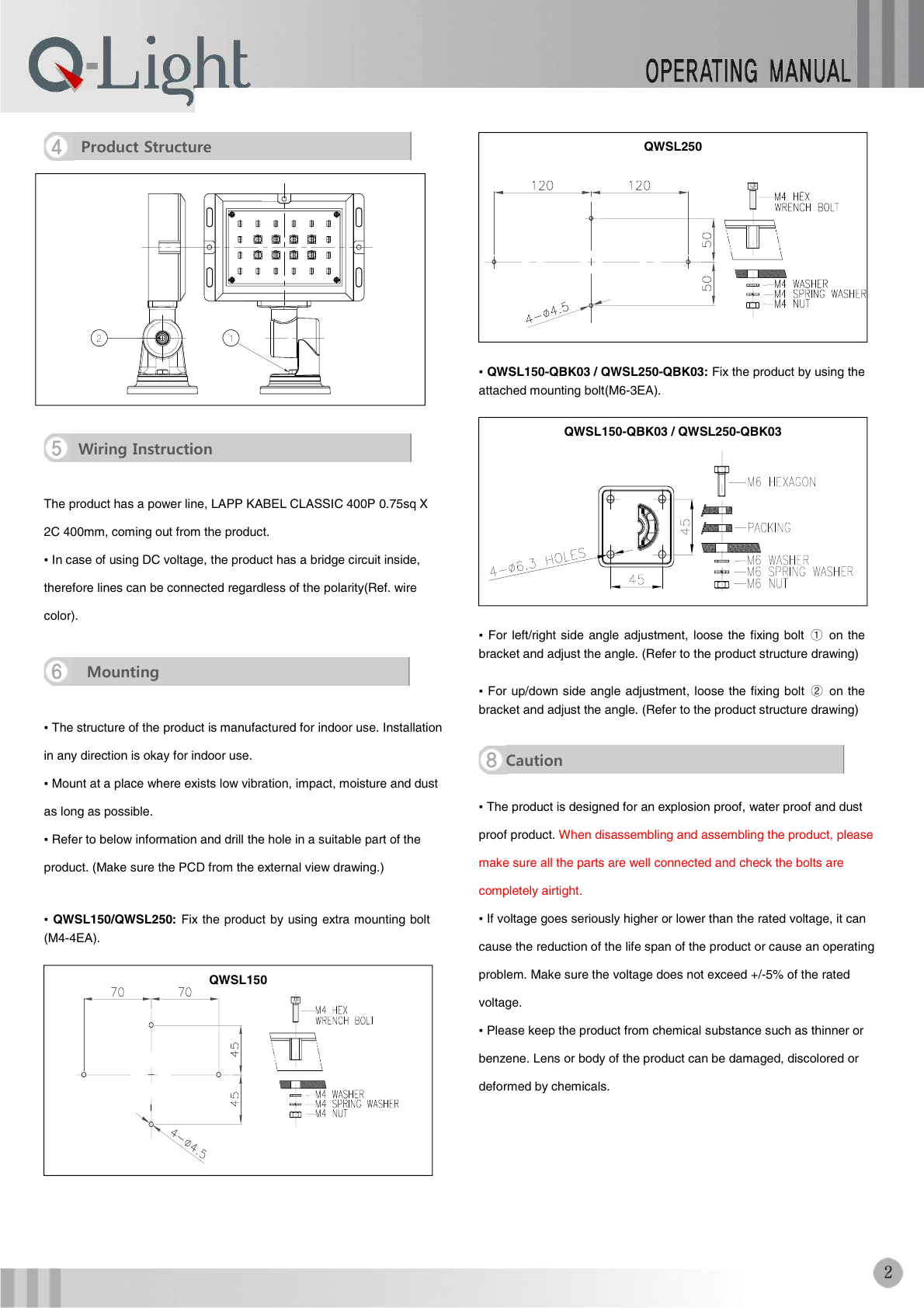

Product Structure

Wiring Instruction

Mounting

Caution

www.microlectra bv. [email protected]

Situation

Main reason

Solution

Partly Non- Lighting

LED is partly damaged

or supplied higher

voltage than a rated

voltage.

Check the using voltage

Dim Lighting

Supplied lower voltage

than a rated voltage

Check the using voltage

No Lighting

Wrong Wiring

Check the wiring

No Power Supply

Check the power supply

Trouble shooting

www.microlectra bv. [email protected]

Microlectra bv.

Hermanus Boerhaavestraat 6. 3261 ME Oud-Beijerlands. Netherlands.

Tel 31(0)186-616290 Fax 31(0)186-610349 www.microlectra.nl [email protected]
