PROAIM SR-250-00 User manual

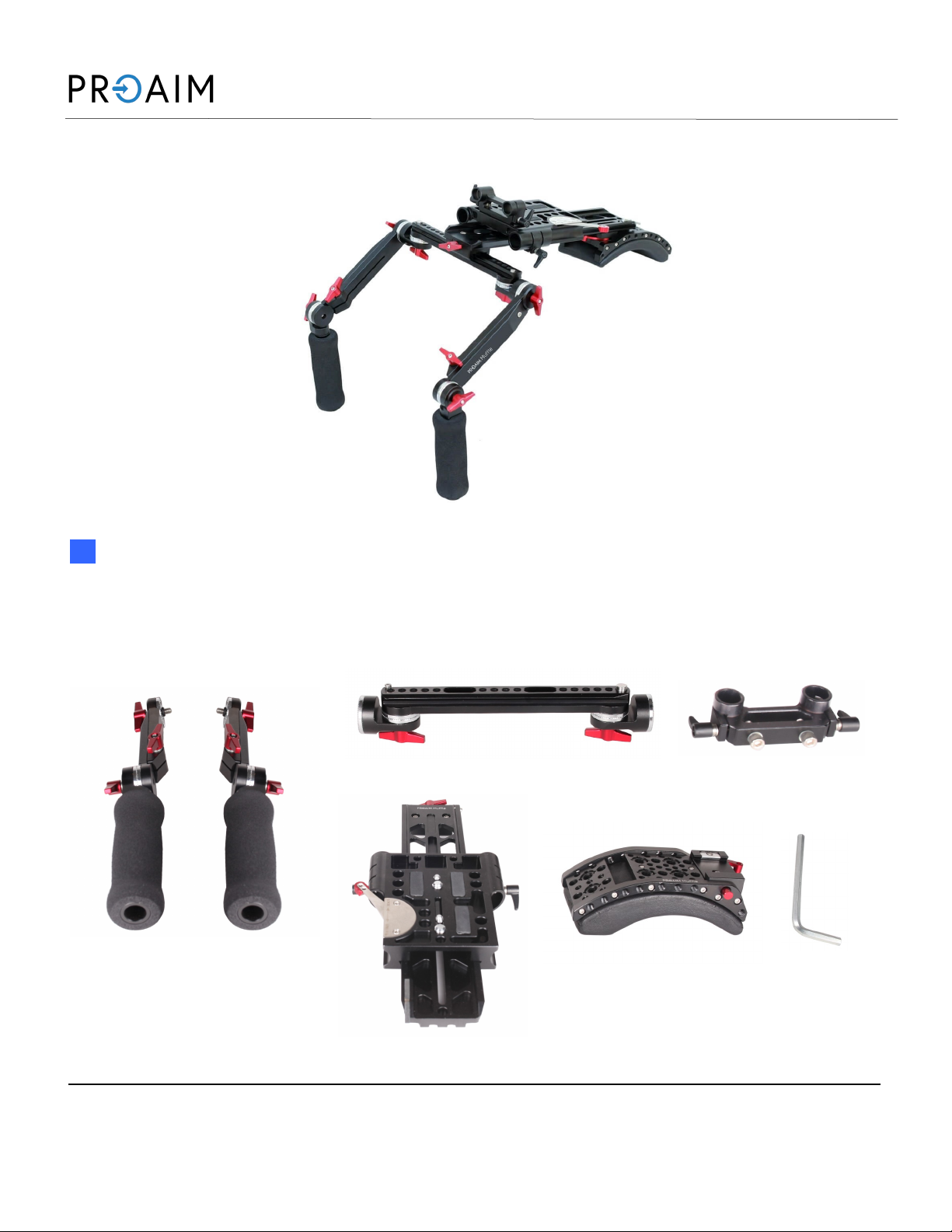

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copy-

right statutes or in wring by the Publisher.

Dovetail Camera Shoulder Mount Rig (SR-250-00)

Assembly Manua l

Front Handle Set

Threaded Crossbar Rod Adapter

Shoulder Pad 3/16mm

Allen Key

Dovetail Quick Release Plate

 Aach the ARRI standard rosee handles to

the Rosee crossbar and secure them using

the knob as shown in the images.

 Slide the Dovetail Quick Release plate on the

threaded crossbar.

 Adjust the Dovetail Quick Release plate and

secure it correctly with the help of a knob.

 Slide in the shoulder pad to the dovetail quick

release plate as shown in the images.

Shoulder Mount Rig Setup

 Secure it correctly using the locking lever.

 Loosen the side rotaon knobs present on

both sides of the Rosee crossbar, and you

can rotate the handles up to 360°.

 Adjust the handles and lock them at the

desired posion using a knob.

 Loosen the height adjustment knobs present

on both handles, and you can adjust the

height up to 50mm.

 Tighten the knob to lock the handles at the

desired height.

 Loosen the lower side rotaon knobs, and

you can rotate the handgrips up to 180°.

 Narrow down or widen the handles as per

your preference.

 Loosen the rotaon knobs present on the

boom of the crossbar to narrow down or

widen the space between the handles.

 Loosen the dovetail plate knob for quickly

moving the dovetail plate on the threaded

crossbar.

 You can now adjust the plate at your desired

posion, as shown in the images.

 Push the pin in and remove the Base plate

from the Dovetail plate as shown.

 Loosen the rod adapter’s bolt using an

3/16mm Allen key. Now, aach the rod

adapter to the Base plate.

 Insert the bolt into the Base plate and ghten

it using the 3/16mm Allen key.

 Mount your Camera on the Base plate and

secure the bolt using an Allen key.

YOUR PROAIM DOVETAIL CAMERA SHOULDER MOUNT RIG

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.

 Slide the base plate with the Camera

mounted on it on the dovetail plate and press

the Locking lever to secure it.

 Your setup is ready.
