PROAIM P-TWS-QS User manual

Quad Super Dolly Track Wheel Set

with 4 x Balancing Ring

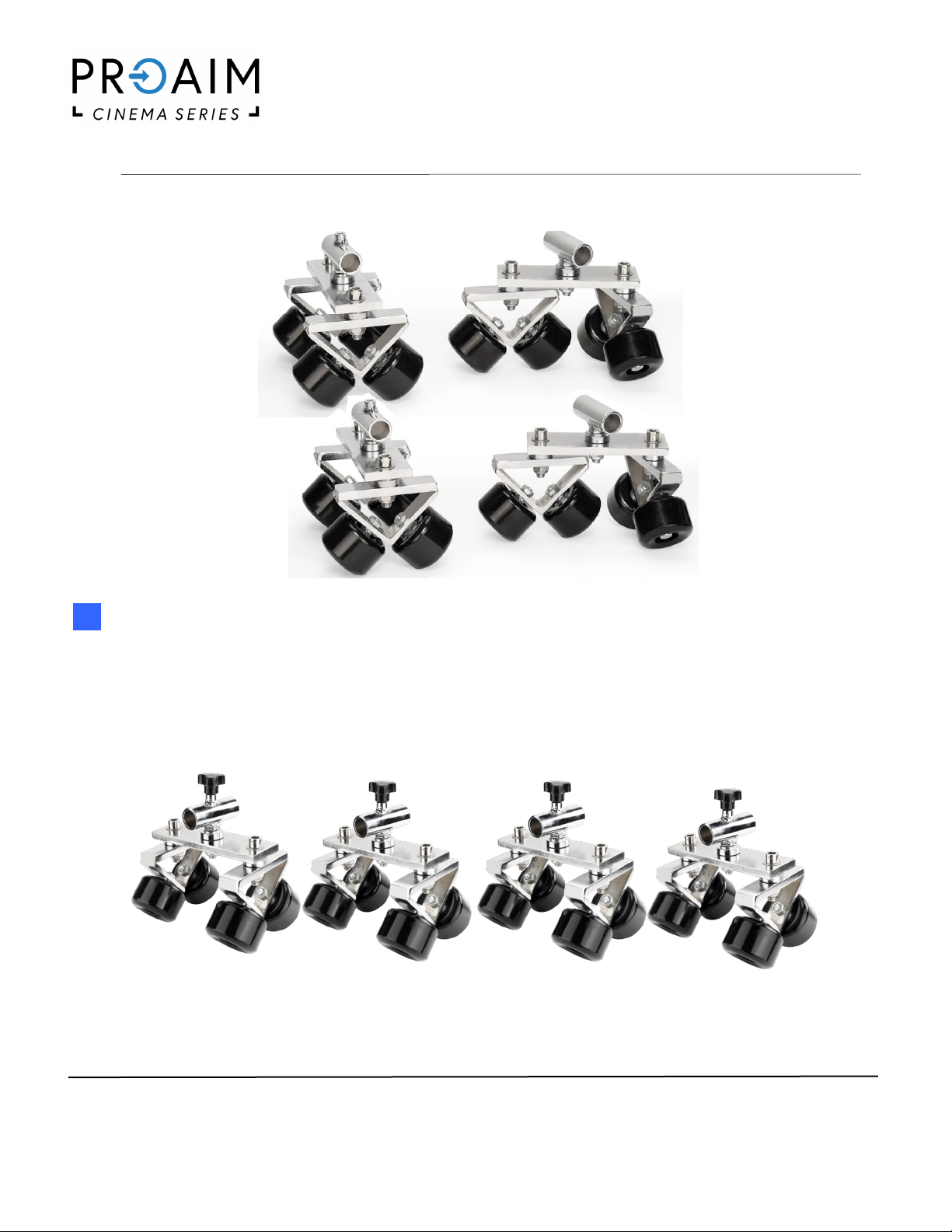

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Track Wheel Set for Quad Super Camera Dolly (P-TWS-QS)

Assembly Manua l

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

 Loosen the nut from the pneumac wheel, as

shown in the images.

Track Wheel Setup

 Detach the wheel from the quad dolly and

insert the provided balancing ring.

 Fully secure the balancing ring to the wheel

rod, then insert the rod into the track wheel.

 Secure the balancing ring to the wheel rod

with a tool, as shown in the image. Place the

dolly on the track.

Note: Dolly track wheels move smoothly on a

straight and curved track, as shown in the

images.

YOUR PROAIM TRACK WHEEL SET FOR QUAD SUPER CAMERA DOLLY

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.
