Pro-Form 890 E Elliptical User manual

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manual

for future reference.

Serial Number

Decal (under frame)

USERʼS MANUAL

www.proform.com

QUESTIONS?

f you have questions, or if parts are

damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

Model No. PFEL09009.2

Serial No.

Write the serial number in the space

above for reference.

PROFORM is a registered trademark of CON P, nc.

TABLE OF CONTENTS

WARNNGDECALPLACEMENT ..............................................................2

MPORTANTPRECAUTONS ................................................................3

BEFOREYOUBEGN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLPTCAL .............................................................14

MANTENANCEANDTROUBLESHOOTNG ...................................................22

EXERCSEGUDELNES ...................................................................24

PARTLST ..............................................................................27

EXPLODEDDRAWNG ....................................................................29

ORDERNGREPLACEMENTPARTS ..................................................BackCover

LMTEDWARRANTY ..............................................................BackCover

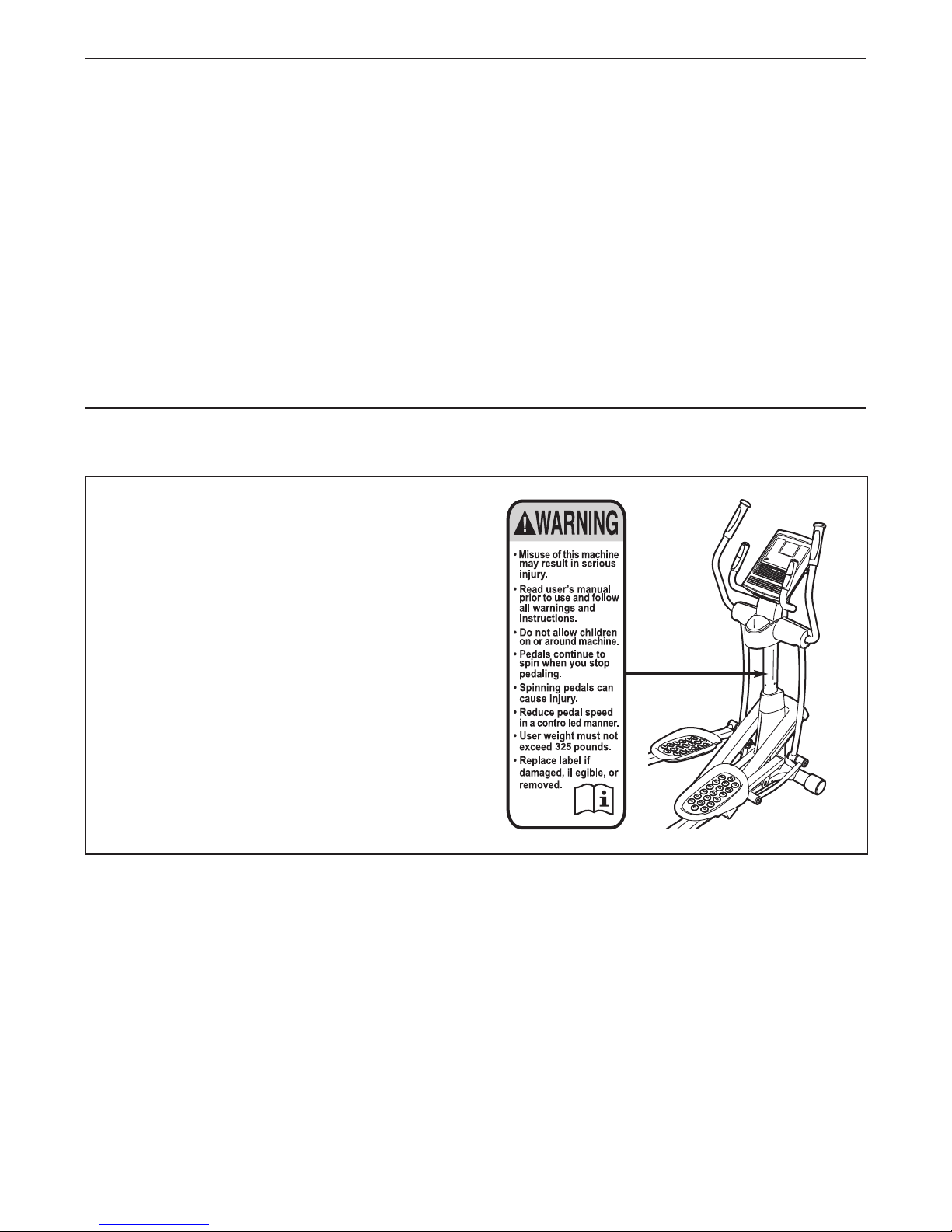

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or

persons with pre-existing health problems.

2. Use the elliptical only as described in this

manual.

3. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. eep the elliptical indoors, away from

moisture and dust. Do not put the elliptical in

a garage or covered patio, or near water.

6. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front

and rear of the elliptical and 2 ft. (0.6 m) on

each side. To protect the floor or carpet from

damage, place a mat under the elliptical.

7. Inspect and properly tighten all parts

regularly. Replace any worn parts

immediately.

8. eep children under age 12 and pets away

from the elliptical at all times.

9. The elliptical should not be used by persons

weighing more than 325 lbs. (147 kg).

10. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

11. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

12. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in

determining heart rate trends in general.

13. The elliptical does not have a freewheel; the

pedals will continue to move until the

flywheel stops. Reduce your pedaling speed

in a controlled way.

14. eep your back straight while using the

elliptical; do not arch your back.

15. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM®

890 E elliptical. The 890 E elliptical provides an

impressive selection of features designed to make

your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. f you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Pulse Sensor

Upper Body Arm

Access Cover Wheel

Pedal

Water Bottle Holder*

Console

Leveling Foot

Handle

Reset/Off

Switch

Latch Button

Ramp

Storage Magnet

Fan

Pedal Arm Latch

*Water bottle is not included

Leveling Foot

Power Cord

ASSEMBLY

To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver and a rubber

mallet .

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART L ST near the end of this manual. The number following

the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if

it has been preassembled. To avoid damaging parts, do not use power tools for assembly.

M10 x 95mm Patch

Screw (100)–4

M8 Split Washer

(103)–14

M8 Washer

(95)–6

M8 x 16mm Patch

Screw (102)–16

Wave Washer

(118)–2

M6 Washer

(112)–8

M8 x 25mm Patch

Screw (121)–2

M6 x 50mm Patch

Screw (62)–4

M8 x 35mm Patch

Screw (149)–2

M4 x 19mm

Screw (156)–8

M6 x 12mm Patch

Screw (111)–4

dentify and orient the Rear Stabilizer (4) as

shown.

See HOW TO FOLD AND UNFOLD THE

ELLIPTICAL on page 15 and unfold the ellip-

tical.

While a second person lifts the Folding Frame

(2), attach the Rear Stabilizer (4) to the Folding

Frame with two M10 x 95mm Patch Screws

(100).

To make assembly easier, read the

information on page 5 before you begin.

100

2. Orient the Front Stabilizer (3) so that the welded

tubes are facing away from the Main Frame (1).

While a second person lifts the front of the Main

Frame (1), attach the Front Stabilizer (3) to the

Main Frame with two M10 x 95mm Patch

Screws (100).

100

Welded

Tubes

3. dentify and orient the Upright (5) and the Top

Cover (27) as shown.

Slide the Top Cover (27) upward onto the

Upright (5).

Then, have a second person hold the Upright

(5) and the Top Cover (27) near the Main Frame

(1).

Locate the wire tie in the Upright (5). Tie the

lower end of the wire tie to the Wire Harness

(60). Next, pull the upper end of the wire tie

until the Wire Harness is routed completely

through the Upright. Then, untie and discard the

wire tie.

Tip: To prevent the Wire Harness (60) from

falling into the Upright (5), secure the Wire

Harness with a rubber band or tape.

Tip: Avoid pinching the Wire Harness (60).

nsert the Upright (5) into the Main Frame (1).

Attach the Upright (5) with four M8 x 16mm

Patch Screws (102) and four M8 Split Washers

(103); do not tighten the Patch Screws yet.

Wire Tie

102

103

Avoid pinching the

Wire Harness (60)

4. Apply a generous amount of the included

grease to the Upright Axle (48) and to two Wave

Washers (118).

Tip: Avoid damaging the Wire Harness (60).

nsert the Upright Axle (48) through the Upright

(5) and center it. Slide a Wave Washer (118)

onto each side of the Upright Axle.

Next, identify the Right and Left Upper Body

Legs (6, 7), which are marked with “Right” and

“Left” stickers, and orient them as shown.

Slide the Right and Left Upper Body Legs (6, 7)

onto the right and left sides of the Upright Axle

(48).

Tighten an M8 x 16mm Patch Screw (102) and

an M8 Washer (95) into each end of the Upright

Axle (48).

Avoid damaging the

Wire Harness (60)

Grease

102

118

5. dentify the Right Pedal (14), the Right Gel Pad

(158), and the Right Pedal Arm (12), which are

marked with “Right” stickers, and orient them as

shown.

Set the Right Gel Pad (158) on the Right Pedal

Arm (12). Then, set the Right Pedal (14) on the

Right Gel Pad.

Attach the Right Pedal (14) to the Right Pedal

Arm (12) with two M6 x 12mm Patch Screws

(111) and two M6 Washers (112); do not

tighten the Patch Screws yet.

Next, tighten two M6 x 50mm Patch Screws

(62) and two M6 Washers (112) into the Right

Pedal Arm (12) and the Right Pedal (14). Then,

tighten the two M6 x 12mm Patch Screws

(111).

Attach the Left Pedal (not shown) to the Left

Pedal Arm (not shown) assembly in the

same way.

111

112

158

112 62

7. See drawing 7a. Locate the Pedal Arm Roller

(32) on the Right Pedal Arm (12).

Set the Pedal Arm Roller (32) on the right side

of the Ramp (130).

See drawing 7b. Pull upward on the Latch (50)

on the Right Pedal Arm (12).

Press the Right Pedal Arm (12) onto the right

Pedal Arm Sleeve (46). Make sure that the

Right Pedal Arm latches into place.

Repeat this step on the other side of the

elliptical.

130

6. Apply grease to the axle on the right Crank Arm

(39).

Orient a Pedal Arm Sleeve (46) so that the flat

side is facing the elliptical. Slide the Pedal Arm

Sleeve onto the axle on the right Crank Arm

(39).

Attach the Pedal Arm Sleeve (46) with an M8 x

25mm Patch Screw (121), a Large Axle Cover

(113), and an M8 Washer (95). Tip: Avoid

damaging the Large Axle Cover when tight-

ening the Patch Screw.

Repeat this step on the other side of the

elliptical.

113

Flat

Side

Grease

121

9. Apply grease to a Link Arm Axle (114).

nsert the Link Arm Axle (114) into the Right

Upper Body Leg (6) and the Right Link Arm (43)

from the side shown.

nsert a hex key into the M8 x 35mm Patch

Screw (149) in the Link Arm Axle (114).

Using a second hex key, tighten another M8 x

35mm Patch Screw (149), a Small Axle Cover

(56), and an M8 Washer (95) into the other end

of the Link Arm Axle (114). Tip: Avoid damag-

ing the Small Axle Cover when tightening

the Patch Screw.

Repeat this step on the other side of the

elliptical.

8. Orient the Ramp Cover (131) around the

Upright (5) as shown.

Press the tabs on the Ramp Cover (131) into

the Ramp (130).

131

130

114

149

149 Grease

This manual suits for next models

Table of contents

Other Pro-Form Elliptical Trainer manuals

Pro-Form

Pro-Form 15.5 s 831.28622.1 User manual

Pro-Form

Pro-Form 310 Ce Elliptical User guide

Pro-Form

Pro-Form 470 Hr Elliptical User manual

Pro-Form

Pro-Form 310 E Elliptical User manual

Pro-Form

Pro-Form 280 Razor Elliptical Quick start guide

Pro-Form

Pro-Form 615 Hr Elliptical User manual

Pro-Form

Pro-Form COMMERCIAL 12.9 User manual

Pro-Form

Pro-Form PFHK99900 User manual

Pro-Form

Pro-Form SpaceSaver 700 PFIVEL74313.0 User manual

Pro-Form

Pro-Form 690 Hr Elliptical Manual

Pro-Form

Pro-Form PFEL29240 User manual

Pro-Form

Pro-Form 764hr Bike User manual

Pro-Form

Pro-Form 800 Hr Heart Rate Control Elliptical Quick start guide

Pro-Form

Pro-Form 764hr Bike System manual

Pro-Form

Pro-Form StrideClimber 831.23745.1 User manual

Pro-Form

Pro-Form PFEL2926.0 User manual

Pro-Form

Pro-Form CardioCross Trainer 831.285371 User manual

Pro-Form

Pro-Form PFEL4905.0 User manual

Pro-Form

Pro-Form Endurance 520 E User manual

Pro-Form

Pro-Form Comfort Stride User manual

Pro-Form

Pro-Form PFCCEL29221 User manual

Pro-Form

Pro-Form 480 Cse Elliptical User manual

Pro-Form

Pro-Form 6.0 Et Elliptical User manual

Pro-Form

Pro-Form PFEL3926.1 User manual

Popular Elliptical Trainer manuals by other brands

Weslo

Weslo Momentum 4.0 Elliptical Manuale d'istruzioni

Progear Fitness

Progear Fitness Air elliptical pro 1307 owner's manual

Torque Fitness

Torque Fitness XPLLP owner's manual

Octane Fitness

Octane Fitness PRO3700C Operation manual

Xterra

Xterra FS5.8e owner's manual

Bodyguard

Bodyguard E-40 user manual

Bonn Germany

Bonn Germany Concept 2.2 user manual

Precor

Precor Resolute RSL 620 Assembly guide

NordicTrack

NordicTrack E 9.2 Elliptical HASZNALATI UTASITAS

Vision Fitness

Vision Fitness X6600iNetTV Assembly guide

Matrix

Matrix MX-A5x owner's manual

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 owner's manual

Sears

Sears FREE SPIRIT C249 30737 0 owner's manual

True

True FS-64 Assembly manual

Sport-thieme

Sport-thieme ST 310 manual

VIRTUFIT

VIRTUFIT CTR 1.1 user manual

Kettler

Kettler GIRO C 1 manual

CIRCLE FITNESS

CIRCLE FITNESS E7 owner's manual
