Prime Design URX-001-E User manual
PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118
Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: [email protected] ▪ Website: www.primedesign.net
Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪
TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
2
2
1
3
5
4
8
6
7

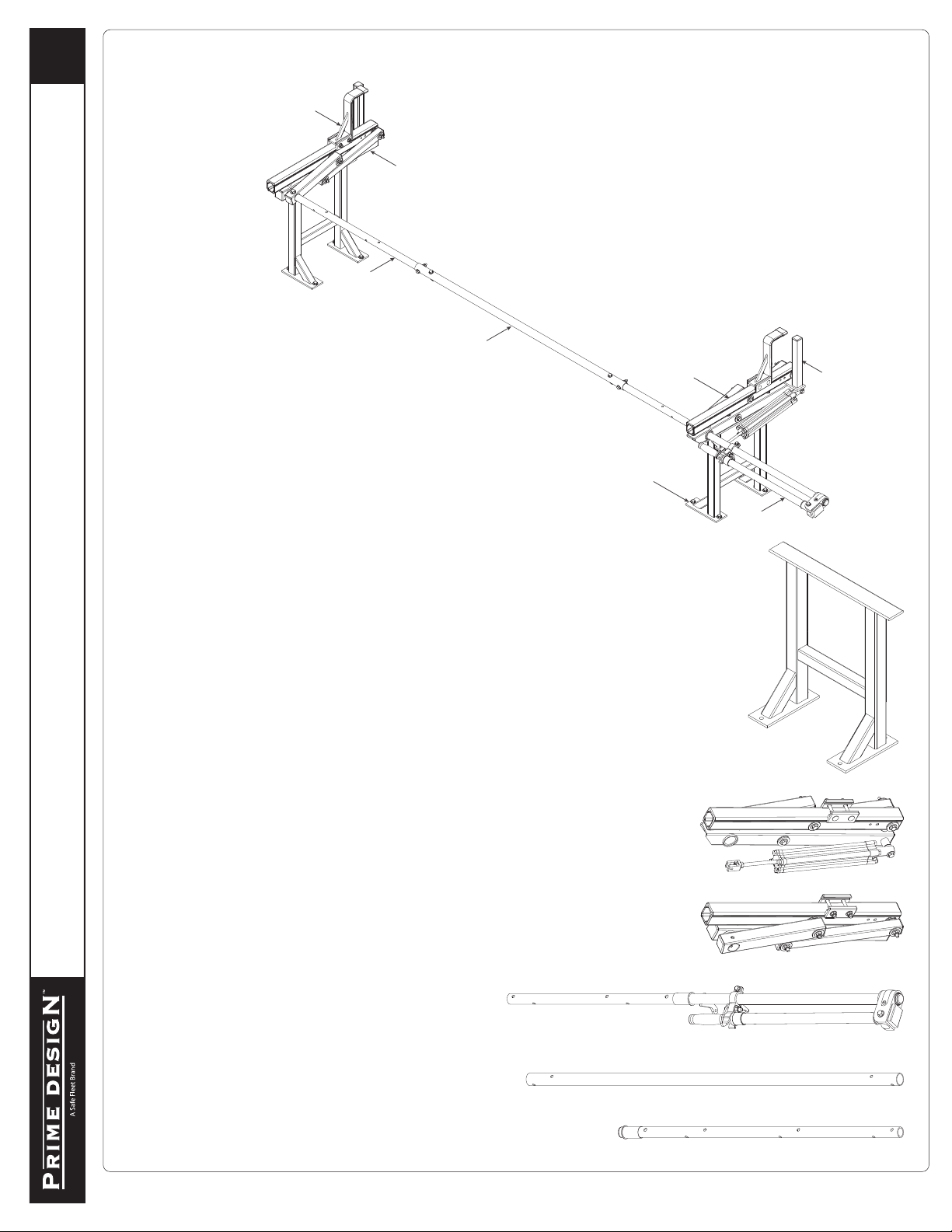

URX-001-E ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS
CONTENTS OVERVIEW
2—Rear Rotation Assembly................................... (Qty 1)
1—Utility Base Standing Mount............................ (Qty 2)
4—Rear Drive Shaft............................................... (Qty 1)
Left Hand, B4 Version, 50.00”
3—Front Rotation Assembly.................................. (Qty 1)
6—Front Drive Shaft .............................................. (Qty 1)
B Version, 35.75”
5—Connecting Bar................................................. (Qty 1)
48.00”
Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪
TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
3

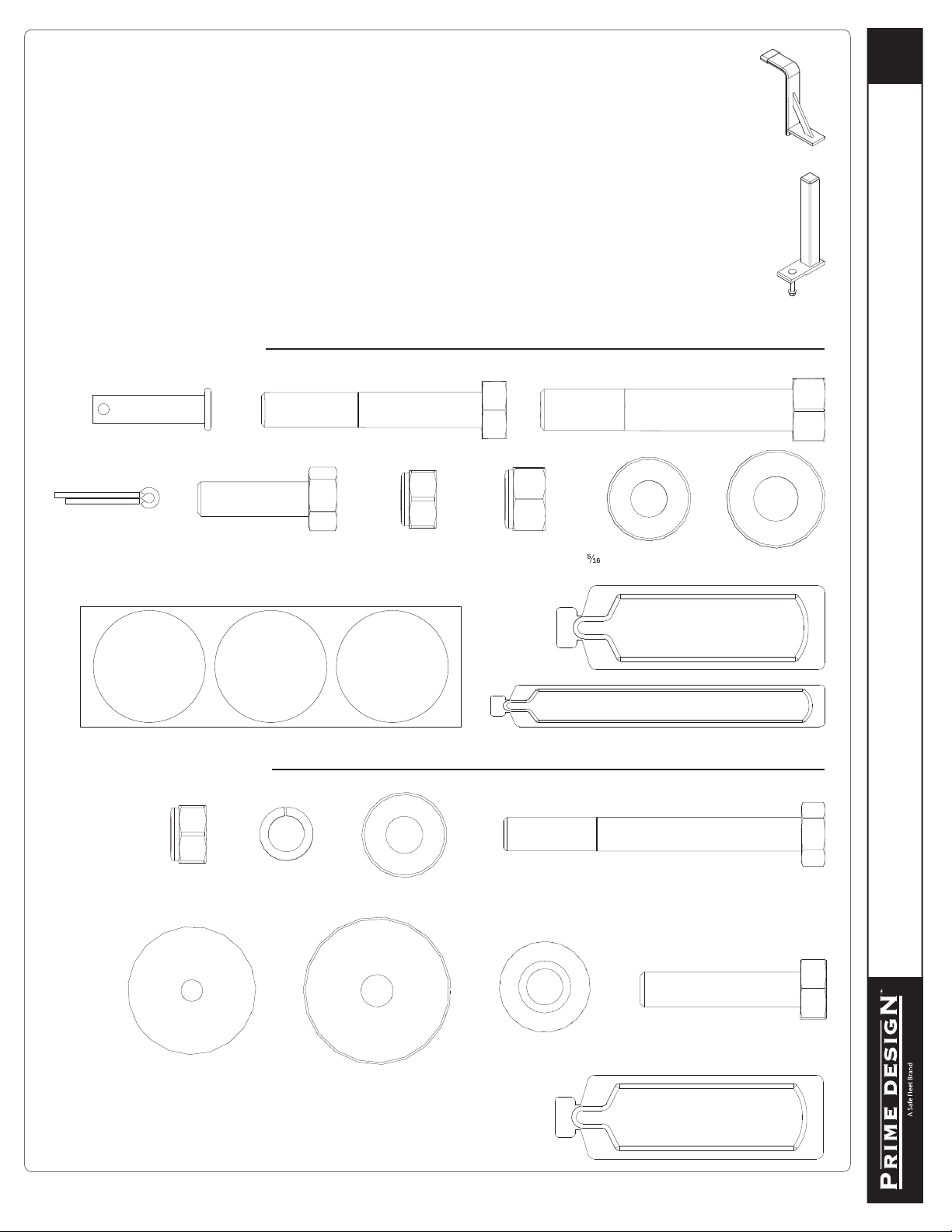

URX-001-E ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS
7—Z Post ................................................................ (Qty 2)
Adjustable, 7.25”
8—L Post ................................................................ (Qty 2)
9.25”
HKT-0122 Mounting Hardware Kit
Anti-Seize (1X)
M8 x 35MM (8X)
M8 x 70MM (4X)
Lock Nut (12X) Flat Washer (8X)Lock Washer (4X)
Sealing Washer (8X)
Fender Washer
(8X)
Neoprene Washer
(8X)
HKT-8163-Rotation Hardware Kit
" Flat Washer (10X)
Anti-Seize (1X)
Lubricant (1X)
Clevis Pin (1X)
Cotter Pin (1X)
M8 x 50MM (4X) ⅜" x 2.25" (2X)
1.00" Sealing
Stickers (16X)
M8 Lock Nut (5X) ⅜" Lock Nut (2X) ⅜" Flat Washer (4X)
M8 x 25MM (1X)
Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪
TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
4

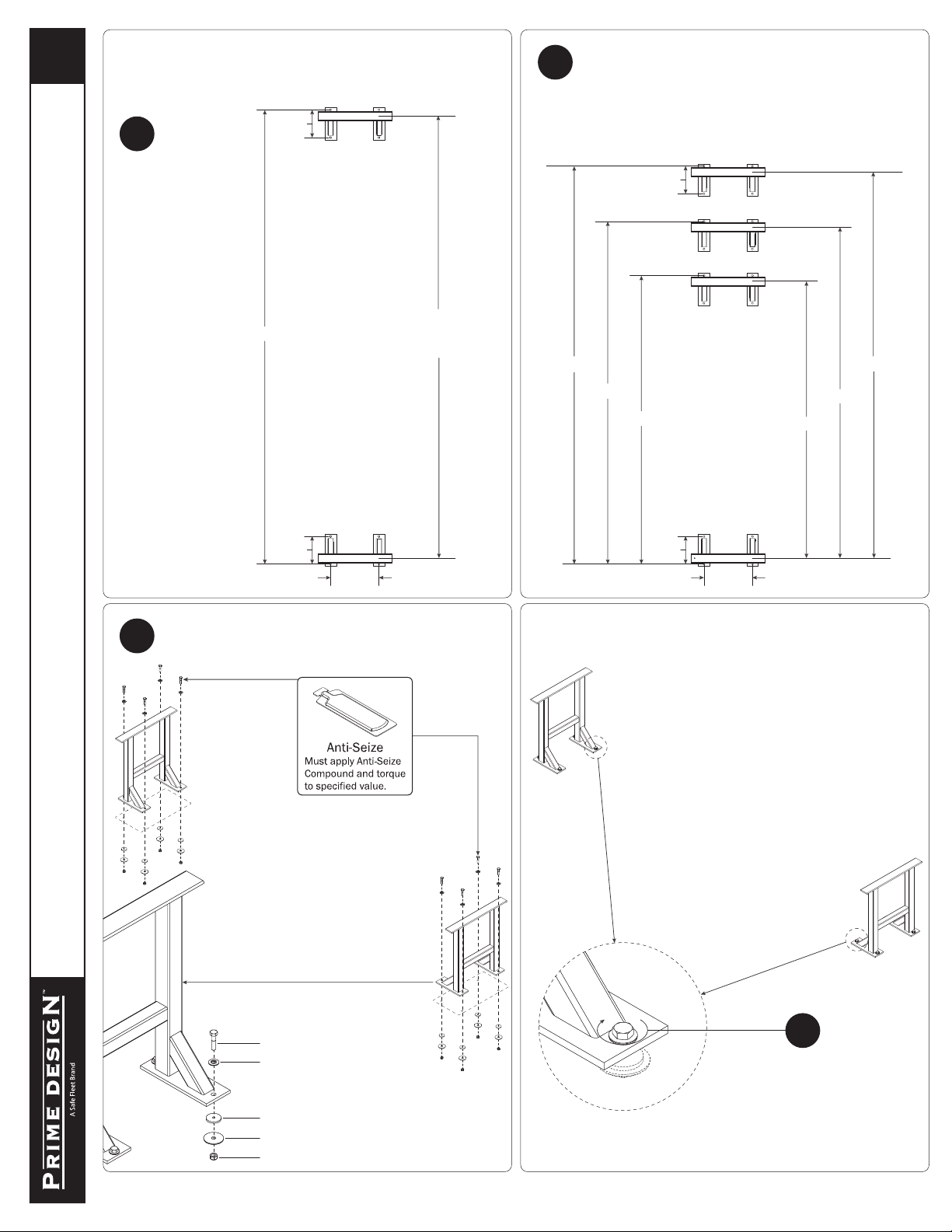

URX-001-E ASSEMBLY INSTRUCTIONS–MOUNTING BRACKETS
98.50”
96.00”
(Do Not Drill. Shown
for reference only.)
6.00”
6.00”
10.50”
86.50”
74.50”
62.50”
72.00”
60.00”
6.00”
6.00”
10.50”
84.00”
Dimensions A
Dimensions B
M8 x 35mm Bolt
Sealing Washer
Neoprene Washer
Fender Washer
M8 Lock Nut
UTB-2316 MOUNTING BRACKETS
BRACKET PRE-ASSEMBLY
Drill holes into the service
body mounting location
according to dimensions
shown for 8.00 ft rack
conguration.
0.1
Apply Anti-Seize compound to Mounting Bracket bolts. The
shorter bolt assemblies are on the outside as shown.
0.3
0.4
Torque all Mounting
Bracket bolts to 90 in-lbs.
Dimensions shown below are for 5’ (60.00”), 6’ (72.00”), and
7’ (84.00”) spacing.
Dimensions A are measured from center to center of top
mounting rail. Dimensions B are measured from outside
bracket hole to outside bracket hole.
0.2
Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪
TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
5
1
2
5
3
4/11
8
6
7
10
9
M8 x 70mm Bolt M8 x 70mm Bolt
Drill as required Drill as required

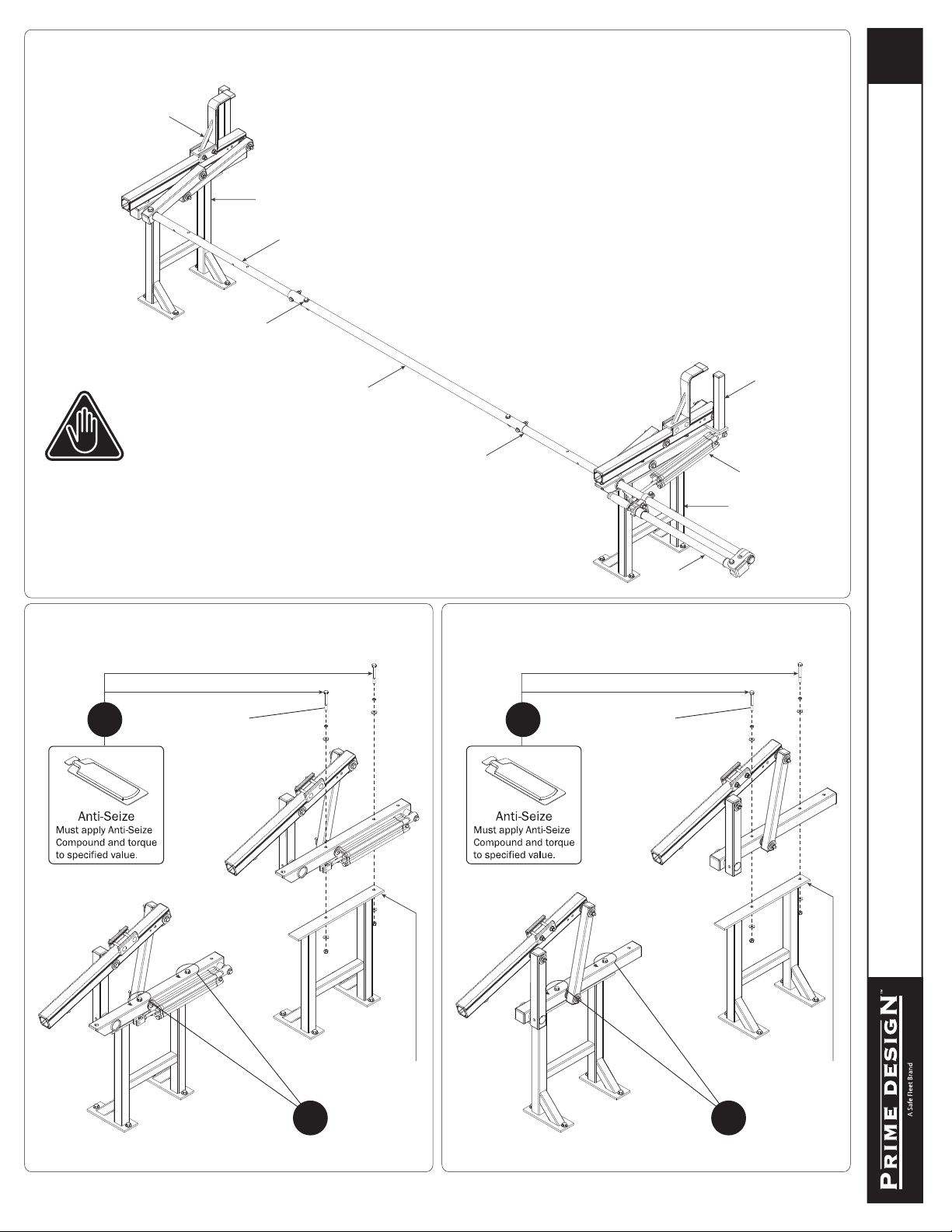

LEFT ROTATION ASSEMBLY SEQUENCE
REAR ROTATION ASSEMBLY FRONT ROTATION ASSEMBLY
URX-001-E ASSEMBLY INSTRUCTIONS–LEFT SIDE ROTATION
1.1
1.2
Torque to 90 in-lbs.
2.1
2.2
Torque to 90 in-lbs.
Installer’s Note: Due to variances between Utility Body
manufacturers, the UTB Mounting Bracket’s top plate
comes undrilled from the factory. After installing the
Mounting Brackets, determine the correct positioning
of the Rotation Assembly according to your Utility
Body, then mark the hole locations on the Mounting
Brackets based upon the holes found in the Lowers as
shown in Steps 1.1–2.2
Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪
TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
6

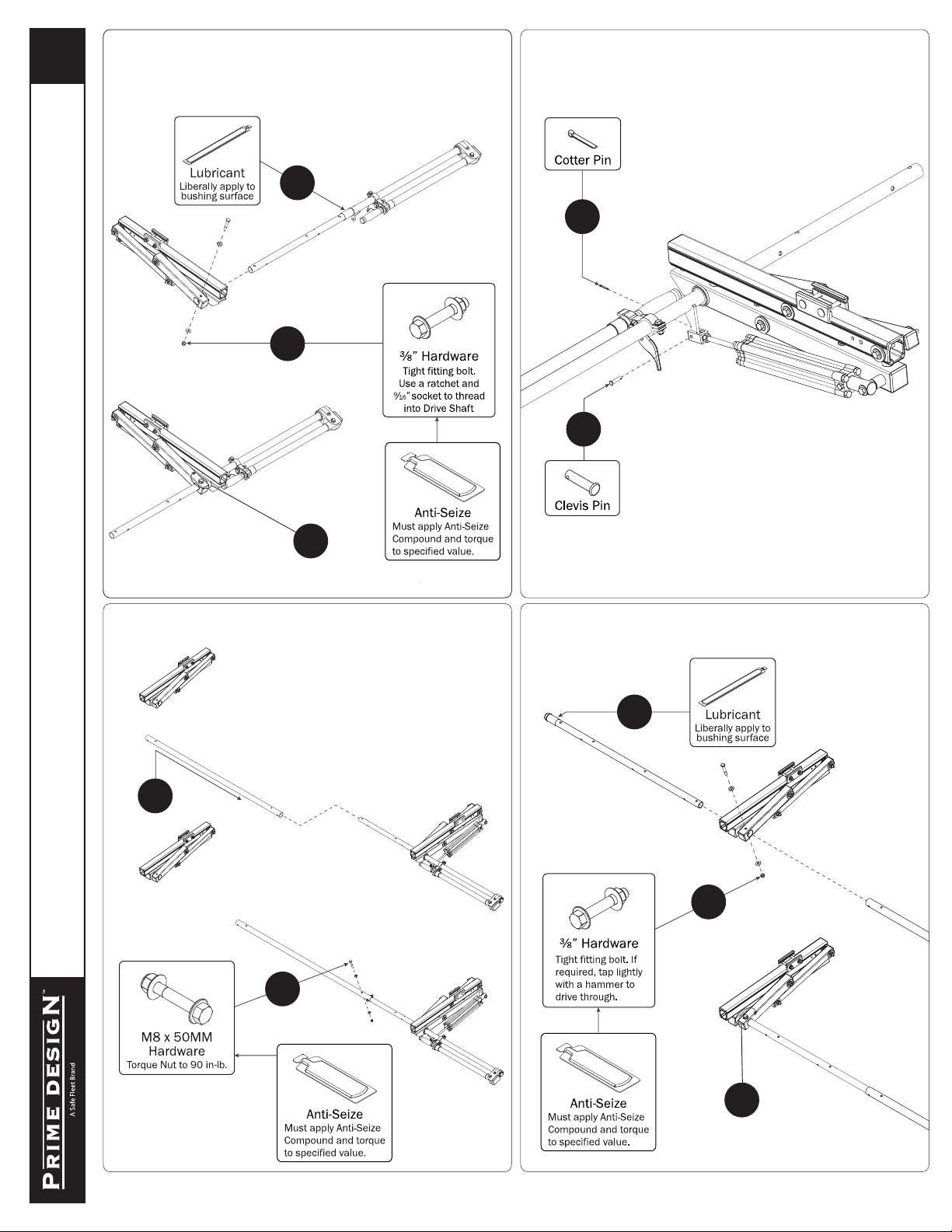

URX-001-E ASSEMBLY INSTRUCTIONS–LEFT SIDE ROTATION
REAR DRIVE SHAFT
CONNECTING BAR
CYLINDER HARDWARE
FRONT DRIVE SHAFT
3.1
3.2
3.3
Torque to 90 in-lbs
4.1
4.2
5.1
6.1
6.2
5.2
6.3
Torque to 90 in-lbs
Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪
TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
7

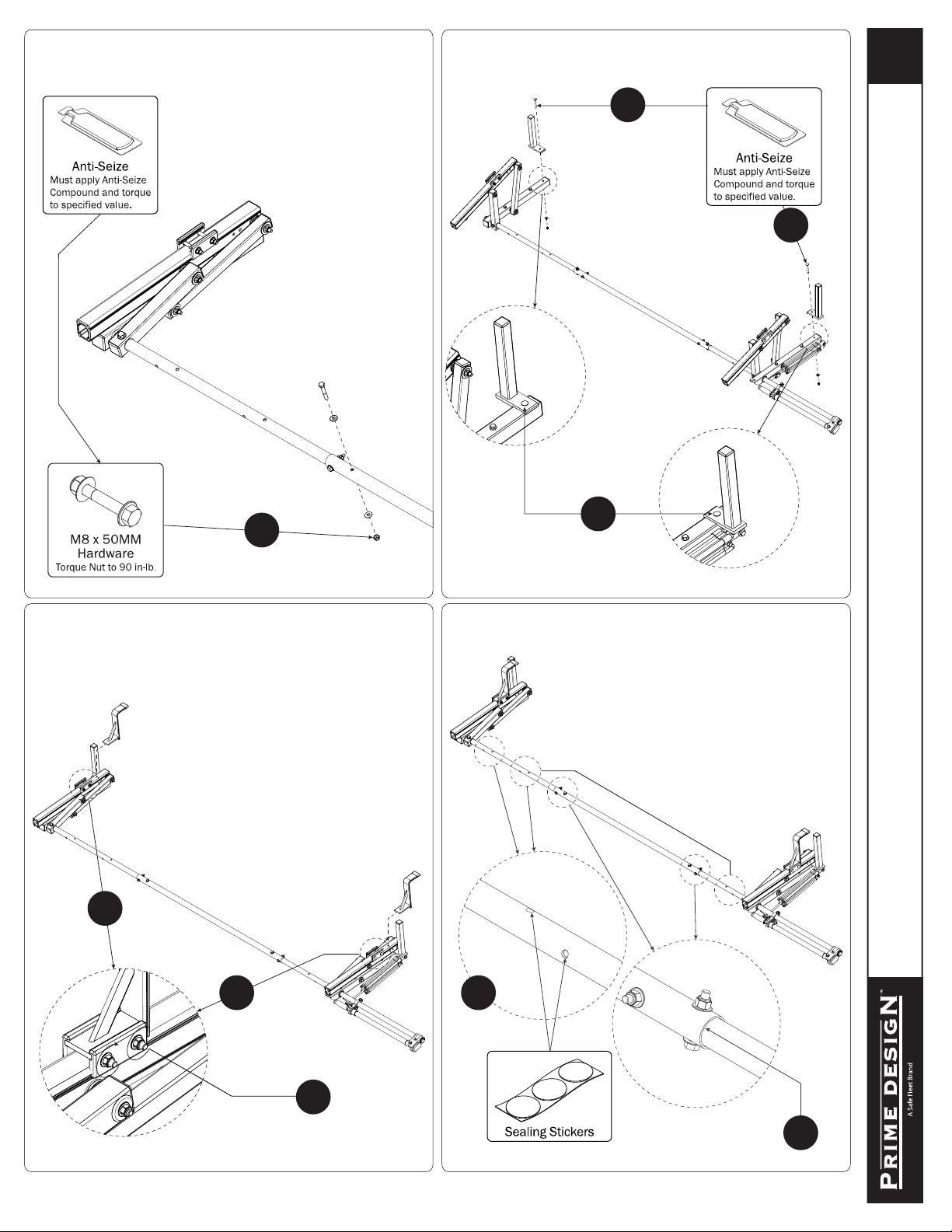

URX-001-E ASSEMBLY INSTRUCTIONS–LEFT SIDE ROTATION
CONNECTING BAR FASTENERS
Z POSTS
SEE QUICK START GUIDE FOR ADJUSTMENTS
DRIVE SHAFT SEALING
L POSTS
7
7.1
8.1
8.2
Torque to 90 in-lbs
9.2
Torque to 90 in-lbs
9.1
9.1
10.1
10.2
Apply Silicone Sealant
to Connecting Bar ends
Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪
TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
8

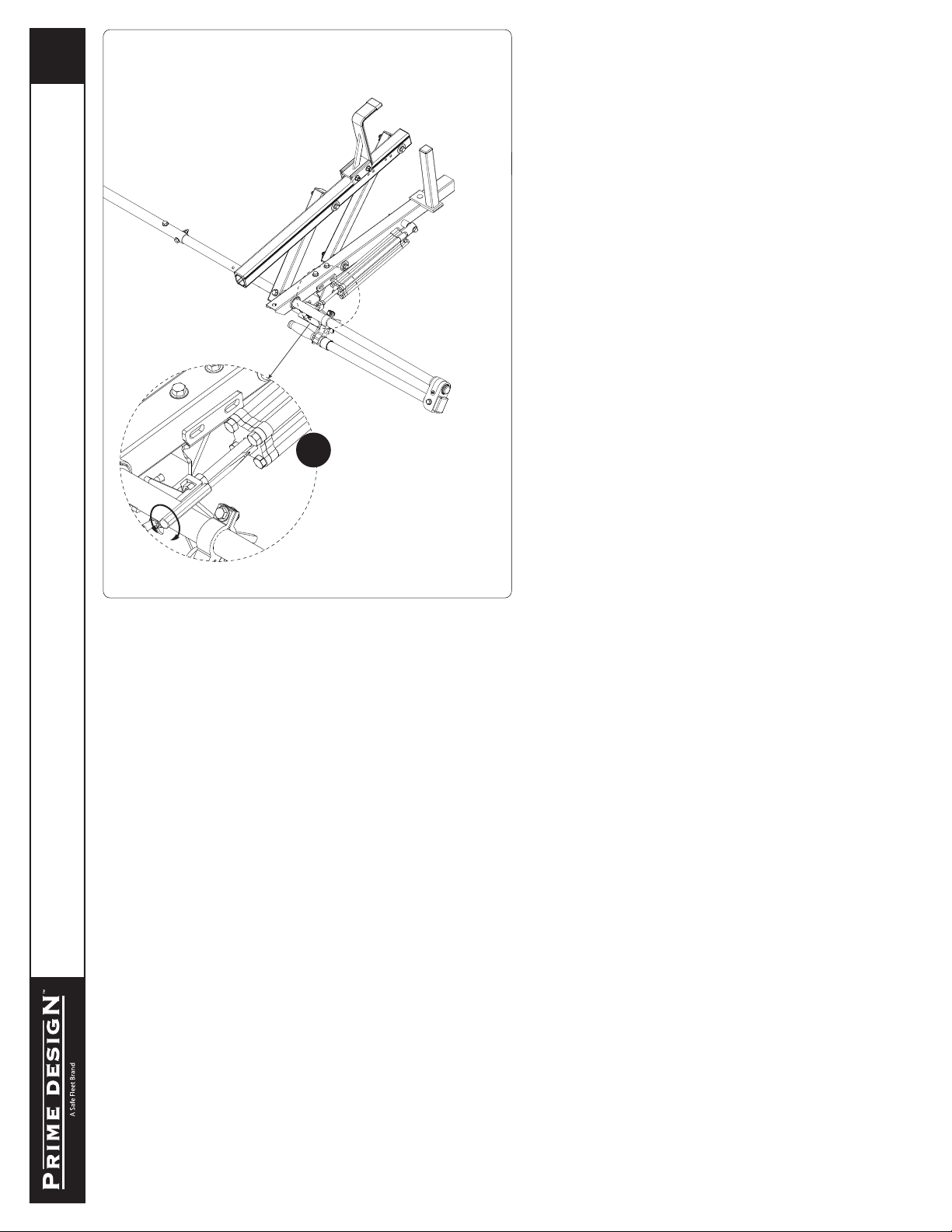

URX-001-E ASSEMBLY INSTRUCTIONS–FINAL INSTRUCTIONS
USAM-URX001E-US01 Rev-C 0618
Adjust the Cylinder Flow
Control Screw to allow
approximately 3 seconds
time for the ladder to glide
down when operating the
loaded Ladder Rack.
11
CYLINDER ADJUSTMENT
