IMPORTANT SAFETY INSTRUCTIONS
1
Before You Begin
Thank you for adding the Precor Cardio Theater
Integrated LCD Screen Option to your C764i Climber.
This option will add a new dimension to your workout.
For proper installation, please read this guide
thoroughly and follow the assembly instructions.
Obtaining Service
For information about product operation or service,
see the Precor web site at www.precor.com. Should
you need more information regarding customer
support numbers or a list of Precor authorized
service centers, visit the Precor website at
www.precor.com/contact.
Unpacking the Equipment
The Cardio Theater Integrated Bracket for the LCD
Screen is shipped in one box with the following
items:
•Bracket assembly
•Power extension cable
•Four Phillips-head screws
•Rubber adapter mounts
If any items are missing, contact the dealer
from whom you purchased the unit or call a
Precor Commercial Products Customer Support
Representative.
Important: To complete the assembly of the
Cardio Theater Integrated Bracket, you need the
Cardio Theater LCD Screen Option, which is shipped
in a separate box. Included with the screen are two
cables (coaxial/power cable and controller cable),
which you will need during the assembly process.
Important Safety Instructions
When using exercise equipment, basic
precautions should always be taken,
including the following:
•Read all instructions before using
the unit. These instructions are
written to ensure your safety and to
protect the equipment.
•Use the equipment only for its
intended purpose. Do not use
accessory attachments that are not
recommended by the manufacturer,
as such attachments might cause
injuries.
•Always check the unit before each
use. Make sure that all fasteners and
cables are secure and in good
working condition.
Important: The important safety
instructions written here reflect a portion
of what is found in the Precor climber
owner’s manuals. Please review and
follow the safety instructions found there.
Before You Begin
Cardio Theater Integrated Bracket Assembly Instructions
page 4
Preparations
2
Important: To attach the Cardio Theater Integrated
Bracket, ask another adult for help. Do not attempt
the assembly by yourself.
Remember to read and follow the instructions in this
guide. If you do not assemble the Cardio Theater
Integrated Bracket according to these guidelines,
you could void the Precor Limited Warranty.
RequiredTools
Obtain these tools before assembly:
•Standard hex key set
•Standard socket set
•½-inch box wrench or crescent wrench
•Flat head screwdriver
•Phillips-head screwdriver
•Needle-nose pliers
•Standard torque wrench
Installation Requirements
Review these installation requirements before
assembly:
•The Cardio Theater Integrated Bracket is built to
VESA MIS-D, 100/75 standard interface specifica-
tions.
•Provide ample space around the climber. Open
space around the unit allows for easier access
and installation.
•Open the box and assemble components in the
sequence presented in this guide.
•Leave room for adjustments. Tighten fasteners
(bolts, nuts, and screws) so the unit is stable, but
leave room for adjustments. Do not fully tighten
fasteners until instructed in the assembly steps
to do so.
AssemblyTips
•Read all the notes on each page before complet-
ing that step.
•While you may be able to assemble the Cardio
Theater Bracket using the illustrations only,
important safety notes and other tips are
included in the text.
The assembly of the Cardio Theater Bracket takes
about ½ hour to complete.
Preparations
Cardio Theater Integrated Bracket Assembly Instructions
page 5
Install the Bracket Assembly
3

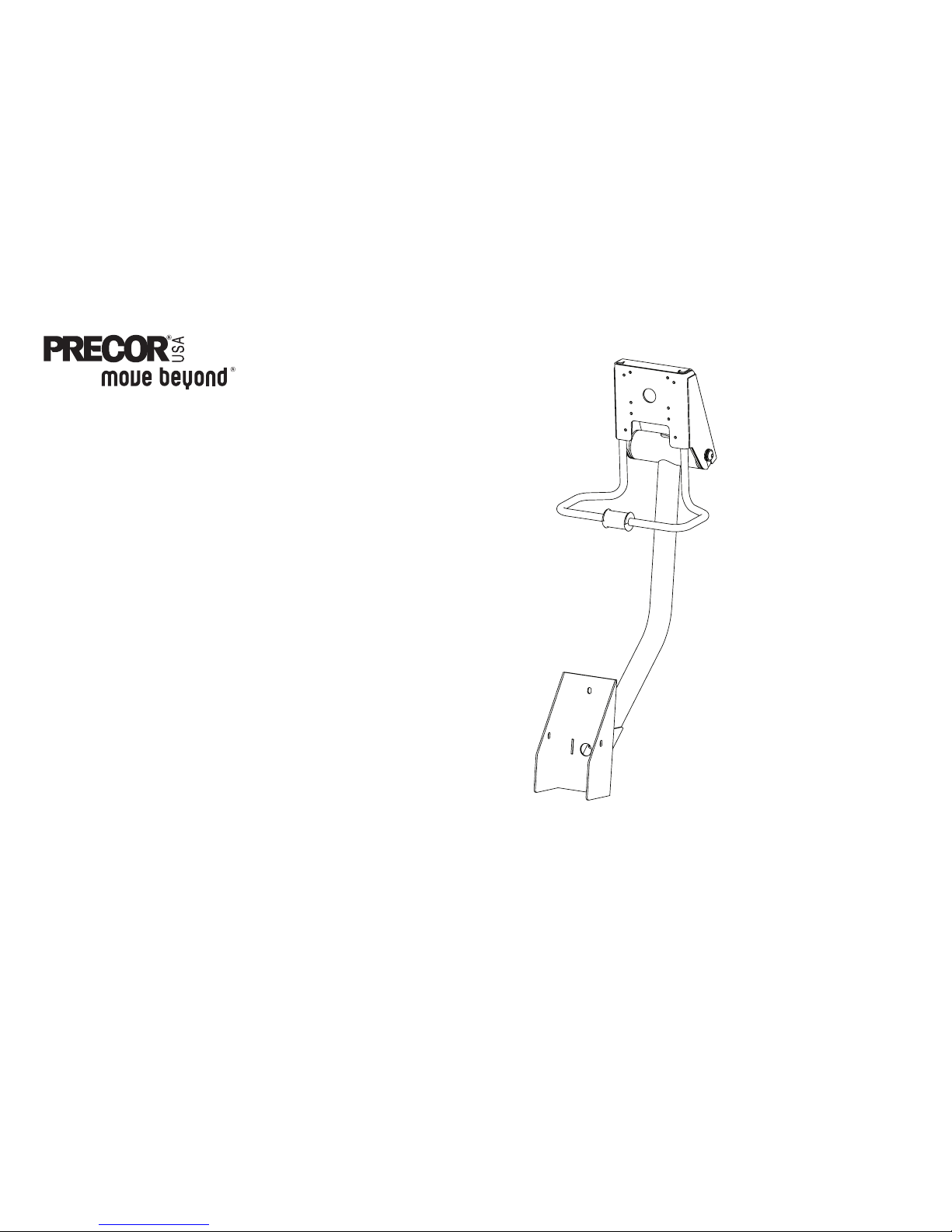

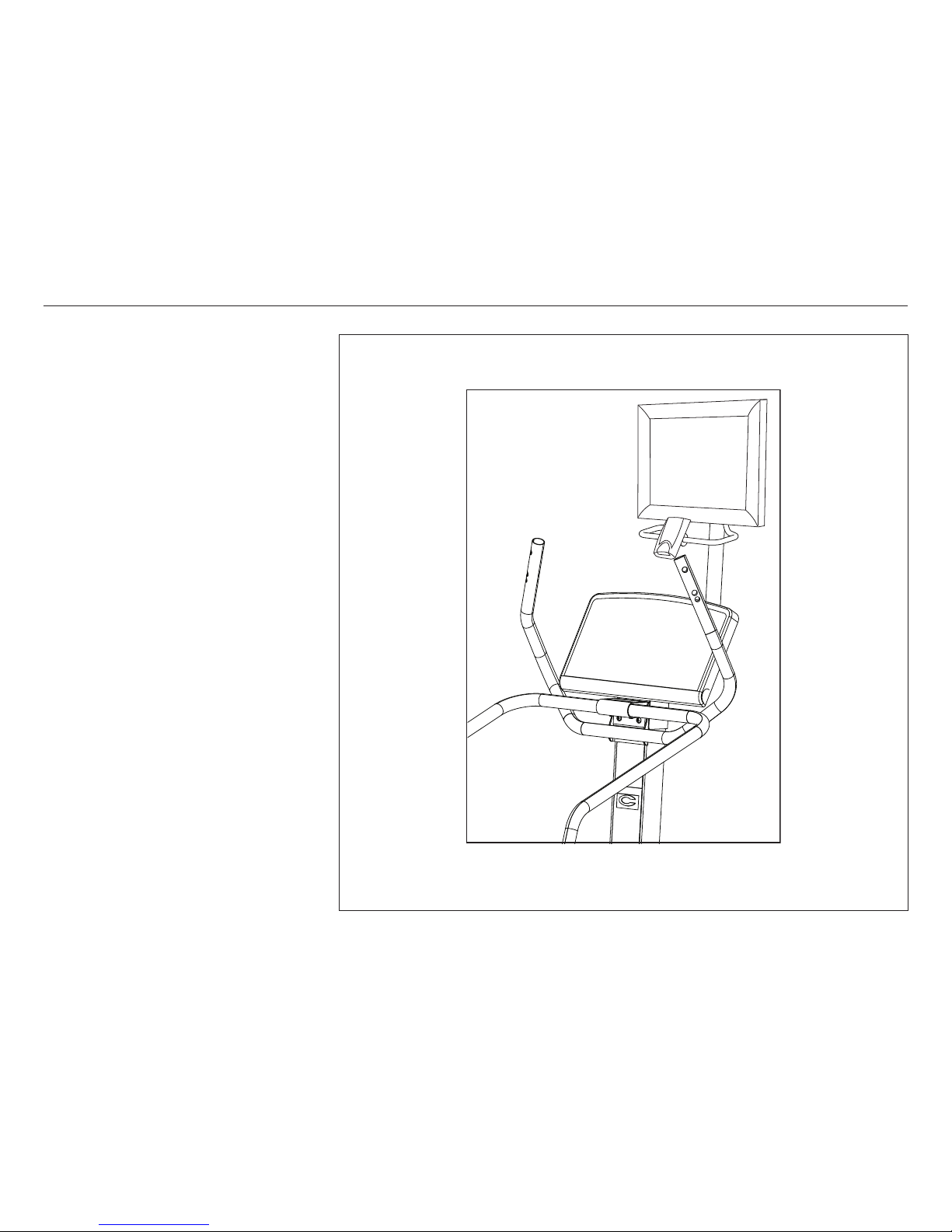

The illustration shows how the Cardio Theater
Bracket will look after you install it on the climber.
CAUTION:Turn OFF the climber and remove the
power plug from its power source before
proceeding with the assembly.
Install the Bracket
Assembly
Cardio Theater Integrated Bracket Assembly Instructions
page 6

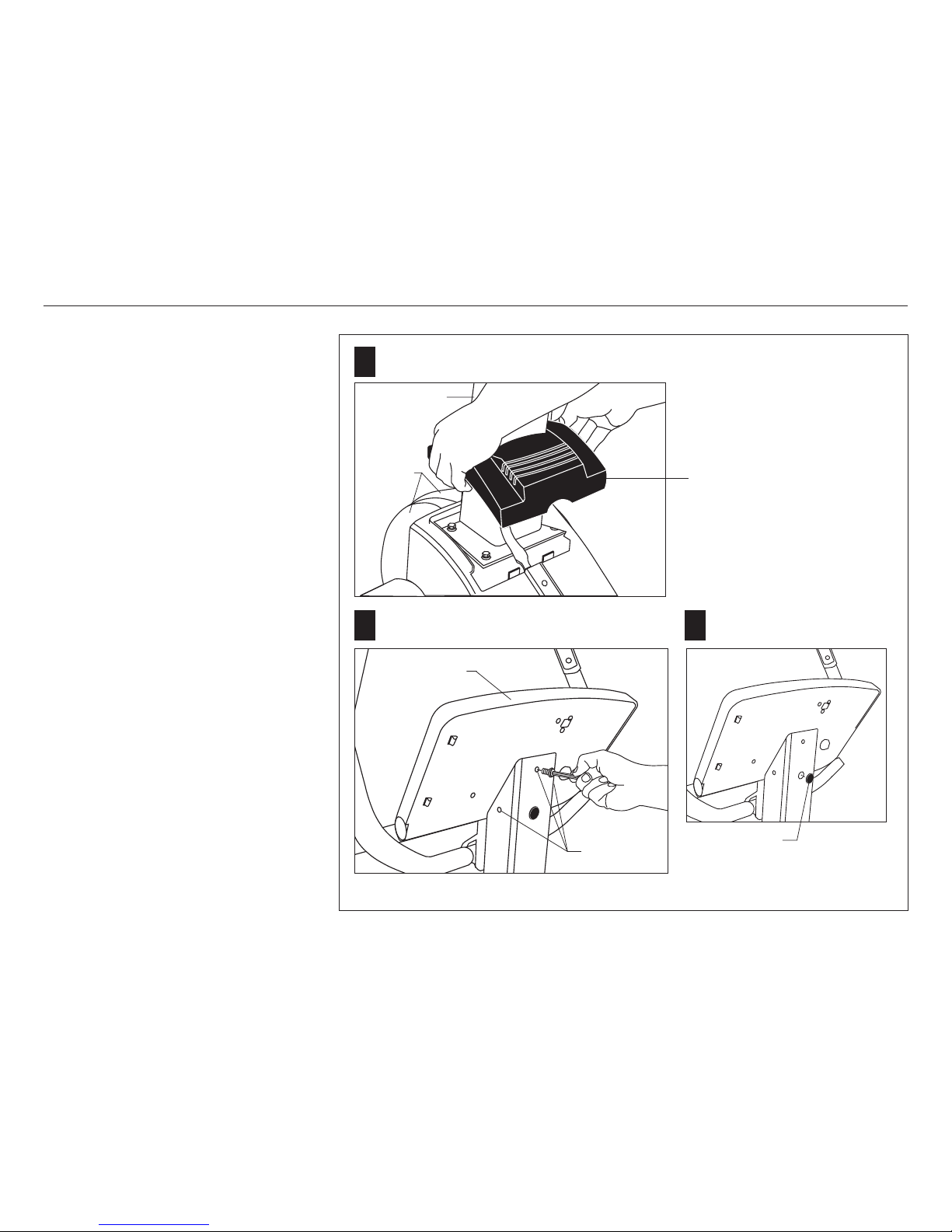

Bracket cover
Bracket
assembly
Bracket
cover
1
2
Bracket
assembly
Top of
bracket
assembly

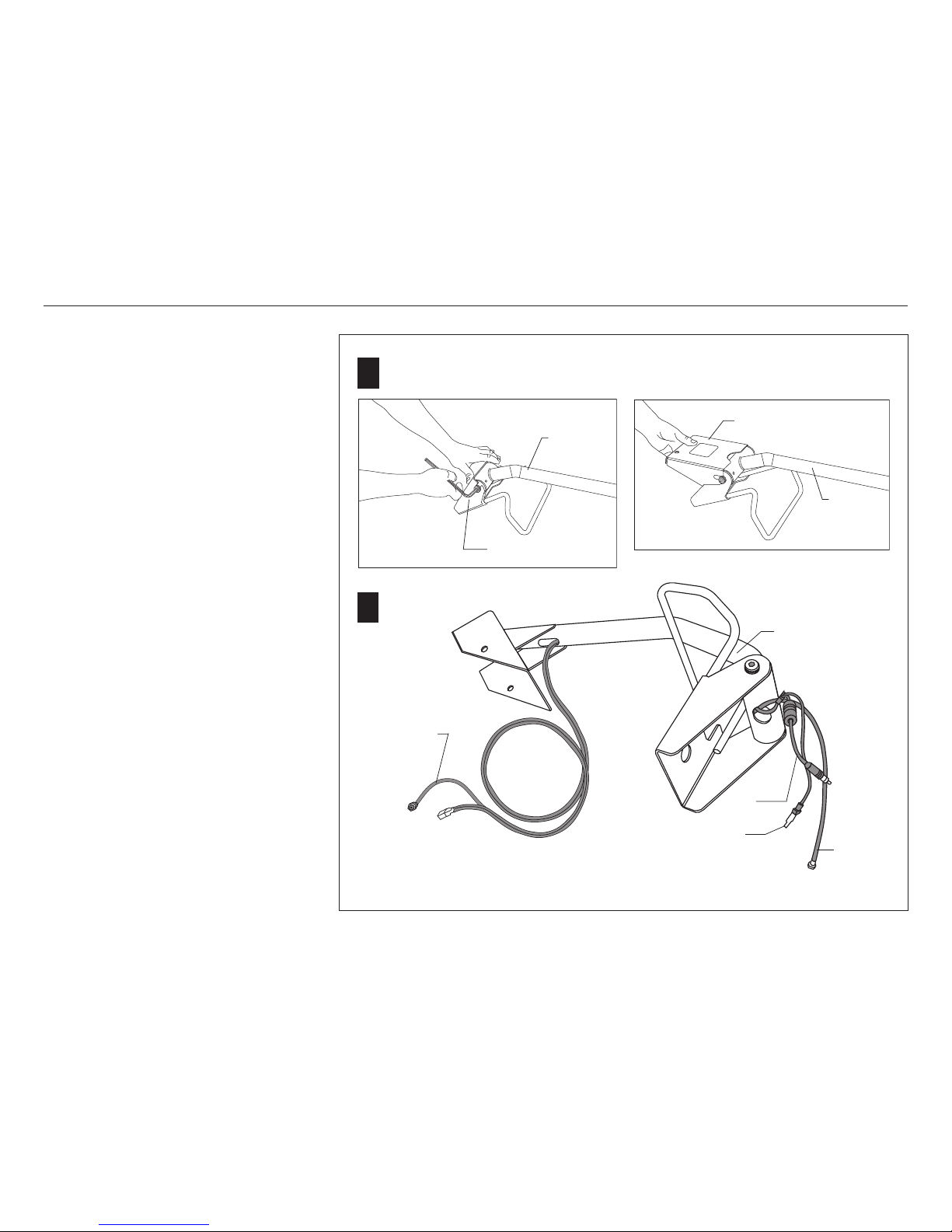

1. Remove the bracket cover.
Loosen the bolts on the pivot tube using a
⁷⁄₃₂-inch hex key. Pull the bracket cover away
from the assembly. Set it aside.
2. Feed the coaxial/power cable with its three
connectors through the bracket assembly. Set
the bracket assembly aside.
Important: Make sure you feed the cable so the
end with the three connectors appears out of the
top of the bracket assembly.
Power
connector
DVD connector
(optional accessory)
Install the Bracket Assembly
Coaxial/power
cable with its
connectors
Coaxial
connector
Cardio Theater Integrated Bracket Assembly Instructions
page 7
3
4
3. Pull up the rubber boot along the upright support
until you have about a two foot gap between the
boot and side covers.
4. Remove the three fasteners that secure the
display console to the upright support. Rest the
display console between the handlebars.
5. Remove the plastic plug in the upright support.
Install the Bracket Assembly
Remove three
fasteners.
Rubber boot
Display console
5
Remove plastic plug.
Upright support
Side covers
Cardio Theater Integrated Bracket Assembly Instructions
page 8

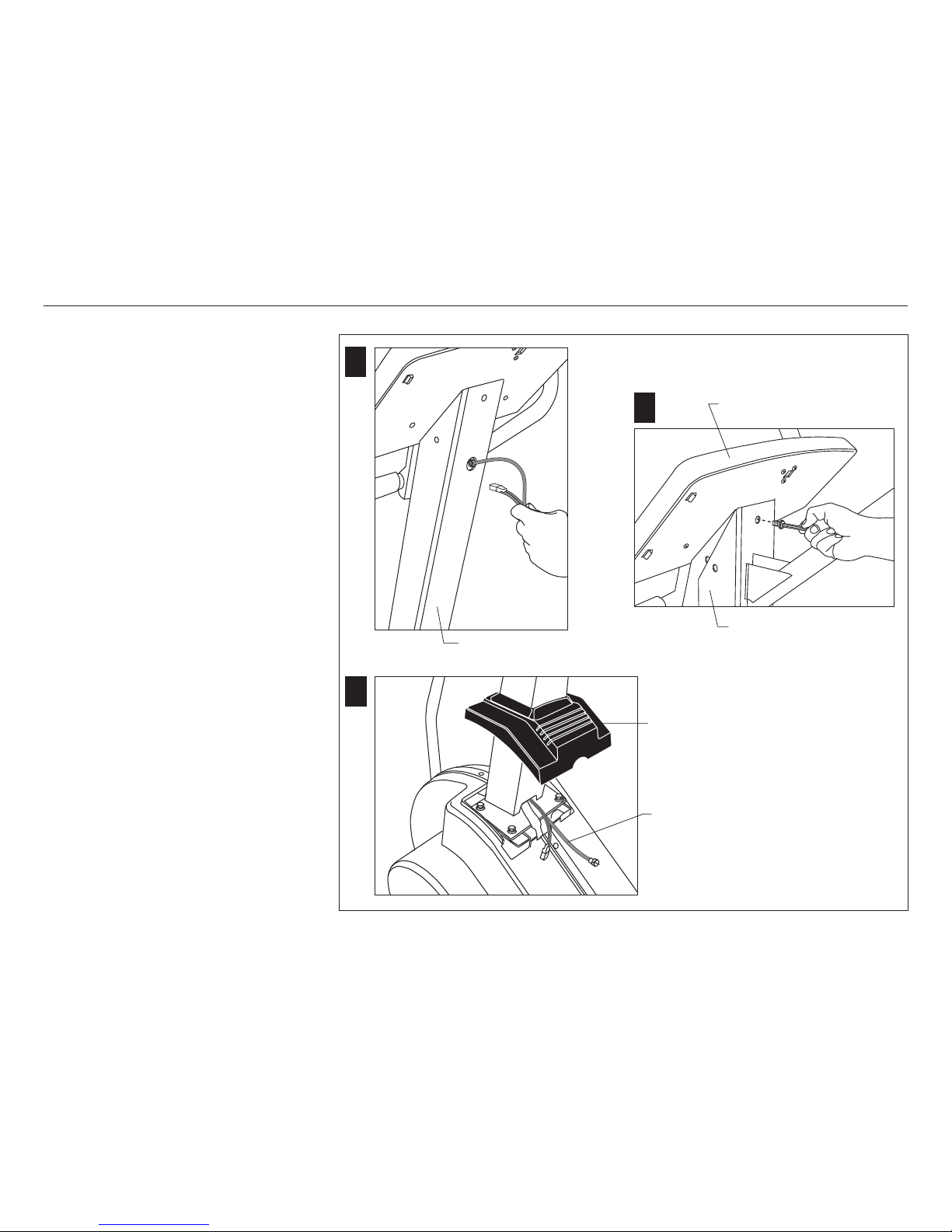

6. Feed the coaxial/power cable and its connectors
through the upright support.
Ask your assistant to hold the bracket assembly
close while you insert the cable and its
connectors into the upper hole on the upright
support. Slide the cable down until you can
access the connectors through the lower hole.
Note: You may need to move the ribbon cable
inside the upright support to gain clear access.
7. Pull the cable and its connectors out of the
lower hole. If needed, use a needle-nose pliers
to grasp the cable.
Note: While you pull about 3 feet (1 meter) of
cable out of the lower hole ask your assistant to
align the bracket assembly with the mounting
fasteners on the upright support. Make sure the
bracket assembly slides into place along the
outside of the upright support.
8. Attach the bracket assembly and replace the
fasteners.
Ask your assistant to continue holding the
bracket assembly, while you replace the three
fasteners removed in step 4. Securely tighten
all three screws using a ⁵⁄₃₂-inch hex key.
Install the Bracket Assembly
6
7
8
Bracket assembly
Rubber boot
Coaxial/power cable
(with coaxial and power connectors)
Display console
Upright support
Cardio Theater Integrated Bracket Assembly Instructions
page 9
4
Feed the Cable through the Base
Feed the Cable
through the Base

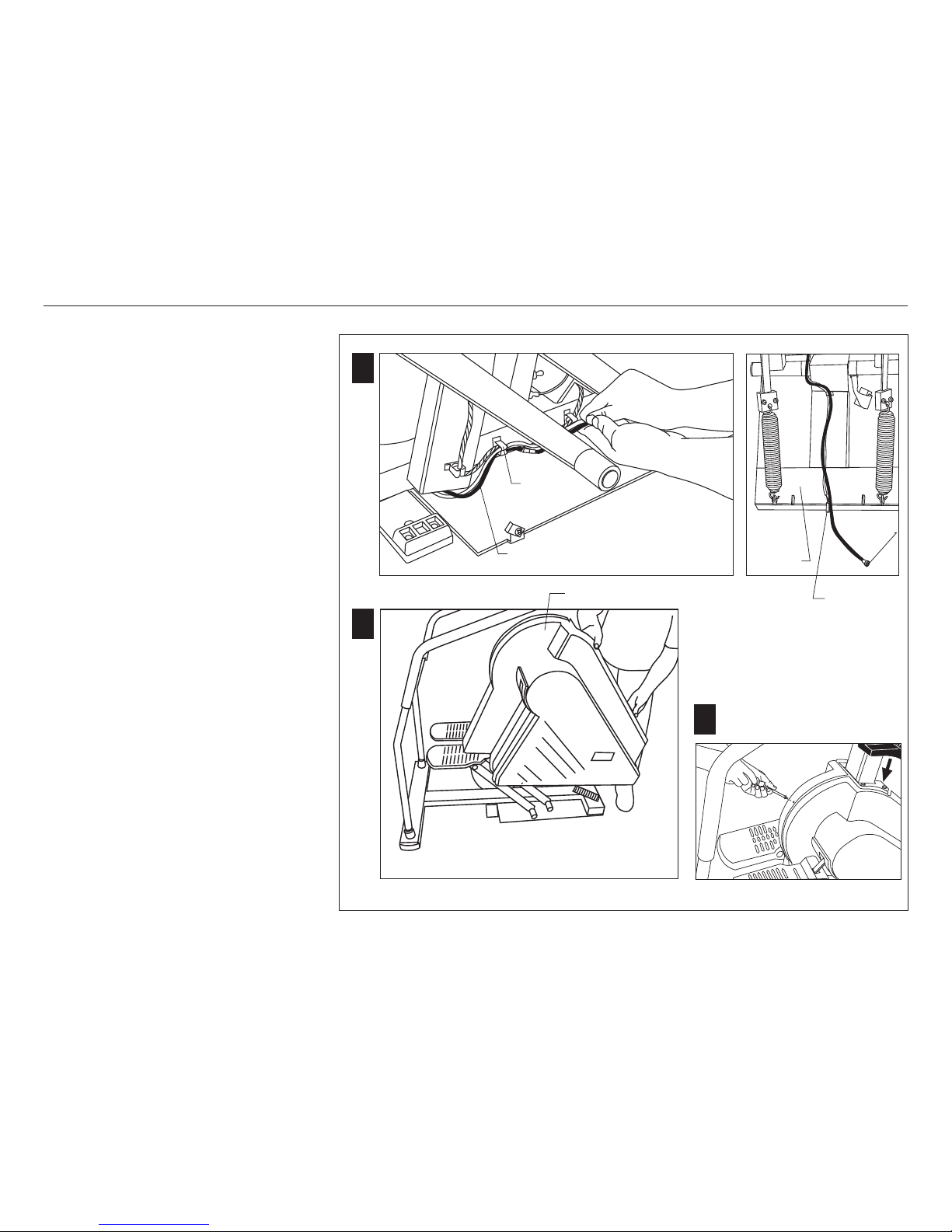

1. Use a Phillips-head screwdriver to remove the
16 screws that hold the side covers on the unit.
Set the screws aside.
2. Slide both side covers up and away from the
base of the unit.
3. Feed the coaxial/power cable and its connectors
into the internal upright frame tube that does not
contain the ribbon cable.
4. Pull the cable and both connectors out from the
base of the tube and attach the power extension
cable to the power connector.
12
3 4
Power connector Power
extension
cable
Cardio Theater Integrated Bracket Assembly Instructions
page 10
5
6
7
Coaxial/power cable
(with power extension cable)
Right side cover
Feed the Cable through the Base

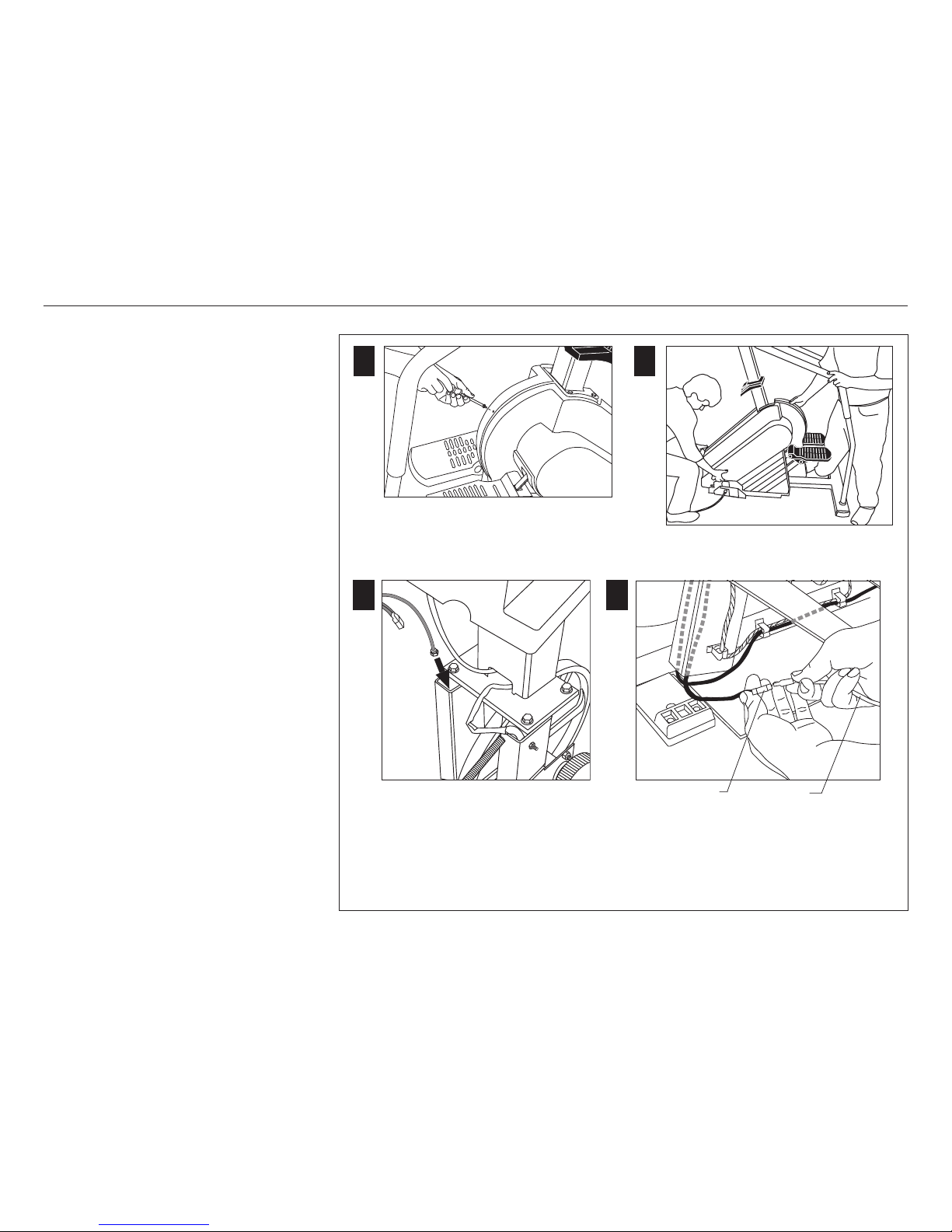

5. Snap the coaxial/power cable into the existing
cable clips as you feed it along the base and
out the front of the unit.
6. Reassemble the side covers. As you face the
display, the right side cover must be placed into
position first. The left side cover fits into it.
Note: Check the connectors on the coaxial/
power cable to make sure they are easily
accessible.
7. Replace the 16 screws removed in step 1 and
reposition the rubber boot.
Clip
Front of
the unit
Power
extension
connector
Replace the side cover
screws and lower the
rubber boot.
Coaxial
connector
