POSIFLEX HS-2510W-2D User manual

Package Contents

HS-251xW-2D desktop POS.….x 1

Power adaptor.…………………x 1

Power cord……………………..x 1

Desktop mounting kit pack.…….x 1

(including 4 fixing screws, 4

plastic anchors, and 1 desktop

mounting bracket)

Desktop POS user manual……..x 1

HS-series 2D image scanner user

manual………………………….x 1

Recovery DVD (for preloaded

Windows OS)………………….x 1

Optional item(s)

Product Features

Standard Features

System

Intel® Bay Trail-D J1900 2.0G CPU up to 2.42G, 2M Cache,

quad-core Celeron CPU

DDR3L 1333 FSB, SO-DIMM socket *1, Max 8G

Mechanical Structure

Fan free structure for harsh environment

Monitor tilt adjustment angle from 17°to 45°

Display

9.7"/12" LCD touch panel, 1024x768 resolution

P-CAP touch panel

HS-2510W-2D/HS-2512W-2D

JIVA Desktop POS

User Manual

15592902010 Ver. Original

http://www.posiflex.com

Optional Items

System

SSD storage device

DDR3L 1333 FSB, SO-DIMM socket *1, Max 8G

POSReady 7, Windows 7, Windows Embedded 8.1 Industry

per request

WIFI

Wireless LAN

Views of the HS-251xW-2D

Front View of HS-251xW-2D

Rear View of HS-251 xW-2D

Top I/O Interface Cover

Bottom I/O Interface Cover

Cable Exit

Power LED

LCD Touch Panel

3-track

Magnetic Stripe Reader

(Optional)

2D Image Scanner

Smart Card Reader

(Optional)

Left Side View of HS-251xW-2D

Bottom View of HS-251xW-2D

View of I/O Interface of HS-251wX-2D

Top I/O Interface

COM (RJ50) Port

DB25 parallel port

USB3.0 Port

VGA Port

Bottom IO Interface

Power Button

Bottom I/O Interface

12VDC-IN Power Jack

RJ11 Cash Drawer Port

USB2.0 Port

RJ45 LAN Port

COM Port

PS2 Port for Keyboard

Line-Out Jack

Connecting Power Adapter and I/O Cables

Follow the steps listed below to open the bottom I/O-port

protective cover and connect cables.

1. Make the desktop POS lie on

the surface of a desk and the

LCD touch panel face down.

2. Press the portion A with

thumb and then lever the

cover with forefinger in the

direction B.

3. Remove the cover.

4. Connect power adapter and

I/O cables to the bottom I/O

interface of the desktop POS.

5. Make the cover join to the

wedge portions of the rear

plate of the POS.

6. Determine that the cover is

well wedged to the wedge

portions of the rear plate of

the POS.

7. Gather the I/O cables together

for cable arrangement and

lever down the 2 hooks of the

cover to cover the I/O

interface.

8. Determine that the I/O

interface is covered and the

cable passes through the cable

exit.

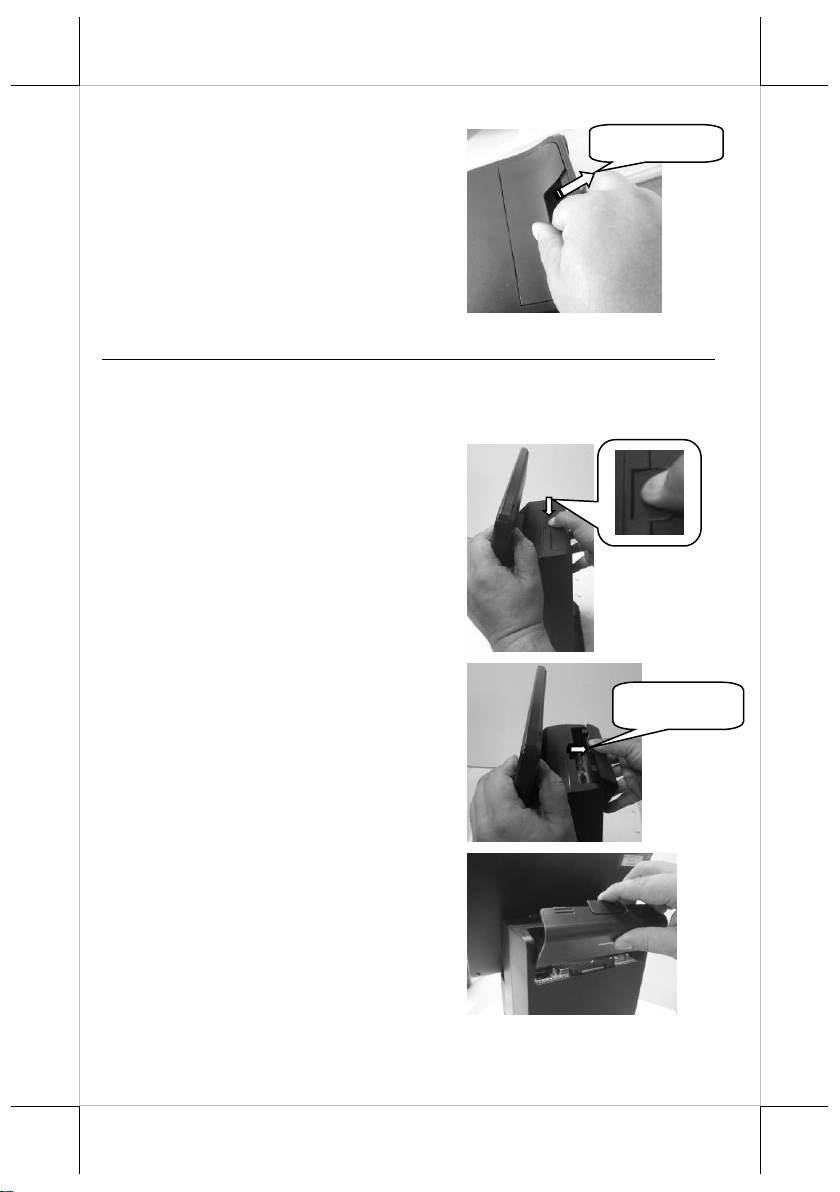

Connecting I/O Cables to the Top I/O Interface for Customer Display

If you want to connect I/O cable to the top I/O interface, follow

the steps listed below to open the top I/O-port protective cover

and connect I/O cables to the top I/O interface.

1. Press the cable-exit cover with

thumb.

2. Pull the top I/O-port

protective cover in the

direction A.

3. Remove the cover.

Cable out

Direction A

4. Remove the shield from the

bracket of the display.

5. Pass the connector of a cable

through the cable exit of the

bracket of the display.

6. Connect the connector of the

cable to the port of the

customer display.

7. Cover the portion A of the

bracket with the shield.

8. Determine that the shield

covering the cable is firmly

fixed onto the bracket.

9. Align the four holes of the

bracket with the four screw

holes formed on the bracket-

fixing portion of the top I/O

interface section.

10. Fix the cable into the concave

area of the display bracket for

arrangement.

11. Screw the display bracket to

the bracket-fixing portion of

the top I/O interface section.

12. Connect the connector of the

cable to the port of the top I/O

interface.

13. Break the cable-exit cover.

14. Make the cover join to the

wedge portions of the rear

plate of the POS.

15. Determine that the cover is

well wedged to the wedge

portions of the rear plate of

the POS.

16. Push the cover to make the 2

hooks of the cover to wedge

the 2 wedge portions of the

rear plate of the POS.

17. Determine that the I/O

interface is covered and the

cable passes through the cable

exit.

18. The customer display

installation onto the main unit

is completed.

Mounting the POS onto a Table

To avoid the POS from backward tilting and wagging when a

user touches the LCD panel, use the desktop-mounting kit

shipped with the POS to hold and secure the POS firmly on a

table. Please follow the steps below to mount the POS.

1. Determine a position of a table onto which the POS is

mounted. Then, take the desktop mounting bracket out of the

desktop mounting kit pack. Through the 2 holes formed on

the bracket, drill 2 holes on the table and plug 2 plastic

anchors into the 2 holes. Then, hold the bracket and then

apply the 2 self-tapping screws into the 2 holes to secure the

bracket.

Cable out
