Polycom SoundPoint IP 450 User manual

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

PolyCom Soundpoint

450

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

Configuring PolyCom SoundPoint 450

1. View and record the unique MAC address of the handset which can be found at the

base of the handset.

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

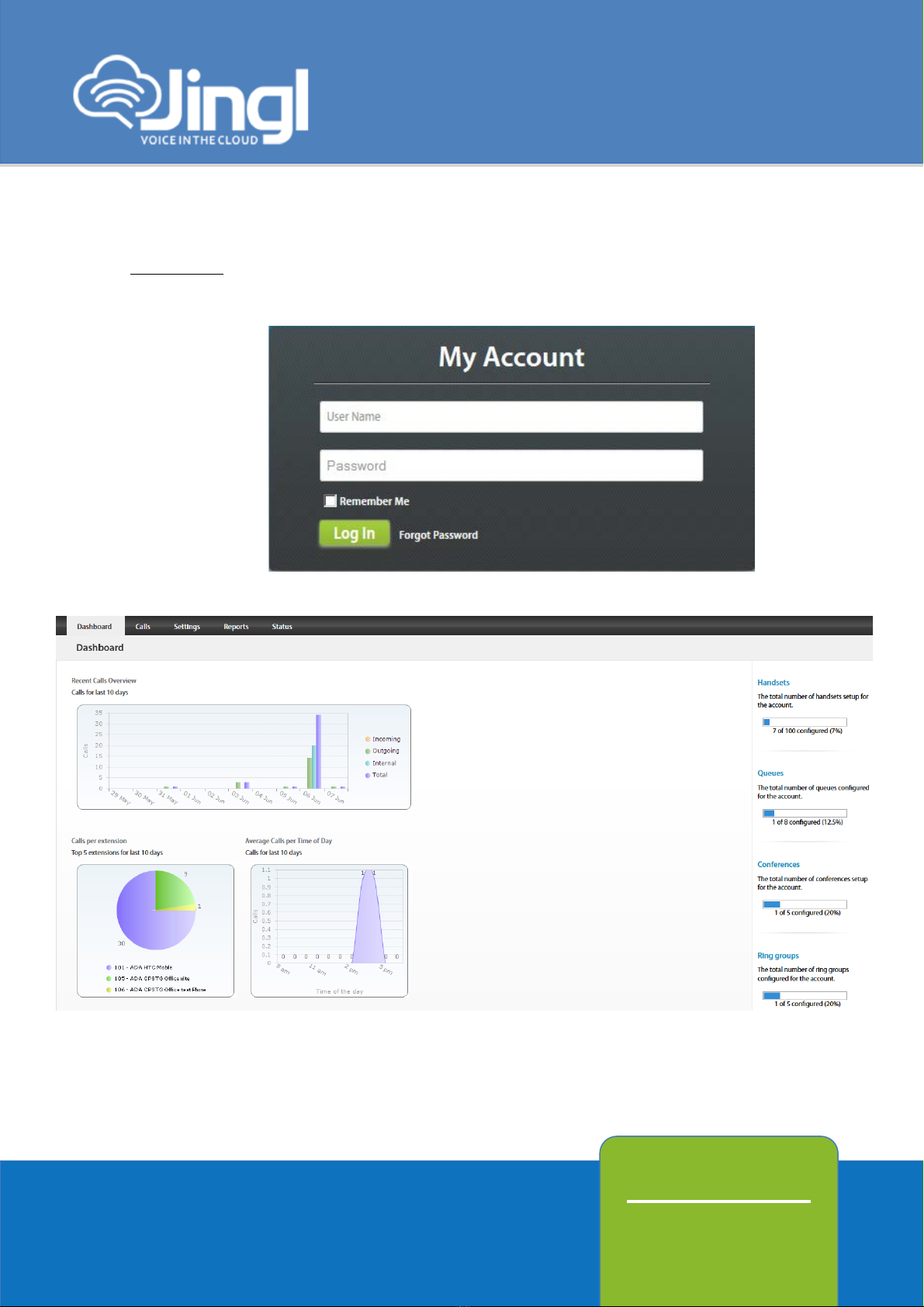

2. Logon to the jingl web portal, using specific customer domain URL

https://’customer’.jingl.com.au

Enter your User Name and Password

Presented with Dashboard

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

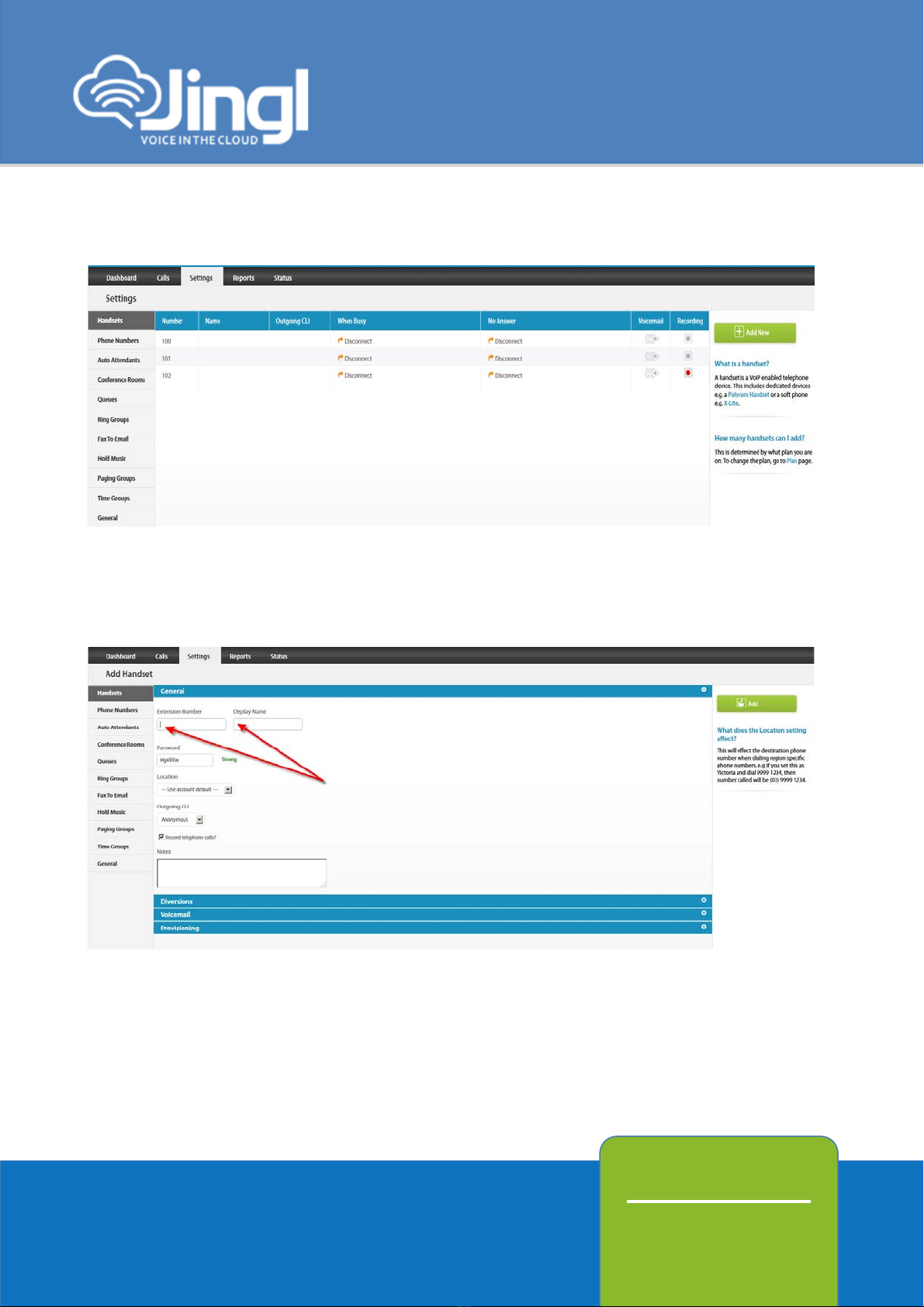

3. Select and click the settings menu

4. Click on “Add new”

In general tab, choose and enter extension number and a display name

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

5. Select and expand Provisioning tab. Enter the MAC address of the phone

6. Select and expand Hardware Type. Select the phone model

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

Click Add to finish your extension configuration.

7. Connect your phone on the network with a DHCP server, and find out phone’s IP

address.

On handset press Menu > Status > Network > TCP/IP Parameters (Menu, 2, 2, 1).

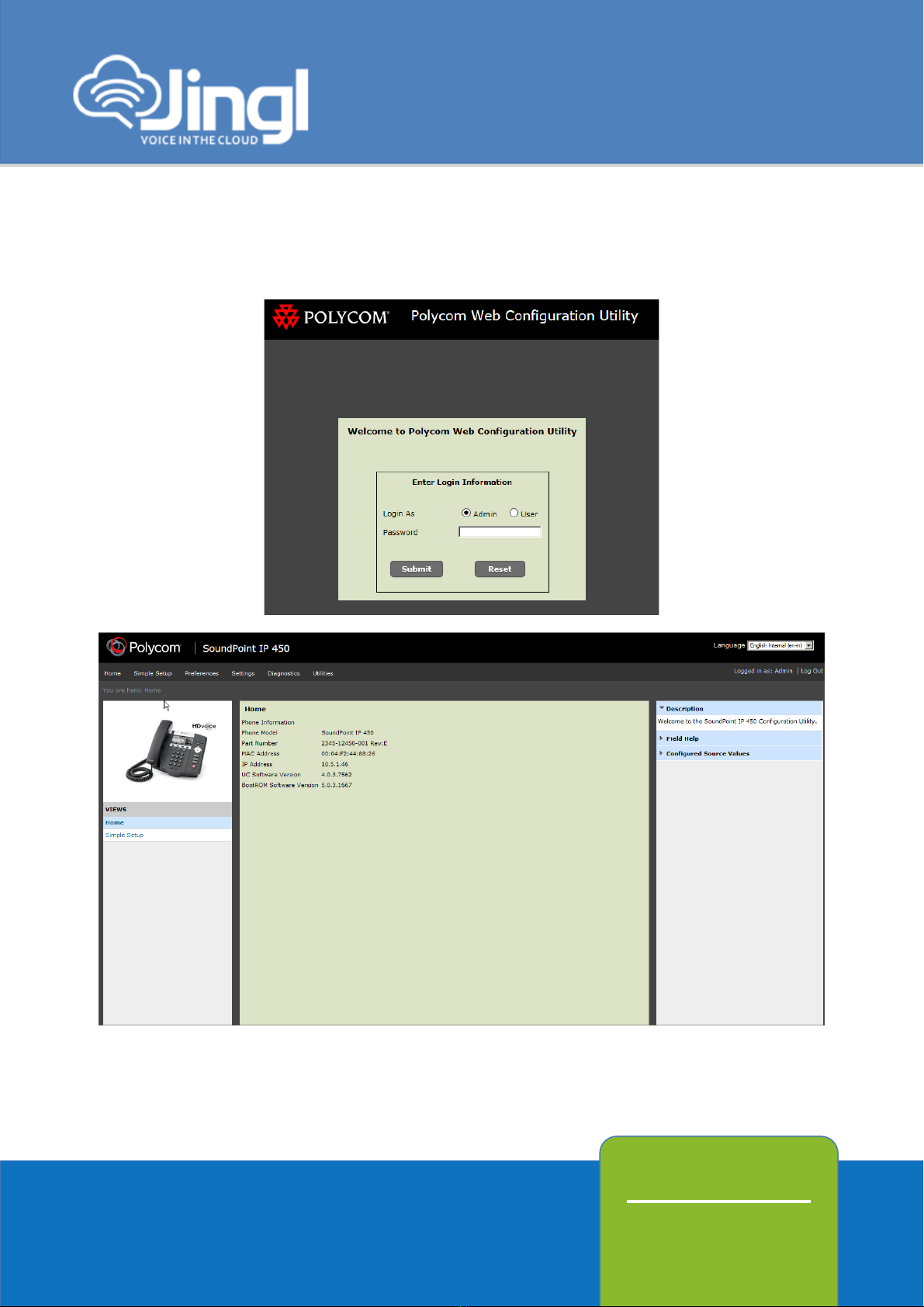

8. Use a compatible browser to browse the phone web menu using phones IP address

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

9. Login to the web interface with admin user (default password is 456)

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

10. Browse to settings Provisioning Server

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

11. Select “HTTP” as Server Type

Enter “tftp.jingl.com.au” as Server Address

No Server User and Server Password required

Expand DHCP Menu

Ensure Boot Server is set to “Static”

Ensure Boot Server Option is set to “160”

Ensure Boot Server Type is set to “String”

Ensure Option 60 Format is set to “ASCII String”

Click on the save button

12. Restart the phone for the new settings to take place, the phone will download and

configure all settings from the provisioning server as well as any necessary firmware

files.
