Plantronics Savi 8200 Series User manual

Quick Start Guide

Poly Savi 8200 Series

Welcome to Intermedia Unite

T42G

What’s in the box?

Poly Savi 8200 Series

A. Base

B. Headset

C. Handset Telephone Interface Cable

D. USB Cable

C.D.E.

A. B.

E. Power Adapter

8210 (monaural) 8220 (binaural)

< OR >

Overview

BASE

1 2 3 4

567

8 9 10

11 12 13 14

8 Computer button

1 Power jack

2 Handset lifter jack

3 Telephone interface cable jack

4 USB port

5 Desk phone speaking volume

6 Desk phone configuration switch

7 Desk phone listening volume

9 Mobile phone button

10 Desk phone button

11 Incoming call ringer

12 Bluetooth pairing button/LED

13 Subscription button/LED

14 Charging LED

Overview

HEADSET

1Volume wheel

2Call button

3Mute

4 Headset LED

5 Power button

6 ANC (Active Noise Canceling)

Be safe

Please read the safety guide for important safety, charging, battery and

regulatory information before using your new headset.

Guided Setup

The Savi 8200 headsets support a variety of connection methods

depending on your local setup. Please select from the following

options.

PERSONAL COMPUTER

The Savi 8200 headsets work with the Unite Desktop application

allowing hands-free answer and hang-up. Use the diagram below to

assist in setting up your system

1. Connect the USB-A cable to your personal computer. Connect

the other end to the USB port on the back of the base.

2. Connect the power cable to the base and plug the powe

adapter into an electrical outlet.

3. Place the headset onto the base to charge.

(Please allow at least 20 minutes initial charge time.)

INSTALL SOFTWARE

Plantronics Hub is software that allows you to control the settings on

your Savi 8200 headset. Additionally, it enables integration with the

Unite Desktop application giving you hands-free control during

phone calls. Without Plantronics Hub installed on your computer,

your headset will work with the Unite Desktop application, but will

not work in a hands-free manner.

To download Plantronics Hub, please navigate to the download

website and follow the instructions:

•plantronics.com/software

Once Plantronics Hub is installed, we recommend two settings

changes. Navigate to Settings -> General and change the following

options:

1. Set “Audio Sensing” to “On”.

a. Ths will allow your headset to sense when an audio

connection is made and connect to it quicker.

2. Set “Default Phone Line” to “PC”.

a. This ensures any time you use hands-free options the

headset will automatically attempt to use them with your

computer.

1. Connect the USB-A cable to your Poly VVX phone’s USB port.

2. Connect the power cable to the base and plug the power

adapter into an electrical outlet.

3. Place the headset onto the base to charge. Please allow at least

20 minutes initial charge time.

4. Press and hold the Computer button on the base until it flashes

green. This will set your default channel to the USB connection.

POLY VVX

The Savi 8200 headsets can work with IP Desk Phones with various

levels of integration. Poly VVX desk phones enjoy a deeper level of

integration via the included USB-A cable. Use the diagram below

to assist in setting up your system.

USB-A CABLE with POLY VVX

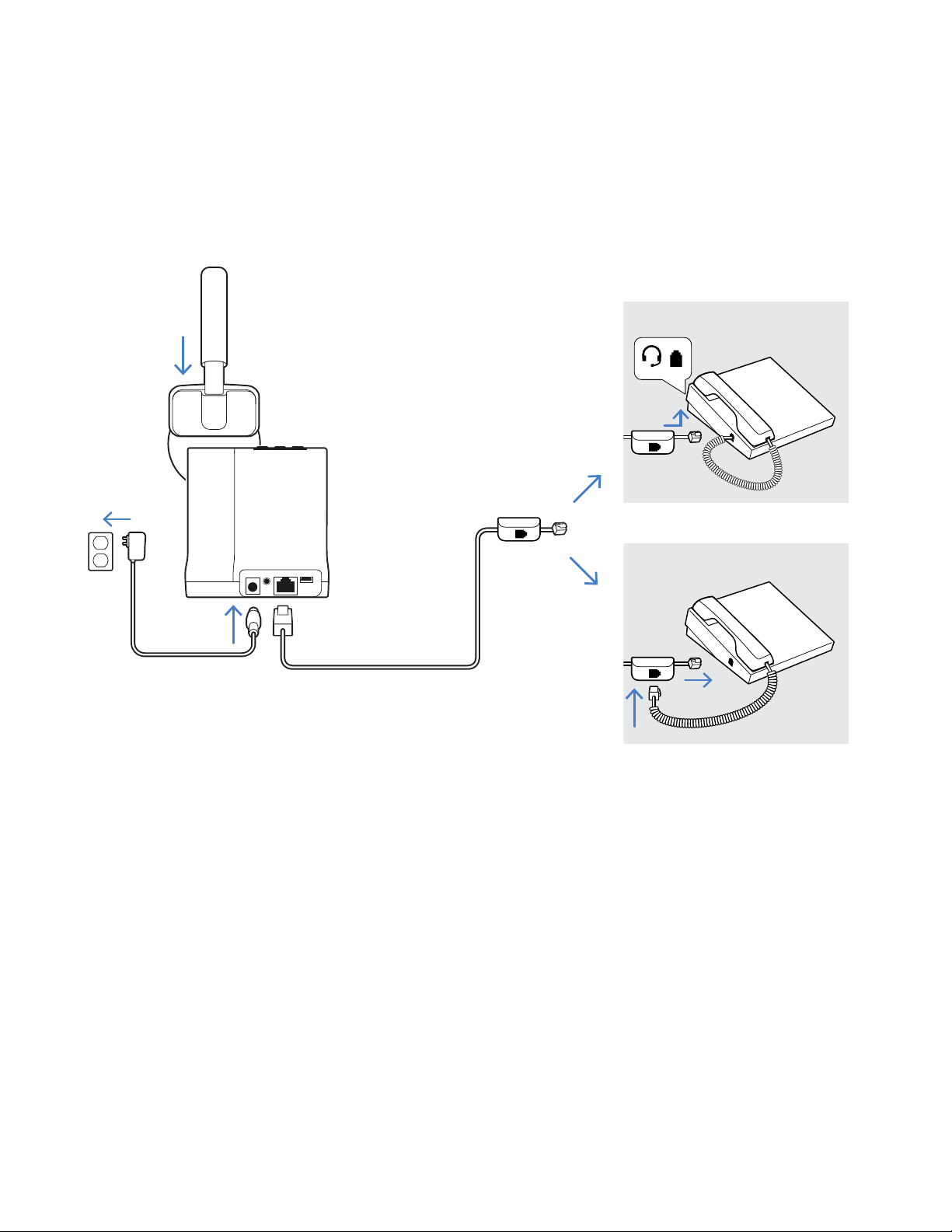

1. Connect the large end of the telephone interface cable to the

base unit. Connect the other end to your IP desk phone. If your

IP Desk phone has a headset port, it is best to use it. If your IP

desk phone has no headset port, you may connect the telephone

interface cable to the handset cable as shown above.

2. Connect the power cable to the base and plug the power adapter

into an electrical outlet.

3. Place the headset onto the base to charge. Please allow at least

20 minutes initial charge time.

No Headset Port

Headset Port

IP DESK PHONE

All IP desk phones should support basic connectivity and functionality

via the included telephone interface cable. Use the diagram below to

assist in setting up your system.

TELEPHONE INTERFACE CABLE

1. If you connected to the headset port, to use the headset:

a. Press the headset button on your phone,

b. Press the Phone button on the top of the base,

c. You should now hear dial tone and may place a call.

2. If you connected to the handset port:

a. Manually pick up the handset,

b. Press the phone button on the top of the base,

c. You should now hear dial tone and may place a call.

Once connected, your IP Desk Phone will work with your headset

depending on the method you used:

IP DESK PHONE (continued...)

TELEPHONE INTERFACE CABLE
