Planet IFGS-1022TF User manual
Industrial 8-Port 10/100TX +
2-Port Gigabit TP/SFP Combo Ethernet Switch
IFGS-1022TF
User’s Manual
Table of Contents
1. Package Contents................................................................................. 3
2. ProductSpecications ........................................................................... 4
3. Hardware Introduction .......................................................................... 6
3.1 Switch Front Panel......................................................................... 6
3.2 LEDDenition ............................................................................... 7
3.3 Switch Upper Panel........................................................................ 8
3.4 Wiring the Power Inputs................................................................. 8
3.5 Wiring the Fault Alarm Contact ....................................................... 9
4. Installation .........................................................................................10
4.1 DIN-rail Mounting Installation ........................................................10
4.2 Wall-mount Plate Mounting ............................................................10
4.3 Side Wall-mount Plate Mounting.....................................................11
4.4 Grounding the Device....................................................................11
Customer Support.....................................................................................12
3
1. Package Contents
Thank you for purchasing PLANET Industrial 8-Port 10/100TX + 2-Port Gigabit
TP/SFP Combo Ethernet Switch, IFGS-1022TF. In the following sections, the
term “Industrial Ethernet Switch” means the IFGS-1022TF.
Open the box of the Industrial Ethernet Switch and carefully unpack it. The
box should contain the following items:
Industrial Ethernet Switch x 1 QR code sheet x 1
DIN-rail Kit Wall-mount Kit
RJ45 Dust Cap x 10 SFP Dust Cap x 2
If any of these are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing
material, and use them again to repack the product in case there is a need to
return it to us for repair.
4
2.ProductSpecications
Product IFGS-1022TF
HardwareSpecications
Fast Ethernet Copper Ports 8 x 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
Gigabit Ethernet Copper
Ports
2 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X
ports
(shared with Port 9 and Port 10)
SFP Ports 2 x 1000BASE-SX/LX/BX SFP interfaces
(shared with Port 9 and Port 10)
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
Connector
Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin
5/6 for Power 2
Alarm One relay output for power failure. Alarm relay
current carry ability: 1A @ 24V DC
Dimensions (W x D x H) 50 x 87.8 x 135 mm
Weight 534g
Power Requirements Dual 9~48V DC, 24V AC
Power Consumption Max. 12.3 watts/42BTU
ESD Protection 6KV DC
SwitchingSpecications
Switch Architecture Store-and-Forward
Switch Fabric 5.6Gbps (non-blocking)
Throughput
(packet per second) 4.16Mpps@ 64 bytes
Address Table 16K entries, automatic source address learning
and aging
SharedDataBuer 4Mbits
Jumbo Frame 10K bytes
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
5
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3z Gigabit SX/LX
IEEE802.3xowcontrolandbackpressure
IEEE 802.1p Class of Service
IEEE802.3azEnergyEcientEthernet(EEE)
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
6
3. Hardware Introduction
3.1 Switch Front Panel
The front panel of the Industrial Ethernet Switch consists of Ethernet interfaces
and LED indicators.
Front View
P1
LNK/ACT
1 2
3 4
5 6
7 8
P2 Alarm
IFGS-1022TF
ACTLNK
1000
2
6
1
43
5
87
109
10
910
Figure 1: I FGS-1022TF Front View
7
3.2 LEDDenition
System
LED Color Function
P1 Green Lights to indicate power input 1 has power.
P2 Green Lights to indicate power input 2 has power.
Alarm Red Lights: indicates either power 1 or power 2 has no power.
Per 10/100BASE-TX Port
LED Color Function
LNK/
ACT Green
Lights to indicate that the port is operating at
10/100Mbps.
Blinking to indicate that the switch is actively sending or
receiving data over that port.
Otoindicatethattheportislinkeddown.
Per Gigabit RJ45 Combo Interface (Port-9~Port-10)
LED Color Function
LNK/
ACT Green
Lights to indicate the link through that port is successfully
established.
Blinking to indicate that the switch is actively sending or
receiving data over that port.
Otoindicatethattheportislinkeddown.
1000
Speed Amber Lights to indicate that the port is operating at 1000Mbps.
Otoindicatethattheportisoperatingat10/100Mbps.
Per SFP+ Combo Interface (Port 9~Port 10)
LED Color Function
1000
LNK/
ACT
Green
Lights to indicate that the port is operating at 1000Mbps.
Blinking to indicate that the switch is actively sending or
receiving data over that port.
Otoindicatethattheportislinkeddown.
8
3.3 Switch Upper Panel
The upper panel of the Industrial Ethernet Switch consists of one terminal
block connector within two power input and one relay output.
Max. Fault Alarm Loading: 24V, 1A
DC Input: 9-48V , 0.8A max.
AC Input: 24V , 0.4A max.
PWR1 PWR2
Alarm
1 2 3 4 5 6
Figure 1: IFGS-1022TF Top View
3.4 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial Ethernet
Switch is used for two redundant power inputs. Please follow the steps below
to insert the power wire.
When performing any of the procedures like inserting the wires
or tightening the wire-clamp screws, make sure the power is
OFF to prevent from getting an electric shock.
1. Insert positive and negative DC power wires into contacts 1 and 2 for
POWER 1, or contacts 5 and 6 for POWER 2.
Max. Fault Alarm Loading: 24V, 1A
DC Input: 9-48V , 0.8A max.
AC Input: 24V , 0.4A max.
PWR1 PWR2
Alarm
1 2 3 4 5 6
9
2. Tighten the wire-clamp screws for preventing the wires from loosening.
123456
Power 1 Alarm Power 2
+ - + -
1. The wire gauge for the terminal block should be in the range
between 12 and 24 AWG.
2. The power input range is 9V ~ 48V DC and supports 24V AC.
3.5 Wiring the Fault Alarm Contact
The fault alarm contacts are in the middle of the terminal block connector as
the picture shows below. Inserting the wires, the Industrial Ethernet Switch
will detect the fault status of the power failure and then forms an open circuit.
The following illustration shows an application example for wiring the fault
alarm contacts.
Fault Alarm Contacts
The Fault Alarm Contacts are
energized (CLOSE) for normal
operation and will OPEN when
failure occurs
Alarm
Insert the wires into the fault alarm contacts
1. The wire gauge for the terminal block should be in the range
between 12 and 24 AWG.
2. Alarm relay circuit accepts up to 24V DC, 1A.
10
4. Installation
This section describes the functionalities of the Industrial Ethernet Switch’s
components and guides you to installing it on the DIN rail and wall. Please
read this chapter completely before continuing.
This following pictures show how to install the device. However,
the device in the picture is not IFGS-1022TF.

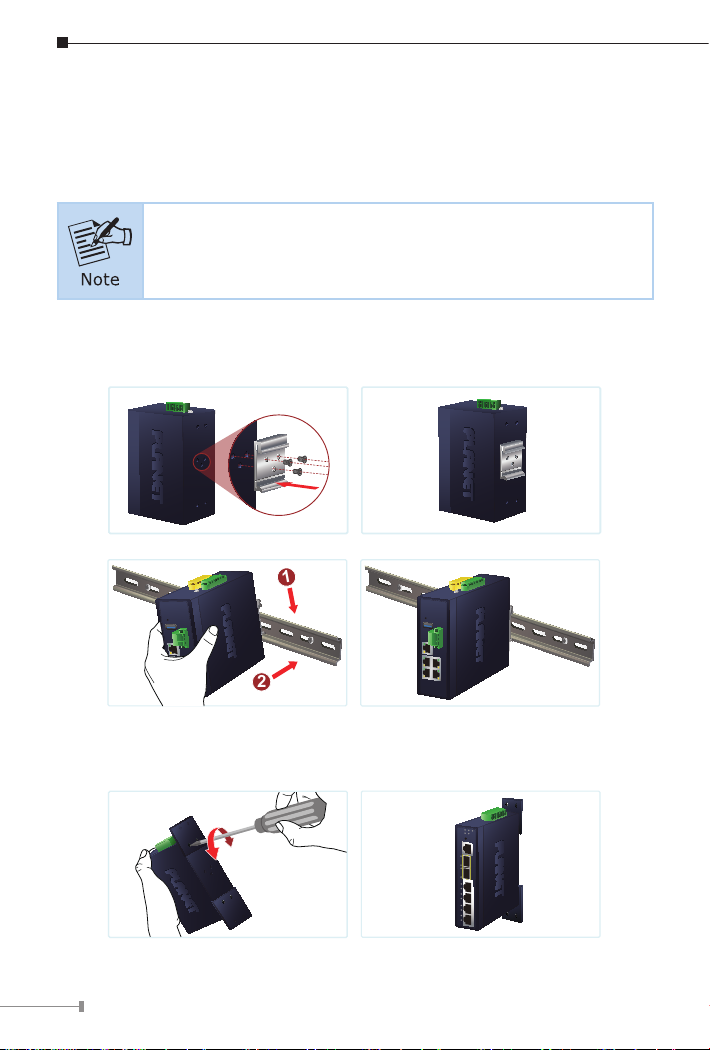

4.1 DIN-rail Mounting Installation
1
2
4.2 Wall-mount Plate Mounting
