Planet PL-501-EU User manual

200Mbps Powerline Ethernet Bridge

PL-501-EU/US/UK

Quick Installation Guide

Table of Contents

Important Safety Instructions ................................................ 3

Package Content................................................................... 4

Package Details ................................................................ 4

LED Denition .............................................................. 5

Button Denition .......................................................... 5

Planning your Powerline Network ................................... 6

Connecting Powerline Ethernet Bridge..................................... 7

Hardware Installation ........................................................ 7

Utility Installation for Windows........................................... 7

Further Conguration ........................................................ 8

Important Safety Instructions

This product is intended for connection to the AC power line.

The following pre-cautions should be taken when using this

product:

Please read all instructions before installing and operating this

product.

Please follow all warnings and instructions marked on the

product.

Do not operate this product near water.

This product should never be place near or over radiator, or

heat register.

This product relies on a building’s electrical installation for

short-circuit (over current) protection.

Ensure that a fuse or circuit breaker is used on the phase

conductors (all current-carrying conductors).

Do not allow anything to reset on the product interconnect

cords.

Do not locate this product where people may walk on the

cords.

The power cord should be plugged directly into a specication

AC wall outlet.

Only a qualied technician should service this product. Opening

or removing covers may result in exposure to dangerous

voltage points or other risk.

Unplug this product from the wall outlet and refer the product

to qualied service personal for the following conditions:

1. When the interconnect cords are damaged or frayed.

2. If liquid has been spilled onto the product.

3. If the product has been exposed to rain or water.

4. If the product does not operate normally when the operating

instructions have been followed.

5. If the product exhibits a distinct change in performance.

Package Content

PL-501-EU/US/UK

n200Mbps Powerline Ethernet Bridge

nRJ-45 Cat.5 Cable

nUser Manual, Quick Installation Guide, and Utility CD-ROM

nQuick Installation Guide

If any of the above items are missing or damaged, contact your

local dealer for support.

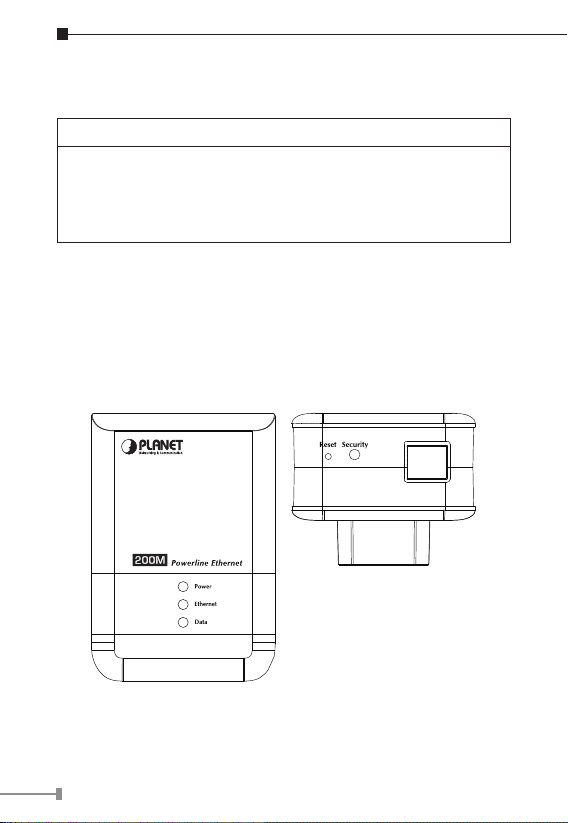

Package Details

Outlook

LED Denition

LED Status Description

Power On Steady on indicate the Powerline device

connect to the power outlet

Ethernet

Blinking Blinking indicates the data are transferring

Steady on indicates the RJ-45 port has

correctly connected to the network card of

your PC or the Ethernet network

Data

Blinking Data transferring in bridge mode

On Connected the other HomePlug devices

Button Denition

Button Description

Reset Reset to factory default

Security

Press security button

during 1~3 seconds.

Join a another

HomePlugAV network

Press security button

more than 10 seconds

Set its security to

random value

Planning your Powerline Network

With a PL-501 and the other Powerline device installed, a

network can be created over residential powerline of your

house. PL-501 can be connected to Ethernet switch, hub,

and broadband router or directly connected to PC. If connect

directly to a PC, of course, the PC must be equipped with an

Ethernet card.

All the Powerline devices on the network must use the same

password to communicate each other. This password can be

congured through the Powerline Conguration utility that can

be found in the CD-ROM. The default password of PLANET

powerline devices is “HomePlugAV”. Thus, all the PLANET

powerline devices can communicate each other without prior

password conguration. Please refer to User’s Manual on detail

of installing and using Powerline Conguration utility.

Connecting Powerline Ethernet Bridge

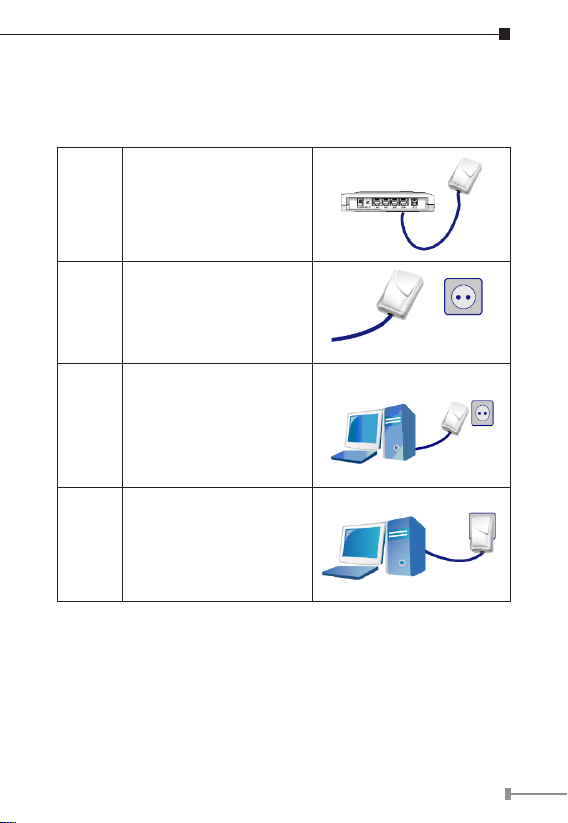

Hardware Installation

Setp 1.

Connect one Powerline

Ethernet bridge to your

ADSL or Cable modem’s

Ethernet port.

Setp 2. Plug it into the nearest

power socket.

Setp 3.

Plug in the second

Powerline Ethernet

bridge next to your PC

and connect the Ethernet

ports.

Setp 4.

Internet access from any

power socket in your

home.

Utility Installation for Windows

The installation procedure for the Powerline Conguration utility

will vary depending on which operating system you are using on

your computer. The following procedure is for installation under

Windows XP. Installation on other operation system is similar.

1. Insert the CD into the CD-ROM drive to initiate the Autorun

program. Once completed, a menu screen will appear.

2. Click on the “Powerline Conguration Utility” hyperlink in

PL-501 eld to start the installation. If the menu screen is

not shown, you can start the installation as follows.

• Click on Start Menu/ Run.

• Enter “E:\Utility\setup.exe” in the appeared box, where

“E” is the letter of your CD-ROM drive.

• Click on “OK” button.

3. The utility will be installed into your computer

and a new icon called “PowerPacket Utility”

will appear on your desktop.

Note

This utility is only for Windows 2000, 2003, XP,

and Vista.

Further Conguration

If you want to congure more detail settings of PL-501, please

refer to user’s manual on the bundled CD.

If you have any difculty on resolving the problem while

installing or using the PL-501, please contact the dealer where

you purchased this product or you can contact PLANET directly

at the following email address: support@planet.com.tw
