Planet Networking & Communication WGS-804HP User manual

Industrial 8-port 10/100/1000T Wall-mounted Gigabit

Ethernet Switch with 4-port PoE+

WGS-804HP

User's Manual

Table of Contents

1. Package Contents................................................................................. 3

2. Hardware Description............................................................................ 4

2.1 Terminal Block Connector Pinouts .................................................... 4

2.2 LED Indicators............................................................................... 5

 2.3 ProductSpecications .................................................................... 7

2.4 Physical Dimensions..................................................................... 10

3. Installation ........................................................................................ 11

3.1 Wall-mount Installation ................................................................ 11

3.2 DIN-rail Mounting Installation ....................................................... 12

3.3 Magnet Installation ...................................................................... 13

4. Customer Support .............................................................................. 14

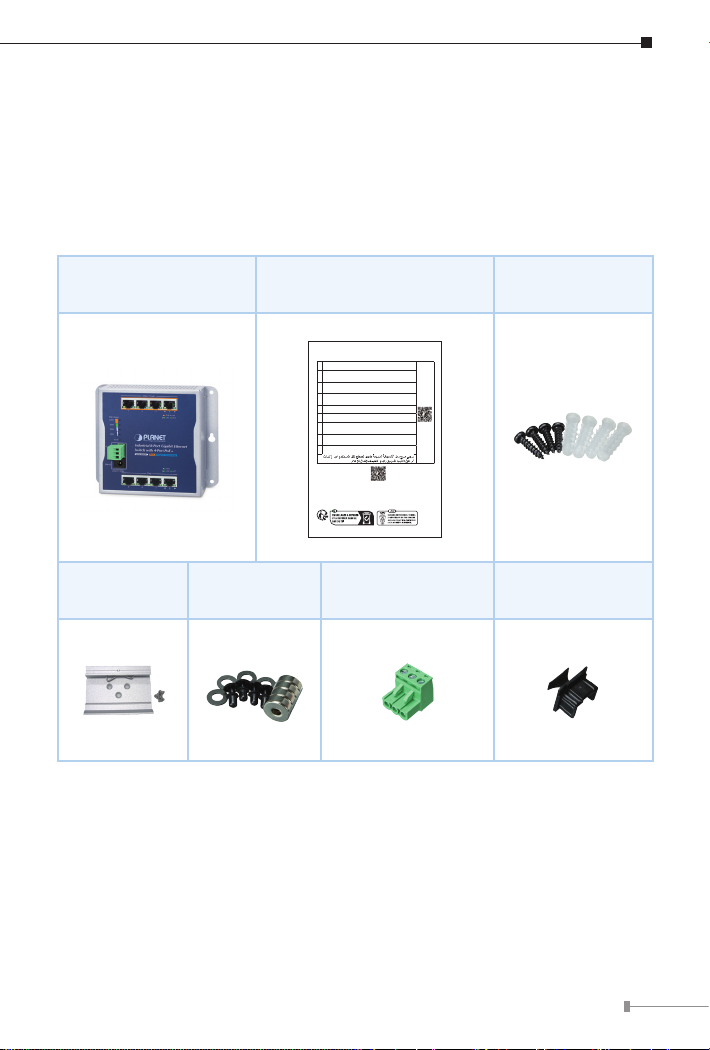

1. Package Contents

Thank you for purchasing PLANET WGS-804HP Industrial 8-port 10/100/1000T

Wall-mounted Gigabit Ethernet Switch with 4-port PoE+. “Wall-mounted

PoE+ Switch” mentioned in this Guide refers to the WGS-804HP.

Open the box of the Wall-mounted PoE+ Switch and carefully unpack it. The

box should contain the following items

The Wall-mounted PoE+

Switch x 1 QR Code Sheet x 1 pc Wall-mounted Kit

x 1 set

Let’s get started with your PLANET product

WGS-804HP

EN Please scan the QR code to browse our online User’s Manual or Quick

Installation Guide and follow the instructions to complete the setup.

User's Manual

Bitte scannen Sie den QR Code sie werden per Browser zur

Bedienungsanleitung oder Schnellanleitung weiter geleitet. Folgen Sie den

Anweisungen um die Installation abzuschließen.

Veuillez scanner le code QR pour obtenir notre Notice d’Utilisation en

ligne ou notre Guide d’Installation Rapide et suivez les instructions pour

compléter la conguration

Escanee el código QR para encontrar el Manual del Usuario en línea o

la Guía de Instalación Rápida y siga las instrucciones para completar la

conguración.

IT Scansiona il codice QR per consultare online il Manuale utente o la Guida di

installazione rapida e segui le istruzioni per completare la congurazione.

PT Por favor, escaneie o QR code para navegar no Manual do Usuário ou Guia

de Instalação Rápida. Siga as instruções para completar a conguração.

Zeskanuj kod QR, aby otworzyć naszą internetową instrukcję obsługi

lub instrukcję szybkiej instalacji. Postępuj zgodnie z instrukcjami, aby

zakończyć poprawną kongurację.

One word modify: Отсканируйте QR-код, чтобы просмотреть наше

онлайн-руководство пользователя или руководство по быстрой

настройке, и следуйте инструкциям для завершения настройки

RO Te rugam sa scanezi codul QR, pentru a descarca User’s Manual sau Quick

Installation Guide si a urmari instructiunile necesare in nalizarea instalarii

Need more help?

PLANET online FAQs:

http://www.planet.com.tw/en/support/faq

Technical Support: [email protected]

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Part No. 2360-A36010-000

DIN-rail Kit x

1 set

Magnet Kit x

1 set

3-pin Terminal Block

Connector x 1 pc RJ45 Dust Cap x 8

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Hardware Description

The front panel of the WGS-804HP Wall-mounted PoE+ Switch consists of 8

auto-sensing 10/100/1000Mbps Ethernet RJ45 ports. The LED indicators are

also located on the RJ45 ports of the Wall-mounted PoE+ Switch.

10/100/1000BASE-T RJ45 Port

DC Jack

802.3at PoE+ 10/100/1000BASE-T RJ45 Port

Power LED

3-pin Terminal Block

PoE Power Usage

2.1 Terminal Block Connector Pinouts

To install the 3-pin Terminal Block Connector on the WGS-804HP, simply follow

the following steps:

Step 1: Insert positive DC power wire into V+, negative DC power wire into

V-, and ground wire into Ground.

V+

Ground

Step 2: Tighten the wire-clamp screws for preventing the wires from

loosening and plug into the Wall-mounted PoE+ Switch.

1. The wire gauge should be in the range from 12 to 24 AWG.

2. The device must be grounded.

3. The DC power input range is 48V ~ 54V DC.

2.2 LED Indicators

 System

LED Color Function

PWR Green Lights to indicate that the Switch has power.

 PoE 10/100/1000BASE-T Interfaces (Ports 1 to 4)

LED Color Function

LNK/ACT Green

Lights To indicate the link through that port is

successfully established.

Blinks To indicate that the switch is actively

sending or receiving data over that port.

O IfLNK/ACTLEDiso,itindicatesthatthe

port is link-down.

PoE-in-Use Amber

Lights To indicate the port is providing DC in-line

power.

O To indicate the connected device is not a

PoE powered device (PD).

 10/100/1000BASE-T Interfaces (Ports 5 to 8)

LED Color Function

LNK/ACT Green

Lights To indicate the link through that port is

successfully established.

Blinks To indicate that the switch is actively sending

or receiving data over that port.

O IfLNK/ACTLEDiso,itindicatesthatthe

port is link-down.

1000 Green

Lights To indicate that the port is operating at

1000Mbps.

O If1000LEDiso,itindicatesthattheportis

operating at 10/100Mbps.

 PoE Power Usage (Unit: Watt)

LED Color Function

30 Amber Lights To indicate the system consumes over 30-watt PoE

power budget.

60 Amber Lights To indicate the system consumes over 60-watt PoE

power budget.

90 Amber Lights To indicate the system consumes over 90-watt PoE

power budget.

120 Amber Lights To indicate the system consumes over 120-watt PoE

power budget.

2.3 ProductSpecications

Product WGS-804HP

HardwareSpecications

Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

PoE Inject Port 4-Port with 802.3af/802.3at PoE injector function

(Ports 1 to 4)

Connector

 Removable 3-pin terminal block for power input

- Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)

- Pin 3 for earth ground

 DC power jack with 2.0mm central pole

Power Requirements 48V~54V DC, 3A (max.)

Power Consumption/

Dissipation Max.130 watts/443 BTU

Dimensions

(W x D x H) 148 x 25 x 134 mm

Weight 561g

ESD Protection Contact Discharge 6KV DC

Air Discharge 6KV DC

Enclosure IP30 metal

Installation Wall mount, magnetic wall mount and DIN-rail kit

LED

Power LED:

Power (Green)

PoE Power Usage LED:

30W, 60W, 90W, 120W (Amber)

PoE Ports (Ports 1 to 4):

PoE-in-Use (Amber)

LNK/ACT (Green)

10/100/1000BASE-TX Ports (Ports 5 to 8):

1000 (Green)

LNK/ACT (Green)

SwitchSpecications

Switch Architecture Store-and-Forward

Switch Fabric 16Gbps/non-blocking

Switch

Throughput@64

bytes

11.9Mpps @64 bytes

MAC Address Table 8K entries

SharedDataBuer 1Mbit

Flow Control IEEE 802.3x pause frame for full duplex

Back pressure for half duplex

Jumbo Frame 9KB

Power over Ethernet

PoE Standard IEEE 802.3af/802.3at Power over Ethernet PSE

PoE Power Supply

Type End-span

PoE Power Output

IEEE 802.3af Standard

- Per port 48V~54V DC (depending on the power

supply), max. 15.4 watts

IEEE 802.3at Standard

- Per port 50V~54V DC (depending on the power

supply), max. 36 watts

Power Pin

Assignment 1/2(+), 3/6(-)

PoE Power Budget 120 watts (depending on power input)

Max. Number of

Class 2 PDs 4

Max. Number of

Class 3 PDs 4

Max. Number of

Class 4 PDs 4

Standards Conformance

Regulatory

Compliance FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall)

IEC 60068-2-27 (shock)

IEC 60068-2-6 (vibration)

Standards

Compliance

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab Gigabit 1000BASE-T

IEEE 802.3x Flow Control and Back Pressure

Environment

Operating Temperature: -40 ~ 75 degrees C

Relative Humidity: 5 ~ 95% (non-condensing)

Storage Temperature: -40 ~ 85 degrees C

Relative Humidity: 5 ~ 95% (non-condensing)

Accessories

Standard Accessories

 QR Code Sheet x 1

 3-pin Terminal Block Connector x 1

 Wall-mounted Kit x 1

 DIN-rail Kit x 1

 Magnet Kit x 1

 RJ45 Dust Cap x 8

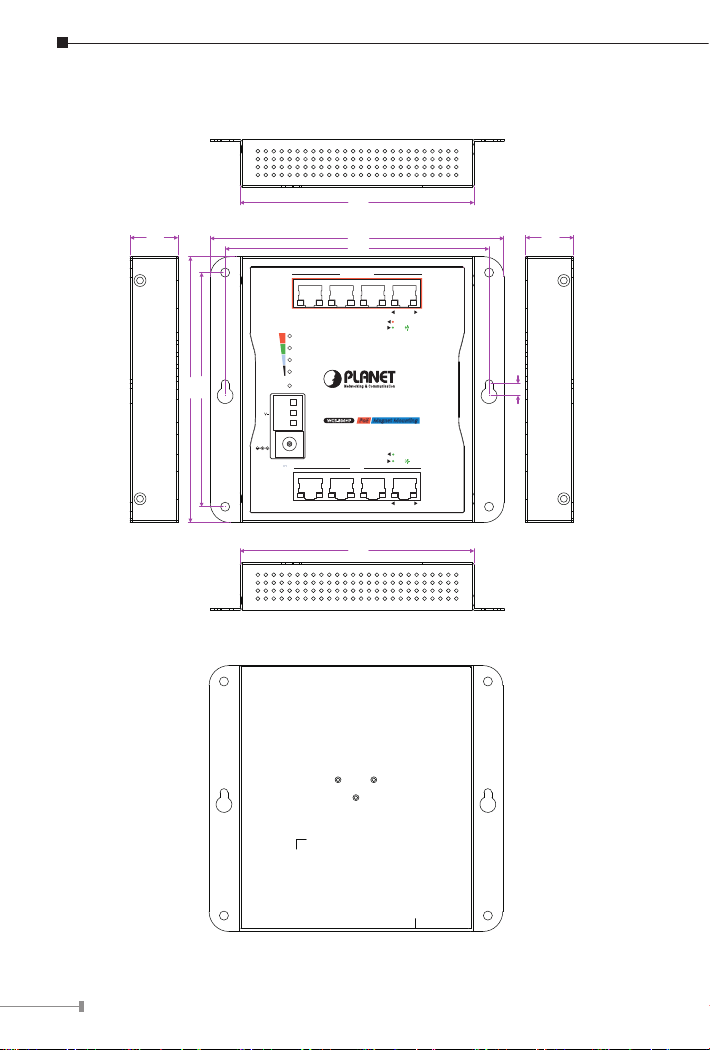

2.4 Physical Dimensions (W x D x H): 148 x 25 x 134 mm

148.00 24.20

134.00

133.00

118.00

6.00

24.20

118.00

3 421

7 865

Data+ Power

Data

120W

PoE Usage

90W

60W

30W

PWR

ACTLNK

1000

ACTLNK

PoE-in-Use

Industrial 8-Port Gigabit Ethernet

Switch with 4-Port PoE+

WGS-804HP PoE Magnet Mounting

V+

Ground

DC Input Range

48-56V

, 3A max.

Unit: mm

148.00 24.20

134.00

133.00

118.00

6.00

24.20

118.00

3 421

7 865

Data+ Power

Data

120W

PoE Usage

90W

60W

30W

PWR

ACTLNK

1000

ACTLNK

PoE-in-Use

Industrial 8-Port Gigabit Ethernet

Switch with 4-Port PoE+

WGS-804HP PoE Magnet Mounting

V+

Ground

DC Input Range

48-56V

, 3A max.

Unit: mm
