Planar PT1520MU User manual

PT1520MU

Touchscreen LCD Monitor

USER’S GUIDE

www.planar.com

Important Recycle Instructions:

LCD Lamp(s) inside this product contain mercury. This product may contain

other electronic waste that can be hazardous if not disposed of properly. Recycle or

dispose in accordance with local, state, or federal Laws. For more information,

contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific

disposal information check WWW.LAMPRECYCLE.ORG.

Table of Contents

Usage Notice

Precautions.........................................................................................2

Introduction

About Planar’s PT1520MU..................................................................3

Touch Screen for PT1520MU…………………………………………….4

Package Overview..............................................................................5

Installation

Product Overview................................................................................6

VESA Mount........................................................................................8

Removing the Deskstand…………………………………………………8

Cable Management………………………………………………………..9

Start Your Installation ........................................................................10

User Controls

Front Panel Controls.........................................................................12

How to Use the OSD Menus.............................................................13

On-Screen Display Menus ................................................................14

Appendices

Troubleshooting.................................................................................15

Warning Signal..................................................................................16

Product Dimensions..........................................................................17

Compatibility Modes..........................................................................18

Touch Screen Driver Installation………………………………………..19

Usage Notice

Warning-To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

Warning-Please do not open or disassemble the product as

this may cause electric shock.

Precautions

Follow all warnings, precautions and maintenance as recommended

in this user’s manual to maximize the life of your unit.

Do:



Turn off the product before cleaning.



Touch screen surface may be cleaned using a soft clean cloth

moistened with mild window glass commercial cleaners or 50/50

mixture of water and isopropyl alcohol.



Use a soft cloth moistened with mild detergent to clean the display

housing.



Use only high quality safety approved AC/DC power adapter that

comes with your monitor.



Disconnect the power plug from the AC outlet if the product is not

going to be used for an extended period of time.

Don’t:



Do not touch the LCD Display screen surface with sharp or hard

objects.



Do not use abrasive cleaners, waxes or solvents for cleaning.



Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- In direct sunlight.

Introduction

About Planar’s PT1520MU

The PT1520MU is a 15” flat panel screen with an active matrix,

thin-film transistor (TFT) liquid crystal display (LCD).

Features include:



Direct analog signal input



Active matrix TFT LCD technology



1024x768 XGAresolution



15” viewable display area



31.5 ~ 60 kHz horizontal scan



56 ~ 75 Hz refresh rate



Auto -adjustment function



Multilingual OSD user controls



VESA DPMS power saving



Kensington security slot



Built-in speakers for multimedia application



75 mm VESA mount



Removable base for flexible mounting solutions



3m® 5-wire Resistive touch screen

Touch Screen for PT1520MU



3m® 5-wire Resistive touch screen for finger and stylus input



Surface: Anti-glare treatment



Interface: USB



Durability: 35 million touches at a single point



Hardness of surface: 4H perASTM D3363-92



Operating force: Stylus- <25 g (average)

Finger - <50 g (average)



Transmissivity: 83% (Typ.) + 2%



Haze: 5% (Typ.)

Driver: 3m® MT 7.11. Supports Microsoft Windows® 2000, XP

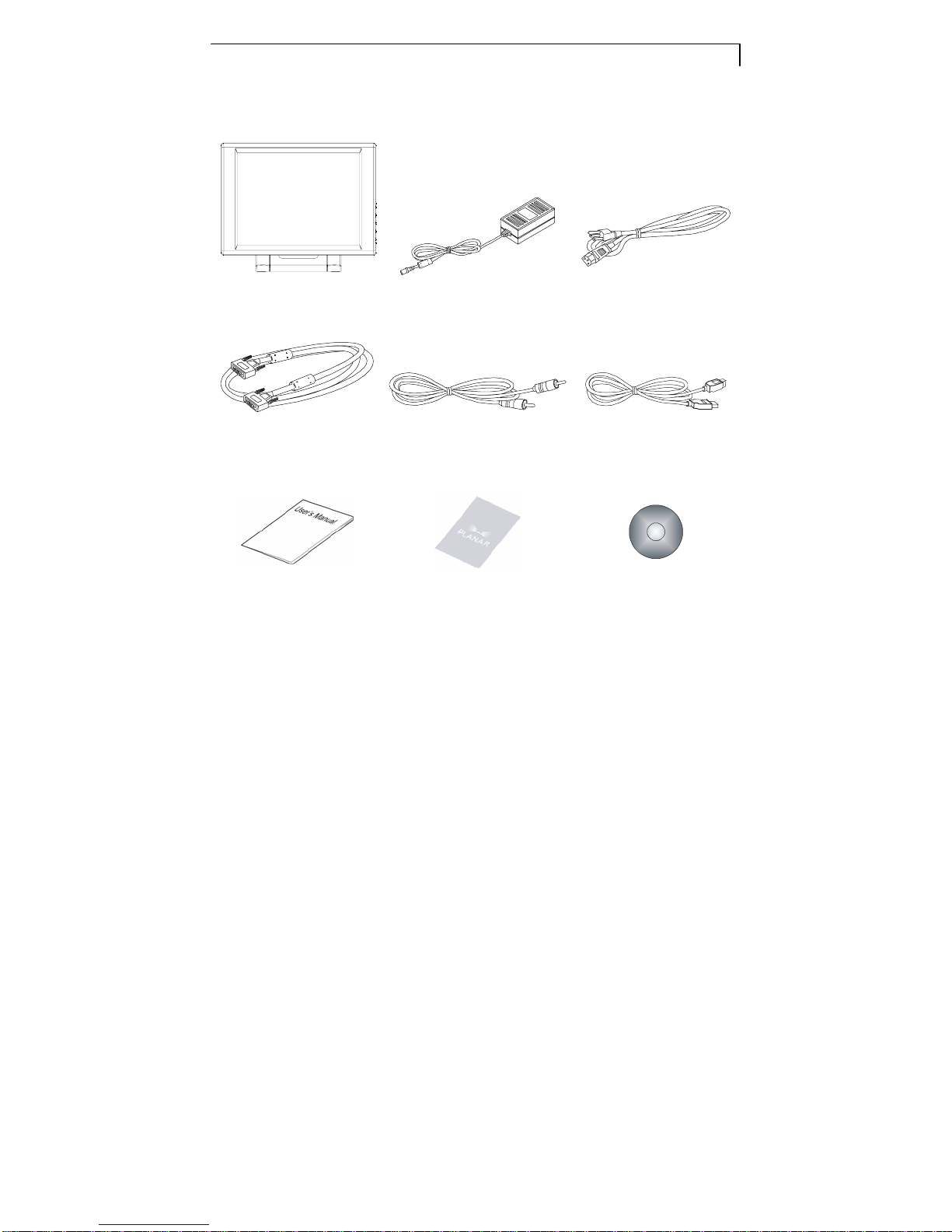

Package Overview

LCD Display Power Adapter Power Cord

VGA Signal Cable Audio-in Cable USB Cable

User’s Guide Landing Strip Touchscreen Driver

Installation CD-ROM

Installation

Product Overview



Front View



Back View

Connector Ports

as shown below

VGA

input

Panel Controls

Stand

Liquid Crystal

Display (LCD

Display)

Audio-inDC

-In USB
