ServiceManual

Philips Consumer Lifestyle

PowerPro Aqua

FC6402/01

FC6402/61

15/10 Version 1.4

Product information

Safety

•This product meets the requirements regarding

interference suppression on radio and TV.

•After the product has been repaired, it should function

properly and has to meet the safety standards as

officially laid down at this moment.

Repair instruction

•No specific issues

Technical information

•Colour : Grey

Performance

•Battery type : Li-Ion

•Battery voltage : 18 V

•Charging time : 5 hrs

•Runtime : 40 min.

•Sound power level : 83 dB

•Surface coverage per tank : 50 m2

•Weight : 3,2 kg

Usability

•Clean water tank capacity (max) : 0,2 l

•Dust capacity : 0,6 l

Filtration

•Exhaust filter : Washable filter

Nozzles and accessories

•Accessories included : Micro fiber pad

•Standard nozzle : TriActive Turbo Nozzle

Optional (accessories)

•FC8063/01 : 4322 004 94311

(extra pad for mopping)

FC6402/01 /61

2-10

Battery can be replaced as following:

•Unscrew the the complete backpanel. (see picture).

•Remove the backpanel, watch the snapnocks!!

(see picture).

•The battery is under the plastic battery cover, remove the

screws of this Battery cover. (see picture)

•Now the battery can be removed by “unplugging” the

wires. (see picture).

•A new battery assy can now be plugged in, the battery

cover can be replaced and the backpanel can be

replaced.

•When closing the lower stick you must hear 2 <clicks> at

the snapnocks.

Disassembly- and Reassembly advice

FC6402/01 /61

3-10

Disassembly- and Reassembly advice

•The Mop assy can easily be clicked on the nozzle (magnetic points) and removed as shown below.

4 5 6

•To remove the Mop assy:

FC6402/01 /61

4-10

Disassembly- and Reassembly advice

•The Brush can be cleaned and replaced as shown below :

1 2 3

4 5

FC6402/01 /61

5-10

Stick

Unit

Battery pack

Low/

High

On/Off Brush

Motor

Suction

Motor

Current

Fuse

Batteries

NTC -t

LED

Charging and

Discharging

Adaptor

Input

100-240V AC

DC Jack

Parts list

CIRCUIT DIAGRAM

Pos Service code Description Remark

1 4322 006 24331 Adaptor 18 V Li-ion (Stick) Euro plug

1 4322 006 25221 Adaptor 18 V UK plug

2 4322 006 24361 Battery pack 18 V Li-ion (Stick)

3 4322 006 25351 PCBA 18 V Li-ion (Stick)

4 4322 006 95131 Fan motor 18 V

5 4322 006 95111 Nozzle motor

6 4322 004 94361 Freudenberg lter Hawaii

7 4322 004 94011 Brush Hawaii

8 4322 005 35581 Dustbin assy

9 4322 005 35591 Dust separator assy

10 4322 005 35601 Cycloon assy

11 4322 005 35611 Wall mount assy

13 4322 005 37031 Mop assy

14 4322 005 37021 Water dispenser assy

15 4322 004 94311 Pad

FC6402/01 /61

6-10

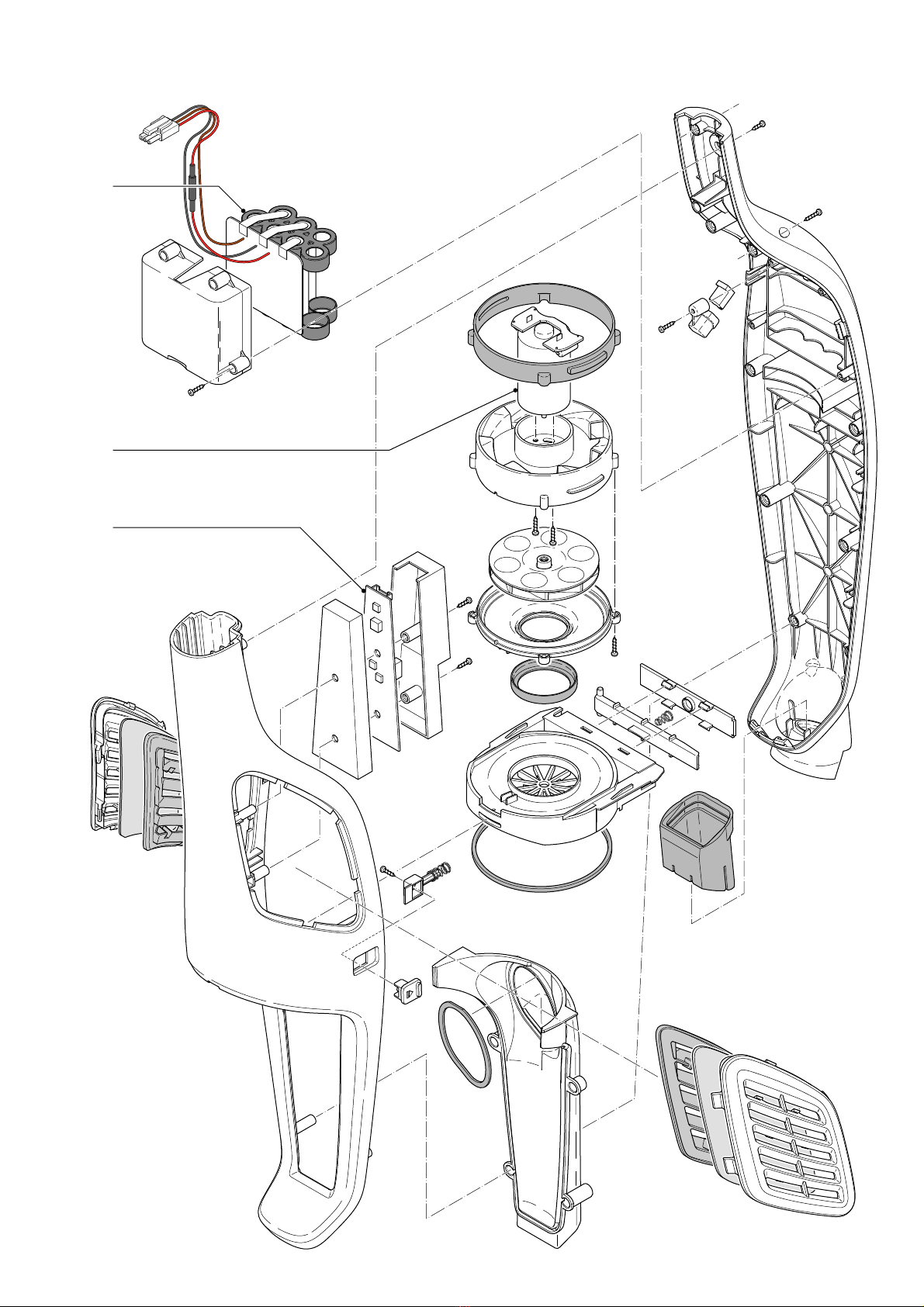

Exploded view

FC6402/01 /61

7-10

Exploded view

FC6402/01 /61

8-10

Exploded view

FC6402/01 /61

9-10

Exploded view

FC6402/01 /61

10-10

Version history

Version 1.1 : FC6402/01 initial release.

Version 1.2 : Added new version: FC6402/61.

In Parts List and Exploded view: Added Pos. 1: 4322 006 25221 Adaptor 18 V UK plug.

Version 1.3 : Updated picture on front page.

In Parts List: Changed Pos. 6, 4322 004 94351 Freudenberg lter Hawaii into

4322 004 94361 Freudenberg lter Hawaii.

Version 1.4 : On front page under Usability: Changed, Clean water tank capacity (max) : 0,6 l into 0,2 l.

Added, Dust capacity : 0,6 l.
