Philips FC6094 User manual
FC6094, FC6092, FC6090
2
3
1
4
ENGLISH 6
FRANÇAIS 14
ESPAÑOL 22
PORTUGUÊS 30
BAHASA MELAYU 38
46
52
60
67
á«Hô©dG 81
v<ñUã 88
FC6094, FC6092, FC6090

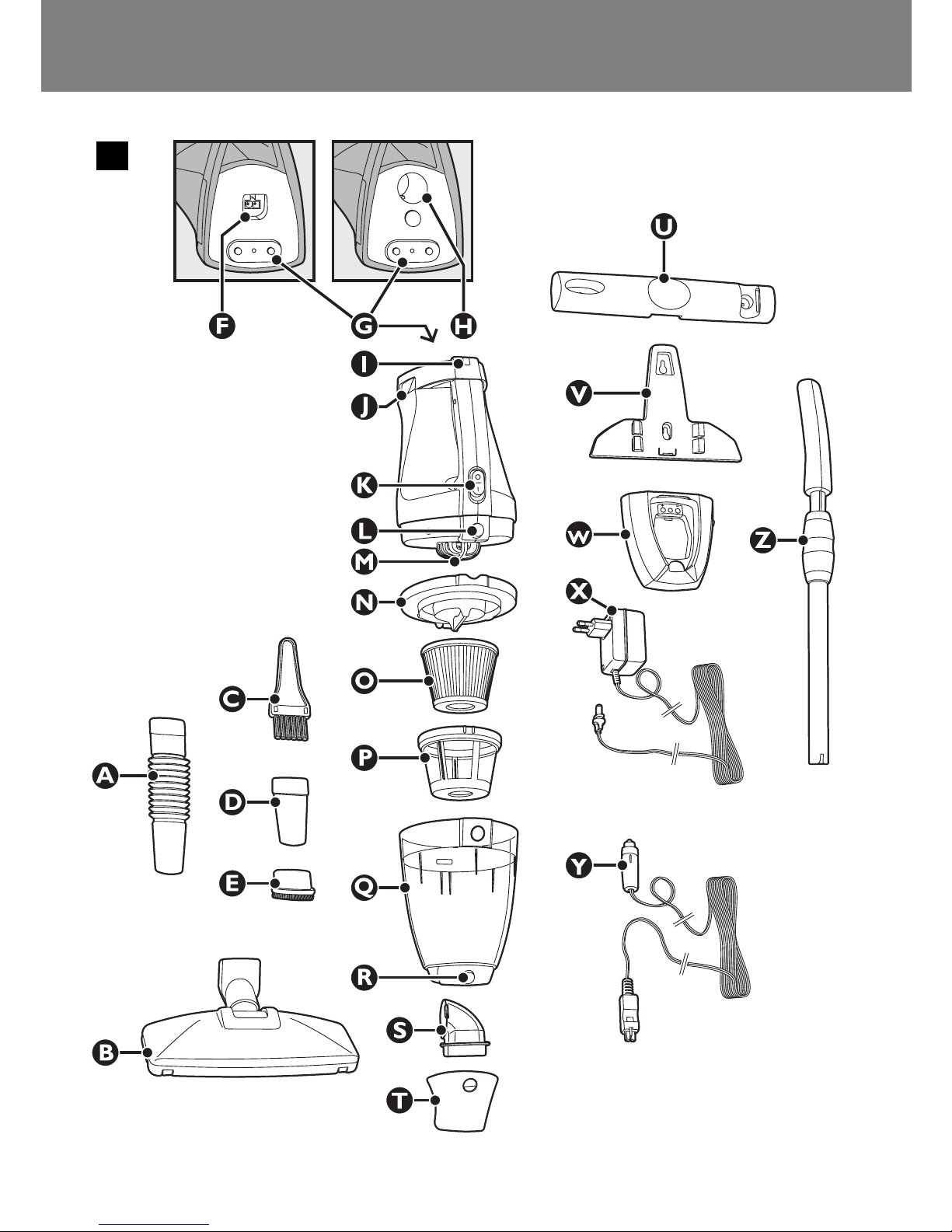

General description (fig. 1)
ABendable crevice tool (FC6092/6090)
BFloor nozzle (FC6094 only)
CCleaning brush
DCrevice tool
EBrush tool
FSocket for car cord (FC6092 only)
GContact points
HConnection for telescopic stick (FC6094 only)
ICharging light with battery-low indication
JExhaust air openings
KOn/off slide
LDust compartment release button
MMotor inlet grille
NFilter holder
OInner filter
POuter filter
QDust compartment
RNozzle release button
SNozzle insert
TDetachable nozzle
UNozzle & stick holder (FC6094 only)
VWall mounting bracket
WCharging base
XAdapter
YCar cord with car plug (FC6092 only)
ZTelescopic stick (FC6094 only)
Important
Read these instructions for use carefully before using the appliance and
save them for future reference.
◗Check if the voltage indicated on the appliance corresponds to
the local mains voltage before you connect the appliance.
◗Do not use the appliance if it is damaged in any way. Take it to
an authorised Philips service centre for repair.
ENGLISH6
◗If the adapter or charging base is damaged, always have it
replaced by one of the original type to avoid a hazard.
◗FC6092 only: if the car cord or car plug is damaged, stop using
the car cord and have it replaced by one of the original type.
◗Never suck up water or any other liquid. Never suck up ashes
until they are cold.
◗Never immerse the vacuum cleaner, the adapter or the charging
base in water.
◗Remove the adapter from the wall socket before cleaning the
charging base.
◗Only charge the vacuum cleaner with the adapter and charging
base supplied. During charging, the adapter will feel warm to the
touch. This is normal.
◗Always switch the vacuum cleaner off after use.
◗Keep the appliance out of the reach of children.
◗The voltage on the contact points in the charging base is low
(max. 30 volts) and therefore not dangerous.
◗Never block the exhaust air openings during vacuuming.
◗Switch the appliance off when recharging it.
◗To avoid the risk of electric shock, be careful when drilling holes
in the wall to attach the wall mounting bracket, especially close
to a wall socket.
◗Always use the appliance with the filter unit.
◗Always use the appliance with the nozzle insert in place.
Preparing for use
Attaching the charging base to the wall
1Screw the wall mounting bracket to the wall with the screws
supplied with the appliance (fig. 2).
2Attach the charging base to the wall mounting bracket (fig. 3).
3Attach the nozzle & stick holder to the wall mounting bracket
(FC6094 only).
4Screw the nozzle & stick holder to the wall with the screws
supplied with the appliance.
ENGLISH 7
5You can also place the charging base on a level and horizontal
surface (fig. 4).
6Slide the brush tool onto the crevice tool and place them in the
charging base (fig. 5).
7FC6094 only: insert the telescopic stick and the floor nozzle into
the nozzle & stick holder ('click') (fig. 6).
Charging the appliance
Charge the appliance for at least 18 hours before you use it for the first
time.
When the charging light starts blinking during operation, the battery
pack is running low and needs to be recharged.
1Insert the small plug into the charging base and insert the adapter
into the wall socket (fig. 7).
◗The charging light will go on to indicate that the appliance is
charging (fig. 8).
BThe charging light will stay on as long as the appliance is placed on the
charging base and the adapter is in the wall socket.
BThe charging light does not give any information about the charge level
of the built-in battery pack.
Using the appliance
1Push the on/off slide forwards to switch the appliance on (fig. 9).
2Push the on/off slide backwards to switch the appliance off
(fig. 10).
3Leave the adapter in the wall socket and always put the vacuum
cleaner back onto the charging base after use, even if the battery
pack is still almost fully charged.
ENGLISH8
Accessories
Tools
This appliance comes with the following tools:
-1brush tool for cleaning delicate surfaces
-2crevice tool for cleaning hard-to-reach places
-3bendable crevice tool for cleaning at an angle (FC6092/6090
only)
1Take the tool you want to use.
2Attach the tool to the detachable nozzle (fig. 11).
Car cord (FC6092 only)
With the car cord you can connect the vacuum cleaner to the cigarette
lighter socket in your car and use it as long as necessary without having
to recharge it.
1Insert the small plug of the car cord in the socket of the
appliance and insert the car plug in the cigarette lighter socket of
your car (fig. 12).
The car cord cannot be used to charge the appliance.
2Detach the car cord from the appliance by pressing the button
on the small plug.
To prevent damage, do not pull the small plug out of the appliance
without pressing the button.
Extra reach (FC6094 only)
1Attach the telescopic stick by pushing it firmly into the back of
the appliance until it locks into position ('click') (fig. 13).
The telescopic stick gives you extra reach when cleaning hard floors,
carpets and hard-to-reach areas.
2Then attach the floor nozzle to the detachable nozzle (fig. 14).
The floor nozzle can be used to vacuum hard floors and carpets. The
floor nozzle is equipped with a fluff collector that removes hair or fluff.
BPass the fluff collector gently over the hairs or fluff to be removed. The
hairs or fluff will be worked loose from the surface, collected and then
sucked up.
ENGLISH 9
3Adjust the stick to the length you find most comfortable during
vacuum cleaning by pushing the ring downwards and pulling the
upper part of the stick upwards (fig. 15).
4To detach the telescopic stick, press the release button on the
back of the vacuum cleaner and pull the stick out of the appliance
(fig. 16).
Cleaning
Always remove the adapter from the wall socket before cleaning the
charging base.
Never immerse the vacuum cleaner, the adapter or the charging base
in water.
1Clean the charging base and the appliance with a damp cloth.
Dust compartment and filters
Make sure you empty the dust compartment and clean the filters
regularly.
We advise you to clean the filters every 2 to 4 weeks to maintain
optimal suction performance.
Quick cleaning
To quickly empty the dust compartment:
1Remove the detachable nozzle by pressing the nozzle release
button (fig. 17).
2Shake the contents of the dust compartment out into a dustbin
(fig. 18).
Thorough cleaning
To thoroughly clean the dust compartment and the filter unit:
1Hold the appliance over a dustbin, press the dust compartment
release button (1) and remove the dust compartment (2) (fig.
19).
2Take the filter unit out of the dust compartment (fig. 20).
ENGLISH10
