Philips AmazonLED2 BBC201 User manual

Instructions de montage

Montageanleitung

Montage instruktie

Istruzioni di montaggio

Instrucciones de montaje

Instruções de montagem

Monteringsinstruktioner

Monteringsvejledning

Kokoonpano- ja kiinnitysohjeet

Montaj yönergesi

Instrukcja montazu

Szerelési utasítások

Návod k montázi

bycnherwbz gj vjynf:e

Návod k montáži

Mounting instructions

12NC 000 00000

04 / 2012

Data subject to change without notice

Printed in Spain

www.philips.com/lighting

Indoor Outdoor 24V

AmazonLED224V BBC201

IP.. IK09 kg

BBC201 0.13 66+67 6x LEDs 1000 58

170mm

Ø90mm

5,5mm

Ø90mm

5,5mm

3mm

5,5mm

66mm

Ø56mm

Max.Ø60mm

L=200mm(included)

upper plane of box lit

upper plane of luminary

5,5mm

Not

included

Max.

Ø5mm

included

Materials like wood,

concrete, gypsum board.

box lit

luminary

Included

230V 24V

Transformer

230V/24V

2x 3x 10x max.

Dmax. 40mtr.

Dp.1 30mtr.

T10

Build-in:

1(3x)

15-30

Min.

cable opening

Ø90+0.5mm

Ø66+2.0mm

26+1.0mm

Tmax.=50°C

H07RN-F 2x 1,5 mm2

min.Ø8,5 maxØ12

Make a proper IP67/68

connection to mains for

the 24V/0.4W product,

e.g. H07RN-F mains

cable and a Hylec-

APL/Paguro 5633 or

5625 type connector

- or better.

En cas d’endommagement du cable,merci de contacter votre vendeur.

In case of damage to the external electrical cable, please contact your local dealer.

Bei Beschädigung der äußeren elektrischen Kabel wenden Sie sich bitte an ihren Händler.

Bij beschadiging van de externe electrische kabel, a.u.b. contact opnemen met Uw dealer.

En caso de rotura del cable eléctrico externo, contacte porfavor con su proveedor local.

W przypadku stwierdzenia uszkodzenia zewnetrznego przewodu zasilajacego, prosze

skontaktowac sie ze sprzedawca.

Réparations et installation uniquement par personnel qualiﬁe.

Repair and installation only done by qualiﬁed personnel.

Reparatur und Installation nur durch qualifiziertes Personal.

Reparaties en installatie moet plaatsvinden door gekwaliﬁceerd personeel.

Reparación y instalación únicamente por personal cualiﬁcada.

Naprawy i instalowanie produktu powierzac tylko specjalistycznemu personelowi.

Ø8,5

H07RN-F

2x 1,5 mm2

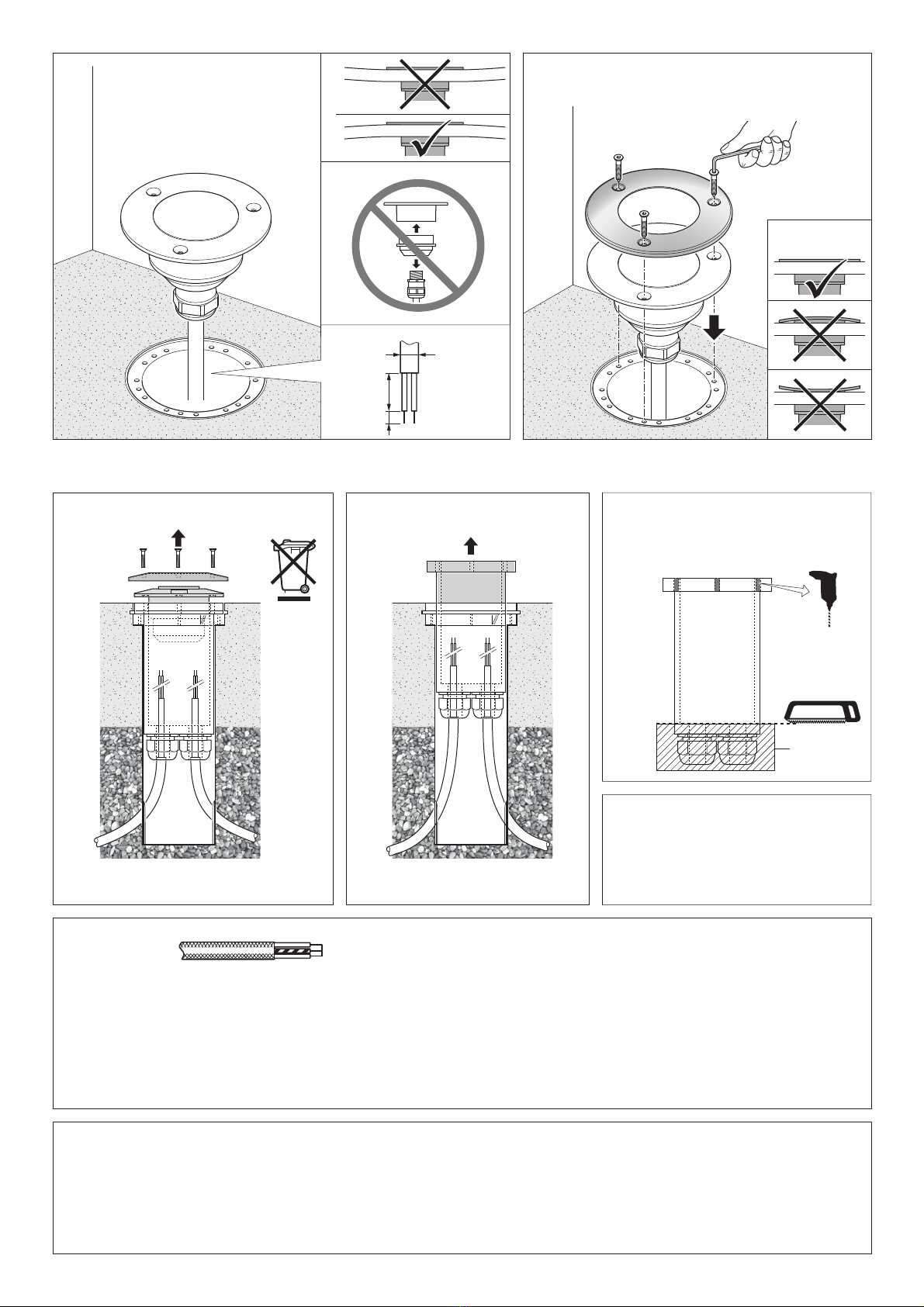

Retrofit installation

Remove recessed inner box (only!)Remove old AmazonLED luminair

use new screwing holes at all times to ensure proper

mounting as well as vandalism protection (easy pull-out).

modify recessed inner box by saw

(remove bottom part) and re-mount

modified recessed inner box.

remove

Install new AmazonLED2 luminair.

See steps 1-4

Flat edge mounting

of luminair

New holes.

3x Ø1,5mm
