Philips Lytespan 23S20MR User manual

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

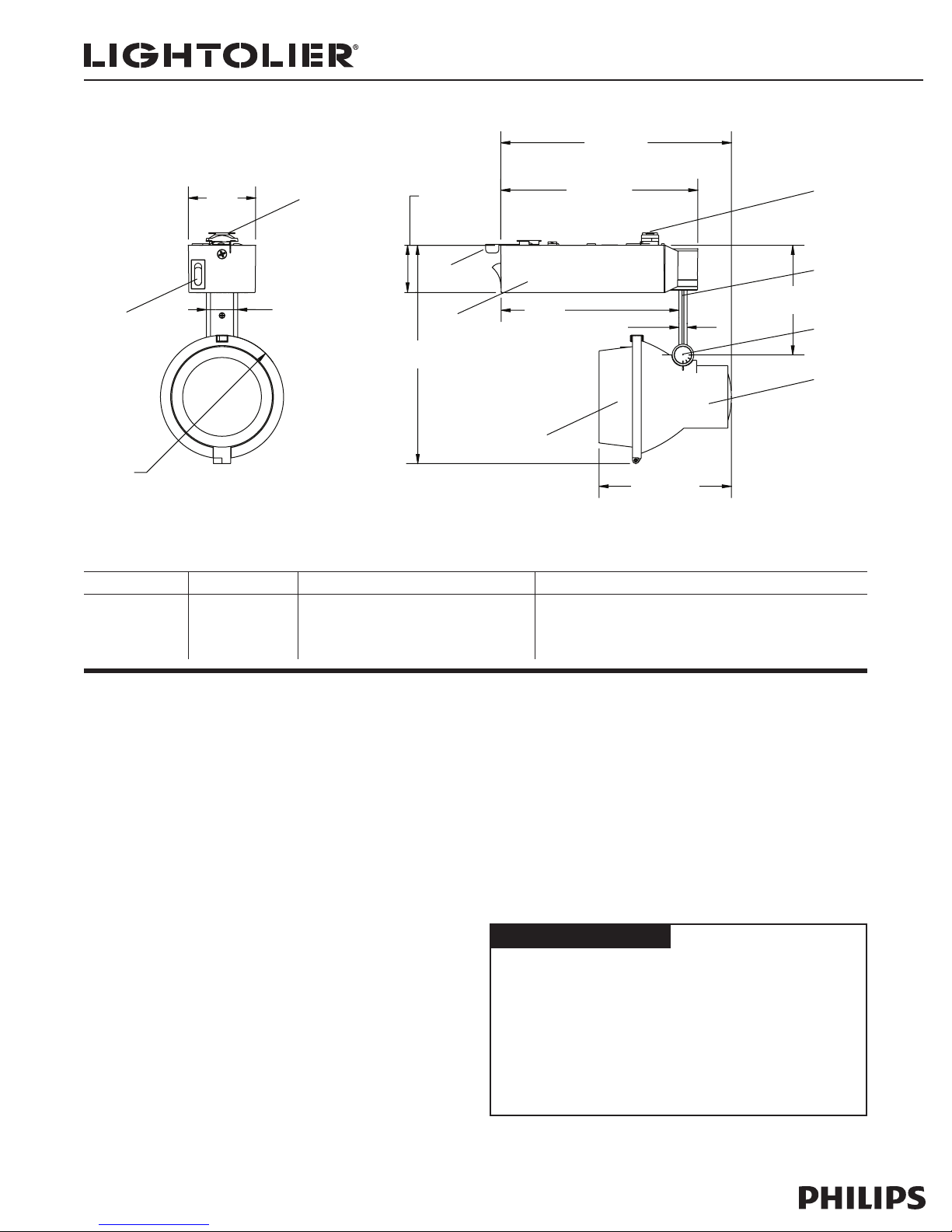

Lytespan®Track Lighting System 23S20MR

Page 1 of 2 Alcyon HID 20W CMH MR16 Step Spot

Ordering Information

Catalog No. Finish Mounting Lamps

23S20MRAL Aluminum For use with Lytespan Radius, Basic and Advent 20W MR16 GX10 Base Ceramic Metal Halide

23S20MRBK Black Track. Not compatible with extension wands or

23S20MRWH White slope ceiling adapters. For monopoint

applications refer to spec sheet 6171.

Features

1. Track Attachment Fitting: Locking lever for mechanical/

electrical connection.

2. Brass Contact: Extends for connection to second circuit

(Advent track only).

3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation.

Position may be locked using an allen key.

4. Vertical Pivot: 0-90° vertical adjustment with aiming indicator. Position

may be locked using an allen key.

5. Fixture Housing: Die cast aluminum

6. Ballast Housing: Molded polycarbonate

7. On/Off Switch: Rocker switch to disconnect power to the ballast.

8. Accessory Cartridge: Hinged and captive; retaining ring included. Inside

painted black to reduce glare.

9. Safety Locking Lever: Locks ballast housing to track.

Finish

All Painted finishes are baked enamel.

Accessories

Accessory Holder: Integral

Accessories: Accepts 1 snoot plus 2 lenses or 1 louver plus 1 lens.

Louver can be used without lens.

Lens: AF25, ADF25 Series

Louver: AL25HC

Electrical

Electronic Ballast

Input Voltage: 120V,50/60Hz

Power Factor: High

Input Power: 24W

Max. Input Current: 0.20A

ANSI Code: M156

Do not use on dimming circuit.

Labels

UL, cUL

3 3/16"

[80 mm]

7/8 "

[23 mm]

1 15/16 "

[49 mm]

6 5/8"

[169 mm]

5 11/16"

[144 mm]

1 3/8"

[35 mm]

6 5/16"

[160 mm]

5 1/8"

[130 mm]

3 13/16"

[97 mm]

3 9/16 "

[90 mm]

1/4"

[6 mm]

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting System 23S20MR

Page 2 of 2 Alcyon HID 20W CMH MR16 Step Spot

9000 9000

GE CMH20MR16/SP

12°

2900 9000

GE CMH20MR16/FL

25°

1500 9000

GE CMH20MR16/WFL

40°

D FC L W D C FC L W D C FC L W D C FC L W

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length D Distance

W Beam Width AAiming Angle

C Distance to center beam FC Footcandles

Land W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manu-

facturers for availability and performance.

CBCP = Center Beam Candle Power.

8' 4.6' 91 2.3' 1.9'

10' 5.8' 58 2.8' 2.4'

12' 6.9' 41 3.4' 2.9'

14' 8.1' 30 3.9' 3.4'

3' 5.2' 125 2.6' 1.3'

4' 6.9' 70 3.5' 1.7'

5' 8.7' 45 4.3' 2.1'

6' 10.4' 31 5.2' 2.5'

4' 4.0' 199 1.7' 1.2'

5' 5.0' 127 2.1' 1.5'

6' 6.0' 88 2.6' 1.8'

7' 7.0' 65 3.0' 2.1'

8' 141 1.7' 1.7'

10' 90 2.1' 2.1'

12' 63 2.5' 2.5'

14' 46 2.9' 2.9'

6' 3.5' 52 3.6' 3.1'

8' 4.6' 29 4.8' 4.1'

10' 5.8' 19 6.0' 5.1'

12' 6.9' 13 7.2' 6.1'

2' 3.5' 91 4.2' 1.8'

3' 5.2' 40 6.2' 2.7'

4' 6.9' 23 8.3' 3.5'

5' 8.7' 15 10.4' 4.4'

3' 3.0' 114 2.8' 1.9'

4' 4.0' 64 3.7' 2.5'

5' 5.0' 41 4.7' 3.1'

6' 6.0' 28 5.6' 3.8'

6' 81 2.7' 2.7'

8' 45 3.5' 3.5'

10' 29 4.4' 4.4'

12' 20 5.3' 5.3'

4' 2.3' 61 4.1' 3.4'

6' 3.5' 27 6.1' 5.0'

8' 4.6' 15 8.1' 6.7'

10' 5.8' 10 10.2' 8.4'

2' 3.5' 47 9.7' 2.9'

3' 5.2' 21 14.5' 4.4'

4' 6.9' 12 19.3' 5.8'

5' 8.7' 8 24.2' 7.3'

2' 2.0' 133 3.4' 2.1'

3' 3.0' 59 5.0' 3.1'

4' 4.0' 33 6.7' 4.1'

5' 5.0' 21 8.4' 5.1'

6' 42 4.4' 4.4'

8' 23 5.8' 5.8'

10' 15 7.3' 7.3'

12' 10 8.7' 8.7'
