Philips 308X User manual

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytecaster Recessed Downlighting 308X

Page 1 of 2 3 3/4" (95mm) Aperture Adjustable Pinhole MR16 & ES/ESD16

Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately

308ALX

308BKX

308WWX

Aluminum Painted Faceplate and Baffle

Black Faceplate and Baffle

White Faceplate and Baffle

Remodeler

Non-IC

Air Seal / IC

300MRSPX

3401MREX

300ESX

302MRSPX

302MREX

302ESX

302MRIC9SPX

302ESICX

302MRAICSPX

302MRAICEX

50W MR16

42W MR16

50W ES/ESD16 (GZ10)

50W MR16

50W ES/ESD16 (GZ10)

50W MR16

50W ES/ESD16 (GZ10)

37W MR16

Reflector Trim

Frame-In Kit Lamp

Features

1. Housing: 25ga galvanized steel.

2. Residence Mounting Clip: Factory-installed ; zinc plated spring steel;

free-hand installation.

3. Face Plate / Step Baffle: One piece die-cast aluminum

with tiny aperture step baffle for low brightness.

4. Adjustable Lampholder Support: 27ga. steel ;

Rotates 358˚ horizontally and 0° to 30‚ vertically.

5. Mounting Clips (2): 24ga. spring steel, zinc plated.

Provide easy snap-in / snap-out action.

6. Lamp Guard: 2” (51mm) dia. borosilicate glass.

Frame-In Kit

Note: For complete Frame-In Kit specifications,

see 300 frame specification sheets.

Labels

CSA, UL Suitable for damp locations.

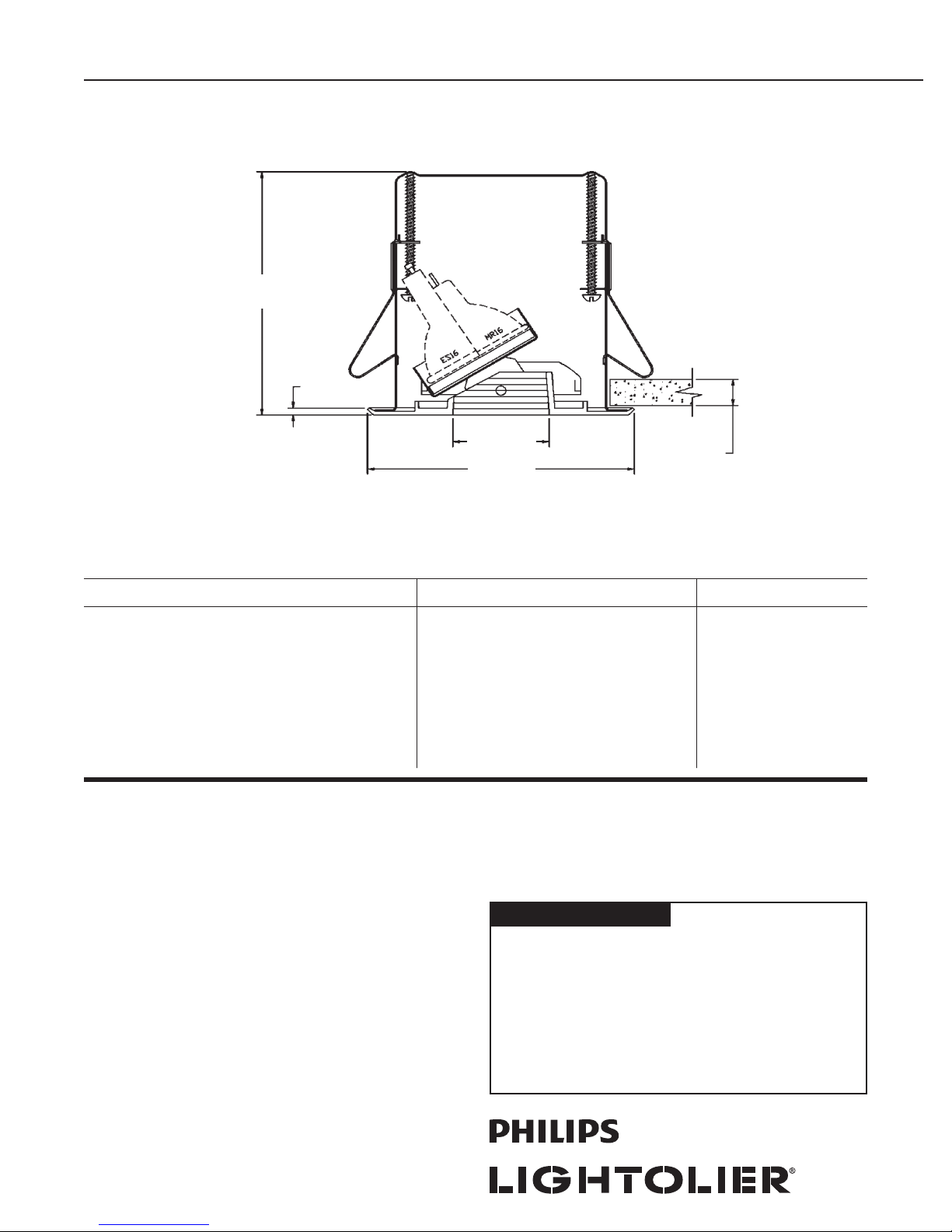

4 1/2"

1"MAX

1/8"

1 5/8"

4 1/2"

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytecaster Recessed Downlighting 308X

Page 2 of 2 3 3/4" (95mm) Aperture Adjustable Pinhole MR16 & ES/ESD16

Job Information Type:
