Philips 1001FRD User manual

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

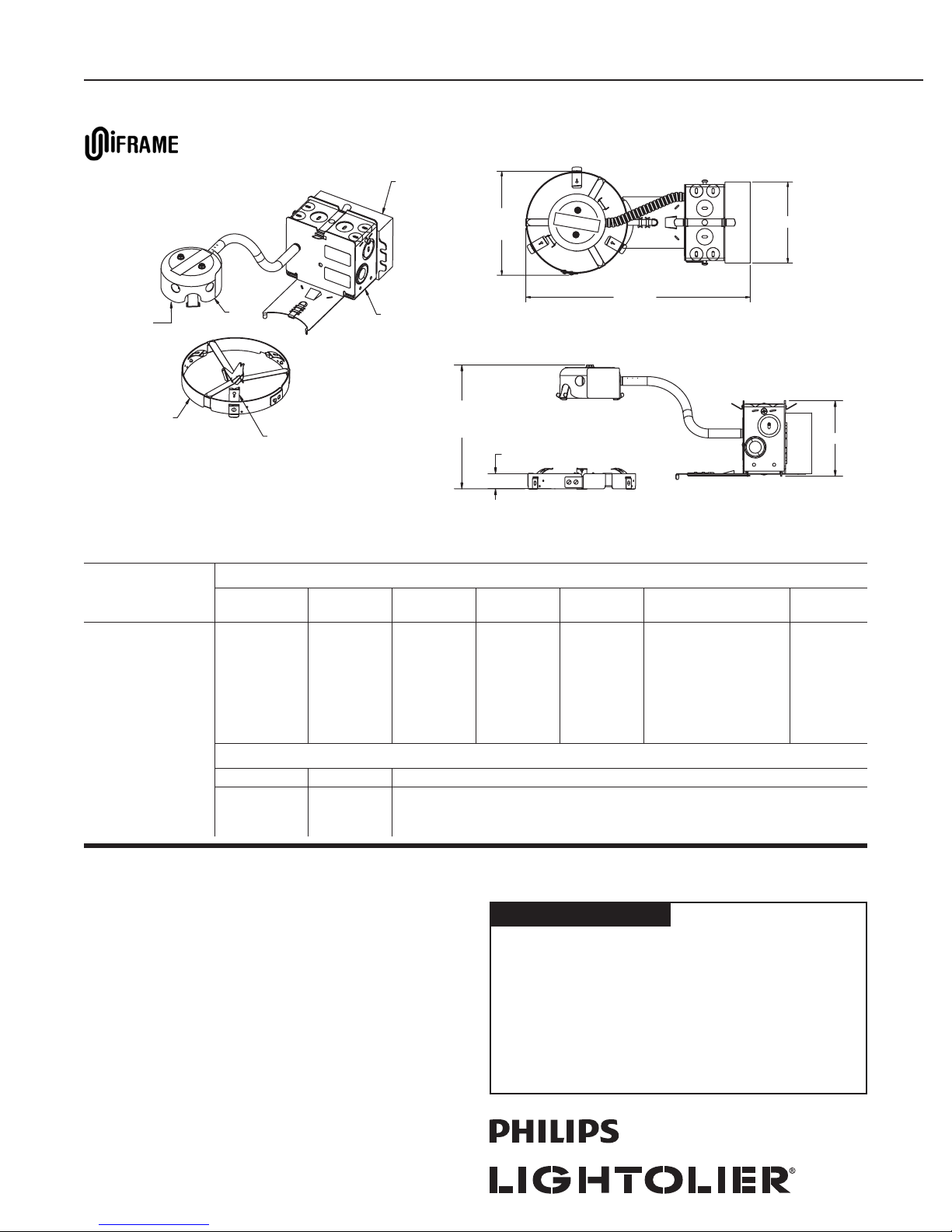

Performance Recessed CFL Downlighting 1001FRD

Page 1 of 2 5" Aperture, 1 Light, Compact Fluorescent, Non-IC, Dimming, Remodeler, Frame-In Kit

Features

1. UniFrame™ Mounting Ring: .032" (#22ga.) thick Galvanized Steel.

Accommodates existing ceilings up to 2" thick. Attaches securely to any

type of ceiling material without tools using (3) mounting straps provided.

Includes adhesive backed aperture template.

2. Trim Clips: “Push In / Twist Out” clips hold reflector flush to ceiling.

3. Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel.

UL Listed for 90˚ C supply wire. Attaches to mounting ring without tools.

4. Ballast: 120V or 277V UL Listed Electronic Dimming Ballast, 100% to

5% full range continuous dimming. End of lamp life protection, class "P"

thermally protected, class "A" sound rating.

5. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18

AWM leads to ballast.

6. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to

reflector trim by spring clip for precise optic alignment.

Labels

cULus Listed. Suitable for Damp Locations.

5 INSIDE

11 25/32"

4 1/4"

5 1/2"

CEILING

CUTOUT

FOR O.A. HEIGHT

SEE TRIM

SPECIFICATION

3/4"

3 3/4"

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.

Uniframe™

Frame-In Kit

Uniframe™Compact Fluorescent Performance Series Reflector Trims

Vertical Open Vertical Wall

Wash - Single

Vertical Wall

Wash - Double

Horizontal Open Horizontal Wall

Wash - Single

Horizontal Wet Location

Lensed / Diffused

Horizontal

Cross Blade

1001FRD26MX1

(Advance Mark X-120V)

26W Triple, GX24q-3 Base

120V- 0.26amp max

1001FRD26MX2

(Advance Mark X-277V)

26W Triple, GX24q-3 Base

277V- 0.11amp max

1001CL

1001CD

1001WH

1001CLSW

1001CDSW

1001WHSW

1001CLDW

1001CDDW

1001WHDW

1001HCL

1001HCD

1001HWH

1001HCLSW

1001HCDSW

1001HWHSW

Clear Lens Fresnel

1001HCLC 1001HCLF

1001HCDC 1001HCDF

1001HWHC 1001HWHF

Opal Lens

1001HCLO

1001HCDO

1001HWHO

1001HACB

1001HWHCB

Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)

Performance Cone Cone Wet Location

1013CFL

1013CDCFL

1045

1046

1046CD

1024

1078
