Philips HQC484 User manual
ServiceManual
Philips Domestic Appliances and Personal Care
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
Hair clipper
HQ-C 484
PRODUCT INFORMATION
Features :
- Large comb for longer hair styling results ( 7 settings, 24 - 40 mm)
- Small comb for shorter hair styling results ( 7 settings, 4 - 21 mm)
- Shift lock to adjust and secure the combs in 2 x 7 length settings
- Cutter width of 32 mm
- Detachable cutting unit
- Maintenance free cutting element: oiling/lubrication of the blades is
not needed over the lifetime
Technical data :
Power system : Rechargeable
Charging period (empty →full ) : 12 hours
Capacity : 40 minutes
Voltage : 110 - 127V, 220 - 240V / 50 - 60 Hz
4322 277 00240
00/04
PCS 101 494
Product meets the requirements regarding
interference suppression on radio andTV.
PCS 101 494

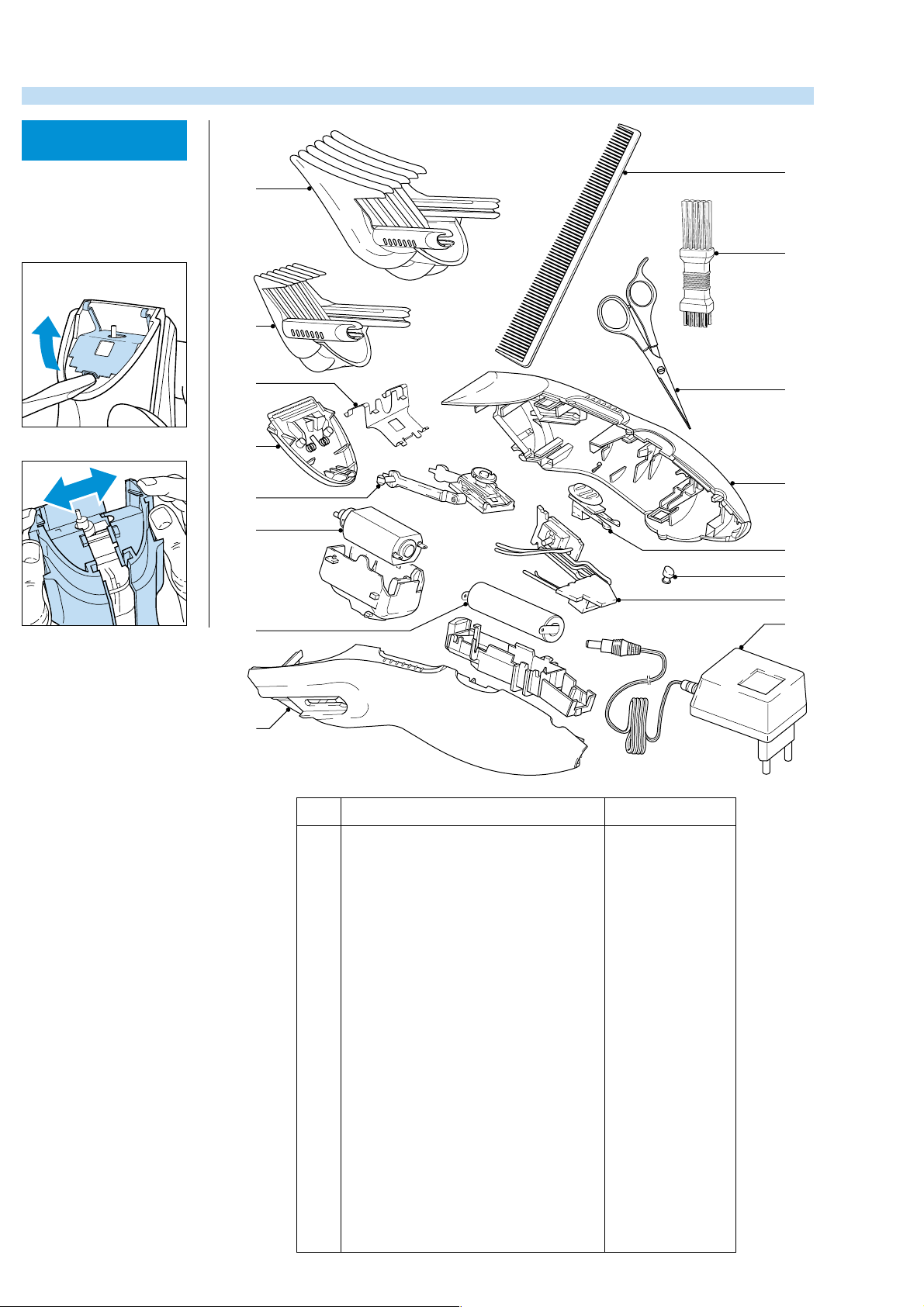

DISASSEMBLY ADVICE + EXPLODED VIEW + PARTS LIST HQ-C 484
TO OPEN
THE PRODUCT
Remove STYLING COMB
( 1, 2 )
Remove CUTTER ( 3 )
Remove TRIMMER CLAMP
( 10 )
Open HOUSING
Pos Description Service code
Large comb
Small comb
Cutter
Pouch (not shown in the exploded view)
Scissors
Barbers comb
Cleaning brush
PCB
Battery NiCd
Battery NiMh
ON/OFF slide
Motor + excentric
Adjustment unit
Trimmer clamp
Led insert
Adapter EURO
Adapter UK
Adapter USA
Adapter CND
Adapter JPN
Adapter Australia
Adapter Taiwan
Adapter Korea
Set housing parts NiCd
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
4203 035 73770
4203 035 73780
4822 690 10212
4203 035 74000
4822 690 30434
4822 690 30433
4822 479 30183
4203 035 73790
4822 138 10633
4822 138 10584
4203 035 74290
4203 035 74300
4203 035 73850
4203 035 71060
4203 035 73860
4822 690 30441
4822 690 30442
4822 690 30443
4822 690 30444
4822 219 10148
4822 219 10149
4822 219 10151
4822 219 10152
4203 035 73830
16
11
12
9
3
2
1
13
15
14
16
5
7
6
10
8
