Philips HC3420 User manual

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Philips Consumer Lifestyle

Hair clipper

HC3420

13/11

PRODUCT INFORMATION

General:

• Corded and cordless use

• World wide automatic voltage selection 100 - 240 Volt

• Dry use only

• Only the cutter is washable

Safety information

• This product meets the requirements regarding

interference suppression on radio and TV.

• After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

Place of production date

YYWW

TECHNICAL INFORMATION

• Voltage : 100 - 240 Volt

• Battery : NiMh

• Charging time : 8 hours

• Running time : 60 minutes

• Cutter needs no oil

• Cutter with : 41 mm

• Number of length settings : 13

• Length setting : 1 - 23 mm

• Precision (size of steps) : 2 mm

• Celecting by : Push button

• Without comb : 0,5 mm

• Self-shapening stainless steel blades

REPAIR INSTRUCTION

• No specific issues

OPTIONAL (accessories)

• No specific issues

HC3420

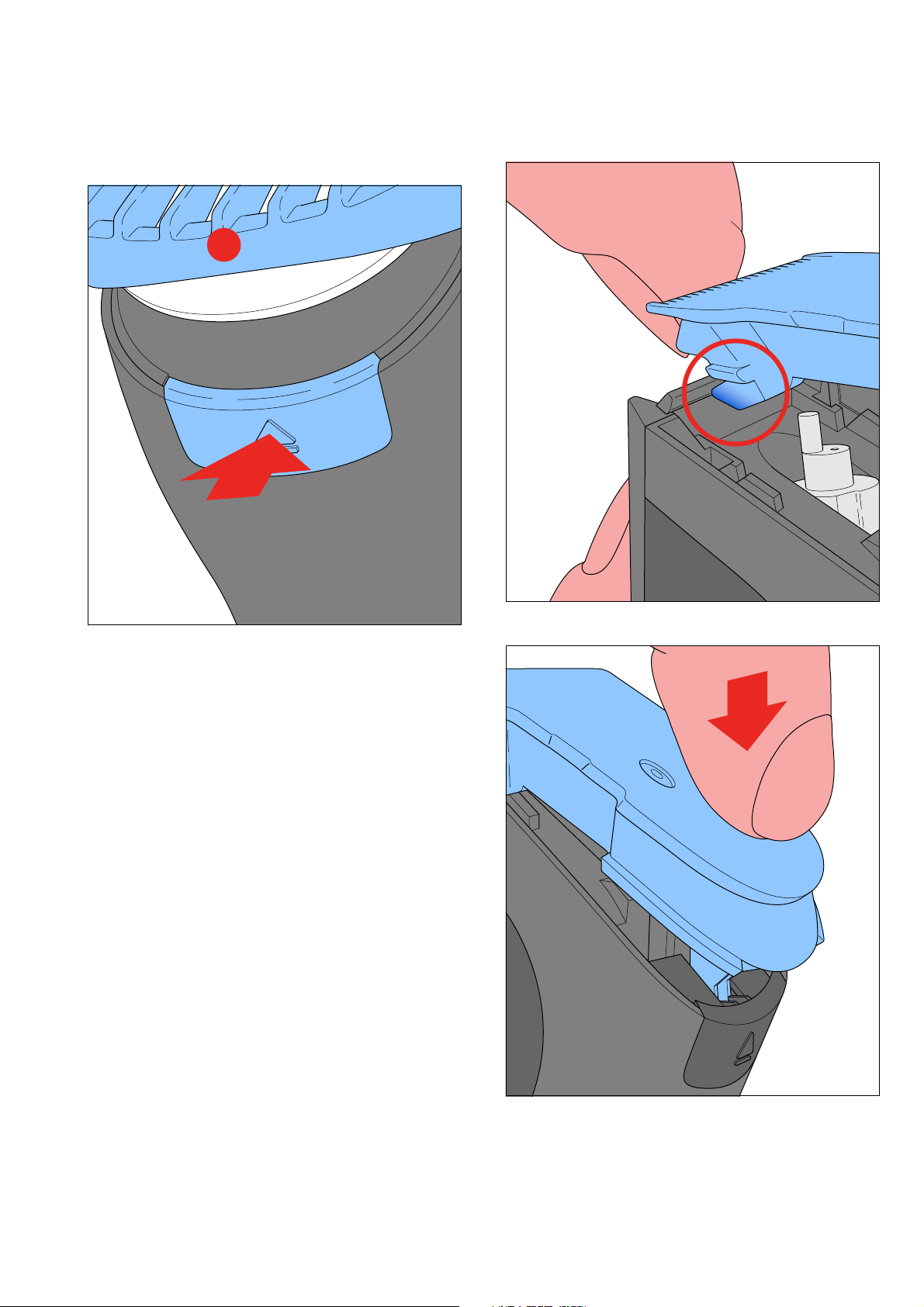

DISASSEMBLY- AND RE-ASSEMBLY ADVICE

To remove the Cutter assy:

1. Remove comb from the clipper

2. Push button for opening cutter

1

2

3. Clean the cutter/chamber with a brush

To place the Cutter assy:

1. Place nocks in front off clipper

2. Push on back to replace the cutter correctly

HC3420

1

3

5

7

9

11

13

15

17

19

21

23

5

1 2

3

4

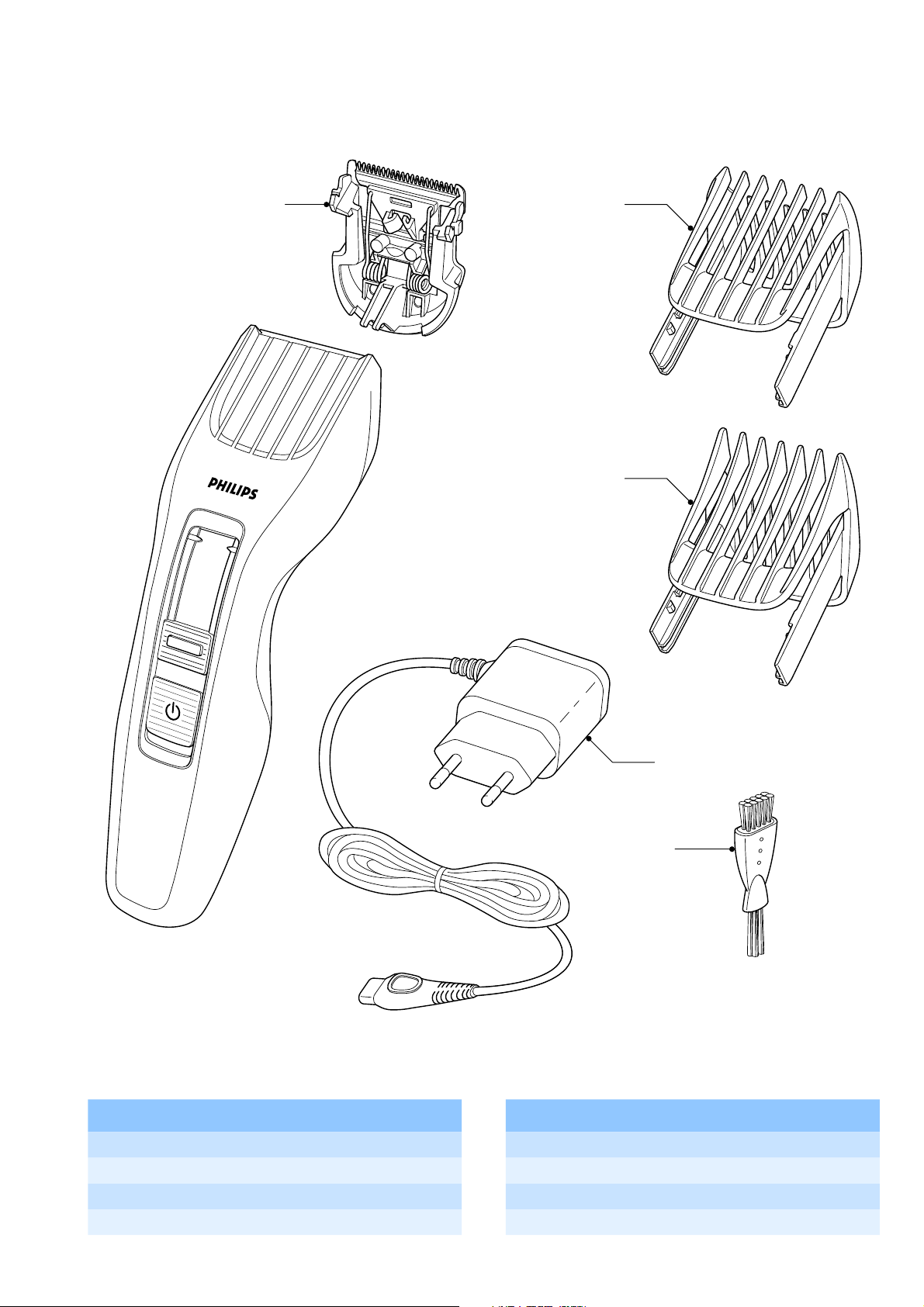

EXPLODED VIEW & PARTS LIST

Pos Service code Description

1 4222 036 23991 Cutter assy

2 4222 036 24001 Beard comb

3 4222 036 24011 Adjustable comb

4 4222 036 24021 Power plug GB

Pos Service code Description

4 4222 036 21881 Power plug EU

4 4222 036 24081 Power plug BR

4 4222 036 21911 Power plug JP/MEX/PAN

5 4222 036 02770 Brush
