Philips HP6319/52 User manual

Ladyshave

HP6319/01

ENGLISH 6

FRANÇAIS 13

 21

HP6319/01

Introduction

With your new Philips ladyshave Body Contour you can quickly, easily

and comfortably remove unwanted hair from dry or wet skin.

The Philips ladyshave Body Contour is equipped with a floating shaving

head, which optimally adapts to the skin in order to ensure a perfectly

smooth shave.

This ladyshave is designed for cordless use only and can be charged by

means of the charging unit supplied.

◗You can use the ladyshave either dry or wet. If you shave while

taking a bath or shower, we advise you to use soap or shaving

foam for the most comfortable shave.After use you can simply

rinse the ladyshave in the shower or under the tap.

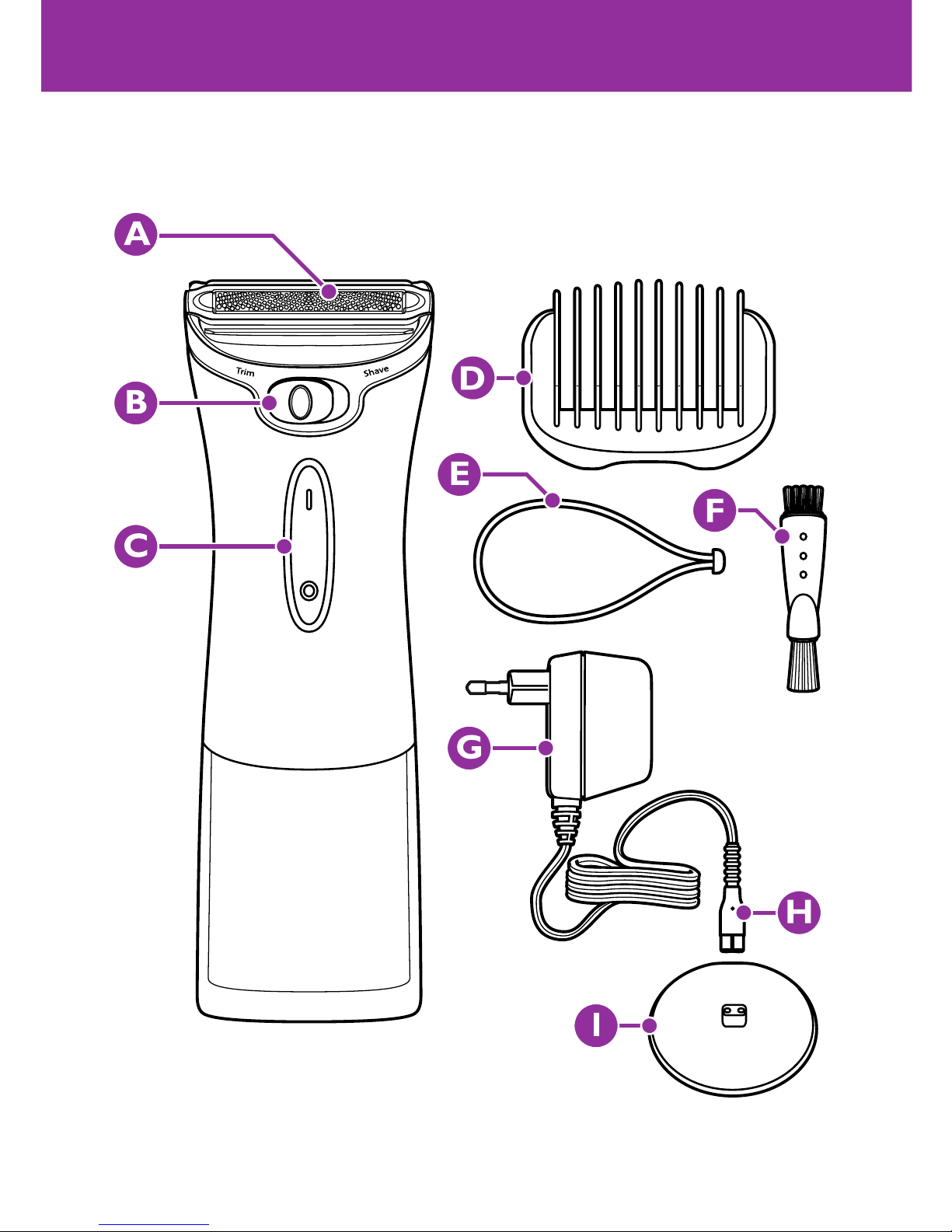

General description (fig. 1)

AShaving unit

BTrim/shave slide

COn/off switch

DComb attachement

EShower loop

FCleaning brush

GAdapter

HSmall plug

ICharging unit

Important

Read these instructions for use carefully before using the appliance and

save them for future reference.

◗Check if the voltage indicated on the adapter corresponds to the

local mains voltage before you connect the appliance.

◗Charge and store the appliance at a temperature between 15cC

and 35cC.

◗The appliance complies with the internationally approved IEC

safety regulations and can be safely used in the bath or shower

(fig. 2).

ENGLISH6

◗If the adapter or charging unit is damaged, always have it replaced

by one of the original type in order to avoid a hazard.

◗Only use the appliance in combination with the adapter supplied.

◗The adapter contains a transformer. Do not cut off the adapter to

replace it with another plug, as this will cause a hazardous

situation.

◗Do not immerse the adapter or charging unit in water or any

other liquid.

Charging

When you charge the ladyshave for the first time or after a long period

of disuse, let it charge for at least 16 hours.

Make sure your hands and the ladyshave are dry when you prepare

the ladyshave for charging.

1Make sure the ladyshave is switched off (fig. 3).

2Put the adapter in the wall socket.

3Insert the small plug into the charging unit (fig. 4).

4Put the ladyshave on the charging unit (fig. 5).

◗Always put the ladyshave back onto the charging unit after use

and leave the charging unit connected to the mains continuously,

even when you are not using it.

◗A fully charged appliance has a cordless shaving time of up to 20

minutes.

Using the appliance

Shaving

1Set the trim/shave slide to the 'shave' position (fig. 6).

2Put the desired shaving foil on the shaving head.

◗Use the golden shaving foil to shave the underarms (fig. 7).

◗Use the golden shaving foil to shave the bikini line (fig. 8).

ENGLISH 7

◗Use the silver shaving foil to shave the legs (fig. 9).

Do not use the silver shaving foil to shave the underarms and the

bikini line in order to reduce the risk of injuries.

3Switch the ladyshave on (fig. 10).

4Place the shaving unit gently on the skin and move the ladyshave

slowly against the direction of hair growth while pressing it lightly.

◗The angle between the skin and the ladyshave should be 70cto

get the best results (fig. 9).

Trimming

◗Put the comb attachment onto the shaving head to trim the hairs

to an even length (about 5 mm), e.g. in the bikini zone (fig. 11).

The comb attachment can be put onto the shaving head in different

directions, depending on the area to be trimmed.

1Set the trim/shave slide to the 'trim' position (fig. 12).

2To trim the bikini zone, place the comb attachment on the

shaving head with the recess of the attachment on the front of

the appliance (fig. 13).

3To trim the underarms, place the comb attachment on the

shaving head with the recess of the attachment on the back of

the appliance (fig. 14).

4Switch the ladyshave on.

5Move the appliance against the direction of hair growth.

◗Make sure the surface of the comb always stays in contact with

the skin (fig. 15).

ENGLISH8

Shaping

1Remove the comb attachment to shape precise lines and

contours, e.g. in the bikini zone (fig. 16).

2Lock the long hair trimmer by setting the trim/shave slide to the

'trim' position (fig. 12).

Cleaning and maintenance

After every use

Clean the ladyshave every time you have used it.

Do not use any corrosive detergents, scouring pads or cloths, petrol,

acetone etc. to clean the appliance.

1Switch the ladyshave off.

2Remove the shaving foil (fig. 17).

Do not exert any pressure on the shaving foil to avoid damage.

3Gently shake the shaving foil to remove hairs or clean it with the

brush supplied.

4Remove the cutter block (fig. 18).

5Clean the hair chamber with the brush supplied (fig. 19).

6Reassemble the ladyshave and put the comb attachment onto the

appliance before storing it, to protect the shaving foil (fig. 11).

Twice a year

◗Lubricate the shaving foils with a drop of sewing machine oil

twice a year (fig. 20).

Storage

When you are not using the ladyshave you can store it in the shower

by hanging it upside down from the shower loop.

◗Attach the shower loop to the appliance as shown in the picture

(fig. 21).

ENGLISH 9

Replacement

If you use the ladyshave two or more times a week, we advise you to

replace the shaving foil and cutter block every one to two years.

- The silver shaving foil may only be replaced with an original Philips

shaving foil (type HP6119/01).

- The golden shaving foil may only be replaced with an original Philips

shaving foil (type HP6121).

- The cutter block may only be replaced with an original Philips

cutter block (type HP6111).

Environment

◗Do not throw the appliance away with the normal household

waste at the end of its life, but hand it in at an official collection

point for recycling. By doing this you will help to preserve the

environment (fig. 22).

The built-in rechargeable battery contains substances that may pollute

the environment. Always remove the battery before discarding the

appliance or handing it in at an official collection point. Dispose of the

battery at an official collection point for batteries. If you have trouble

removing the battery, you can also take the appliance to a Philips

service centre, which will remove the battery for you and will dispose

of it in an environmentally safe way.

Disposal of the battery

1Take the ladyshave off the charging unit.

2Let the motor run until the battery is completely empty.

3Pull the upper part of the ladyshave off the lower part with some

force (fig. 23).

4Remove the battery by means of a screwdriver (fig. 24).

ENGLISH10
