Panasonic ES-WU11 User manual
© Panasonic Corporation, 2012. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
Order Number PCD1201X31AE
Epilator
Model No. ES-WU11
ES-WU31
ES-WU41
Europe
CIS
TABLE OF CONTENTS PAGE PAGE
1 Warning-------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Exploded View and Replacement Parts List ------------ 3
Please file and use this manual together with the service manual for Model No. ES2013-E2, Order No.
PCD0606E33AE.
2
1Warning
Caution:
• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please
use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-
ing iron, please be careful not to heat too long.
• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

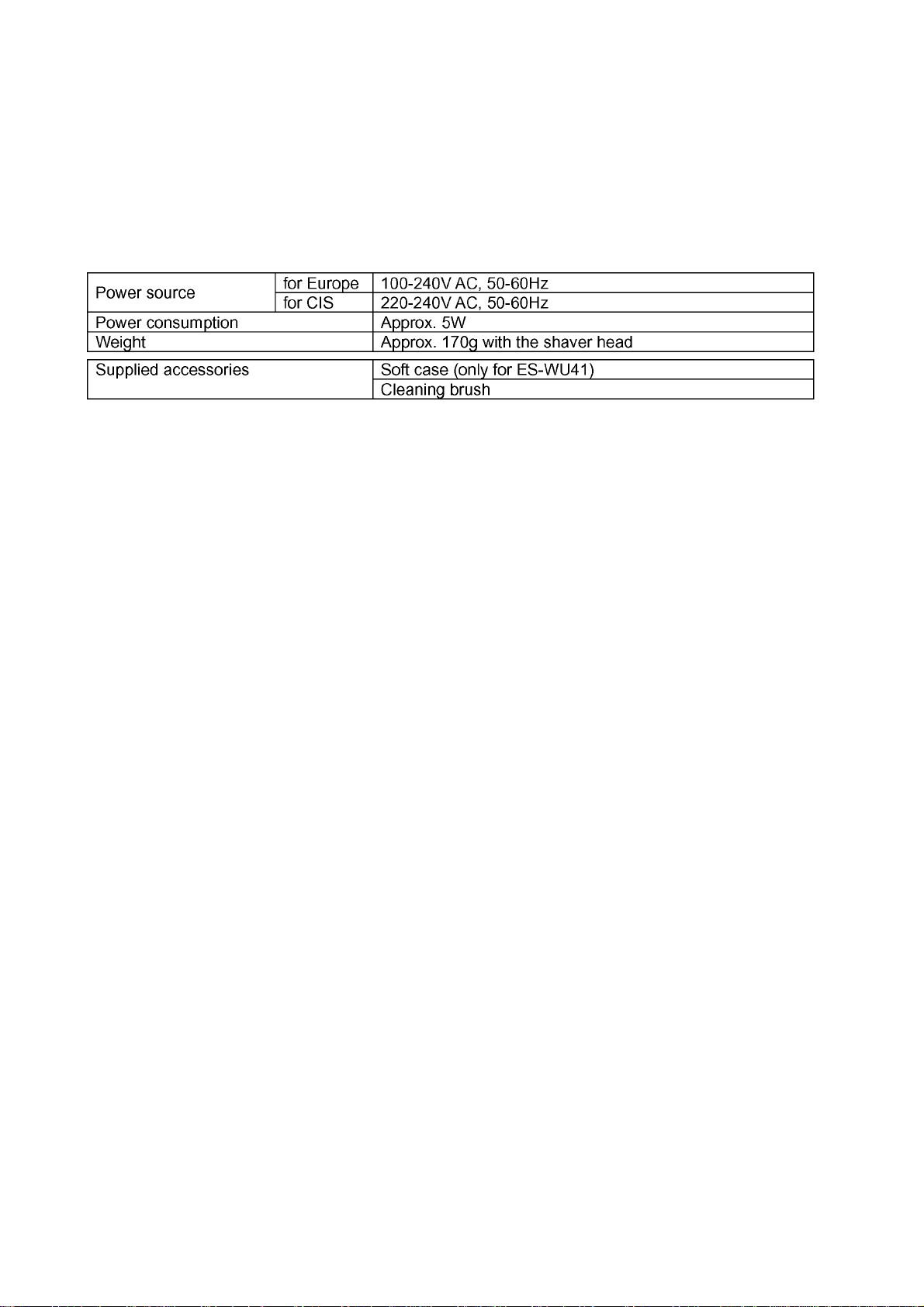

2 Specifications
Model No. : ES-WU41 EXPLODED VIEW
3 Exploded View and Replacement Parts List
Model No. : ES-WU41 Parts List
Safety
Ref.
No. Part No. Part Name & Description Q'ty Remarks
ES-WU41
1 WESWU41P7158 PROTECTIVE CAP 2
2 WESWS10W3008 EPILATION FRAME FOR LEGS/ARMS 1
3 WESWS20W1068 EPILATION HEAD FOR LEGS/ARMS 1
4 WESWU31W3128 EPILATION FRAME FOR UNDERARMS 1
5 WESWU31W1078 EPILATION HEAD FOR UNDERARMS 1
6 WES331B9257 TAPPING SCREW 3 K2-8
7 WESWU41P3058 HOUSING AB SET 1 for CIS
8 WESWU11L1008 MOTOR 1
9 WESWU11L2148 JACK WITH SWITCH P-PLATE 1
10 WES2013W3278 HEAD RELEASE BUTTON W/SPRING 1
11 WESWU11H2448 CHASSIS 1
12 WESWU41X3558 BIKINI COMB 1
13 WESWS20W4038 FOIL FRAME 1
14 WES9753Y OUTER FOIL 1
15 WES9752Y INNER BLADE 1
16 WESWS20W0788 SHAVER HEAD 1
17 WESWU11W7661 AC ADAPTOR 1 C-2 PLUG / for CIS
18 WES2047H6767 CLEANING BRUSH 1
19 WESWU41W7008 SOFT CASE 1
- WESWU41P8008 INDIVIDUAL BOX 1 for CIS
- WESWU41P8108 OPERATING INSTRUCTIONS 1 for CIS

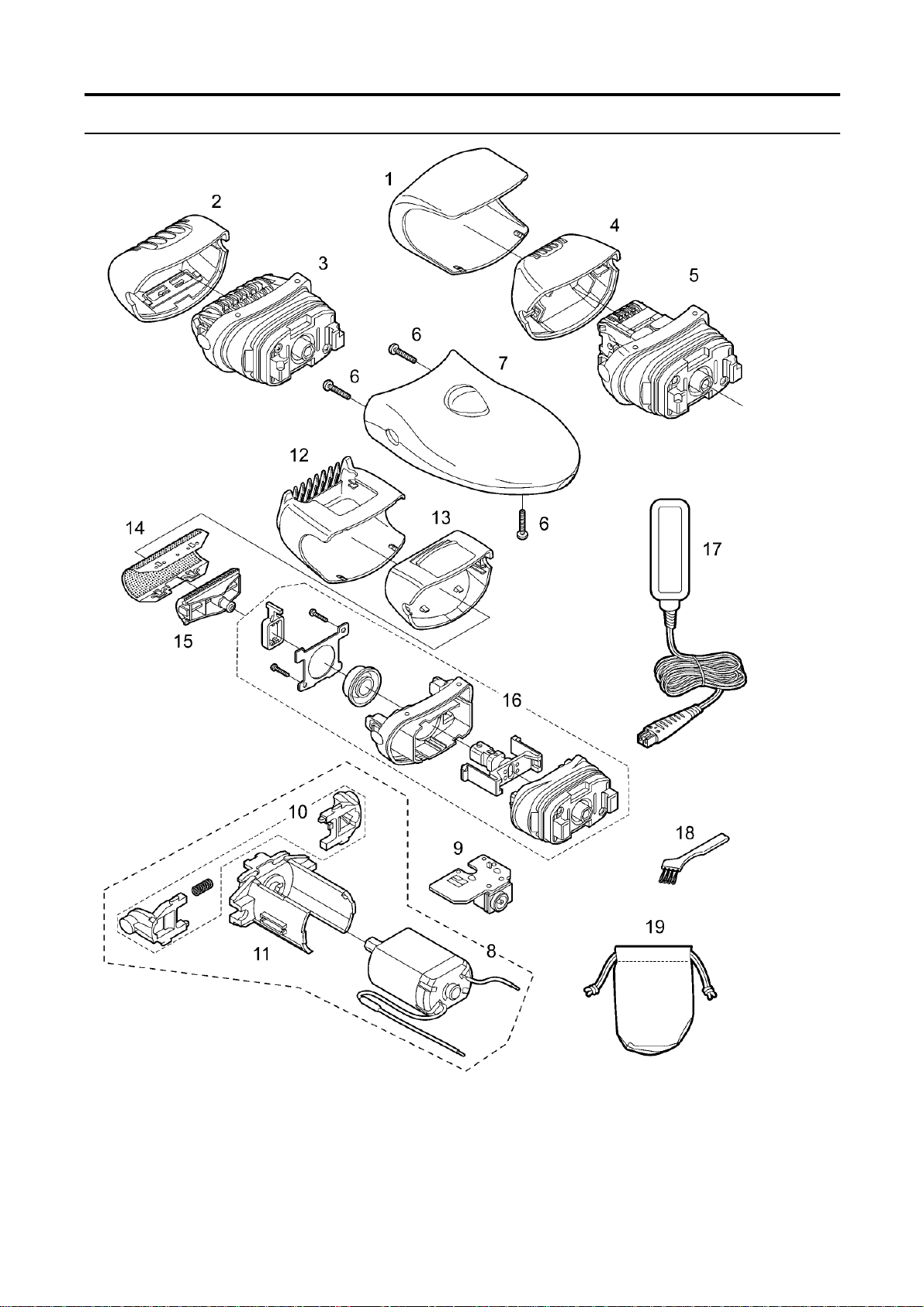

Model No. : ES-WU31 EXPLODED VIEW
Model No. : ES-WU31 Parts List
Safety
Ref.
No. Part No. Part Name & Description Q'ty Remarks
ES-WU31
1 WESWU31D7158 PROTECTION CAP 2
2 WESWS10W3008 EPILATION FRAME FOR LEGS/ARMS 1
3 WESWS20W1068 EPILATION HEAD FOR LEGS/ARMS 1
4 WESWU31W3128 EPILATION FRAME FOR UNDERARMS 1
5 WESWU31W1078 EPILATION HEAD FOR UNDERARMS 1
6 WES331B9257 TAPPING SCREW 3 K2-8
7 WESWU31D3058 HOUSING AB SET 1 for CIS
8 WESWU11L1008 MOTOR 1
9 WESWU11L2148 JACK WITH SWITCH P-PLATE 1
10 WES2013W3278 HEAD RELEASE BUTTON W/SPRING 1
11 WESWU11H2448 CHASSIS 1
12 WESWU11W7661 AC ADAPTOR 1 C-2 PLUG / for CIS
13 WES2047H6767 CLEANING BRUSH 1
- WESWU31D8008 INDIVIDUAL BOX 1 for CIS
- WESWU31D8108 OPERATING INSTRUCTIONS 1 for CIS

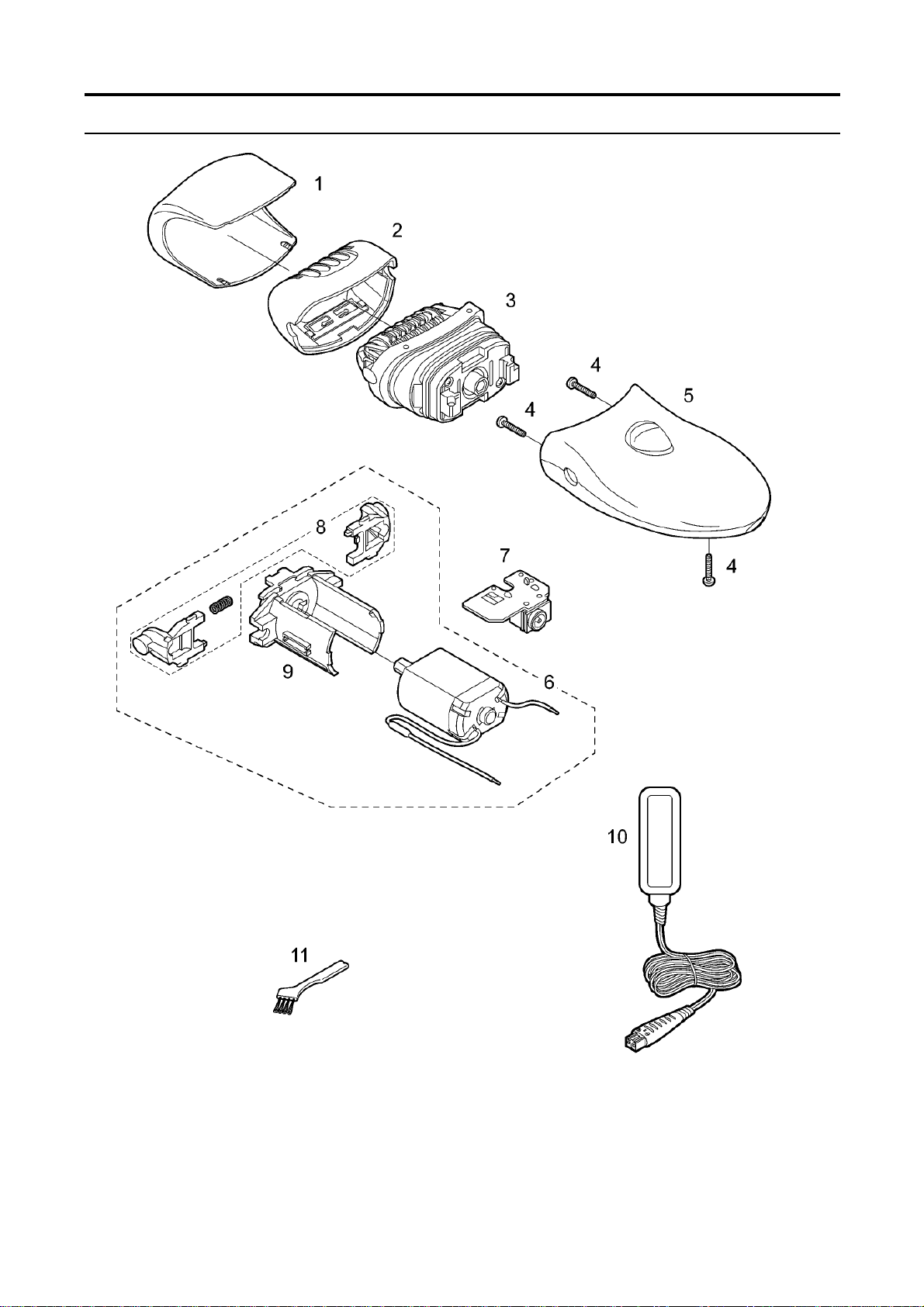

Model No. : ES-WU11 EXPLODED VIEW
Model No. : ES-WU11 Parts List
Safety
Ref.
No. Part No. Part Name & Description Q'ty Remarks
ES-WU11
1 WESWU11G7158 PROTECTION CAP 1 for GREEN MODEL
1 WESWU11P7158 PROTECTION CAP 1 for PINK MODEL
2 WESWS10W3008 EPILATION FRAME FOR LEGS/ARMS 1
3 WESWS20W1068 EPILATION HEAD FOR LEGS/ARMS 1
4 WES331B9257 TAPPING SCREW 3 K2-8
5 WESWU11G3058 HOUSING AB SET 1 for CIS / GREEN MODEL
5 WESWU11P3058 HOUSING AB SET 1 for EUROPE / PINK MODEL
6 WESWU11L1008 MOTOR 1
7 WESWU11L2148 JACK WITH SWITCH P-PLATE 1
8 WES2013W3278 HEAD RELEASE BUTTON W/SPRING 1
9 WESWU11H2448 CHASSIS 1
10 WESWU11W7661 AC ADAPTOR 1 C-2 PLUG / for CIS
10 WESWU11W7664 AC ADAPTOR 1 C-2 PLUG / for EUROPE
11 WES2047H6767 CLEANING BRUSH 1
- WESWU11G8008 INDIVIDUAL BOX 1 for CIS / GREEN MODEL
- WESWU11P8008 INDIVIDUAL BOX 1 for EUROPE / PINK MODEL
- WESWU11G8108 OPERATING INSTRUCTIONS 1 for CIS / GREEN MODEL
- WESWU11P8108 OPERATING INSTRUCTIONS 1 for EUROPE / PINK MODEL
