Philips HD4933/40 User manual
Induction Cooker
HD4933/40
Productinformation
Features
Technicalinformation
PublishedbyPhilipsConsumerLifestylePrintedinChinaCopyRightReserved Subjecttomodification
1

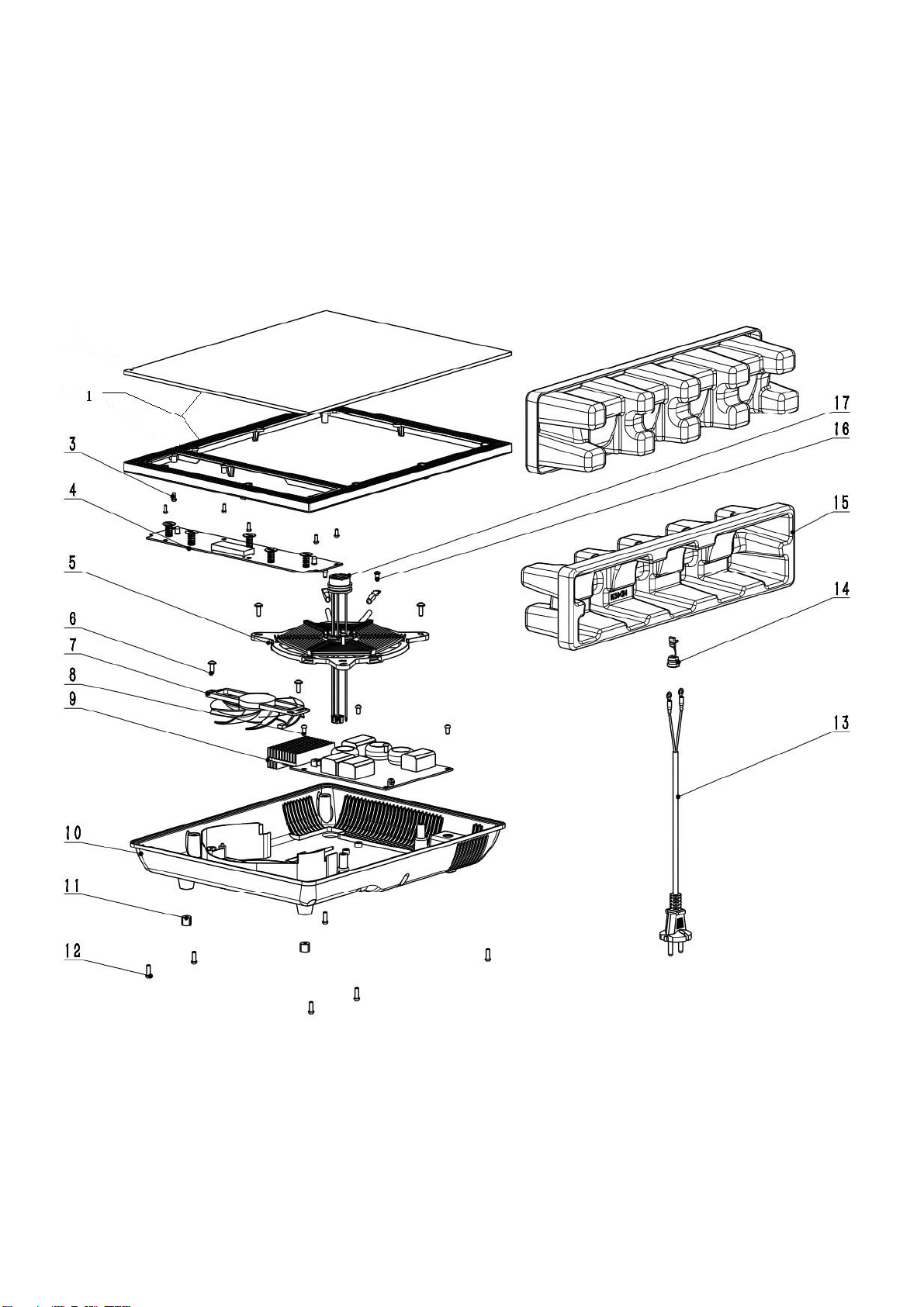

ExplodedView
2
PartsList
item 12NC EnglishDescription 物料描述 物料编码
1996510068864topceramicplate
assembly 面盖组件 620102580097
4996510068869displayboard 显示板 610101510045
5996510068868magneticcoil
assembly 励磁线圈组件 610101120031
7996510057745FANASSY 风扇总成 610101130002
9996510068871powerboard 电源板 610101510047
10 996510059435BASE 底座 620102030124
11 996510057755RUBBERFEET 胶脚 610106010005
13 996510058739POWERCORD 电源线 610101520040
14 996510051959buckleforpower
cord 线扣 620102900002
15 996510068865paperboard 纸托 610102030200
17 996510057753mainthermostat 热敏电阻组件 610101110010
18 996510068866dataplate 铭牌 610105530144
19 996510068867fancybox 内箱 610102510147
20 996510068799DFU 说明书 610105510174
21
996510068872
t t
外箱
610102520145
21
996510068872
ou
t
ercar
t
on
外箱
610102520145
22 996510060097warrantycard 保修卡 610205560053
3
Disassembling Procedure:
1、screwoutthescrewsusedtofastenthebase. 2、pulloutflatcableofdisplayboard.
3、detach screws used to fasten display board and
remove display board.
4、detachthreescrews usedtofastenmagneticcoil
assembly.
5、pulloutterminalof NTC. 6、screwouttwoscrewsusedtofastenmagneticcoil
wire.
4
Disassembling Procedure:
7、pulloutplugwireofpowercord. 8、screw outscrewsusedtofastenmainPCB.
9、detach two screws used to fasten fan and remove fan.
5
