ServiceManual
Philips Consumer Lifestyle Version: A
Bar blender
HR1610/00-01
HR1611/00-01
HR1613/00-03
HR1614/00
HR1615/00-01
HR1617/00-03
11/03
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
DISASSEMBLY- AND RE-ASSEMBLY ADVICE
- No specific issues
OPTIONAL (accessories)
- No specific issues
TECHNICAL INFORMATION
High voltage:
- Voltage : 220 - 240 V
- Frequency : 50 - 60 Hz
- Power : 650 W
- Temperature protection : TCO
Vario Speed:
Motor Speeds:
- Turbo : 16000 rpm 1600 rpm
- Speed - min : 8000 rpm 800 rpm
- Speed - max : 14400 rpm 1400 rpm
Cord:
Plug:
- Type :
H03VVH2-F2 x 0,75 - white
- Cable end : free end twisted and soldered
- Free Length : 1,2 m
Dimensions : Powerunit (Incl. bar)
Length : 80 mm
Width : 65 mm
Height : 390 mm
Weight : 825 g (Powerunit + bar + cordset)
HR1610 - HR1613 HR1614 - HR1617
2-4
HR1610/00-01
HR1611/00-01
HR1613/00-03
HR1614/00
HR1615/00-01
HR1617/00-03
Materials and additional technical informations:
- Housing : PP & SEBS
- Chopper Interface : POM + GF
- Chopper Beaker : SAN
- Protection cap : TPE
- Beaker : SAN
- Oval beaker : SAN
- Lids : LDPE
- Whisk unit : PP/stainless steel
- Plastik bar : PP
Metal bar:
length : 207 mm
diameter barcage : 63 mm
weight : approx. 170 g
Plastic bar:
length : 193 mm
diameter barcage : 65 mm
weight : approx. 117 g
XL Chopper (750ml):
Pull out force of coupling spring : min. 150 N
Gear ratio : 1:4
Speed (with “Turbo” button) : 4000 rpm 400 rpm
Sound power level : 85 dB(A)
Mini Chopper (400ml):
Pull out force of coupling spring : min. 150 N
Gear ratio : 1:4
Speed (with “Turbo” button) : 4000 rpm 400 rpm
Sound power level : 85 dB(A)
Power consumption (No load) : max. 40 W
Whisk Accessory:
Gear ratio : 1:13,5
Speed (with “Turbo” button) : 1200 rpm 120 rpm
Sound power level : 85 dB(A)
Force to attach the shaft in the gear box : 23,5 N 4,5 N
Force to detach the shaft out of the gear box : 23,5 N 4,5 N
Power consumption (No load) : max. 30 W
Motor:
DC HV/LV motor from Johnson
Type : DC751(2)XLLG
Volumes:
Beaker : 1000 ml
Oval beaker : 1700 ml
3-4
HR1610/00-01
HR1611/00-01
HR1613/00-03
HR1614/00
HR1615/00-01
HR1617/00-03
1
5
3
6
2
4
78
12
9
14
13
11
10

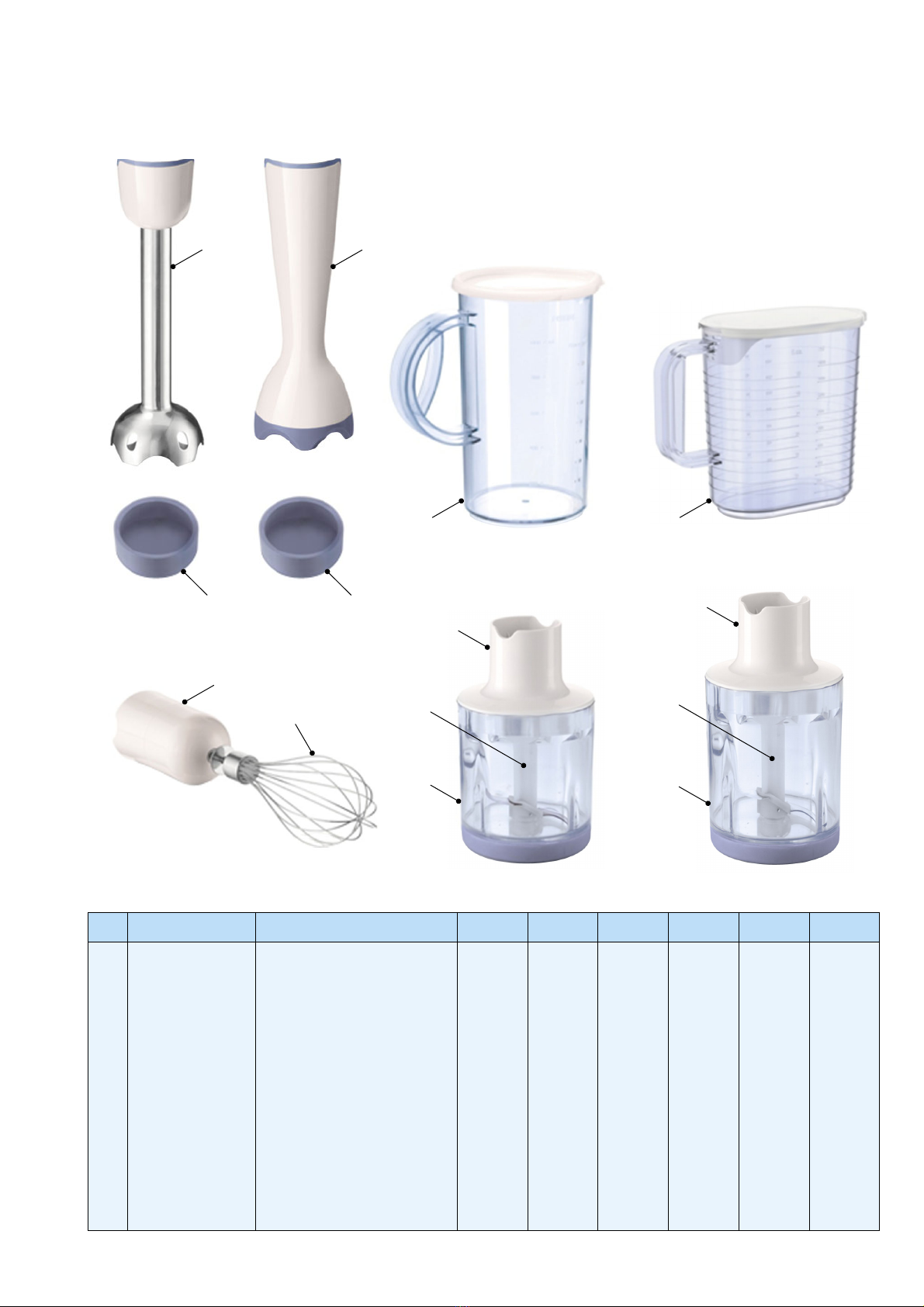

PARTS LIST + EXPLODED VIEW
Pos Service code Description HR1610 HR1611 HR1613 HR1614 HR1615 HR1617
1
2
3
4
5
6
7
8
9
10
11
12
13
14
4203 035 95121
4203 035 95131
4203 035 95141
4203 035 95151
4203 035 95161
4203 035 95171
4203 035 95181
4203 035 95191
4203 035 95201
4203 035 95211
4203 035 95221
4203 035 95231
4203 035 95241
4203 035 95251
Blender bar plastic
Blender bar metal
Protecting cap for plastic bar
Protecting cap for metal bar
Whisk coupling unit
Whisk
Round beaker + lid
Oval beaker + lid
XL Chopper lid
XL Chopper blade unit
XL Chopper bowl
Mini Chopper lid
Mini Chopper blade unit
Mini Chopper bowl
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
4-4
HR1610/00-01
HR1611/00-01
HR1613/00-03
HR1614/00
HR1615/00-01
HR1617/00-03
15 16
18
20
19
Remove the 2 screw caps
with a small knife
and open the screws Pull
PARTS LIST for repair
Pos Service code Description
15
16
17
18
19
20
4203 035 95981
4203 035 95261
4203 035 95271
4203 035 95281
4203 035 95291
4203 035 95301
4203 035 95311
4203 035 95321
4203 035 95331
4203 035 95341
Motor Assy + Coupling HV *
Print Plate Assy + switch activation knobs + spring HV *
Screw caps (2x) - not shown
Power Unit Assy incl. Cordset TR
Power Unit Assy incl. Cordset CN
Power Unit Assy incl. Cordset KR
Housing
Bottom + Terminals + Cordset TR
Bottom + Terminals + Cordset CN
Bottom + Terminals + Cordset KR
* Can be sale to all countries, except China, Caribbean, Brazil & Taiwan
REPAIR INSTRUCTION
