PEUGEOT RCZ User manual

HANDBOOK

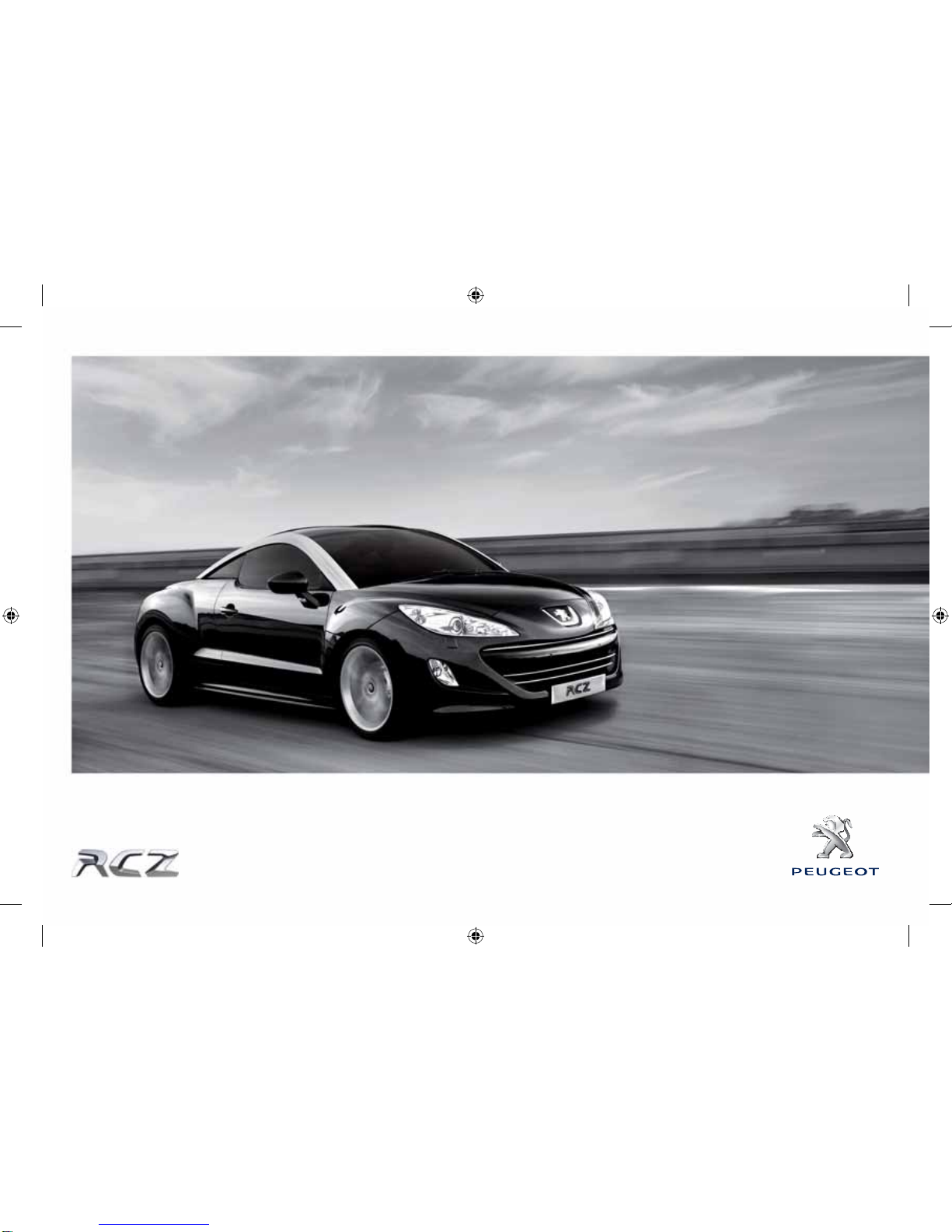

APp-RCZ_01_2010_anglais_cag_pdf_couv1 couv1

03/11/2010 18:25:15

EXTERIOR

1 Welcome lighting

This additional exterior and

interior lighting, controlled

remotely, makes your approach to

the vehicle easier when the light

is poor.

2 Directional lighting

This lighting automatically

provides additional visibility when

cornering.

110

5 Temporary tyre repair kit

This kit is a complete system,

consisting of a compressor and

an integrated sealant product, for

the temporary repair of a tyre.

156

3 Active spoiler

This system improves the

aerodynamics of the vehicle.

4 Front and rear parking

sensors

This system warns you of any

obstacles detected in front of or

behind the vehicle when parking.

142

Aluminium arches

For maintenance of these

arches, do not use a dry

cloth with an abrasive

product. Use a sponge

and soapy water.

APp-RCZ_01_2010_anglais_cag_pdf_4 4

03/11/2010 18:25:22

FAMILIARISATION

OPEN

REMOTE CONTROL KEY

Unfolding/Folding of the key

(press ¿rst before unfolding or folding the key).

Normal locking

(press once; ¿xed lighting of the

direction indicators).

Deadlocking the vehicle

(press twice in succession; ¿xed

lighting of the direction indicators).

Unlocking and partial opening of

the boot lid

(press for more than two seconds).

Complete or selective unlocking of

the vehicle

(rapid Àashing of the direction

indicators).

WELCOME LIGHTING

When poor light is detected by a sensor,

the remote switching on of the dipped beam

headlamps and sidelamps makes your

approach to the vehicle easier.

In the same way, the passenger compartment

lighting, such as the courtesy lamps, the door

sill lamps and the footwell lamps, comes on.

APp-RCZ_01_2010_anglais_cag_pdf_5 5

03/11/2010 18:25:41

1. Unlocking and partial opening of the boot lid.

2. Opening of the boot lid.

For access to the fuel ¿ller cap, the vehicle must be unlocked.

1. Open the fuel ¿ller Àap by pressing at its rear edge.

2. Remove the fuel ¿ller cap by unscrewing it and hook it on to the

back of the ¿ller Àap.

Capacity of the tank: approximately 55 litres.

146

FUEL TANKBOOT

1. Partial opening of the boot lid.

2. Opening of the boot lid.

Vehicle locked

Vehicle unlocked

APp-RCZ_01_2010_anglais_cag_pdf_6 6

03/11/2010 18:25:55

AIRBAGPASS.

OFF

AIRBAGPASS

FAMILIARISATION

INTERIOR

1 Interior mood lighting

This dimmed lighting of the passenger

compartment facilitates visibility inside the

vehicle when the light is poor.

2 Audio and telematics systems

This equipment bene¿ts from the latest

technology: MP3 compatible Peugeot Connect

Sound, Bluetooth, Peugeot Connect Media

with 16/9 retractable colour screen, JBL audio

system, auxiliary sockets.

Peugeot Connect Media

Peugeot Connect Sound/Bluetooth

199

239

4 Active spoiler

This automatic system can be controlled

manually by means of this control on the

centre console.

110

3 Dual-zone digital air conditioning

This systems allows different levels of comfort

to be set for the driver and front passenger.

It then controls these levels automatically

according to the ambient conditions.

PEUGEOT Techno PVC

For maintenance of this covering, do

not use solvent or detergent with a dry

cloth. Remove dust ¿rst, then use a

soft cloth and soapy water. Dry using

another soft cloth.

APp-RCZ_01_2010_anglais_cag_pdf_7 7

03/11/2010 18:26:02

130

1/2

CHECK/000

INSTRUMENTS AND CONTROLS

1. Cruise control/speed limiter switches.

2. Steering wheel adjustment control.

3. Lighting and direction indicators control

stalk.

4. Instrument panel.

5. Driver's airbag.

Horn.

6. Gear lever.

7. Parking brake.

8. Bonnet release.

9. Fusebox.

10. Manual headlamp height adjustment.

11. Side adjustable air vent.

12. Speaker (tweeter).

APp-RCZ_01_2010_anglais_cag_pdf_8 8

03/11/2010 18:26:03

AIRBAGPASS.

OFF

AIRBAGPASS

FAMILIARISATION

INSTRUMENTS AND CONTROLS

1. Wipers/screenwash/trip computer control

stalk.

2. Steering lock and ignition.

3. Audio and telematics system steering

wheel control stalk.

4. Door mirror controls.

Electric window controls.

5. Central adjustable air vents.

6. Windscreen demisting vent.

7. Sunshine sensor.

8. Front side window demisting vent.

9. Passenger's airbag deactivation switch.

10. Glove box/Audio/video sockets.

11. Passenger's airbag.

APp-RCZ_01_2010_anglais_cag_pdf_9 9

03/11/2010 18:26:03

70 90

110

130

150

210

230

250

150

km/h

mph

AUTO A/C

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO MEDIA NAV ESC TRAFFIC SETUP

ADDR

BOOK

70 90

110

130

150

210

230

250

150

km/h

mph

AUTO A/C

CENTRE CONSOLES

1. Audio and telematics system microphone.

2. Courtesy lamp/Map reading lamps/Interior

mood lighting.

3. Seat belt and front passenger's airbag

warning lamps display.

4. Interior volumetric sensors (alarm).

5. Multifunction screen.

6. Clock.

7. Emergency call button.

Alarm button.

Central locking button.

Hazard warning lamps button.

Dynamic stability control (ESP/ASR/EBA)

button.

Parking sensors button.

PEUGEOT services button.

8. Peugeot Connect Sound and storage

compartment or Peugeot Connect Media.

9. Heating/air conditioning controls.

10. Front ashtray.

11. 12 V accessories socket.

12. Active spoiler control.

13. Storage compartment or instrument panel

navigator associated with the Peugeot

Connect Media.

14. Cup holder.

15. Front armrest/USB/auxiliary socket.

APp-RCZ_01_2010_anglais_cag_pdf_10 10

03/11/2010 18:26:03

FAMILIARISATION

SITTING COMFORTABLY

FRONT SEATS

Forwards-backwards Height

MANUAL ADJUSTMENTS

ELECTRIC ADJUSTMENTS

Seat back angle

APp-RCZ_01_2010_anglais_cag_pdf_11 11

03/11/2010 18:26:04

SITTING COMFORTABLY

FRONT SEATS

Other functions available...

Lumbar adjustment.

As a safety precaution, these

operations must only be carried out

when stationary.

Heated seats.

STEERING WHEEL ADJUSTMENT

1. Unlock the control.

2. Adjust for height and reach.

3. Lock the control.

FRONT ARMREST

For your comfort, the height and the

longitudinal position of the front armrest can

be adjusted.

It also offers a storage compartment.

Storing of driving positions (driver's electric

seat).

APp-RCZ_01_2010_anglais_cag_pdf_12 12

03/11/2010 18:26:05
