PEUGEOT 4008 User manual
Handbook
Familiarisation
Electronic key: Keyless Entry
and starting
This system allows you to lock, unlock and
start the vehicle while keeping the key on your
person and in the defined zone.
64
Welcome lighting
This additional exterior and interior lighting,
controlled remotely, makes your approach to
the vehicle easier when the light is poor.
136
Exterior Stop & Start function
(Auto Stop & Go)
This system puts the engine temporarily into
standby during stops in the traffic (traffic
lights, traffic jams, etc...). The engine restarts
automatically as soon as you want to move
off. The Stop & Start system reduces fuel
consumption and exhaust emissions, as well as
noise levels when stationary.
119
The door sill finishers are fragile. Do not
use them as a step.
.
5
Familiarisation
Temporary puncture repair kit
This kit is a complete system, consisting of a
compressor and a sealant cartridge, for the
temporary repair of a tyre.
170
Panoramic sunroof
This large glazed area provides incomparable
visibility and light in the passenger
compartment.
78
Reversing camera
This system is activated automatically on
engaging reverse and provides an image in the
colour screen.
130
Exterior
Front and rear parking sensors
This system warns you of the presence of
obstacles in front of or behind the vehicle when
manoeuvring forwards or backwards.
127
6
Familiarisation
Opening
A. Folding/unfolding the key.
B. Unlocking the vehicle.
C. Locking the vehicle.
Remote control
65
Unlocking
With the electronic key on your person and in
one of the defined zones A , press one of the
buttons B or C to unlock the vehicle, then pull
on the handle to open the door.
Locking
With the electronic key on your person and in
one of the defined zones A , press one of the
buttons B or C to lock the vehicle.
Keyless Entry and
Starting system
60
64
.
7
Familiarisation
Opening
Boot
Opening
After unlocking the vehicle with the remote
control or the Keyless Entry and Starting
system, press the handle A .
Closing
Pull the handle B downwards.
Fuel tank
A. Opening the filler flap.
71 207
B. Removing the filler cap.
C. Hooking the filler cap.
Capacity of the fuel tank: approximately 60 litres.
Bonnet
A. Interior release lever.
B. Exterior safety catch.
C. Bonnet stay.
204
8
Familiarisation
Interior
4-wheel drive system with
electronic control*
This system allows the selection of a
transmission mode, according to the driving
conditions.
CVT gearbox
This system offers driving combining a fully
automatic mode and a manual mode.
Digital air conditioning
This automatic air conditioning system maintains
the desired comfort level and adequate air
circulation in the passenger compartment.
Audio and communication
systems
These systems benefit from the following
technologies: radio, CD player, USB player,
Bluetooth system, satellite navigation system
with colour screen, auxiliary sockets.
AUDIO-TELEMATIC system
122
113
92
283
223
AUDIO-CD system
* Depending on version.
.
9
Familiarisation
Instruments and controls
1. Door mirror controls.
Electric window controls.
2. Bonnet release.
3. Fusebox.
4. Manual headlamp height adjustment.
Side switch panel.
5. Side adjustable air vent.
6. Instrument panel.
7. Lighting and direction indicator control
stalk.
8. Steering wheel adjustment control.
9. Controls for Bluetooth system or telephone.
10. Controls for Audio-CD and Audio-telematic
systems.
11. Driver's airbag.
Horn.
12. Cruise control switches.
13. Parking brake.
10
Familiarisation

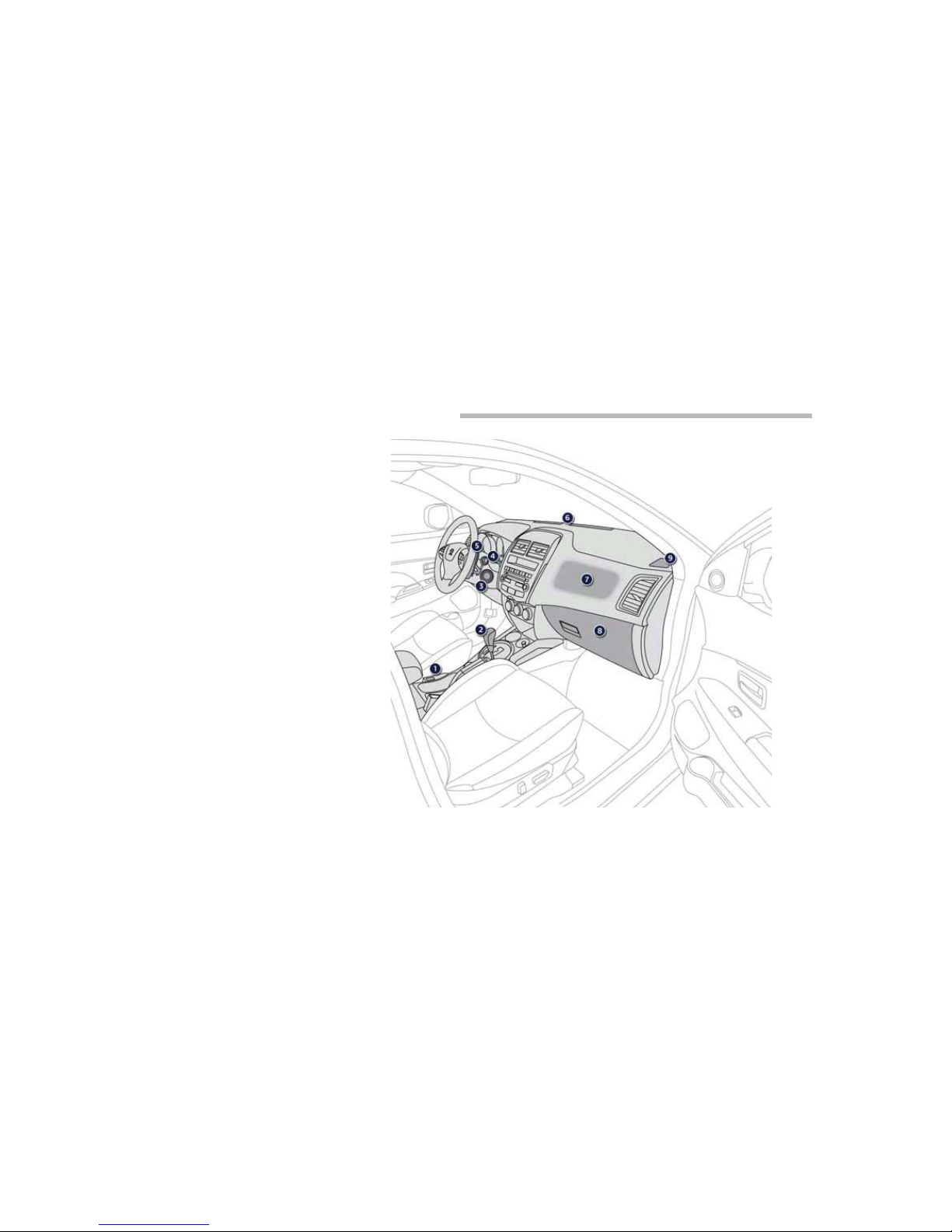

Instruments and controls
1. Heated seat control.
2. Gear lever, CVT gearbox.
3. Steering lock and ignition.
4. Wiper / screenwash control stalk.
5. Steering mounted control paddles for the
CVT gearbox.
6. Windscreen demisting vent.
7. Passenger's airbag.
8. Glove box.
Passenger's airbag deactivation switch.
Back-up starting unit (with the "Keyless
Entry and Starting" system).
9. Front door glass demisting vent.
.
11
Familiarisation
Centre console
A. Rear view mirror, manual or automatic.
B. Courtesy lamp / Map reading lamps.
C. Microphone for Audio-CD et Audio-
telematic systems.
D. Control for panoramic sunroof blind.
E. Sunshine/rain sensor.
1. Central adjustable air vents.
2. Screen for the Audio-CD system or colour
screen for the Audio-telematic system.
3. START/STOP button.
Ignition switch.
4. Audio-CD system or Audio-telematic
system.
5. Central switch panel.
6. Temperature sensor.
7. Manual or digital heating / air conditioning
controls.
8. Gear lever, manual or CVT gearbox.
9. Cigarette lighter / 12 V accessory socket.
10. Portable ashtray.
11. Control for 4 wheel drive system.
12. Cup holder.
13. Front armrest.
12
Familiarisation
Sitting comfortably
Front seat
79
Manual adjustments
1. Seat forwards-backwards adjustment.
2. Driver's seat cushion height adjustment.
3. Seat backrest angle adjustment.
4. Head restraint adjustment.
Electric adjustments
1. Seat forwards-backwards adjustment.
2. Driver's seat cushion height and angle
adjustment.
3. Seat backrest angle adjustment.
80
