Perle IRG5521+ FN User manual
IRG5521+ FN Router Quick Start Guide 5500477-10 (Rev A)
Version #A1.05.03.2021
1
IRG5521+ FN Router
Quick Start Guide
_____________________________________
This guide covers basic installation and configuration, and its
intention is for first time setup or product evaluation.
You can find complete details in the following guides at
www.perle.com/downloads.
•IRG5521+FN Router Hardware Installation Guide
•IRG5000 Series Routers User’s Guide
•IRG5000 Series Routers Command Line Reference
Guide.
What’s in the box?
•IRG5521+ FN Router
•IRG5521+ Router Quick Start Guide (this guide)
•2 LTE SMA antenna pack (#08000140)
•2 Wifi antenna (#08000140)
•GPIO Cable with a 4 pin plug (#2500468)
•GPIO Cable with a 8 pin plug (#2500476)
•12VDC/2A 4 pin (NA#08000150, EU #08000160, UK
#08000170, AUS#08000180)
•Optional – GNSS PAV RP Antenna SMA/CA
(#08000130) passive or active antenna (08000130)
•Optional – DIN Rail mounting kit (orderable from Perle)
Note: Components may vary depending on each model. See
the Perle website for updates
IRG5521+ FN Router Quick Start Guide 5500477-10 (Rev A)
Version #A1.05.03.2021
2
Getting Started
These steps are for a typical installation.
1. Inserting the SIM card/s.
2. Connecting the Antenna/s.
3. Connecting the Power.
4. Connecting to the Cellular Network.
5. Fast Setup Mode.
Inserting the SIM cards
Use only mini-SIM (2FF) cards.
Disconnect the power before you insert the SIM card/s (see
below).

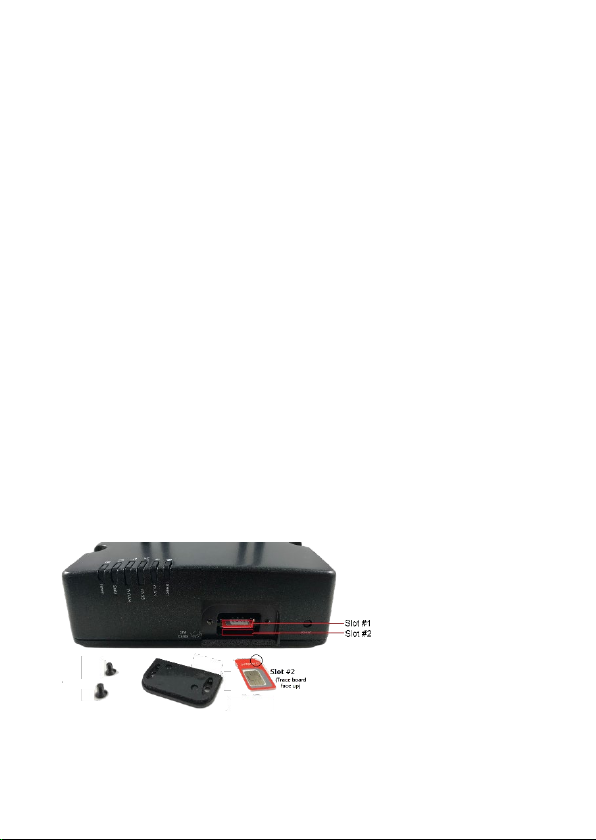

1. Unscrew the screws and gently pry the SIM cover loose
from the opening (see below).
2. Align the SIM card so that the SIM card will slide into
the top slot (slot#1), ensuring the SIM card connectors
will be facing the router’s printed circuit board. Always
populate slot#1 first.
3. Align the SIM cover plate and secure the plate with the
screws.
IRG5521+ FN Router Quick Start Guide 5500477-10 (Rev A)
Version #A1.05.03.2021
3
Connecting the Antennas
1. Connect your cellular antenna to connector Main.
2. Connect the diversity antenna to connector Diversity.
3. Connect a WLAN antenna to connector WLAN-1.
4. Connect a WLAN antenna to connector WLAN-2.
5. Connect your GPS antenna to connector GNSS.

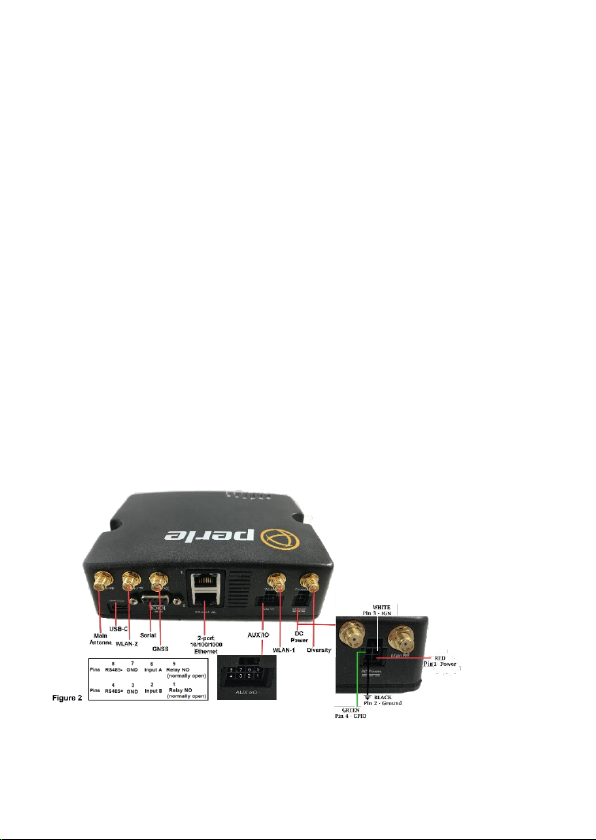

See Figure 2
Connecting the Power
See Figure 2 for wiring requirements. Colors indicated are
for the Perle supplied DC power cable.
Connecting to the Cellular Network
On power up, the router attempts to connect to the cellular
network. The connection process typically takes a few
minutes. A solid green Internet LED indicates a successful
connection. For more information, see the IRG5521+ Router
Hardware Installation Guide for details.
IRG5521+ FN Router Quick Start Guide 5500477-10 (Rev A)
Version #A1.05.03.2021
4
Fast Setup Mode
Your router ships in factory default mode. Fast Setup Mode
provides a simple method of doing the initial setup from your
PC.
1. Your PC must be set to obtain an IP address
automatically using DHCP.
2. Plug the PC into your router’s Ethernet interface or
connect to the wireless LAN (WIFI) using the
credentials printed on your router’s label.
3. When the power LED flashes green, use a web browser
and enter http://192.168.0.1 to access your router.
On the setup screen, select, Getting Started.
4. Once connected, fill in the required fields, apply changes
to save and exit. These configuration changes are
immediately applied to the router.
5. The router’s web configuration sign-on screen displays.
Using the previously defined credentials from step 4,
you can access your router’s full configuration.
For alternative methods of performing an initial setup, see the
IRG5521+ FN Router Hardware Installation Guide.
