Pelgrim PWM121WIT Operating and maintenance manual
EN
DETAILED
INSTRUCTIONS
HOW TO USE YOUR
WASHING MACHINE
PWM120WIT
PWM121WIT
www.pelgrim.com
We thank you for your trust
and the purchase of our washing
machine.
Your new washing machine complies
with the requirements of modern
laundry care. Your laundry will
be impeccably white even at low
temperatures, owing to special
washing programs like Ultra White.
SensoCare technology allows simple
control of the washing machine.
Your washing machine is highly
economical when it comes to use of
power, water, and detergent.
The washing machine is intended
exclusively for use in households, for
washing the laundry that is indicated
as machine washable.
3
TABLE OF CONTENTS
409776
STEPS OF THE
WASHING
PROCESS
CLEANING &
MAINTENANCE
OF THE
APPLIANCE
INTRODUCTION
TROUBLE-
SHOOTING
PREPARING THE
APPLIANCE FOR
THE FIRST USE
OTHER
4 WASHING MACHINE
5 Technical information
6 Front panel
8 SAFETY PRECAUTIONS
10 INSTALLATION AND CONNECTION
10 Removal of transport brackets
11 Selecting the room
11 Installation
13 Water inlet connection
14 Aqua-stop
14 Total aqua - stop
15 Water outlet connection
16 Connect the appliance to the mains supply
17 Moving and transport
17 Subsequent transport
18 BEFORE THE USE
19 WASHING STEPS (1 - 7)
19 1. Step: check the tags on your laundry
20 2. Step: preparing the washing process
22 3. Step: choosing a programme
25 4. Step: choosing the settings
27 5. Step: selecting additional functions
29 6. Step: program start
29 7. Step: end of washing program
30 LEANING AND MAINTENANCE
30 Cleaning the detergent dispenser
31 Cleaning the dispenser housing, inlet hose screen and door rubber
gasket
32 Cleaning the filter
33 Cleaning the washing machine
34 INERRUPTING AND CHANCHING THE PROGRAM
35 What to do ...?
36 Troubleshooting table
38 RECOMMENDATIONS FOR WASHING AND ECONOMIC USE YOUR
WASHING MACHINE
40 Grandma's advice for natural stain removal
42 DISPOSAL
43 TYPICAL CONSUMPTION TABLE
4

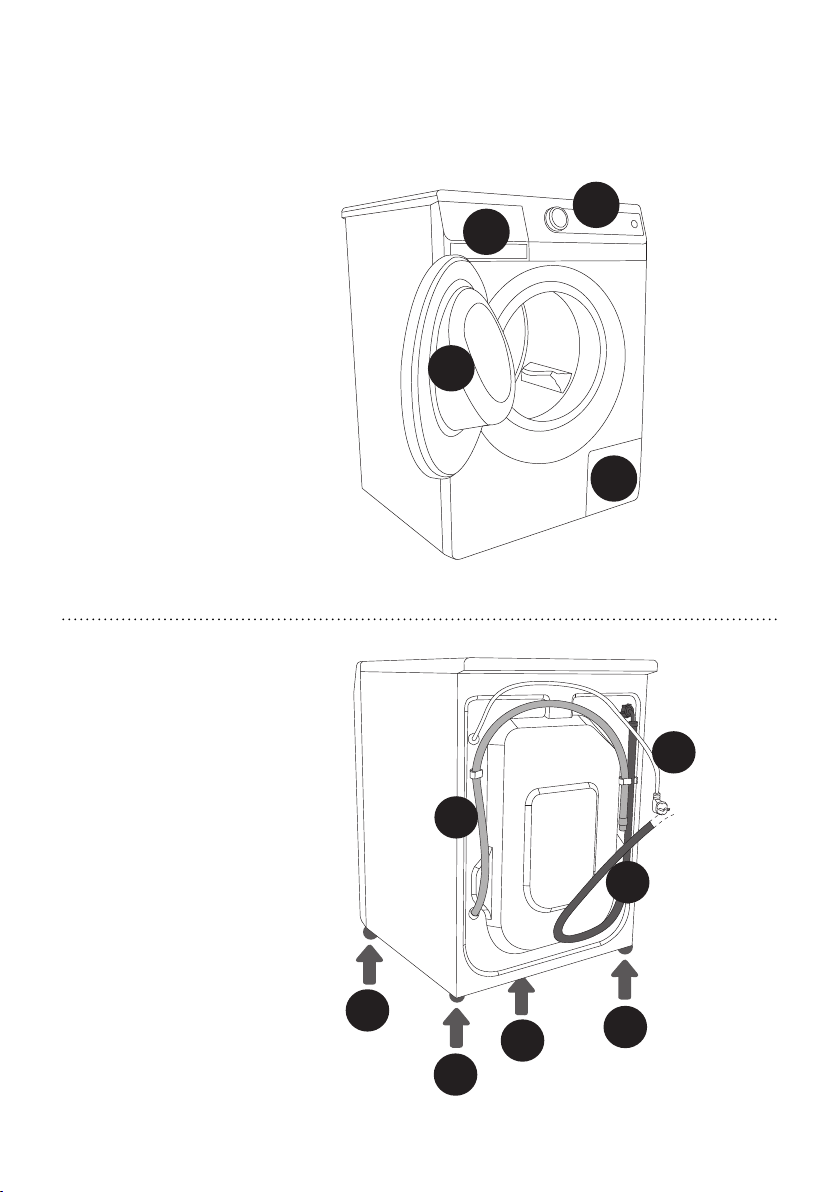

WASHING MACHINE
(WASHING MACHINE DESCRIPTION)
2
1
3
4
1
2
3
4
4
4
4
409776
FRONT
1 Front panel
2 Dispenser
3 Door
4 Filter
BACK
1 Water inlet pipe
2 Power cord
3 Water discharge pipe
4 Adjustable feet
5
TECHNICAL INFORMATION
(DEPENDING ON THE MODEL)
TYPE: PS10/XXX
Art.No.: XXXXXX
AC 220-240V 50/60 Hz 10A Pmax.: 2400W
2000W XXX/min 0,05-0,8 MPa
MODEL: XXXXXX
Ser.No.: XXXXXX
X
kg
IPX4 MADE IN EU
Maximum load See rating plate See rating plate (SLIM)
Width 600 mm 600 mm
Height 850 mm 850 mm
Depth 600 mm 440 mm
Depth with door open 108 cm 92 cm
Washing machine weight x kg
(depending on the model)
x kg
(depending on the model)
Rated Voltage See rating plate See rating plate
Nominal power See rating plate See rating plate
Connection See rating plate See rating plate
Water pressure See rating plate See rating plate
Current See rating plate See rating plate
Frequency See rating plate See rating plate
409776
The rating plate with the basic information on the washing machine
is located under the washing machine door.
Rating plate
66
FRONT PANEL
409776
1Washing machine ON/
OFF and program
SELECTOR DIAL 2WASHING STYLE key
(SensoCare)
NORMALcare
ECOcare
ALERGYcare
TIMEcare
Washing style will appear on
the display above the key.
3WASHING
TEMPERATURE key
Washing temperature will
appear on the display above
the key.
OFF
1
2 3
77
409776
4SPINNING RPM / PUMP
(DRAIN)/ STOP PUMP
(RH) key
SPINNING RPM /
PUMP (DRAIN) /
PUMP STOP (RH)
will appear on the display
above the key.
5WASHING PROGRAM
COMPLETION TIME
(END TIME) key
WASHING TIME
COMPLETION
will appear on the display
above the key.
6a , b, c ADDITIONAL
FUNCTION keys
6a Prewash
6b Extra water
6c SterilTub
7START/PAUSE key
Use this key to start or
stop the program.
When the machine is turned
on, the signal light on the
key starts to flash; when the
program is started, it is lit
continuously.
START|PAUSE
45
6c
6b
6a
7
8
SAFETY PRECAUTIONS
409776
Please, do not use the washing machine
without reading and understanding these
instructions or use first.
Be sure to remove transport brackets
prior first use of the appliance. Attempted
operation of the blocked machine may
result in irreparable damage which is not
covered by the manufacturer’s warranty!
When connecting your washing machine
to water supply, be sure to use the supplied
water inlet hose and sealing gaskets.
Failure to observe the instructions for
use or inappropriate use of the washing
machine may result in damage to the
laundry or machine, or injury to the user.
Keep the instructions for use handy, near
the washing machine.
Do not install the machine in a room where
temperature can drop below 0°C. Parts of
the machine may be damaged if the water
inside them freezes.
Install the washing machine in a perfectly
horizontal position, on solid flat (concrete)
floor.
Follow the instructions for correct
installation and water and mains
connections (see chapter "Installation and
connections").
Never immerse the end of the drain hose
into the draining water.
Prior starting the washing cycle lock the
door by pressing them at the designed
spot.
Door may not be open during the washing
cycle.
We recommend running the self-cleaning
program before the first wash in order to
remove any impurities from the washing
machine drum. (See chapter on” Selecting
additional functions”.
Use only detergents and softeners for
machine wash. Manufacturer may not
assume responsibility for any damage and
eventual discolouring of gaskets and plastic
components as a consequence of incorrect
use of bleach and/or colouring agents.
For removal of lime residues use such
agents with added anti-corrosion agents.
Follow the manufacturer’s instructions.
Finish the lime removal by multiple rinsing
to remove completely eventual acid
residues (e.g. vinegar etc.).
Never use detergents containing solvents,
since there is a danger of creating toxic
gasses which may damage the machine and
result in ignition or explosion.
This product does not release silver ions
during the washing cycle.
Upon completion of the washing cycle,
close the water faucet and unplug the
mains cord.
Before transporting the machine after it
has been used, block the drum by inserting
at least one transport blocking rod.
Disconnect the appliance from the mains
power before inserting the rod!
9
409776
BEFORE CONNECTING THE WASHING MACHINE:
Carefully read the instructions for use before connecting
the washing machine. Repair or any warranty claim
resulting from incorrect connection or use of the washing
machine shall not be covered by the warranty.
Rating plate with basic information is
located above the opening of the machine.
Leave any repairs and similar tasks
on the washing machine to an expert.
Unprofessional repair may result in an
accident or major malfunction.
The warranty shall not apply to
consumables, minor discoloration or
deviations of colour, increased noise level
as a consequence of appliance age, which
does not affect appliance functionality, and
aesthetical deficiencies which do not affect
appliance functionality or safety.
The appliance is intended exclusively
for use in households. If the appliance is
used for professional purposes, for profit,
or for purposes beyond regular use in a
household, or if appliance is used by a
person who is not a consumer, the warranty
period equals the shortest warranty period
possible as stipulated by the relevant
legislation.
THE APPLIANCE IS MANUFACTURED IN COMPLIANCE
WITH ALL RELEVANT SAFETY STANDARDS.
THIS APPLIANCE CAN BE USED BY CHILDREN
AGED FROM 8 YEARS AND ABOVE AND PERSONS
WITH REDUCED PHYSICAL, SENSORY OR MENTAL
CAPABILITIES OR LACK OF EXPERIENCE AND
KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION
OR INSTRUCTION CONCERNING USE OF THE APPLIANCE
IN A SAFE WAY AND UNDERSTAND THE HAZARDS
INVOLVED. CHILDREN SHALL NOT PLAY WITH THE
APPLIANCE. CLEANING AND USER MAINTENANCE SHALL
NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.
10
INSTALLATION AND CONNECTION
REMOVAL OF TRANSPORT BRACKETS
409776
Be careful to prevent personal injury.
In removing the wrapping be careful not to damage the
appliance with a sharp object.
Remove transport protection devices; as running the washing
machine with the blocking rods in place could result in
damage. Save transport brackets for eventual later use.
Warranty shall be void in cases of such damage.
1Move the pipes.
Loosen screws
at the rear of the
machine.
2Remove the
brackets.
3Slide brackets
into the groove
on the blocking
rod - the right one
should be turned
around.
4Use the
brackets to
rotate blocking rods
for 90° and pull
them out.
Close the openings with attached
plastic pegs.
This manual suits for next models
