Peerless-AV FPZ-655 Guide

1 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14

Max Load Capacity:

100 lb (45 kg) screen

25 lb (11 kg) per shelf

Installation and Assembly: 32" - 55" Flat Panel TV Stand

Model: FPZ-655

2 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14

NOTE: Read entire instruction sheet before you start installation and assembly.

Table of Contents

Parts List............................................................................................................................................................................ 3, 4

Assembling stand...................................................................................................................................................................5

Attaching Universal Adapter Plate or DedicatedAdapter Plate..............................................................................................6

Installing Adapter Brackets ....................................................................................................................................................8

Cord Management................................................................................................................................................................11

Tools Needed for Assembly

•level

• phillips screwdriver

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US

customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact

your local distributor.

• This product should only be installed by someone of good mechanical aptitude, and fully understands

these instructions.

• Never exceed the Maximum Load Capacity on page 1.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁrmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• The stand is not afﬁxed or secured to the ﬂoor, and may therefore tip over and/or fall if screen and/or stand is

shaken or hit. Always monitor children and do not let children play alone around stand as they could get hurt by a

falling screen. Not recommended for use in areas with heavy trafﬁc.

WARNING

3 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14

GHJ

KLMN

OPQ

TUV

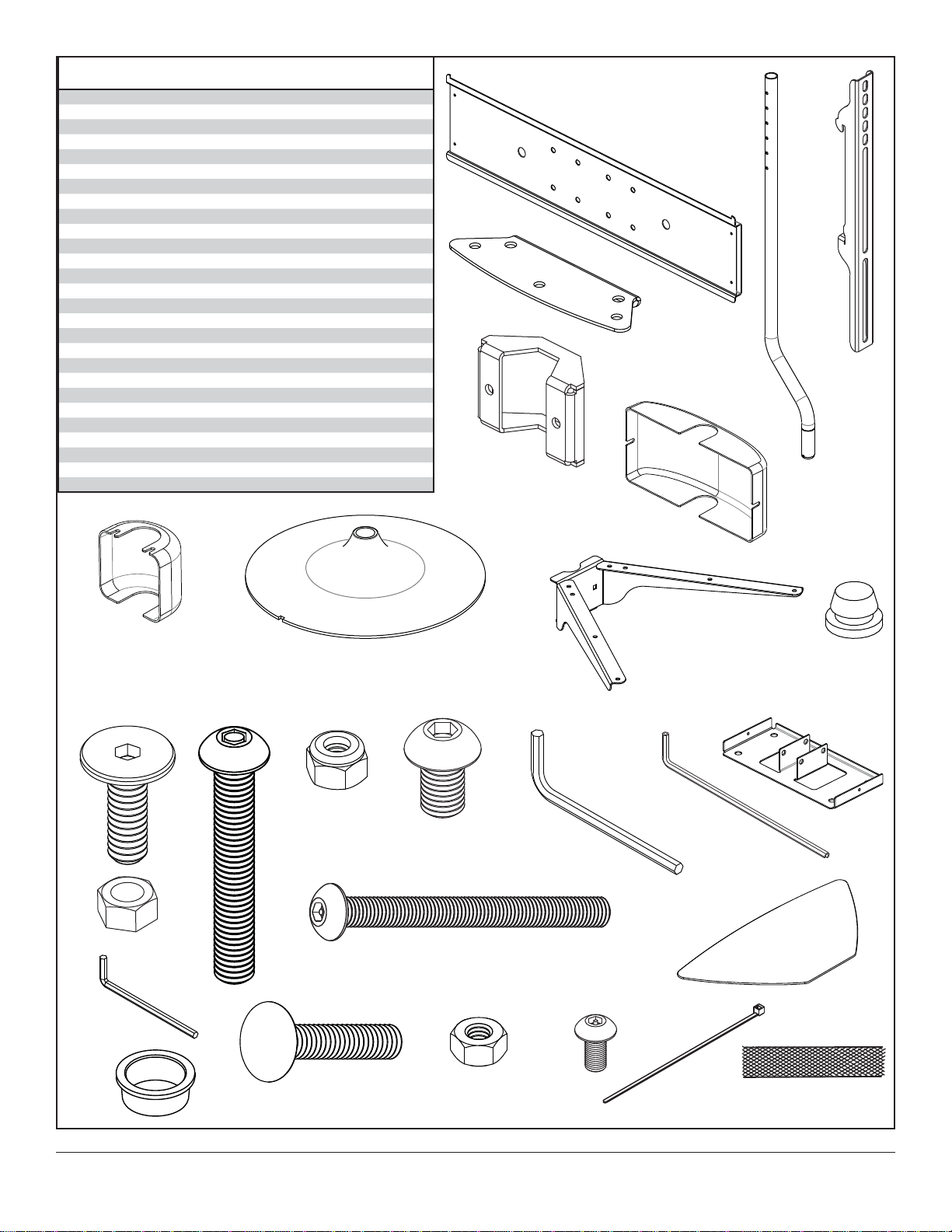

Parts List SF660-AW

Part #Description Qty

Aadapter plate 1 201-P1110

Bvertival tube 1 104-P1075

Cshelf clamp bracket 1 201-P1159

Dshelf support bracket 1 104-P1072

Eadapter bracket 2 202-P1657

Ftop cover 1 590-P1340

Gbottom cover 1 590-P1341

Hsupport base 1 590-1039

Ishelf support 1 104-P1073

Jbutton bumper 9 590-1209

K1/4-20 x 20 mm decorative screw 2 520-2326

L5/16-18 x 2" socket screw 2 520-1116

M5/16 nut 2 530-9306

NM10 x 15 mm socket screw 4 520-9262

O6 mm allen wrench 1 560-9716

P4 mm allen wrench 1 560-9646

Qadapter support plate 1 104-P1074

RM5 x 55 mm socket pin screw 1 520-1302

SM5 nut 1 530-9409

T1/4-20 x 1.75" carriage bolt 2 560-1764

U1/4-20 nut 2 530-9302

VM5 x 10 mm socket pin screw 4 520-1063

Wglass shelf 1 590-0208

Xcable tie 5 560-9711

Y18" mesh sleeve 2 600-1014

Z3/16" allen wrench 1 560-0071

AA plastic bushing 1 590-1378

4 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14

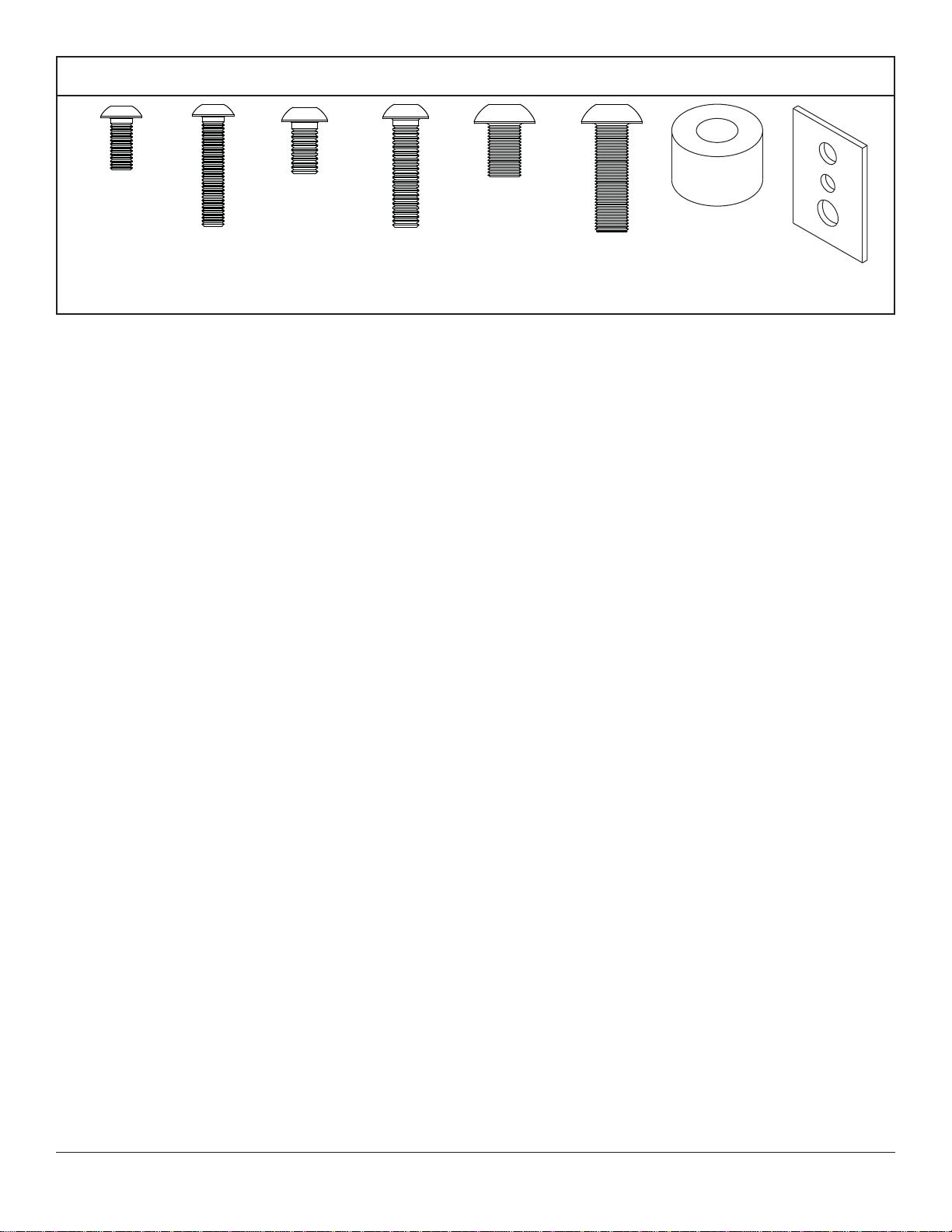

M5 x 25mm (4)

(520-1122)

M5 x 12mm (4)

(520-1064) M6 x 12mm (4)

(520-1050)

M6 x 25mm (4)

(520-1211) M8 x 25mm (4)

(520-1101)

M8 x 12mm (4)

(520-1724) .75" spacer (4)

(540-1059)

Multi-washer (4)

(580-1398)

Security Adapter Bracket Fasteners

5 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14

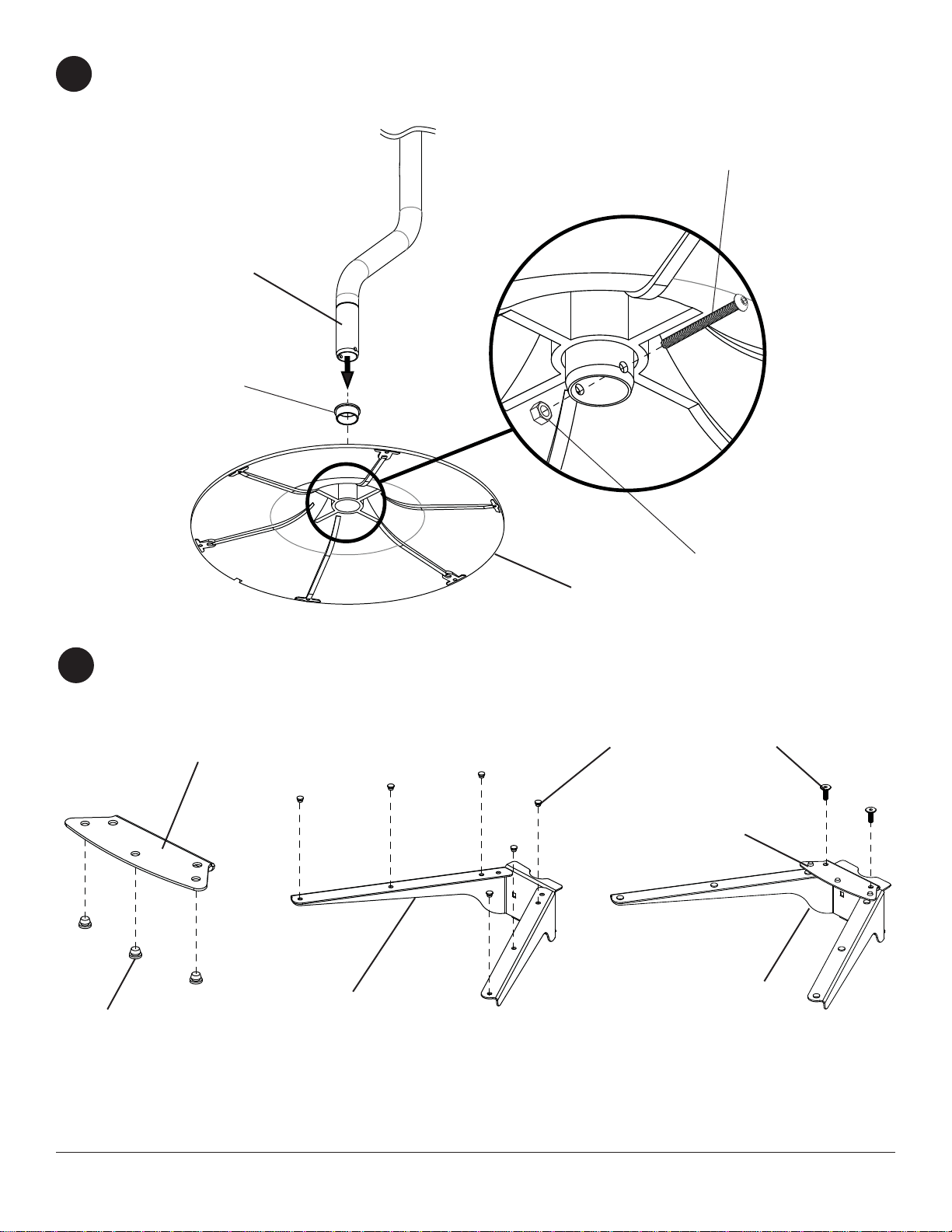

1Attach vertical tube (B) to support base (H) using one plastic bushing (AA), one M5 x 55 mm socket screw (R), and

M5 nut (S) as shown in detail 1. Tighten M5 x 55 mm socket pin screw (R) using 4 mm allen wrench (X).

2Press three button bumpers (J) into shelf clamp bracket (C) as shown in ﬁgure 2.1

Press six button bumpers (J) into shelf support (I) as shown in ﬁgure 2.2.

Loosely fasten two 1/4-20 x 20 mm decorative screws (K) as shown in ﬁgure 2.3.

DETAIL 1

Figure 2.1 Figure 2.2 Figure 2.3

6 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14

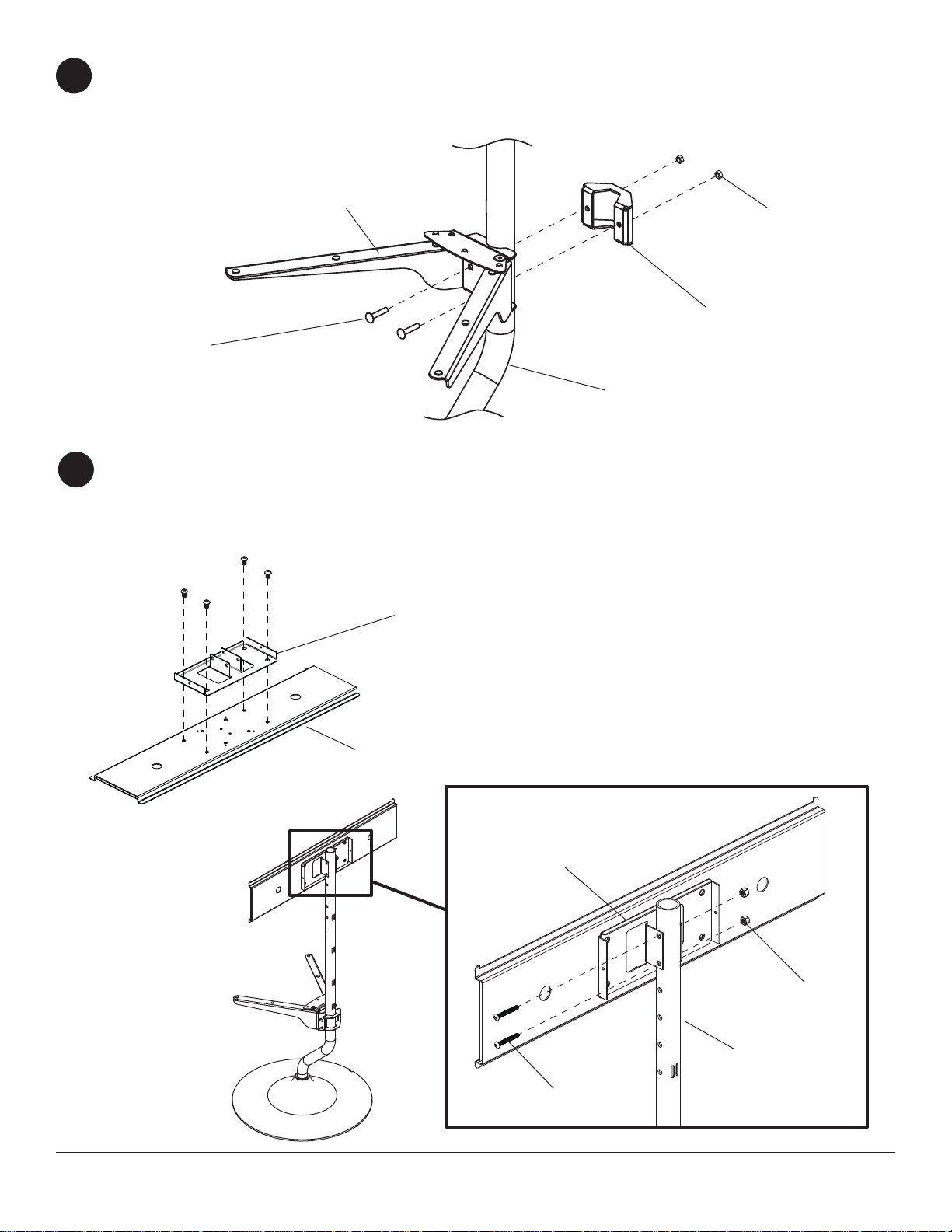

3Attach shelf support (I) to vertical tube (B) with clamp bracket (D) using two 1/4-20 x 1.25" carriage bolts (T), and

1/4-20 nuts (U).

4Attach adapter support plate (Q) to adapter plate (A) with four M10 x 15 mm socket screws (N)

using allen wrench (O) as shown in ﬁgure 4.1.

Attach adapter support plate (Q) to vertical tube (B) using two 5/16-18 x 2" socket screws (L), and 5/16 nuts (M)

as shown in detail 2.

DETAIL 2

Figure 4.1

7 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14

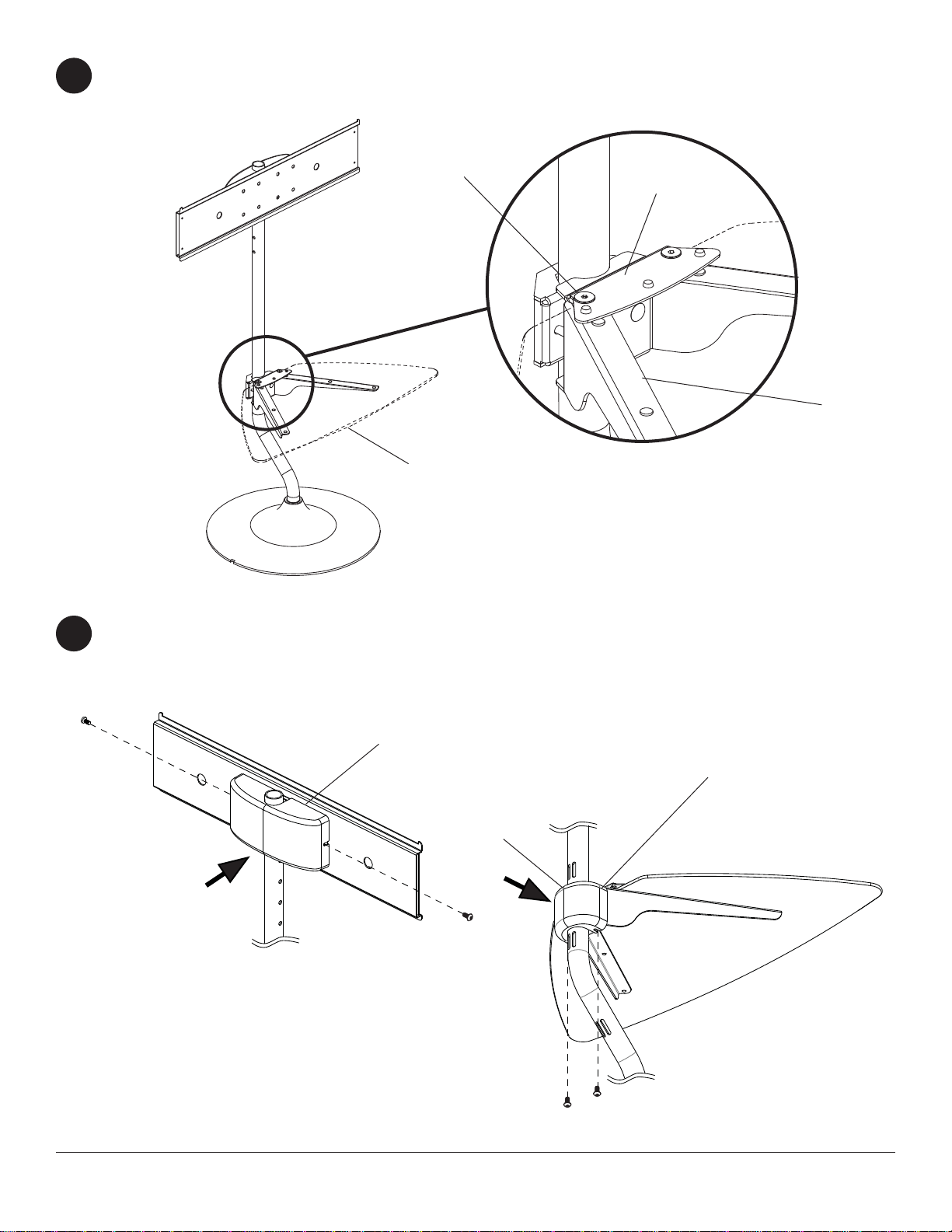

Position glass shelf (W) on top of shelf support (I) and under shelf clamp bracket (C) as shown below.

Secure glass shelf (W) in place by tightening two pre-installed 1/4-20 x 20 mm decorative screws (K)

as shown in detail 3.

Attach top cover (F) to adapter support plate (Q) with two M5 x 10 mm socket pin screws (V) as shown in ﬁgure 6.1.

Attach bottom cover (G) to clamp bracket (D) with two M5 x 10 mm socket pin screws (V) as shown in ﬁgure 6.2.

Tighten using 4 mm allen wrench (X).

DETAIL 3

FIGURE 6.1

FIGURE 6.2

8 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14

Note: "X" dimensions should be equal.

• Tighten screws so adapter brackets are ﬁrmly attached. Do not tighten with excessive force. Overtightening can

cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become

detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

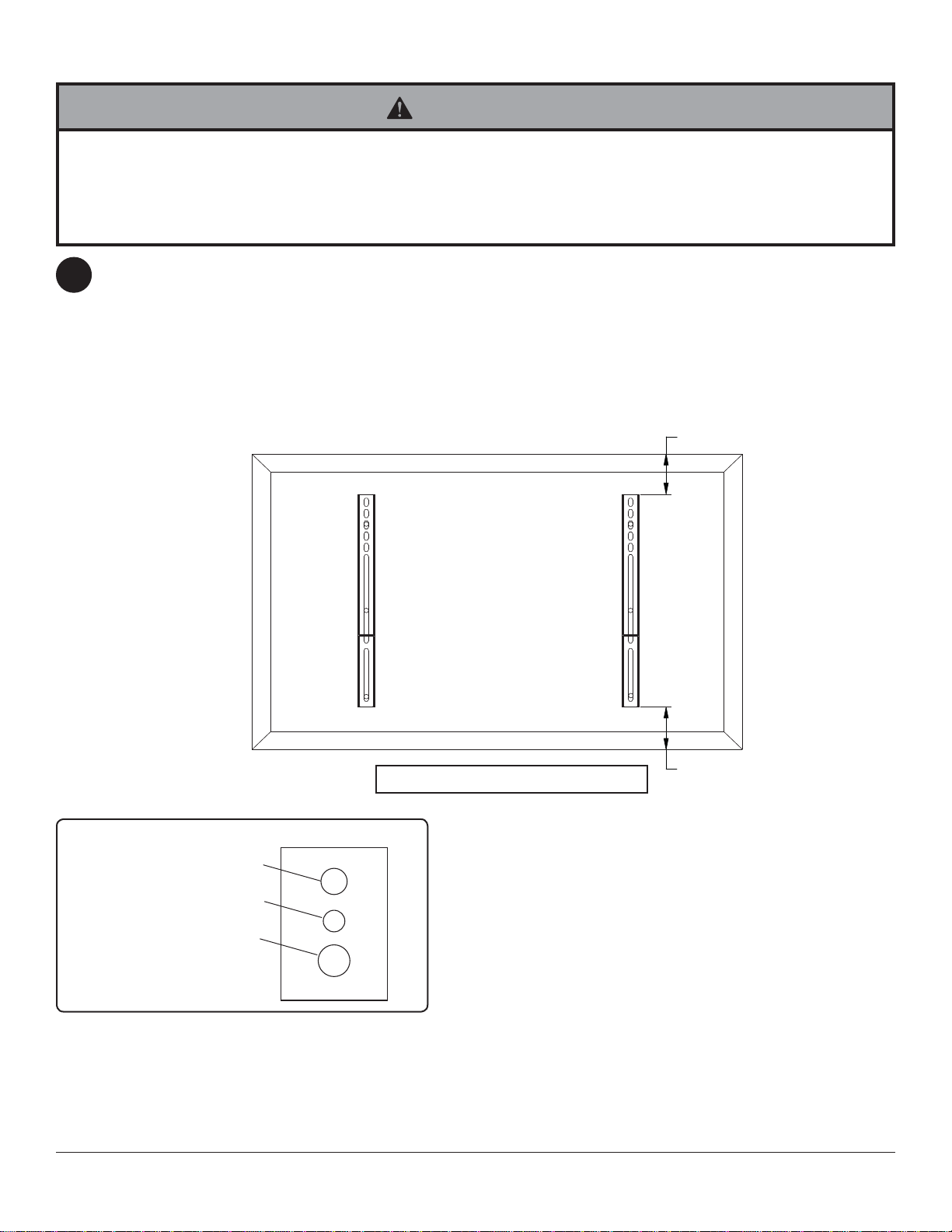

Installing Adapter Brackets

To prevent scratching the screen, set a cloth on a ﬂat, level surface that will support the weight of the screen. Place

screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.

Place adapter brackets (E) on back of screen, align to holes, and center on back of screen as shown below. Attach

the adapter brackets to the back of the screen using the appropriate combination of screws, multi-washers, and

spacers as shown in ﬁgure 7.1 and 7.2.

NOTE: Top and bottom holes must always be used.

Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.

MEDIUM HOLE FOR M5 SCREWS

SMALL HOLE FOR M4 SCREWS

LARGE HOLE FOR M6 SCREWS

ECENTER BRACKETS

VERTICALLY ON BACK OF

SCREEN

Notes:

• The number of fasteners used will vary, depending

upon the type of screen.

• Multi-washers and spacers may not be used,

depending upon the type of screen.

• Use the corresponding hole in the multi-

washer that matches your screw size as shown.

MULTI-WASHER

NOTE: For ﬂat back screens proceed to step 7-1. For bump-out or recessed back screen skip to step 7-2.

9 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14

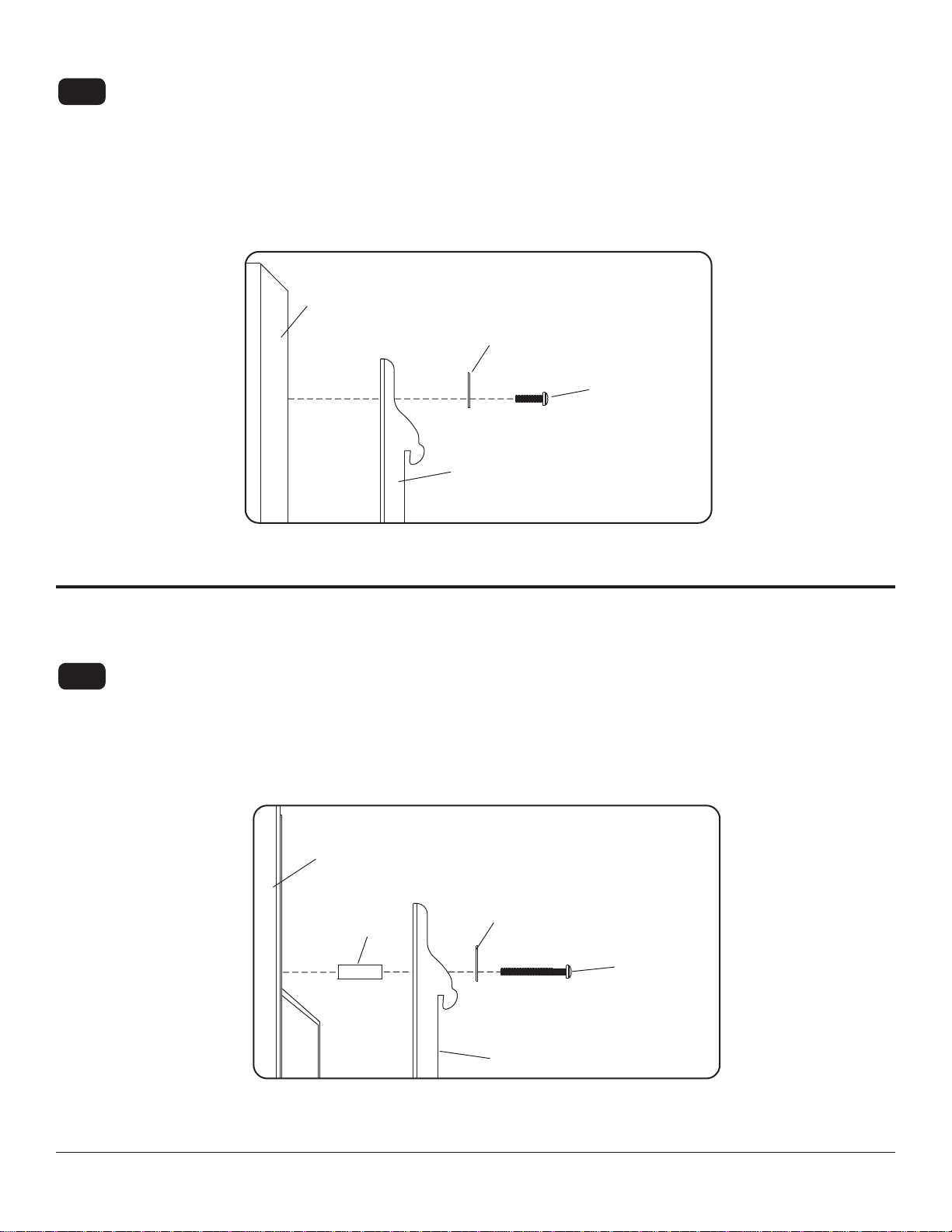

Begin with the shortest length screw, hand thread through multi-washer and adapter bracket into screen as shown

below. Screw must make at least three full turns into the mounting hole and ﬁt snug into place. Do not over tighten.

If screw cannot make three full turns into the screen, select a longer length screw from the bafﬂed fastener pack.

Repeat for remaining mounting holes, level brackets and tighten screws.

NOTE: Spacers may not be used, depending upon the type of screen.

Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into

screen as shown below. Screw must make at least three full turns into the mounting hole and ﬁt snug into place.

Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the

bafﬂed fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.

For Flat Back Screen

For Bump-out or Recessed Back Screen

7-1

7-2

SCREW

ﬁg. 7.2

SPACER

ADAPTER

BRACKET (E)

SCREEN ﬁg. 7.1

MULTI-WASHER

SCREW

If you have any questions, please call Peerless customer care at 1-800-865-2112.

MULTI-WASHER

ADAPTER BRACKET (E)

SCREEN

10 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14

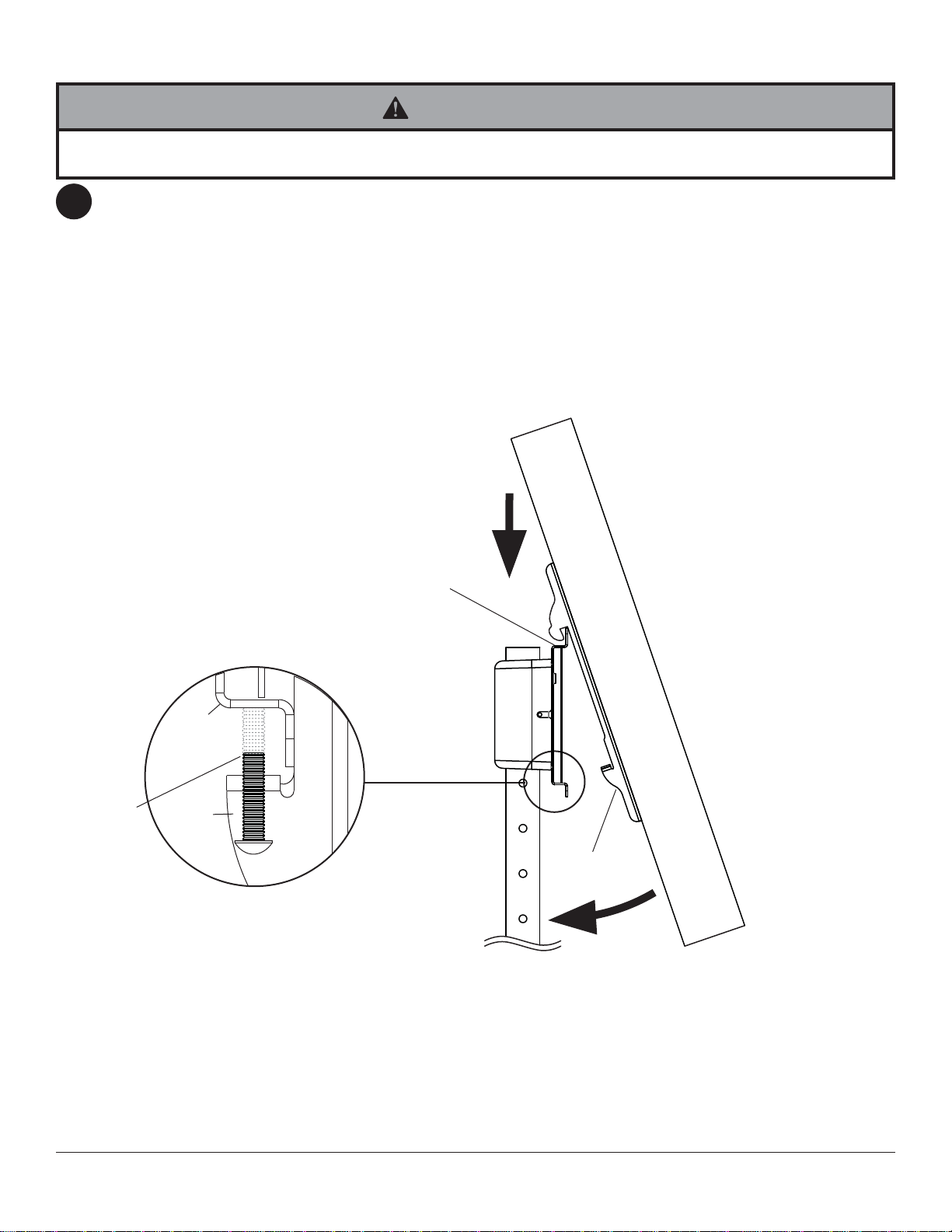

Mounting and Removing Flat Panel Screen

Hook adapter brackets (E) onto adapter plate (A), then slowly swing screen in as shown. Turn screws clockwise at

least six times to prevent screen from being removed as shown in detail 4.

NOTE: Tighten using 4 mm allen wrench (P).

Screen can be adjusted horizontally if desired.

NOTE: It is important to lock screen down! To lock the screen down, tighten screws to adapter bracket as shown

in detail 4.

To remove screen from mount, loosen screws, swing screen away from mount and lift screen off of mount.

DETAIL 4

SCREWS

• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.

WARNING
