Peerless-AV SGLS01 Guide

Max Load Capacity:

150 lb (68 kg) display

50 lb (23 kg) per shelf

2300 White Oak Circle • Aurora, IL 60502 • (708) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com

ISSUED: 07-28-06 SHEET #: 202-9156-15 (2014-04-09)

Installation and Assembly:

32" - 65" Flat Panel Display Stand

Model: SGLS01, SGLB01

2 of 35 ISSUED: 07-28-06 SHEET #: 202-9156-15 (2014-04-09)

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer care at 1-708-865-2112.

• This product should only be installed by someone of good mechanical aptitude, and fully understands

these instructions.

• Never exceed the Maximum Load Capacity on page 1.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁrmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• The cart is not afﬁxed or secured to the ﬂoor, and may therefore tip over and/or fall if display and/or stand is shaken

or hit. Always monitor children and do not let children play alone around stand as they could get hurt by a falling

display. Not recommended for use in areas with heavy trafﬁc.

WARNING

Table of Contents

Parts List............................................................................................................................................................................ 3, 4

Assembling Floor Stand .........................................................................................................................................................4

Attaching Display Using Universal Plate with Adapter Brackets.............................................................................................7

Attaching Display with VESA 100 Mounting Pattern.............................................................................................................11

Tools Needed for Assembly

•level

• phillips screwdriver

NOTE: Read entire instruction sheet before you start installation and assembly.

3 of 35 ISSUED: 07-28-06 SHEET #: 202-9156-15 (2014-04-09)

UTP

NOTE: Some parts may appear slightly different than illustrated.

SGLB01 SGLS01

Description Qty. Part # Part #

Ascreen mount bracket 1 201-1156 201-4156

Bhook plate 1 201-1157 201-4157

Cshelf support 1 201-1158 201-4158

Dshelf clamp bracket 1 201-1159 201-4159

Ebase 1 201-1981 201-4981

Funiversal plate 1 201-1109 201-4109

Gadapter bracket 2 202-1656 202-4656

Hupright 1 580-1180 580-4180

Iglass shelf 1 590-0208 590-0208

Jtop cover 1 590-1210 590-4210

Kbutton bumper 9 590-1209 590-1209

L1/4-20 x 12 mm decorative screw 12 520-2325 520-1325

M1/4-20 x 20 mm decorative screw 2 520-2326 520-1326

N1/4-20 nut 10 530-1050 530-2031

P3/8-16 x 2.5" socket screw 3 520-9550 520-9550

Q7/32" allen wrench 1 560-9715 560-9715

R4 mm allen wrench 1 560-9646 560-9646

Sadhesive felt 1 570-0043 570-0043

TM10 x 15 mm socket screw 4 520-9262 520-9262

U6 mm allen wrench 1 560-9716 560-9716

Parts List

Before you begin, make sure all parts shown are included with your product.

4 of 35 ISSUED: 07-28-06 SHEET #: 202-9156-15 (2014-04-09)

1Cut adhesive felt (S) into four pieces as shown in ﬁgure 1.1 below and afﬁx to bottom of base (E).

Attach upright (H) to base (E) using three 3/8-16 x 2.5" socket screws (P). Tighten screws using 7/32" allen

wrench (Q).

Run cords through upright (H) using cord management holes as shown in ﬁgure 1.2.

1-1

1-2 CORD

MANAGEMENT HOLE

CORD

MANAGEMENT HOLE

ﬁg. 1.1 ﬁg. 1.2

Adapter Bracket Fasteners

M5 x 12 mm (4)

(520-1027)

M5 x 25 mm (4)

(520-9543)

M6 x 12 mm (4)

(520-1128)

M6 x 25 mm (4)

(520-1208)

.75" spacer (4)

(540-1059)

Multi-washer (4)

(580-1398)

M8 x 25 mm (4)

(520-1031)

M8 x 12 mm (4)

(520-9571)

5 of 35 ISSUED: 07-28-06 SHEET #: 202-9156-15 (2014-04-09)

Loosely attach four 1/4-20 x 12 mm screws

(L) and 1/4-20 nuts (N) to shelf support (C).

Insert three button bumpers (K) into bottom of

shelf clamp bracket (D).

Attach shelf clamp bracket (D) to shelf support (C)

using two 1/4-20 x 20 mm screws (M) and two

1/4-20 nuts (N).

Insert six button bumpers (K) into shelf support

(C).

Place glass shelf (I) on shelf support.

Slide shelf support (C) onto upright (H) so that

1/4-20 nuts (N) slide into slots of upright (H) as

shown in ﬁgure 3 and detail 1. Slide shelf support

to desired position, level, then tighten 1/4-20 x 12

mm screws (L) using 4 mm allen wrench (R).

NOTE: Max of two shelves can be used

Max height of top shelf is 34" from base.

Max height of second shelf is 28" from base.

SLOT

ﬁg. 3

DETAIL 1

4 5

5-1

3-1

4-1

6 of 35 ISSUED: 07-28-06 SHEET #: 202-9156-15 (2014-04-09)

1/8"

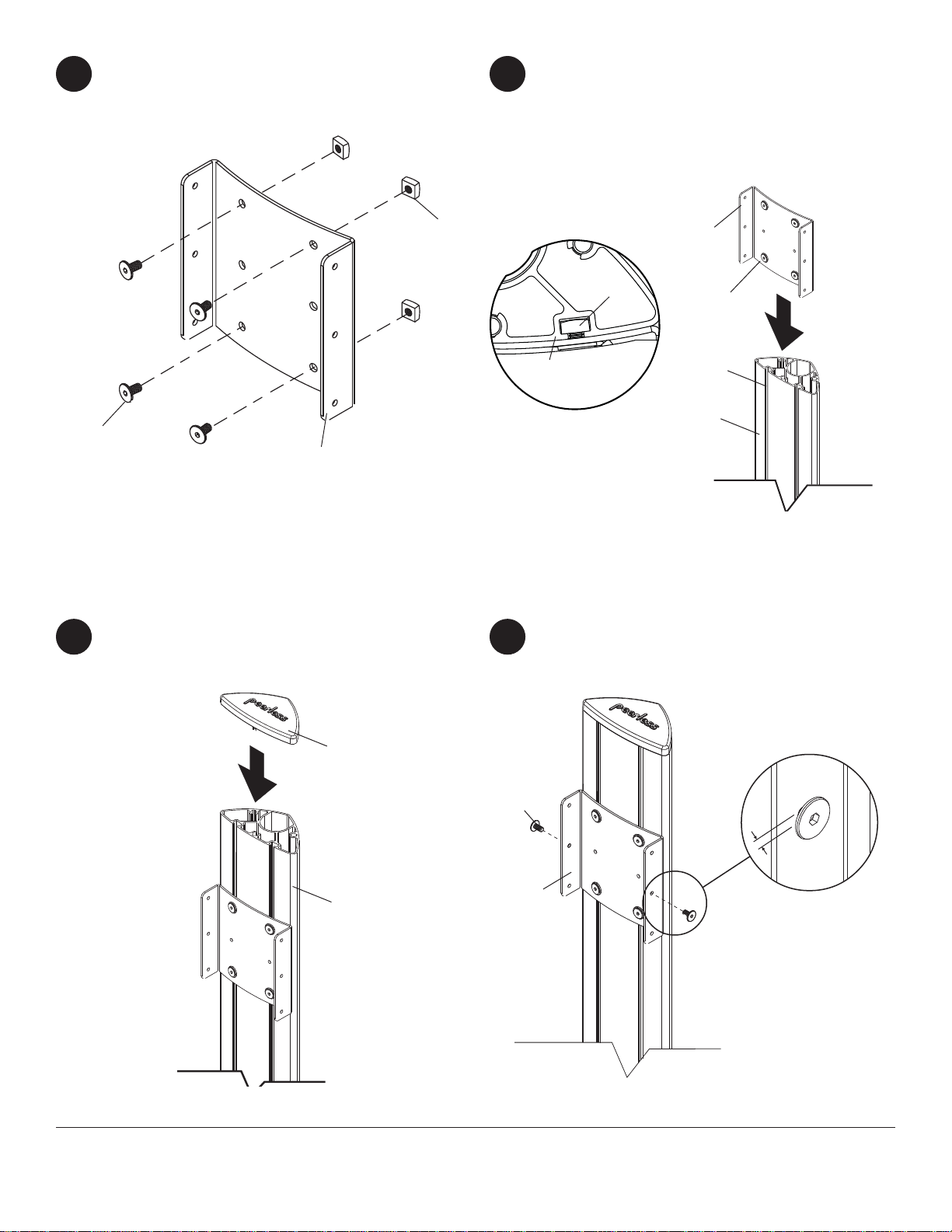

Slide display mount bracket (A) onto upright (H)

so that 1/4-20 nuts (N) slide into slots of upright

(H) as shown in ﬁgure 7 and detail 2. Slide display

mount bracket to desired position, level, then

tighten 1/4-20 x 12 mm screws (L) using 4 mm

allen wrench (R).

Insert two 1/4-20 x 12 mm screws (L) into display

mount bracket (A), leaving 1/8" of exposed thread

as shown in ﬁgure 9 and detail 3.

Loosely attach four 1/4-20 x 12 mm screws (L)

and 1/4-20 nuts (N) to display mount bracket (A).

SLOT

ﬁg. 7

Snap top cover (J) onto upright (H). 9

ﬁg. 9

DETAIL 3

DETAIL 2

7 of 35 ISSUED: 07-28-06 SHEET #: 202-9156-15 (2014-04-09)

Insert two 1/4-20 x 12 mm screws (L) into holes indicated below for desired display orientation. Tighten all screws

using 4 mm allen wrench (R).

Attach universal plate (F) to hook plate (B) using

four M10 x 15 mm socket screws (T). Tighten

screws using 6 mm allen wrench (U).

Attaching Display Using Universal Plate with Adapter Brackets

For attaching displays with VESA 100 hole pattern, skip to page 11.

11 Attach hook plate (B) to display mount bracket (A).

2° Backward Tilt 5° Forward TiltNo Tilt

8 of 35 ISSUED: 07-28-06 SHEET #: 202-9156-15 (2014-04-09)

Note: "X" dimensions should be equal.

Installing Adapter Brackets

To prevent scratching the display, set a cloth on a ﬂat, level surface that will support the weight of the display.

Place display face side down. If display has knobs on the back, remove them to allow the adapter brackets to be

attached. Place adapter brackets (G) on back of display, align to holes, and center on back of display as shown

below. Attach the adapter brackets to the back of the display using the appropriate combination of screws, multi-

washers and spacers as shown in ﬁgure 13.1 and 13.2.

NOTE: Top and bottom holes of display must always be used.

Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.

MEDIUM HOLE FOR M5 SCREWS

SMALL HOLE FOR M4 SCREWS

LARGE HOLE FOR M6 SCREWS

GCENTER BRACKETS VERTICALLY

ON BACK OF DISPLAY

Notes:

• The number of fasteners used will vary,

depending upon the type of display.

• Multi-washers and spacers may not be

used, depending upon the type of display.

• Use the corresponding hole in the multi-

washer that matches your screw size as

shown.

MULTI-WASHER

NOTE: For ﬂat back displays proceed to step 13-1. For bump-out or recessed back display skip to step 13-2.

• Tighten screws so adapter brackets are ﬁrmly attached. Do not tighten with excessive force. Overtightening can

cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become

detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

• If screws don't get three complete turns in the display inserts or if screws bottom out and bracket is still not tightly

secured, damage may occur to display or product may fail.

WARNING

9 of 35 ISSUED: 07-28-06 SHEET #: 202-9156-15 (2014-04-09)

Begin with the shortest length screw, hand thread through multi-washer and adapter bracket into display as

shown below. Screw must make at least three full turns into the mounting hole and ﬁt snug into place. Do not

over tighten. If screw cannot make three full turns into the display, select a longer length screw from the bafﬂed

fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.

NOTE: Spacers may not be used, depending upon the type of display.

Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into

display as shown below. Screw must make at least three full turns into the mounting hole and ﬁt snug into place.

Do not over tighten. If screw cannot make three full turns into the display, select a longer length screw from the

bafﬂed fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.

For Flat Back Display

For Bump-out or Recessed Back Display

DISPLAY

MULTI-WASHER

SCREW

ADAPTER

BRACKET (G)

ﬁg. 13.2

SPACER

ﬁg. 13.1

13-1

13-2

ADAPTER

BRACKET (G)

DISPLAY

MULTI-WASHER

SCREW

If you have any questions, please call Peerless customer care at 1-800-865-2112.

10 of 35 ISSUED: 07-28-06 SHEET #: 202-9156-15 (2014-04-09)

Mounting and Removing Flat Panel Display

Hook adapter brackets (G) onto universal plate (F), then slowly swing display in as shown. Turn screws clockwise

at least six times to prevent display from being removed as shown in detail 4.

NOTE: Tighten using 4 mm allen wrench (R).

Display can be adjusted horizontally if desired.

NOTE: It is important to lock display down! To lock the display down, tighten screws to adapter bracket as

shown in detail 4.

To remove display from mount, loosen screws, swing display away from mount, and lift display off of mount.

DETAIL 4

SCREWS

• Always use an assistant or mechanical lifting equipment to safely lift and position the display.

WARNING
