Peerless-AV ACC-MBCR1 User manual

12021-03-15 #:126-9259-1

300 lb

(136 kg)

MAX

ENG

ACC-MBCR1

22021-03-15 #:126-9259-1

Tools Needed for Assembly.

ENG

Do not overtighten screws.

ENG

7/16"

(11mm)

3/8"

(10mm)

Symbols

ENG

WARNING

ENG

Skip to step.

ENG

ENG To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

ENG - Before installing make sure the supporting surface will support the combined load of the equipment and

hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.

Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift

and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to



call customer care at 1-800-865-2112.

WARNING

4mm

32021-03-15 #:126-9259-1

Parts (Before beginning, make sure you have all parts shown below).

ENG

Parts List

Part #Description Qty

Aconnector tube 2 10002743-RBLK

Bsupport bracket 4 10002758-RBLK

C1/4-20 x 3/4" hex head screw 36 520-1321

D1/4-20 x 1/2" phillips screw 2 510-9108

D (2)

C (36)

1/4-20 x 3/4"

hex head screw

support bracket

1/4-20 x 1/2"

philips screw

connector tube

A (2) B (4)

78.25"

(1988mm)

MIN.

102.25"

(2597mm)

MAX.

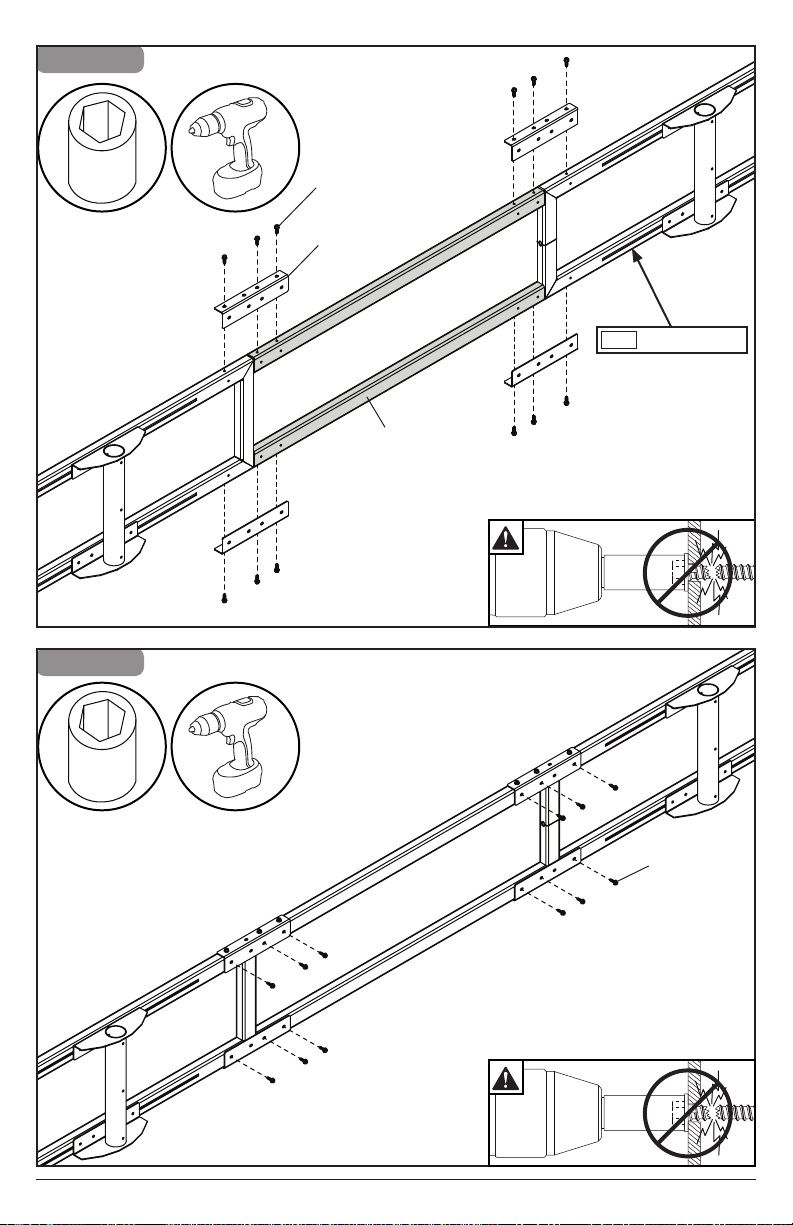

42021-03-15 #:126-9259-1

2-2

3/8"

(10mm)

3/8"

(10mm)

2-1

C (12)

B (4)

A (2)

ENG Sold separately.

C (12)

52021-03-15 #:126-9259-1

3-1

7/16"

(11mm)

3-2

ENG Loosen, adjust, tighten.

ENG Sold separately.

62021-03-15 #:126-9259-1

3-3

3-4

3-5

ENG M5 x 10mm socket pin screw (sold separately).

4mm

ENG #10 x 1/2" phillips screw (sold separately).

ENG Sold separately. ENG Sold separately.

72021-03-15 #:126-9259-1

4a-1

4c-1

4d-1

DS-MBZ942L-2X1

DS-MBZ947L-2X1

DS-MBZ942L-2X1

and ACC-MB0800

DS-MBZ947L-2X1

and ACC-MB0800

4b-1

82021-03-15 #:126-9259-1

4a-1 D

4a-2

3/8"

(10mm)

ENG 1/4-20 x 3/4" hex head screw (sold separately).

92021-03-15 #:126-9259-1

4b-1

D (2)

4b-2

3/8"

(10mm)

ENG Sold separately.

ENG 1/4-20 x 3/4" hex head screw (sold separately).

10 2021-03-15 #:126-9259-1

4c-1 D

4c-2

3/8"

(10mm)

ENG 1/4-20 x 3/4" hex head screw (sold separately).
