Peerless-AV DS-S560-1X3 User manual

12015-07-01 #:009-9120-3 (2016-05-16)

ENG

DS-S560-1X3

46" - 60"

(117 - 152 cm) 500 lb

(227 kg)

MAX

22015-07-01 #:009-9120-3 (2016-05-16)

This page intentionally left blank.

32015-07-01 #:009-9120-3 (2016-05-16)

Heavy

Do not begin to install product until you have read and understood the instructions and warnings contained in

this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

This product must be installed onto ﬂat, hard, level surface to prevent tipping. The cart or stand is not afﬁxed or

secured to the ﬂoor, and may therefore tip over and/or fall if screen and/or stand is shaken or hit. Displays must

be removed before moving cart. Not recommended for use in areas with heavy trafﬁc. This product is intended

for indoor use only. Use of this product outdoors could lead to product failure or personal injury. Screws must

be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the

Maximum Load Capacity. Be careful not to pinch ﬁngers when operating the mount. For support please call

customer care at 1-800-865-2112.

WARNING

To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

Symbols

ENG

WARNING

ENG

Display center.

ENG

Screws must get at

least three full turns

and ﬁt snug.

ENG

Do not overtighten screws.

ENG

Tools Needed for Assembly.

ENG

3/8"

(10mm)

3/8"

(10mm)

42015-07-01 #:009-9120-3 (2016-05-16)

Parts List

Part #Description Qty

Apedestal 2 146-T1132

Bcover 2 145-T1809

Cvertical leg support 6 145-T1777

Dcolumn 2 146-T1131

Eextension 2 145-T1778

Fleft adaptor bracket 3 146-1609

Gright adaptor bracket 3 146-1608

Hcross support 3 145-T1816

Icomputer cover 1 145-T1930

Jcomputer shelf 1 145-T1931

Kextension adaptor 2 145-T1935

Lcord bracket 4 146-T1321

Mknurled knob 4 560-1160

NM8 x 16mm socket button screw 56 520-9527

OM8 square nut 24 530-1066

Pcover clip 8 590-0317

QM5 x 10mm type-f, socket pin screw 8 520-1164

Rbar nut 4 146-1319

Snylon shoulder washer 12 590-2233

TM6 x 12mm socket pin screw 12 520-1050

U1/4" power bit 1 560-0263

V5mm allen wrench 1 560-9640

W4mm allen wrench 1 560-9646

XM6 x 35mm screw 8 520-0717

Yrawl bolt #6913 8 5M9-381-H03

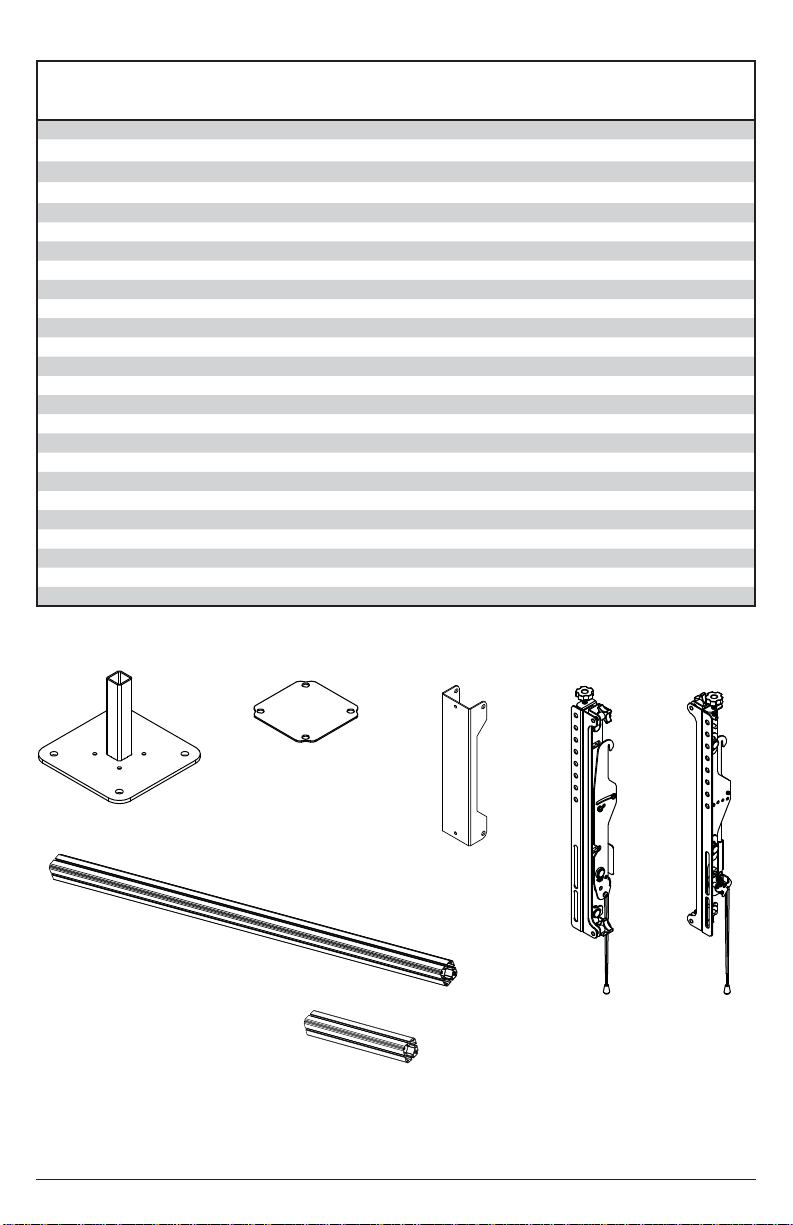

Parts (Before beginning, make sure you have all parts shown below).

E (2)

extension

B (2)

cover

D (2)

column

C (6)

vertical support

bracket

A (2)

pedestal G (3)

right adaptor

bracket

F (3)

left adaptor

bracket

52015-07-01 #:009-9120-3 (2016-05-16)

I (1)

computer cover

N (56)

M8 x 16mm O (24)

M8 square nut P (8)

cover clip Q (8)

M5 x 10mm

U (1)

1/4" power

bit

V (1)

5mm allen

wrench

nylon shoulder

washer

S (12)M6 x 12mm

T (12)

4mm allen

wrench

W (1)

J (1)

computer shelf

L (4)

cord

bracket

M (4)

knurled

knob

bar nut

R (4)

K (2)

extension

adaptor

H (3)

cross support

rawl bolt

Y (8)

M6 x 35mm

X (8)

62015-07-01 #:009-9120-3 (2016-05-16)

X (4)

72015-07-01 #:009-9120-3 (2016-05-16)

2-2

TIGHTEN

CONNECTING

HARDWARE

2-1

N (4)

R (2)

Do not fully tighten hardware

82015-07-01 #:009-9120-3 (2016-05-16)

(76mm)

3/8"

(10mm)

Y (8)

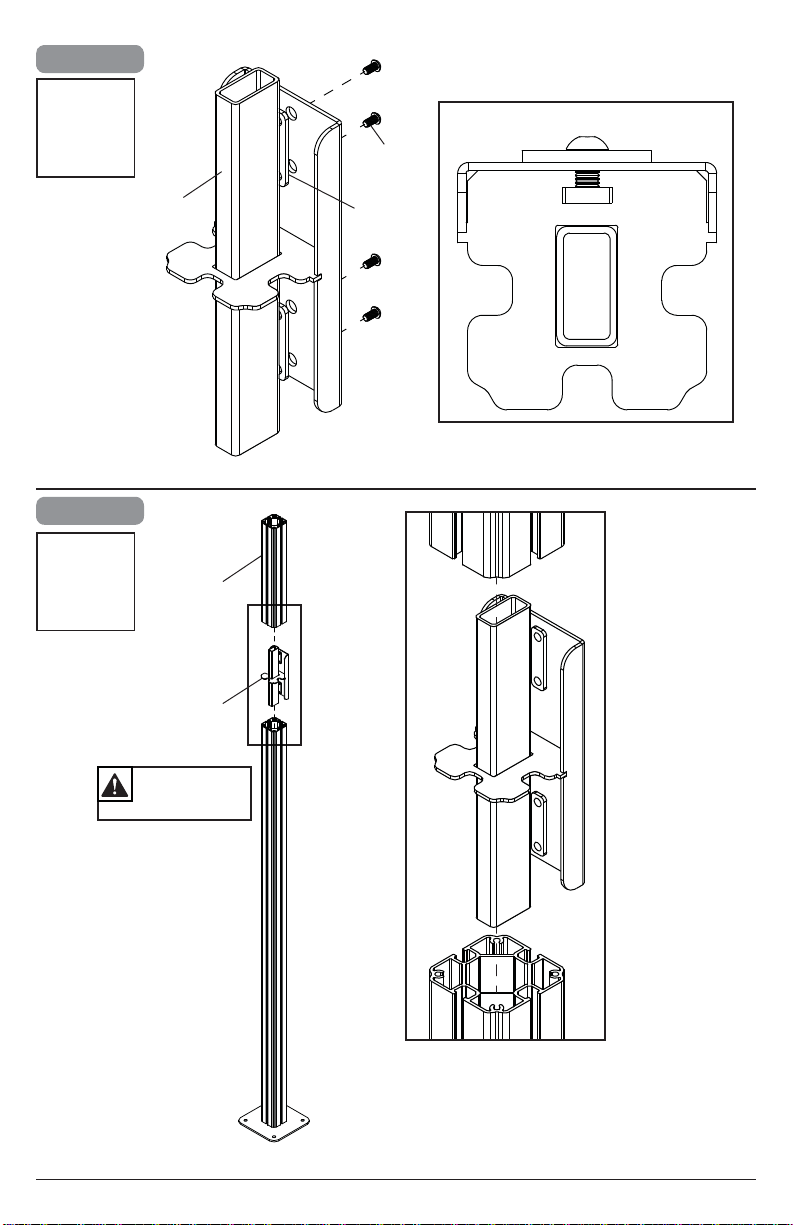

3-1

Align base. Mark mounting holes.

ENG

3-2

Drill mounting holes into

supporting surface

(3" (76 mm) minimum

depth required).

ENG

3/8"

(10mm)

3-3

Align base. Install using concrete anchors

provided.

ENG

3/8"

(10mm)

25.50"

(648mm)

Tighten.

ENG

ENG Maximum 35 ft • lb (47 N.M.).

55.00"

(1397mm)

92015-07-01 #:009-9120-3 (2016-05-16)

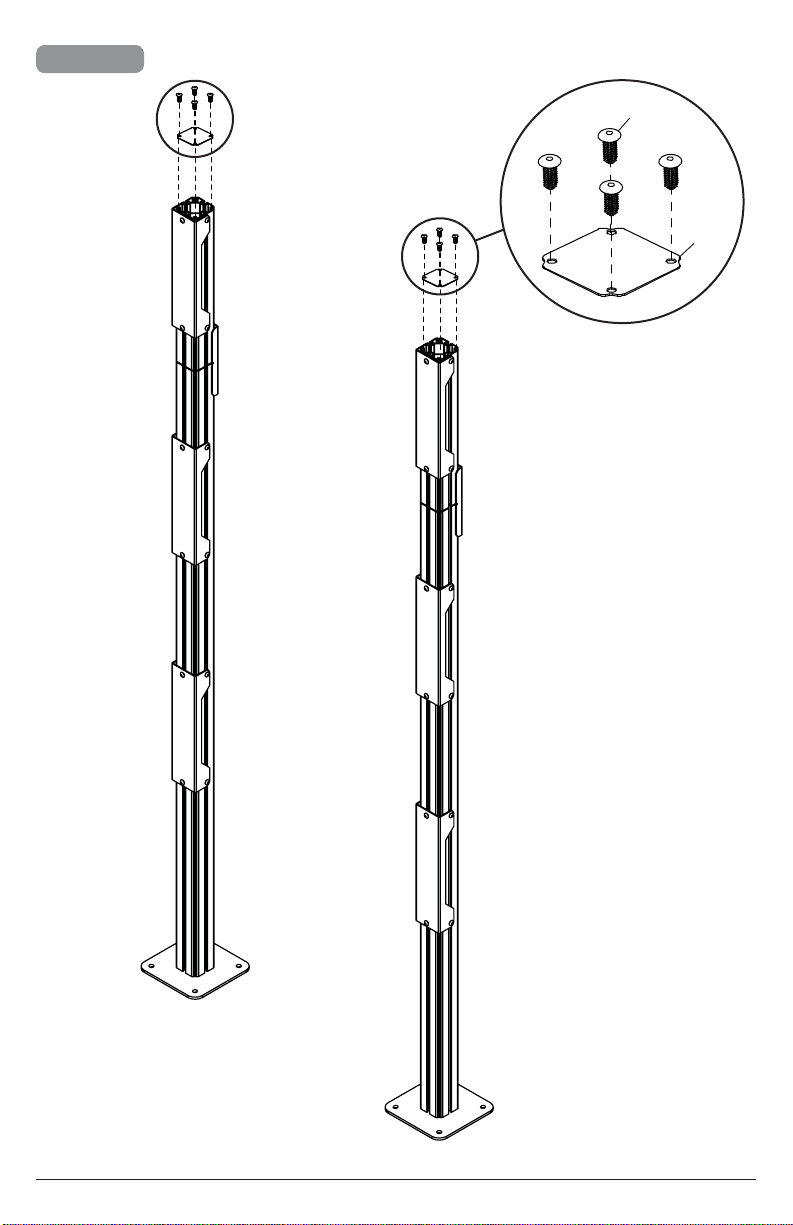

4-1

4-2

O (4)

N (2)

N (4)

C (3)

1/8"

(3mm) 1/8"

(3mm)

DISPLAY HEIGHT

TIGHTEN

CONNECTING

HARDWARE

10 2015-07-01 #:009-9120-3 (2016-05-16)

5P (4)
