peerless-AV LCFS 100 Guide
ISSUED:02-25-03 SHEET #: 095-9149-3 08-11-04
1 of 6
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

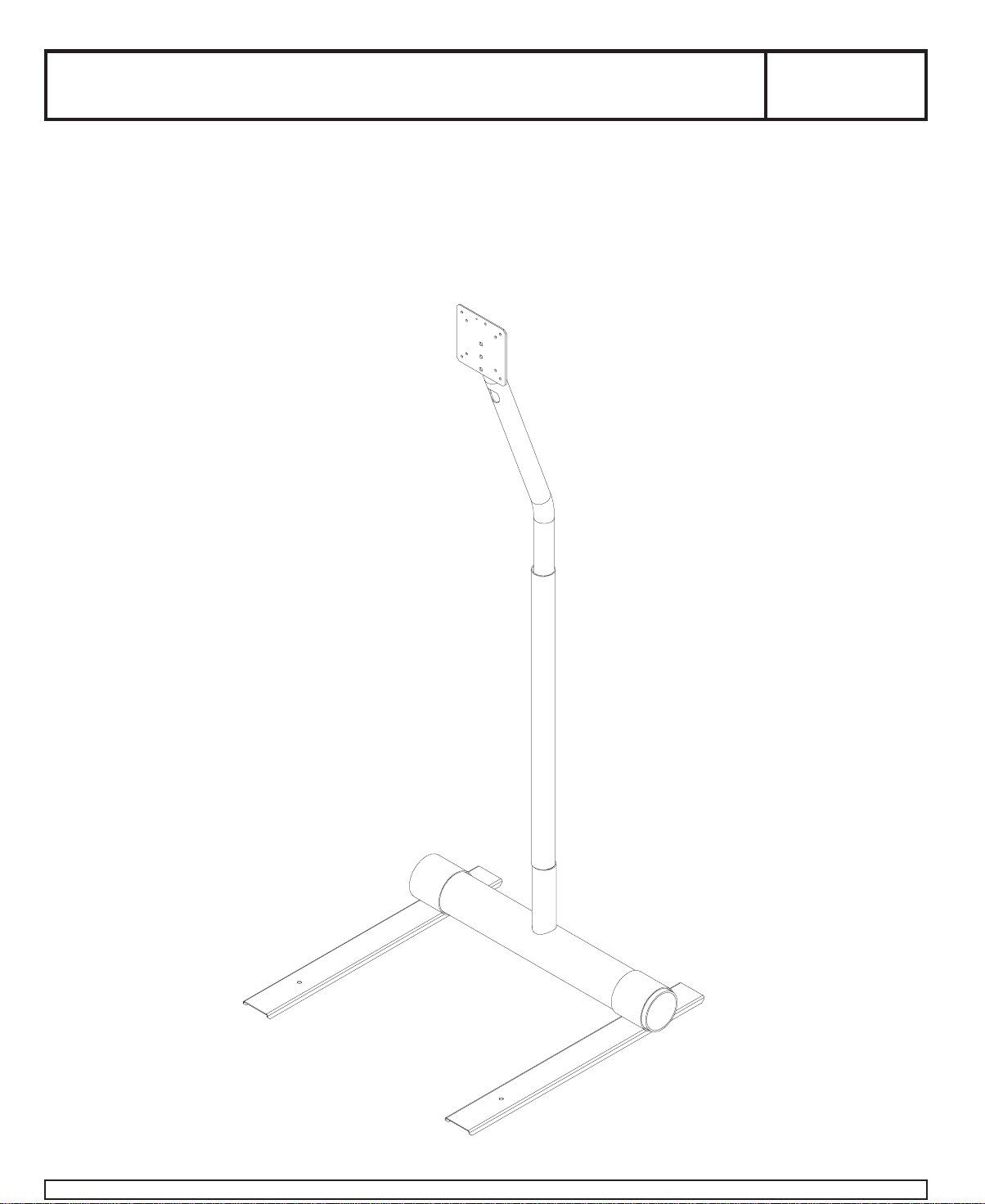

Model: LCFS 100,
LCFS 100S
InstallationandAssembly-Vision•Point™LCDScreenPedestalStand-
75/100mmAdapterPlate
Read instruction sheet before you start installation and assembly.
MaximumLoadCapacity:
25 lb (11.3 kg) - freestanding when feet are in outward
position
40 lb (18.1 kg) - bolted down to floor with screens over
25 lb or when feet are moved inwards
ISSUED:02-25-03 SHEET #: 095-9149-3 08-11-042 of 6
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

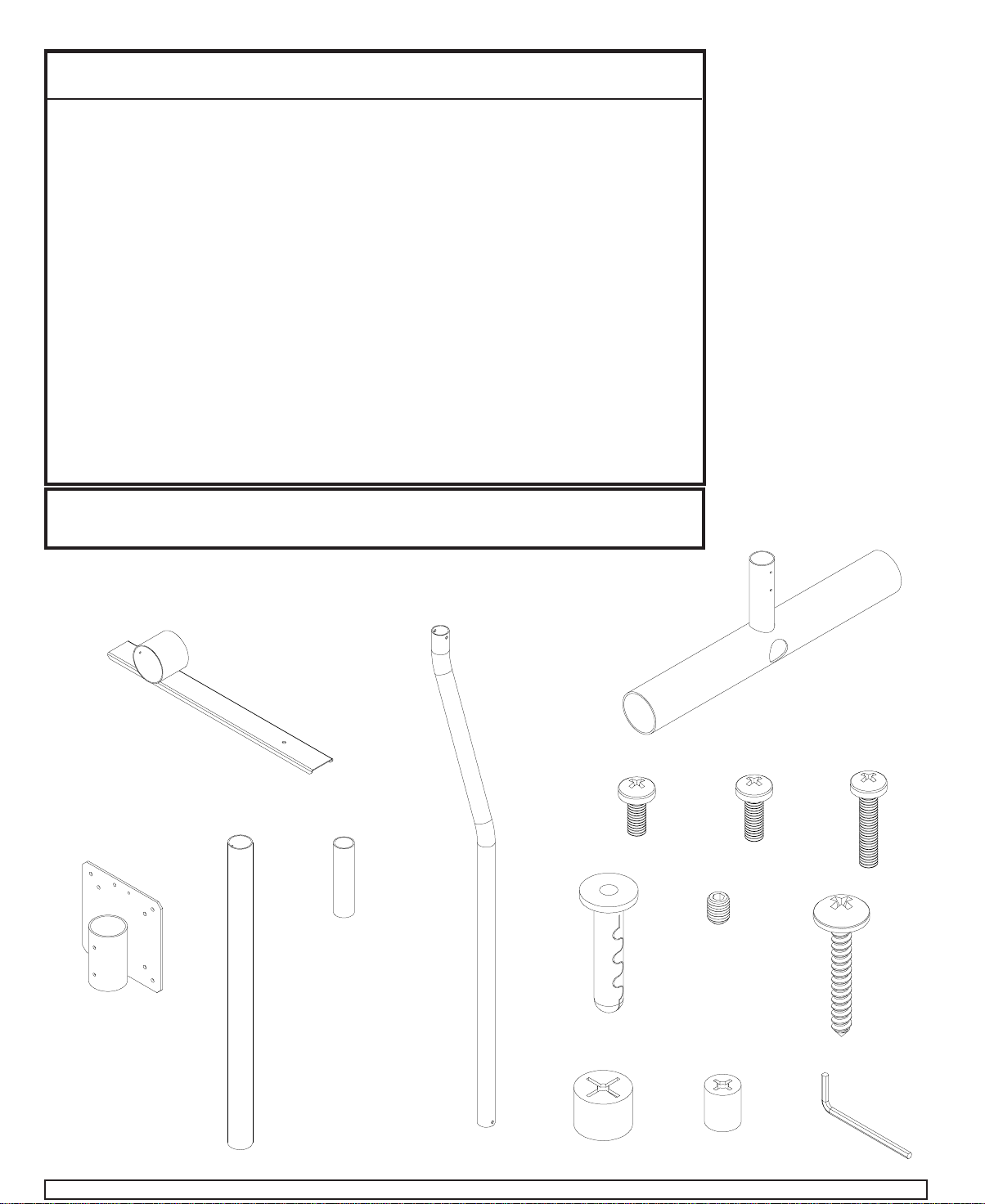

Description Qty. LCFS 100 LCFS100S
Abase foot weldment 2 095-1152 095-4152
Bmain base weldment 1 095-1154 095-4154
C75/100 mm LCD mount weldment 1 095-1156 095-4156
Dmain support tube 1 095-1157 095-4157
Emating base tube 1 095-1134 095-4134
Fangled support tube 1 095-1158 095-4158
GM4 x .7 x 10 mm phillips screw 4 504-9012 520-2027
HM4 x .7 x 12 mm phillips screw 4 504-9013 504-2013
IM4 x .7 x 20 mm phillips screw 4 504-9020 504-2014
Jconcrete anchor 4 590-0097 590-0097
K10-32 x 1/4" set screw 12 500-1086 500-2017
L#14 x 1-1/4" wood screw 4 510-9157 510-9158
M.375 x .5 x .38 retaining spacer 4 590-1160 590-1160
N.198 x .313 x .437 retaining spacer 4 590-5005 590-5003
O3/32" hex wrench 1 560-1034 560-1034
Parts List
Note: Actual parts may appear slightly different than illustrated.
AB
CDE
F
I
GH
JK
MNO
L
IMPORTANT: This product is designed to accommodate LCD screens with a VESA® 75 or
VESA 100 compliant mounting hole pattern.
ISSUED:02-25-03 SHEET #: 095-9149-3 08-11-04
3 of 6
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

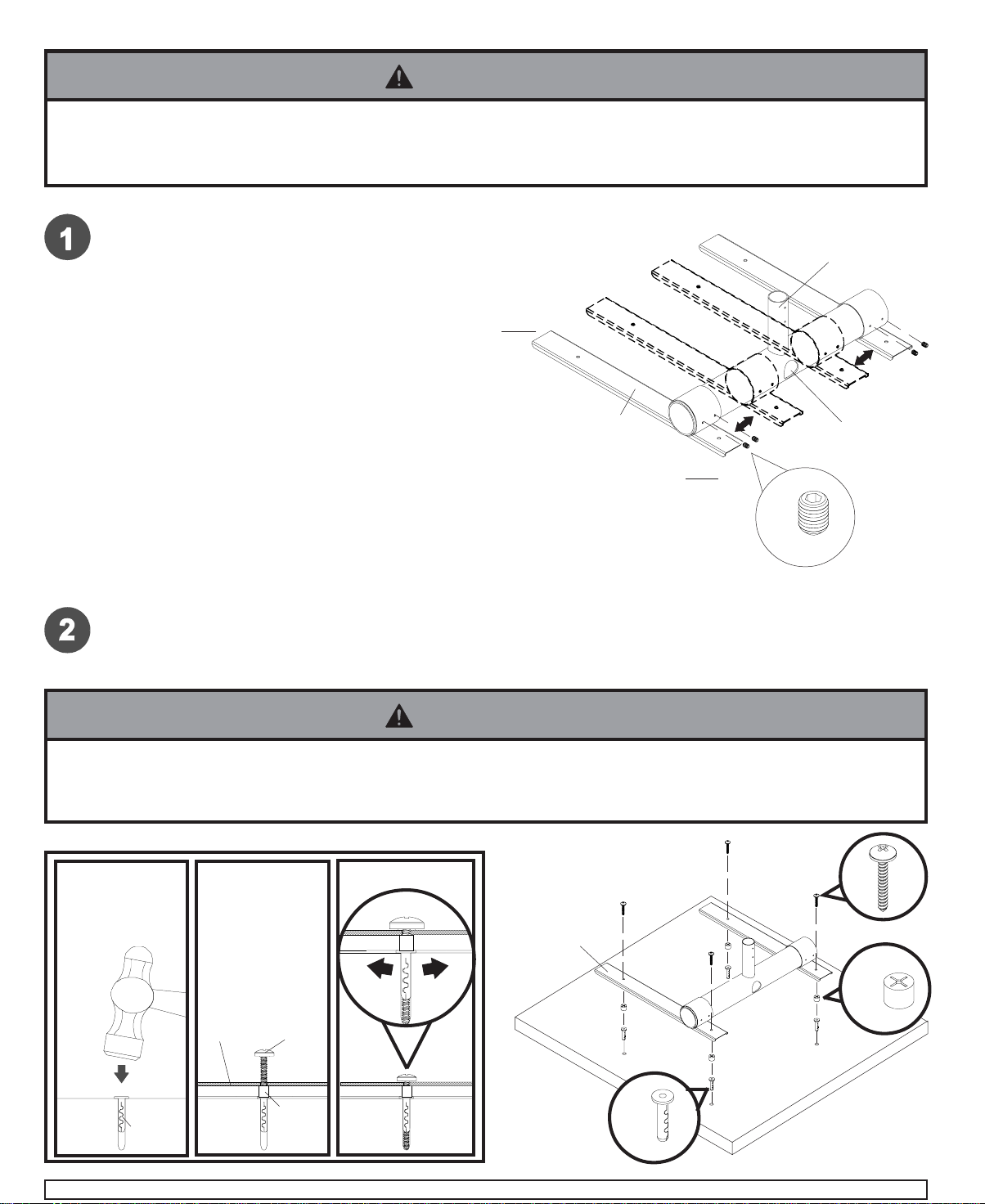

Slidebase foot weldments (A)intodesiredposition
onmain base weldment (B)asshownbelow.Make
sureuppertube is perfectly perpendicular withfloor.
Attach using four set screws (K) as shown below.
Place cord management hole either in the back or
in the front as required by your application.
K
A
B
Use base foot weldments (A) as a template to mark holes. Drill four 1/4" (6 mm) dia. holes to a minimum depth of
1-1/4"(32 mm). Insertfouranchors(J) in holesflushwithfloor as in Figure1.Placefour retaining spacers (M)over
anchors (J) as in Figure 2. Place base foot weldments (A) over retaining spacers (M) and secure with four #14 x 11/
4" wood screws (L) as in Figure 3.
A
M
J
L
13
2L
M
J
A
Drill holes and
insert anchors Place retaining
spacers and
base foot
weldments
over concrete
anchors and
insert wood
screws
Tighten screws
Installation to Concrete Floors
Front
Back
Cord
manage-
ment hole
• If base foot weldments (A) are positioned all the way outward, the Pedestal Stand can support up to a 25 lb (11.3 kg)
LCDscreen without being bolteddowntothefloor. If thebase foot weldments (A)are positioned inward alongthe base
and/or the screen weighs more than 25 lb, the Pedestal Stand MUST be bolted down to the floor.
WARNING
• Tightenwood screws so thatbase foot weldments arefirmly attached, but donot overtighten. Overtightening can
damagethescrews, greatly reducing theirholdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
ISSUED:02-25-03 SHEET #: 095-9149-3 08-11-044 of 6
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
K
Slidemain support tube(D) onto mating base tube (E)
and attach using two set screws (K).
E
D
Inserthalf of matingbase tube (E) into main base
weldment (B) and attach using two set screws (K).
B
E
K
Installation To Wood Floors
Use a stud finder to find centers of floor joists. Use base foot weldments (A) as a template to mark holes. Drill four
3/16" (5 mm) dia. holes to a minimum depth of 1-1/4" (32 mm). Place four retaining spacers (M) over holes. Place
basefootweldments(A) over retaining spacers (M)andsecurewithfour#14x1-1/4"woodscrews(L).
M
A
L
ISSUED:02-25-03 SHEET #: 095-9149-3 08-11-04
5 of 6
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
Slide LCD mount weldment (C) onto angled support tube
(F). Adjust viewing angle by swiveling LCD mount weldment
around support tube.
Insert angled support tube (F) into main support tube (D) in orientation shown.Adjust support tube (F) to the desired
height. IMPORTANT: In the highest position, the support tube (F) must be inserted at least 3-1/2" in the support tube
(D).Attach using two 1/4" set screws (K).
F
C
K
Swivel only up to
90° either way
FC
Affix LCD mount weldment (C) to support tube (A)
using two 1/4" set screws (K).
TOP VIEW
D
F
K
INCORRECT
CORRECT
• LCDMount weldment (C)canbeswiveled only up to90°
oneach side. DO NOTposition LCD mount weldment(C)
past 90° on either side. This will cause the installation to
be unstable and may result in a hazardous installation.
WARNING
ISSUED:02-25-03 SHEET #: 095-9149-3 08-11-046 of 6
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
©2004PeerlessIndustries,Inc.Allrightsreserved.
PeerlessisaregisteredtrademarkandVision•PointisatrademarkofPeerlessIndustries,Inc.
Allother brand and product names aretrademarksorregistered trademarks of their respectiveowners.

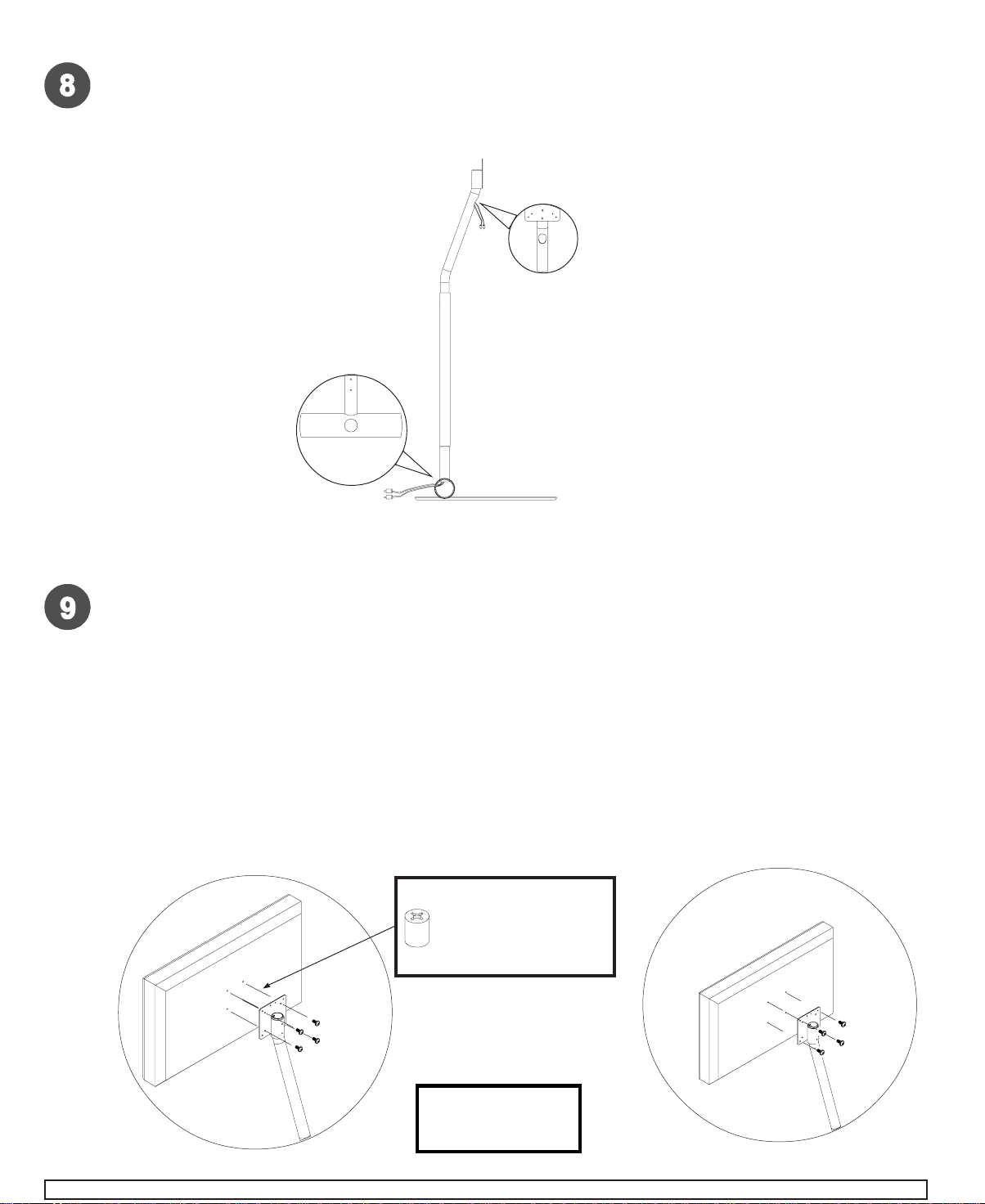

This product is designed to accommodate screens with VESA®75 or 100 compliant hole
pattern. For safe mounting, please make sure that mounting screws turn at least three
complete turns in the screen inserts.
FORVESA75MOUNTINGPATTERN:1.)Choose
holepatternindicated below. 2.) AttachLCD
mountweldment (C) to backof screen using four
10 mm screws (G) as indicated below. 3.) If hole
pattern is in a pocket, attach LCD mount weldment
(C) to back of screen using four 20 mm screws (I)
andfourretainingspacers(N)asindicatedbelow.
Screen may appear
slightlydifferentthan
illustrated.
For screens with a hole
pattern in a pocket,
spacers (N) go between
adapter bracket (A) and
screen.
FORVESA100MOUNTINGPATTERN:1.)Choosehole
patternindicatedbelow.2.)AttachLCDmountweldment
(C) to back of monitor using four M4 x 10 mm screws (G)
asindicated below. Note: If installing LCDscreenmodel
Sharp®LC-13E1U,LC-15E1U,LC-20E1U,orifyoudon't
get three complete turns in the screen inserts, use four
M4 x 12 mm screws (H) instead of four M4 x 10 mm
screws(G).
cord management
hole
cord management hole
Run cords through cord management holes as shown.
