Peerless-AV KIL740-EUK User manual

12015-07-23 #:150-9059-1

ENG

BLACK

KIL740-EUK

KIL742-EUK

KIL746-EUK

KIL747-EUK

KIL748-EUK

KIL755-EUK

SILVER

KIL740-S-EUK

KIL742-S-EUK

KIL746-S-EUK

KIL747-S-EUK

KIL748-S-EUK

KIL755-S-EUK

22015-07-23 #:150-9059-1

Symbols

ENG

WARNING

ENG x3

Screws must get at least three

full turns and ﬁt snug.

ENG

Do not overtighten screws.

ENG

ENG - Do not begin to install product until you have read and understood the instructions and warnings

contained in this user guide. This product is designed to be installed on wood stud walls. Hardware is included

for wood stud installation. Before installing make sure the supporting surface will support the combined load of

the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur

and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting

equipment to safely lift and position equipment. This product is intended for indoor use only. Use of this product

outdoors could lead to product failure or personal injury. To reduce the risk of electric shock or ﬁre, do not

expose product to water or moisture. Be sure power cord is routed so that it will not be tripped on, stepped on,

or pinched by heavy items. Avoid overloading electrical outlets or extension cords. Always disconnect the power

cord from the power outlet when installing, servicing, or not using the product for an extended period of time. Do

not block ventilation slots or fan exhaust on product. Blocking airﬂow could damage product. Arrange product

to allow air to ﬂow freely around product. Keep product away from direct sunlight or any source of heat. For

support please call 800-4-SIGNAGE.

WARNING

ENG Always use an assistant

or mechanical lifting

equipment to safely lift

and position equipment.

32015-07-23 #:150-9059-1

Tools Needed for Assembly.

ENG

5/32"

(4mm)

3/8"

(10mm)

ENG To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

42015-07-23 #:150-9059-1

Parts (Before beginning, make sure you have all parts shown below).

ENG

A (1)

L (1)

back shroud

front shroud

B (4)

M5 x 12 mm C (4)

M5 x 25 mm

D (4)

M6 x 12 mm E (4)

M6 x 25 mm

M5/M4/M6 washer

H (4)

M8 x 12 mm

F (4) M8 x 25 mm

G (4)

spacer

I (4)

K (1)

J (2)allen

wrench

M5 x 20mm

M (4)

#14 x 2-1/2" wood screw N (2)

adapter bracket

52015-07-23 #:150-9059-1

xx"

yy"

KIL740, KIL742

KIL746, KIL747, KIL748

KIL755

XX = 43.25, YY = 27.5

XX = 48.25, YY = 30.25

XX = 55.75, YY = 33.75

62015-07-23 #:150-9059-1

Mark mounting holes.

ENG

5/32"

(4 mm)

2.5"

(64mm)

5/32"

(4mm)

Drill four mounting holes.

ENG

72015-07-23 #:150-9059-1

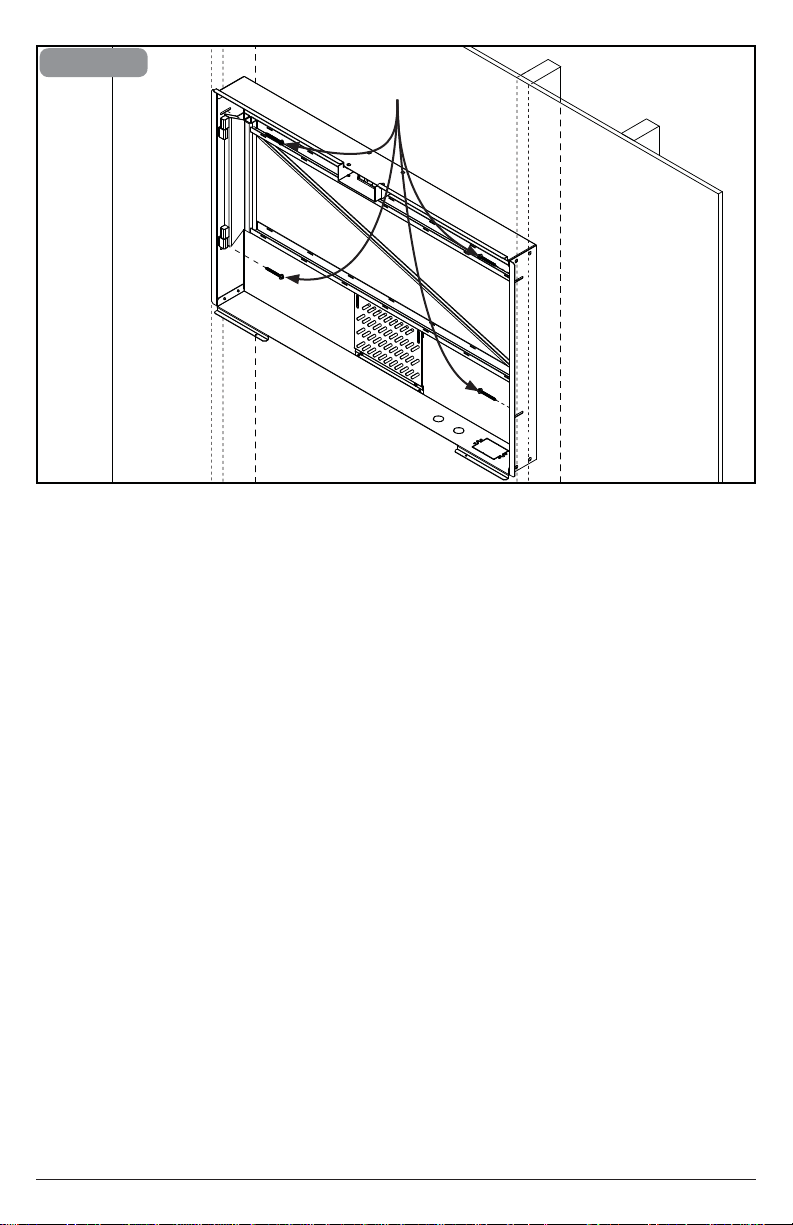

M (4)

82015-07-23 #:150-9059-1

B (4)

I (4)

H (4)

G(4) D (4) H (4)

G (4)

I (4)

H (4)

F (4)

ENG

ESP

FRN

DEU

NEL

ITL

ČEŠ

SLK

POR

TÜR

Use of spacers is OPTIONAL.

Uso de espaciadores OPCIONAL.

FACULTATIF utilisation d’entretoises.

OPTIONAL Verwendung von Abstandhaltern.

FACULTATIEF gebruik van tussenringen.

Uso OPZIONALE di distanziatori.

VOLITELNÉ použití rozpěr.

VOLITEĽNÉ použitie rozpierok.

OPCIONAL utilize espaçadores.

Ayırıcıların İSTEĞE BAĞLI kullanımı.

Screws must get at least three full turns and ﬁt snug.

Los tornillos tienen que dar, por lo menos, tres vueltas completas y quedar ajustados.

Il faut effectuer au moins trois tours de vis complets et bien serrer les vis.

Schrauben sind mindestens drei volle Umdrehungen einzudrehen und müssen fest anliegen.

De schroeven moeten ten minste drie hele slagen worden aangedraaid en stevig vastzitten.

Girare tre volte le viti che devono risultare aderenti.

Šrouby se musí otočit minimálnětři plné otáčky a plnědosednout.

Skrutky sa musia otočiťaspoňtri celé otáčky a tesne dosadnúť.

Os parafusos devem completar, no mínimo, três voltas completas e ajustar-se no local.

Vidalar en az üç tam dönüşyapmalıve sıkıoturmalıdır.

ENG

ESP

FRN

DEU

NEL

ITL

ČEŠ

SLK

POR

TÜR

Center adapter brackets vertically on back of screen.

Centre verticalmente los soportes en la pantalla.

Centrez les supports à la verticale de l’écran.

Richten Sie die Halterungen senkrecht mittig an der

Bildschirm.

Centreer de beugels verticaal op de van het scherm.

centra le staffe verticalmente sul dello schermo.

vycentrujte konzoly svisle na zadní obrazovky.

vycentrujte konzoly zvisle na obrazovky.

centre os suportes verticalmente no do ecrã.

dirsekleri ekranın arkasına dikey olarak ortalayın.

ENG

ESP

FRN

DEU

NEL

ITL

ČEŠ

SLK

POR

TÜR

E (4)

H (4)

92015-07-23 #:150-9059-1

10 2015-07-23 #:150-9059-1

1312

AJ (2)

14 15

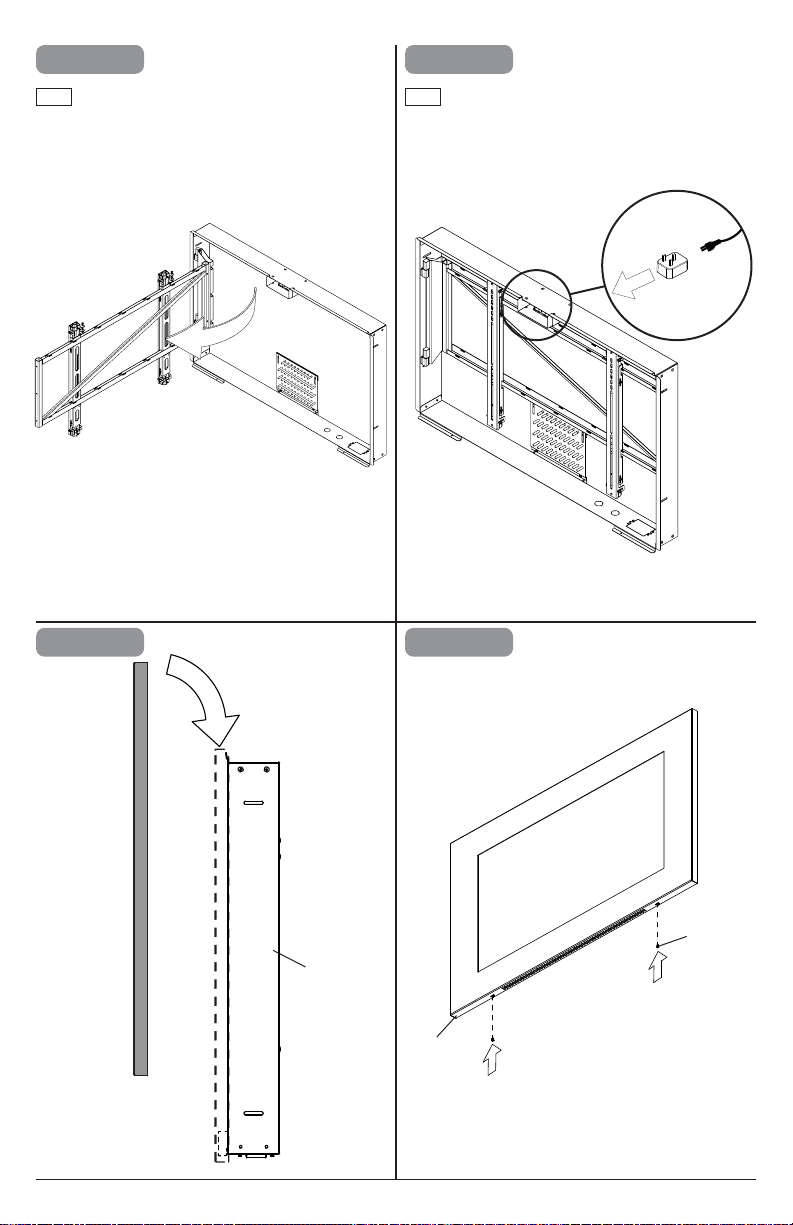

Note: Mounting Arm swings out to access

adapter brackets and behind display

ENG Plug in fan power cord. For use with two

pin sockets remove plug adapter

ENG
