Peerless-AV DS-LEDF Series User manual

12016-10-28 #:146-9007-3 (2019-06-10)

ENG

DS-LEDF

Series

*Actual conguration may vary

22016-10-28 #:146-9007-3 (2019-06-10)

To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

Symbols

ENG

WARNING

ENG

Screws must get at

least three full turns

and t snug.

ENG

Tools Needed for Assembly.

ENG

5/32"

(4mm)

3/8"

(10mm)

ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation.

Before installing make sure the supporting surface will support the combined load of the equipment and

hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.

Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift

and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to

product failure or personal injury. Be careful not to pinch ngers when operating the mount. For support please

call customer care at 1-800-865-2112.

WARNING

4mm

Do not overtighten screws.

ENG

32016-10-28 #:146-9007-3 (2019-06-10)

Parts (Before beginning, make sure you have all parts shown below).

ENG

Parts List

Part #

Description Qty

A corner bracket kit KIT-LED001-3

corner bracket asy 1

B wall plate bracket kit KIT-LED003-3

wall plate asy 1

wood screw 1

C extrusion connector kit KIT-LED004A-2

extrusion connector asy 1

Dframe anchor kit KIT-LEDWP01

frame anchor 2

wood screw 2

E corner adaptor kit KIT-LEDADP-XXXA-2

top corner bracket asy 2

bottom corner bracket asy 2

screw 4

washer (optional) 4

F side adaptor kit KIT-LEDADP-XXXB-2

outer bracket 1

screw 1

washer (optional) 1

G top center adaptor kit KIT-LEDADP-XXXC-2

top center bracket asy 1

screw 2

washer (optional) 2

Hbottom center adaptor kit KIT-LEDADP-XXXD-2

bottom center bracket 1

screw 2

washer 2

Ihorizontal spacer kit KIT-LEDSPR-XXX

outside spacer 2

inside spacer 2

J extrusion kit KIT-LEDEXTXXX

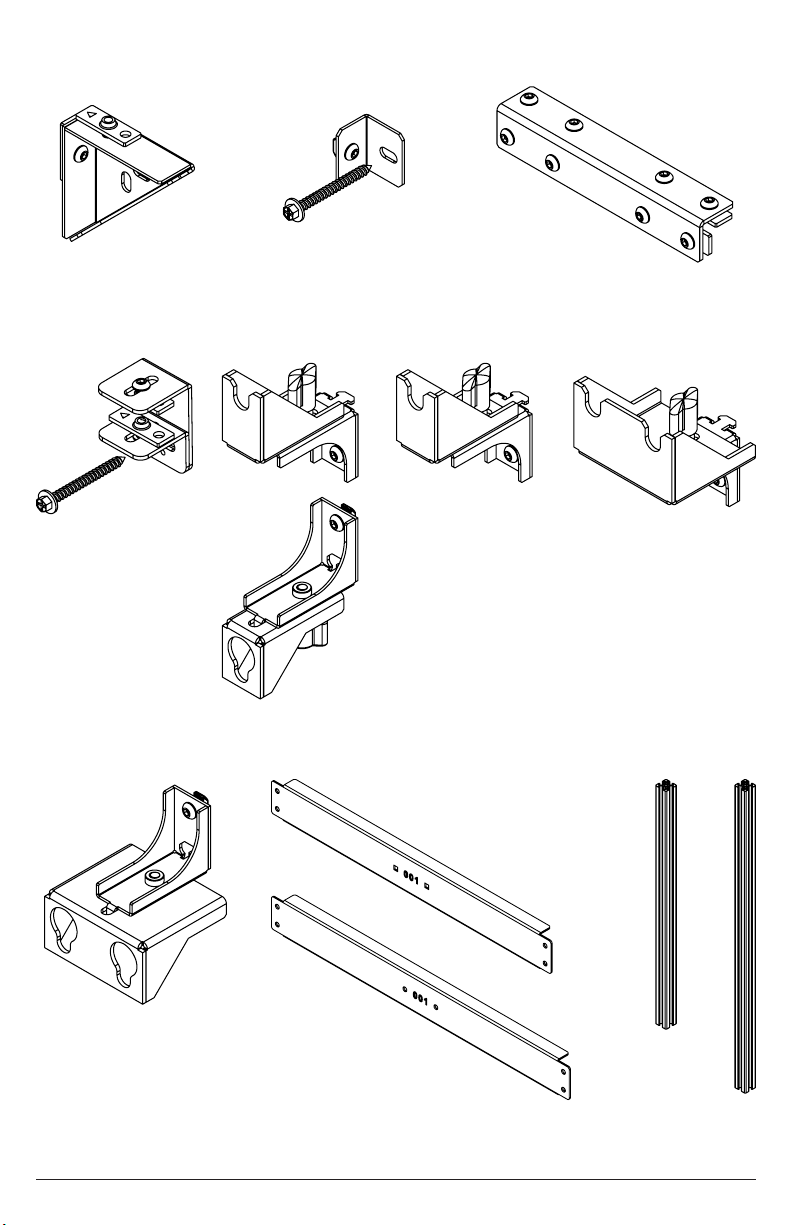

42016-10-28 #:146-9007-3 (2019-06-10)

corner adaptor

kit

frame anchor

kit

wall plate

bracket kit

corner bracket

kit

extrusion

connector kit

top center

adaptor kit

horizontal

spacer kit

side adaptor kit

bottom center

adaptor kit

extrusion kit

52016-10-28 #:146-9007-3 (2019-06-10)

Refer to layout drawing included for your

specic model.

ENG

62016-10-28 #:146-9007-3 (2019-06-10)

2-1

ENG Channel nut must start

in vertical position.

ENG Tighten screw to lock

channel nut.

Insert corner brackets into extrusion and tighten

screw to lock channel nut in place.

ENG

Left and middle columns

ENG

4mm A (2)

72016-10-28 #:146-9007-3 (2019-06-10)

2-2

ENG Channel nut must start

in vertical position.

ENG Tighten screw to lock

channel nut.

Insert corner brackets into extrusion and tighten

screw to lock channel nut in place.

ENG

Right column

ENG

4mm A (2)

82016-10-28 #:146-9007-3 (2019-06-10)

Optional: Use extrusion connector if provided.

ENG

Tighten connecting hardware.

4mm

92016-10-28 #:146-9007-3 (2019-06-10)

4-1

Tighten corner bracket hardware.

ENG

4mm

Secure right vertical column onto both horizontal

columns.

ENG

10 2016-10-28 #:146-9007-3 (2019-06-10)

4-2

Slide on wall plates in between vertical

extrusions. Refer to layout drawing included with

your model for appropriate spacing.

ENG

Tighten connecting hardware.

ENG

4mm
