PECO WavePRO™ WIRELESS SYSTEM
PECO
WavePRO
™
WIRELES
S
SYSTEM
S SYSTEMS
Conventional & heat pump applications
BLUE backlight LCD display
Program override
Temporary or permanent holds
Heat / Cool / Off / Auto changeover
system settings
Manual setback for vacations
Service indicator
Supports remote temperature sensor
Programmable (intermittent) fan
Supports multiple auxiliary heat types
A wireless thermostat transmitter & receiver system designed for use
with conventional (gas, oil, electric) or heat-pump systems.
- Receiver
K2500
System
Optimum performance
PECO WavePRO™ WIRELESS SYSTEM
Innova on & experience you can count on
2 Heat / 2 Cool stages conventional,
3 Heat / 2 Cool stages heat pump,
supporting auxiliary heat stages & the latest
compressor technology.
7-Day individual, 5-1-1, 5-2,
7-day identical programming modes,
for ultimate programming & operating fl exibility.
24 VAC, battery or both,
giving standalone use when power is lost
or not present.
Frequency Hopping Spread Spectrum,
allowing optimal performance by avoiding
interference from other wireless devices.
ISM frequency range operation (902-928 MHz),
a frequency reserved for control applications,
which is above radio/TV & below WiFi.
Pre-occupancy purge,
allowing fresh air circulation before occupancy.
T2500-001
Thermostat
2 Heat / 2 Cool Stages
Conventional
3 Heat / 2 Cool Stages
Heat Pump
R2500-001
Receiver
Gas
Electric
Oil Heat Pump
Wireless
Temperature Range 50° to 90°F (10° to 32°C )
Differential 1°F (0.5°C)
Input Power T2500 Thermostat: Two AA alkaline
batteries or 24 VAC
R2500 Receiver: 24 VAC
Output Power 24 VA - Pilot Duty
Wireless Type 902 to 928 MHz Band, FHSS
(Frequency Hopping Spread Spectrum)
Wireless Range 100 ft. minimum in open air
Operating Temperature 0° to 120°F (-17° to 48°C )
Shipping Temperature -20° to 130°F (-28° to 54°C )
Operating Humidity 5% to 95% RH, non-condensing
Physical Dimensions T2500: 4.5”H x 5.7” W x 1.2” D
R2500: 4.8"H x 3.8” W x 1.3” D
Voltage 24 VAC
Model Part Number Description
K2500 70188 PECO WavePRO System Kit
T2500 69998* PECO WavePRO programmable thermostat
wireless transmitter
R2500 70145* PECO WavePRO wireless receiver
5.7”
(14.5 cm)
1.2”
(3 cm)
4.5”
(11.4 cm)
SYS FAN PROG
T2500 Wireless Thermostat
K2500
System
Automation & Controls
Division of PECO, Inc.
Portland, OR 97282
800-874-8547 or 503-233-6401
www.pecomanufacturing.com
PECO WavePRO™ WIRELESS SYSTEM

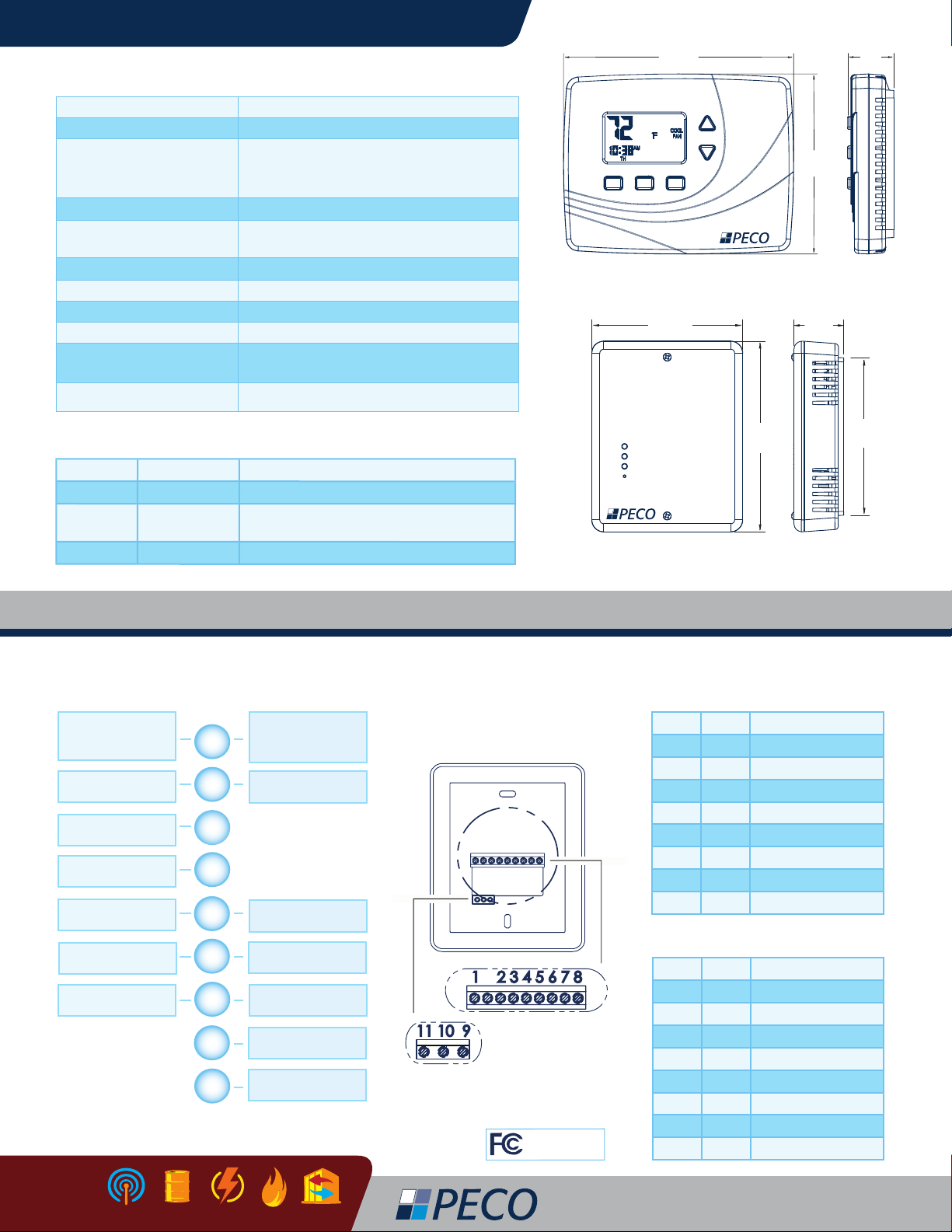

Technical Data
Term. Name Function
1 C 24VAC 2
2 R 24VAC 1
3 Y1 Cooling stage 1
4 Y2 Cooling stage 2
5 W1 Heating stage 1
6 W2 Heating stage 2
7 A Economizer
8GFan
Term. Name Function
1 C 24VAC 2
2 R 24VAC 1
3 Y1 Compressor 1
4 Y2 Compressor 2
5 O/B Reversing valve
6 AU Aux Heat/Emerg.
7 A Economizer
8 G Fan
Model Selection Guide
Specifications
Terminal Descriptions
2 Heat / 2 Cool Conventional
3 Heat / 2 Cool Heat Pump
1 2 3 4 5 6 7 8
11 10 9
R2500 Terminal Block
PECO Wireless Thermostats
Conventional Heat Pump
C
R
W
W2
Y
Y2
G
Aux
E
Common from
secondary side
system transformer
Power to
system transformer
First stage of heat
relay / contactor
Second stage of heat
relay / contactor
First stage of cool
relay / contactor
Second stage of cool
relay / contactor
Fan Relay
Common from
secondary side of
system transformer
Power to
system transformer
Auxiliary heat
relay / contactor
Fan Relay
Second stage of
compressor contactor
Emergency heat
relay / contactor
First stage of
compressor contactor
3.8”
(9.7 cm)
4.8”
(12.2 cm)
1.3”
(3.3 cm)
4”
(10.2 cm)
THERMOSTAT
OCCUPANCY
DOOR SWITCH
R2500 Wireless Receiver
* Parts NOT sold separately
DS-K2500-R1 5/10
Gas
Electric
Oil Heat Pump
Wireless
